In brief111Turn and lane-change
signals, headlight flash,
low beam and high beam ....118
Exit lighting ......................... 121
Parking lights ...................... 119
Buttons for Driver
Information Centre ................97
2 Instruments .......................... 83
3 Forward collision alert
indicator ............................. 157
4 Driver Information Centre ...... 97
5 Infotainment controls ...........76
6 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 77
7 Central locking system ..........24
City mode ............................ 153
Fuel selector ......................... 86
Eco button for stop-start
system ................................. 136
Traction Control system .....151
Electronic Stability Control . 152Parking assist ..................... 160
Lane departure warning ........76
Seat heating .......................... 40
Heated steering wheel ..........76
8 Anti-theft alarm system
status LED ........................... 28
9 Hazard warning flashers ....117
Control indicator for airbag deactivation .......................... 92
Control indicator for front
passenger seat belt .............91
10 Info-Display ........................ 101
11 Centre air vents .................. 131
12 Side air vents, passenger
side ..................................... 131
13 Airbag deactivation ..............49
14 Glovebox .............................. 57
15 Climate control system ........ 123
16 Power outlet .......................... 82
17 USB input .............................. 10
18 Selector lever ...................... 141
19 Parking brake ......................150
20 Ignition switch with
steering wheel lock ............13421Horn ..................................... 77
Driver airbag ........................ 47
22 Bonnet release lever ..........192
23 Steering wheel adjustment ..76
24 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Rear fog light ...................... 118
Front fog lights ....................118
Brightness of instrument
panel illumination ................119
Fuse box ............................ 210
25 Power windows .....................32
26 Exterior mirrors .....................30
27 Cruise control .....................154
Speed limiter ...................... 156
Forward collision alert ........157

In brief131Turn and lane-change
signals, headlight flash,
low beam and high beam ....118
Exit lighting ......................... 121
Parking lights ...................... 119
Buttons for Driver
Information Centre ................97
2 Instruments .......................... 83
3 Forward collision alert
indicator ............................. 157
4 Driver Information Centre ...... 97
5 Infotainment controls ...........76
6 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer
system ................................... 77
7 Central locking system ..........24
City mode ............................ 153
Fuel selector ......................... 86
Eco button for stop-start
system ................................. 136
Traction Control system .....151
Electronic Stability Control . 152Parking assist ..................... 160
Lane departure warning ........76
Seat heating .......................... 40
Heated steering wheel ..........76
8 Anti-theft alarm system
status LED ........................... 28
9 Hazard warning flashers ....117
Control indicator for airbag deactivation .......................... 92
Control indicator for front
passenger seat belt .............91
10 Colour-Info-Display ............101
Graphic-Info-Display ...........102
11 Centre air vents .................. 131
12 Side air vents, passenger
side ..................................... 131
13 Airbag deactivation ..............49
14 Glovebox .............................. 57
15 Climate control system ........ 123
16 Power outlet .......................... 82
17 USB input .............................. 10
18 Selector lever ...................... 141
19 Parking brake ......................15020Ignition switch with
steering wheel lock ............134
21 Horn ..................................... 77
Driver airbag ........................ 47
22 Bonnet release lever ..........192
23 Steering wheel adjustment ..76
24 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Rear fog light ...................... 118
Front fog lights ....................118
Brightness of instrument panel illumination ................119
Fuse box ............................ 210
25 Power windows .....................32
26 Exterior mirrors .....................30
27 Cruise control .....................154
Speed limiter ...................... 156
Forward collision alert ........157

Keys, doors and windows35
Raise
Hold switch ü depressed until the
sunroof is raised at the rear.
Open
From raised position press and
release switch ü: the sunroof is
opened automatically up to end
position. To stop movement before
endposition, operate switch once
more.
Close
Hold switch d depressed from any
position until sunroof is closed
completely. Releasing the switch
stops movement in any position.Caution
When using a roof rack, check the free movement of the sunroof in
order to avoid damage. It is only
permitted to raise the sunroof.
Note
If the top of the roof is wet, tilt
sunroof, allow water to run off and
then open sunroof.
Do not affix any stickers to sunroof.
Sunblind The sunblind is manually operated.
Close or open the sunblind by sliding. Sunblind is usable in each sunroofposition.
Overload
If the system is overloaded, the power
supply is automatically cut-off for a
short time. The system is protected by
fuses in the fuse box 3 207.
Initialising the sun roof
If the sunroof cannot be operated,
activate the electronics as follows:
with ignition on close the sunroof and
hold d depressed for at least ten
seconds.
Seek the assistance of a workshop to
have the cause of the fault remedied.

190Vehicle careVehicle careGeneral Information...................191
Accessories and vehicle modifications .......................... 191
Vehicle storage ........................191
End-of-life vehicle recovery .....192
Vehicle checks ........................... 192
Performing work ......................192
Bonnet ..................................... 192
Engine oil ................................. 193
Engine coolant ......................... 194
Washer fluid ............................ 195
Brakes ..................................... 196
Brake fluid ............................... 196
Vehicle battery ......................... 196
Diesel fuel system bleeding .....198
Wiper blade replacement ........198
Bulb replacement .......................199
Halogen headlights ..................199
Xenon headlights .....................201
Fog lights ................................. 202
Front turn signal lights .............203
Tail lights ................................. 203
Side turn signal lights ..............205
Centre high-mounted brake light ......................................... 206Number plate light...................206
Interior lights ............................ 206
Instrument panel illumination ...206
Electrical system ........................207
Fuses ....................................... 207
Engine compartment fuse box . 208
Instrument panel fuse box .......210
Vehicle tools .............................. 212
Tools ........................................ 212
Wheels and tyres .......................213
Winter tyres ............................. 213
Tyre designations ....................213
Tyre pressure .......................... 213
Tyre pressure monitoring system .................................... 215
Tread depth ............................. 219
Changing tyre and wheel size . 219
Wheel covers ........................... 219
Tyre chains .............................. 220
Tyre repair kit .......................... 220
Wheel changing .......................225
Spare wheel ............................ 228
Jump starting ............................. 230
Towing ....................................... 231
Towing the vehicle ...................231
Towing another vehicle ...........232Appearance care .......................233
Exterior care ............................ 233
Interior care ............................. 236

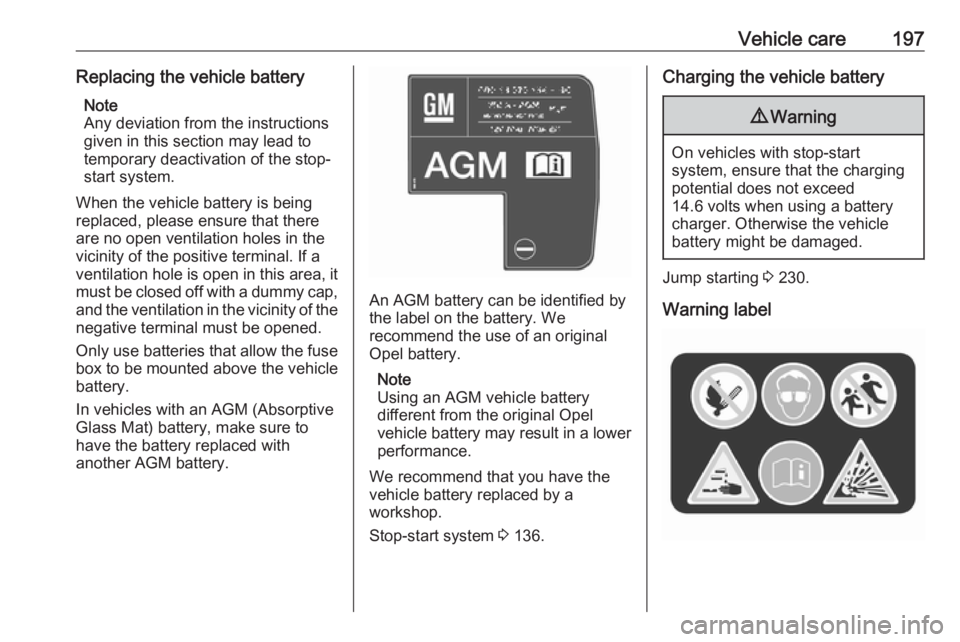

Vehicle care197Replacing the vehicle batteryNote
Any deviation from the instructions
given in this section may lead to
temporary deactivation of the stop-
start system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
must be closed off with a dummy cap,
and the ventilation in the vicinity of the negative terminal must be opened.
Only use batteries that allow the fuse
box to be mounted above the vehicle
battery.
In vehicles with an AGM (Absorptive
Glass Mat) battery, make sure to
have the battery replaced with
another AGM battery.
An AGM battery can be identified by
the label on the battery. We
recommend the use of an original
Opel battery.
Note
Using an AGM vehicle battery
different from the original Opel
vehicle battery may result in a lower
performance.
We recommend that you have the vehicle battery replaced by a
workshop.
Stop-start system 3 136.
Charging the vehicle battery9 Warning
On vehicles with stop-start
system, ensure that the charging potential does not exceed
14.6 volts when using a battery
charger. Otherwise the vehicle
battery might be damaged.
Jump starting 3 230.
Warning label

Vehicle care207Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
● in the front left of the engine compartment
● in left-hand drive vehicles, behind
the light switch, or, in right-hand
drive vehicles, behind the
glovebox
Before replacing a fuse, turn off the
respective switch and the ignition.There are different kinds of fuses in
the vehicle.
Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractorA fuse extractor may be located in the
fuse box in the engine compartment.
Place the fuse extractor on the
various types of fuse from the top, and withdraw fuse.

208Vehicle careEngine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.
No.Circuit1Trailer interface module, rear
carrier system2-3Battery sensor4Chassis control module fuel
pump5ABS6Low beam and Daytime running
light left, Xenon high beam
shutter left and right7–8MTA Transmission control
module, LPG control module9Body control module voltage
detection10Headlamp levelling11Rear wiper12Heated rear window13Low beam and Daytime running
light right

210Vehicle careNo.Circuit1ABS pump2Front wiper3Blower4Instrument panel5Cooling fan6Diesel fuel heater7Transmission8Cooling fan9Cooling fan10Cooling fan11Starter
After having changed defective fuses
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunction may occur.
Instrument panel fuse box Left-hand drive vehicles
The fuse box is behind the light switch
in the instrument panel. Hold the
handle, then pull and fold down the
light switch.
Right-hand drive vehicles
The fuse box is located behind a
cover in the glovebox. Open the
glovebox, then open the cover and
fold it down.
