2016 YAMAHA YZF-R1M display

Instrument and control functions
4-23
1
2
34
5
6
7
8
9
10
11
12 2. “km or mile” and “km/L or L/
100km” are displayed.
TIPFor markets with kilometer-based mod-
els, only “km/L or L/100km” is dis-played.
3. Select the distance or consump- tion unit item you want to adjust. 4. Select the units you want to use.
5. Select the triangle symbol to exit.
“Wallpaper”
This module allows you to individually
set the STREET MODE and TRACK
MODE display background colors to
black or white for both day and night
settings. A photo sensor equipped in the instrument panel detects lighting
conditions and will automatically
change the display between its day and
night settings. The photo sensor also
controls a subtle automatic brightness
adjustment function within both day
and night modes to suit ambient light
conditions.
To set the wallpaper
1. From the MENU screen, select
“Wallpaper”.
km/h
1. Photo sensor
1
2CR-9-E1.book 23 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-24
1
2
345
6
7
8
9
10
11
12
2. Select the mode you want to adjust
(select DAY for daytime display
settings or NIGHT for nighttime
display settings).
3. Select the background color (se- lect BLACK for a black background
or WHITE for a white background).
4. Select the triangle symbol to exit.
5. To set another background color, repeat from step 2 or select the tri-
angle symbol to exit this module.
“Shift indicator”
The shift indicator module contains the
following items. To make setting changes
1. Select “Shift IND Setting”.
2. Select “IND Mode”.
3. Select “ON” to have the indicator light steadily, “OFF” to turn the in-
dicator off, or “Flash” to have the
shift indicator flash when the indi-
cator start threshold has been
reached.
Display Description
Shift IND Setting Set the shift indicator
pattern to “ON”, “Flash”, or
“OFF” and adjust at what
r/min the indicator will
come on and go off.
Shift IND
Brightness Adjust the brightness of
the shift indicator.
Tach IND Setting Set the tachometer color
display to “ON” or “OFF”
and adjust at what r/min
the tachometer will be
green and orange.
Peak Rev IND Setting Set the tachometer peak
rev indicator to “ON” or
“OFF”.
Shift Indicator
km/h
x 1000 r/min
GPS
12
:
00
Shift IND Setting
IND Mode
IND Start
IND Stop ON
10000
r/min
15000
r/min
2CR-9-E1.book 24 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-25
1
2
34
5
6
7
8
9
10
11
12 4. Select “IND Start”.
5. Rotate the wheel switch to adjust
the r/min at which the shift timing
indicator light will come on. “IND
Start” operational range is
8000–14800 r/min. 6. Select “IND Stop” then rotate the
wheel switch to adjust the r/min at
which the shift timing indicator will
go off. “IND Stop” operational
range is 8500–15000 r/min.
TIPThe blue area on the tachometer indi-
cates the currently set operationalrange of the shift indicator light.
“Shift IND Brightness”
The shift timing indicator light has six
brightness levels. Select “Shift IND Brightness”, then use
the wheel switch to adjust the setting.
Short push the wheel switch to confirm
the setting and exit.
“Tach IND Setting”
This function allows you to turn the ta-
chometer color display on or off. When
turned off, the tachometer will display
all r/min levels below the red zone in
Shift Indicator
km/h
x 1000 r/min
GPS
12
:
00
Shift IND Setting
IND Mode
IND Start
IND Stop ON
10000
r/min
15000
r/min
Shift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Shift IND Setting
IND Mode
IND Start
IND Stop ON
10000
r/min
15000
r/min
Shift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Shift IND Setting
IND Mode
IND Start
IND Stop ON
10000
r/min
15000
r/min
2CR-9-E1.book 25 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-26
1
2
345
6
7
8
9
10
11
12
black or white (depending on wallpaper
settings). When turned on, the mid and
mid-to-high r/min zones can be set to
come on in green and then orange col-
ors.
1. Select “Tach IND Setting”.
2. Select “IND Mode”. 3. Select ON to turn the tachometer
color display mode on (or select
OFF to turn this function off).
4. Select “Tach IND 1st” to set the green zone starting r/min.
5. Set the starting r/min by rotating and then short pushing the wheel
switch. All r/min above this value
up to the “Tach IND 2nd” setting value (or the 14000 r/min red
zone), will be displayed in green.
TIPGreen bar start setting range:8000–10000 r/min.
6. Select “Tach IND 2nd”.
7. Set the orange color starting r/min by rotating and then short pushing
Shift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2nd
Shift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2ndShift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2nd
Shift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2ndShift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2nd
2CR-9-E1.book 26 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-27
1
2
34
5
6
7
8
9
10
11
12 the wheel switch. All r/min above
this figure until the 14000 r/min red
zone, will be displayed in orange.
TIPOrange bar start setting range:8000–14000 r/min.
8. Select the triangle symbol to exit. “Peak Rev IND Setting”
This module allows you to turn the rev-
olution peak hold indicator on or off.
1. Select “Peak Rev IND Setting”.
2. Select “IND Mode” and then select ON (to turn on the indicator) or
OFF (to turn off the indicator).
3. Select the triangle symbol to exit. “Display Setting”
This module allows you to set how the
information display items (like TRIP-1,
ODO, C. TEMP, etc.) are grouped on
the main screen. There are four display
groups.
Shift Indicator
km/h
x 1000 r/min
GPS
12
:
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2ndShift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2nd
1. Information display item (STREET MODE)
1. Information display item (TRACK MODE)
ODO
12345
km
TRIP-2
1234.5
km
1
Ny 2 km/h
·1000 r/minMODE -
A
TCS
1
SCS
1
A
-
1
LCS
QS
LIF
GPS
12 :
00
PWR
1
1
MODE -
A
PWR
1
TCS
1
SCS
1
km/h
123
ODO
km
7890
GEARN
LAP 09
LATEST12
12 34
·1000 r/min
A
-
1
LC LCS
QS
LIF
GPS
12 :
00
1
2CR-9-E1.book 27 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Instrument and control functions
4-28
1
2
345
6
7
8
9
10
11
12

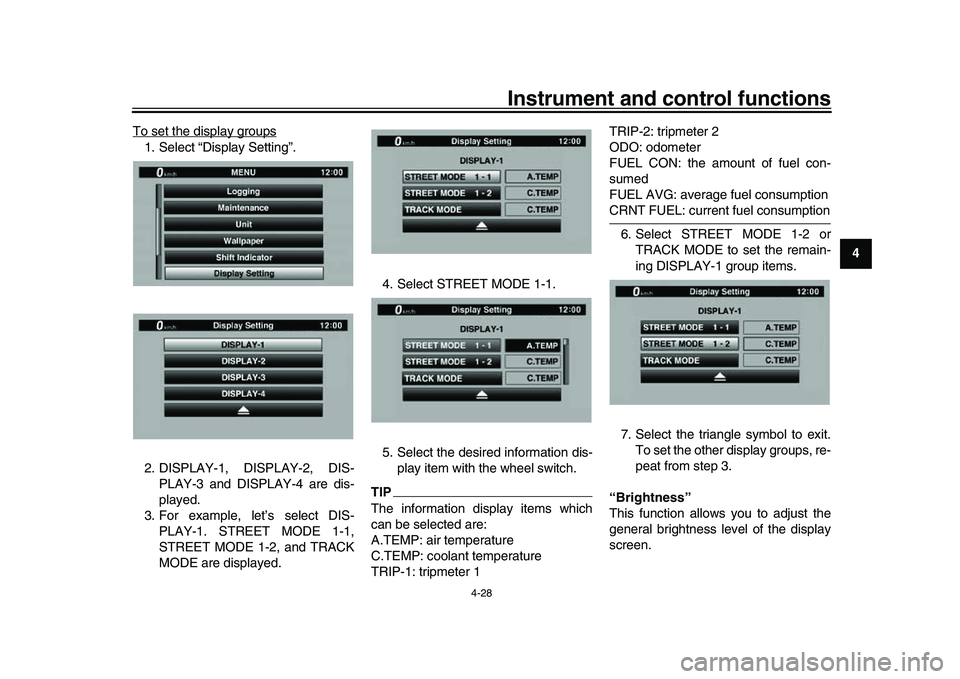

To set the display groups
1. Select “Display Setting”.
2. DISPLAY-1, DISPLAY-2, DIS-
PLAY-3 and DISPLAY-4 are dis-
played.
3. For example, let’s select DIS- PLAY-1. STREET MODE 1-1,
STREET MODE 1-2, and TRACK
MODE are displayed. 4. Select STREET MODE 1-1.
5. Select the desired information dis-
play item with the wheel switch.
TIPThe information display items which
can be selected are:
A.TEMP: air temperature
C.TEMP: coolant temperature
TRIP-1: tripmeter 1 TRIP-2: tripmeter 2
ODO: odometer
FUEL CON: the amount of fuel con-
sumed
FUEL AVG: average fuel consumption
CRNT FUEL: current fuel consumption
6. Select STREET MODE 1-2 or TRACK MODE to set the remain-
ing DISPLAY-1 group items.
7. Select the triangle symbol to exit. To set the other display groups, re-
peat from step 3.
“Brightness”
This function allows you to adjust the
general brightness level of the display
screen.
2CR-9-E1.book 28 ページ ２０１５年８月２０日　木曜日　午後４時４６分

6-1
1
2
3
4
567
8
9
10
11
12
Operation and important riding points
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU68220
TIPThis model is equipped with:
an inertial measurement unit (IMU)
that will stop the engine in case of
a turnover. In this case, the display
will indicate error code 30, but this
is not a malfunction. Turn the key
to “OFF” and then to “ON” to clear
the error code. Failing to do so will
prevent the engine from starting
even though the engine will crank
when pushing the start switch.

an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start switchto restart the engine.
EAU67072
Starting the engineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up. (See page 4-47.)
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off.
Fuel level warning light

Shift timing indicator light

Engine trouble and system
warning light

Stability control indicator light

Immobilizer system indicator
light
The ABS warning light should
come on when the key is turned to
“ON” and stay on until the vehicle
reaches a traveling speed of 10
km/h (6 mi/h).
The oil pressure and coolant tem-
2CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分

8-1
1
2
3
4
5
6
78
9
10
11
12
Motorcycle care and storage
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU67140
CareWhile the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning 1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all electrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA22530

Avoid using strong acidic wheel
cleaners, especially on spoked
or magnesium wheels. If such
products are used on
hard-to-remove dirt, do not
leave the cleaner on the affected
area any longer than instructed.
Also, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.

Improper cleaning can damage
such parts as cowlings and pan-
els, the windshield, the instru-
ment panel and display, wheels,
headlight lenses, plastic or car-
bon fiber parts, etc., and the
mufflers. Use only a soft, clean
cloth or sponge to clean such
parts. However, if such parts
cannot be thoroughly cleaned,
2CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分
