Table of contentsSafety information............................ 1-1
Description ........................................ 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instrument s................. 2-3
Instrument and co ntrol functions.... 3-1
Immobilizer system ....... ................... 3-1
Main switch/steering lock................. 3-2
Indicator lights and warning lights ... 3-4
Multi-function meter unit .................. 3-6
D-mode (drive mode)..................... 3-13
Handlebar switches ....................... 3-14
Clutch lever.................................... 3-16
Shift pedal....... ............................. .. 3-16
Brake lever .................................... 3-16
Brake pedal ................................... 3-17
ABS ............................................... 3-17
Traction control system ................. 3-18
Fuel tank cap ................................. 3-20
Fuel................................................ 3-20
Fuel tank breather hose and overflow hose ............................. 3-22
Catalytic converter ......................... 3-22
Seat ............................................... 3-23
Storage compartment .................... 3-23
Adjusting the front fork................... 3-24
Adjusting the shock absorber assembly .................................... 3-25
Luggage strap holders ................... 3-27 Sidestand ...................................... 3-27
Ignition circuit cut-
off system ......... 3-28
Auxiliary DC connector.................. 3-30
For your safety – pre-operation
checks ............................................... 4-1
Operation and important riding
points ................................................. 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel consumption ................................ 5-4
Engine break-in ............................... 5-4
Parking ............................................ 5-5
Periodic maintenance and
adjustment ........................................ 6-1
Owner’s tool kit................................ 6-2
Periodic maintenance chart for the
emission control system .............. 6-3
General maintenance and lubrication chart ........................... 6-4
Checking the spark plugs ................ 6-8
Canister ........................................... 6-9
Engine oil and oil filter cartridge ...... 6-9
Coolant .......................................... 6-12
Air filter element ............................ 6-15
Checking the engine idling speed ......................................... 6-15 Checking the throttle grip free
play ............................................. 6-15
Valve clearance ............................. 6-16
Tires ............................................... 6-16
Cast wheels ................................... 6-18
Adjusting the clutch lever free play ............................................. 6-19
Checking the brake lever free
play ............................................. 6-19
Brake light switches ....................... 6-20
Checking the front and rear brake
pads............................................ 6-20
Checking the brake fluid level ........ 6-21
Changing the brake fluid ................ 6-22
Drive chain slack............................ 6-23
Cleaning and lubricating the drive chain .................................. 6-24
Checking and lubricating the cables ......................................... 6-25
Checking and lubricating the
throttle grip and cable ................. 6-25
Checking and lubricating the brake and shift pedals ................ 6-26
Checking and lubricating the brake and clutch levers .............. 6-26
Checking and lubricating the sidestand .................................... 6-27
Lubricating the swingarm pivots .... 6-27
Checking the front fork................... 6-28
Checking the steering .................... 6-28
Checking the wheel bearings......... 6-29B90-9-E0_1.book 1 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Description
2-2
12
3
4
5
6
7
8
9
10
11
12
EAU10421
Right view
1
2
3
4
7
6
8
9
5
10
1. Fuel tank cap (page 3-20)
2. Front fork rebound damping force adjusting screw (page 3-24)
3. Headlight (page 6-33)
4. Fuse box 1 (page 6-30)
5. Coolant reservoir (page 6-12)
6. Engine oil level check window (page 6-9)
7. Engine oil filler cap (page 6-9)
8. Brake pedal (page 3-17) 9. Rear brake light switch (page 6-20)
10.Rear brake fluid reservoir (page 6-21)
B90-9-E0_1.book 2 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Description
2-3
123
4
5
6
7
8
9
10
11
12
EAU10431
Controls and instruments
1
2
5
4
3
6
7
8
1. Clutch lever (page 3-16)
2. Left handlebar switches (page 3-14)
3. Main switch/steering lock (page 3-2)
4. Multi-function meter unit (page 3-6)
5. Front brake fluid reservoir (page 6-21)
6. Right handlebar switches (page 3-14)
7. Throttle grip (page 6-15)
8. Brake lever (page 3-16)
B90-9-E0_1.book 3 ページ ２０１５年１２月１５日　火曜日　午後８時５分

4-1
1
2
34
5
6
7
8
9
10
11
12
For your safety – pre-operation checks
EAU15599
Inspect your vehicle each time you use it to make sure the vehi cle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.
Check fuel tank breather hose and overflow hose for obstructions, cracks or
damage, and check hose connections. 3-20, 3-22
Engine oil Check oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage. 6-9
Coolant Check coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage. 6-12
Front brake Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add specified brake fluid to specified level.
Check hydraulic system for leakage. 6-20, 6-21
B90-9-E0_1.book 1 ページ ２０１５年１２月１５日　火曜日　午後８時５分

For your safety – pre-operation checks
4-2
1
2
345
6
7
8
9
10
11
12
Rear brake Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add specified brake fluid to specified level.
Check hydraulic system for leakage. 6-20, 6-21
Clutch Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary. 6-19
Throttle grip Make sure that operation is smooth.
Check throttle grip free play.
If necessary, have Yamaha dealer adjust th
rottle grip free play and lubricate cable
and grip housing. 6-15, 6-25
Control cables Make sure that operation is smooth.
Lubricate if necessary. 6-25
Drive chain Check chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary. 6-23, 6-24
Wheels and tires Check for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary. 6-16, 6-18
Brake and shift pedals Make sure that operation is smooth.
Lubricate pedal pivoting points if necessary. 6-26
Brake and clutch levers Make sure that operation is smooth.
Lubricate lever pivoting points if necessary. 6-26
Sidestand Make sure that operation is smooth.
Lubricate pivot if necessary. 6-27
Chassis fasteners Make sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary. —
ITEM CHECKS PAGE
B90-9-E0_1.book 2 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Periodic maintenance and adjustment
6-4
1
2
3
4
567
8
9
10
11
12
EAU1770M
General maintenance an d lubrication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Air filter element Replace. 
2Clutch Check operation.
Adjust. 
3 *Front brake Check operation, fluid level and
vehicle for fluid leakage. 
Replace brake pads. Whenever worn to the limit
4 *Rear brake Check operation, fluid level and
vehicle for fluid leakage. 
Replace brake pads. Whenever worn to the limit
5 *Brake hoses Check for cracks or damage.
Check for correct routing and
clamping. 
Replace. Every 4 years
6 *Brake fluid Change. Every 2 years
7 *Wheels Check runout and for damage. 
8 *Tires Check tread depth and for
damage.
Replace if necessary.
Check air pressure.
Correct if necessary. 
9 *Wheel bearings Check bearings fo
r looseness or
damage. 
10 *Swingarm Check operation and for
excessive play. 
Lubricate with lithium-soap-based grease. Every 50000 km (30000 mi)
B90-9-E0_1.book 4 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Periodic maintenance and adjustment
6-7
1
2
3
4
56
7
8
9
10
11
12
EAU18681
TIP
Air filter
This model’s air filter is equipped wi th a disposable oil-coated paper elemen t, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more fr equently when riding in unusually wet or dusty areas.

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of t he brake master cylinders and calipers, and change the brake
fluid. Replace the brake hoses every four years and if cracked or damaged.
B90-9-E0_1.book 7 ページ ２０１５年１２月１５日　火曜日　午後８時５分

Periodic maintenance and adjustment
6-21
1
2
3
4
56
7
8
9
10
11
12 touches the brake disc, have a Yamaha
dealer replace the brake pads as a set.
EAU46292

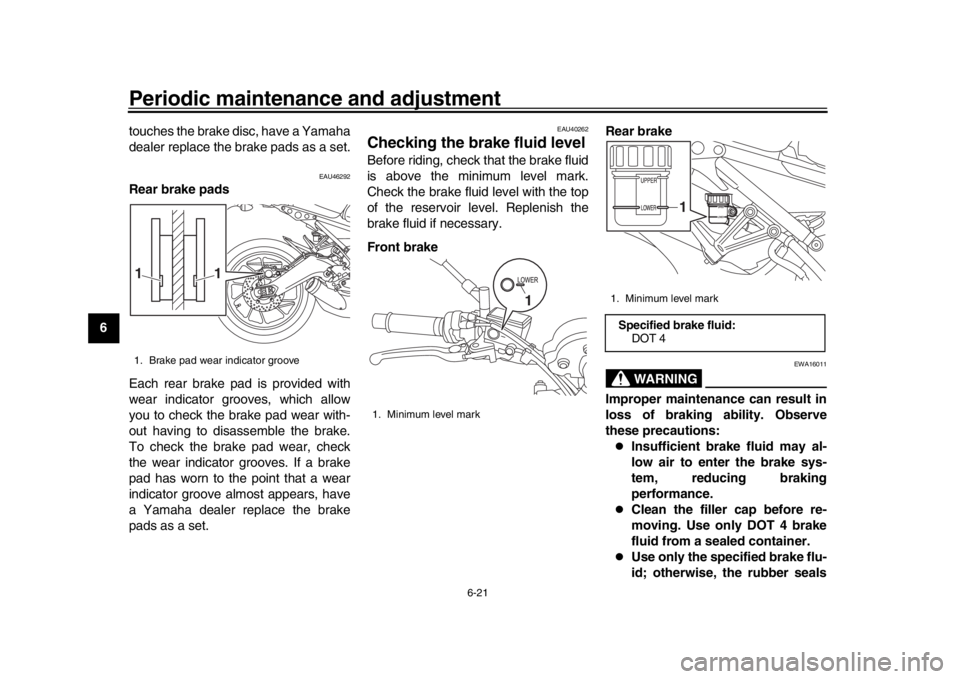

Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU40262
Checking the brake fluid levelBefore riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
Rear brake
WARNING
EWA16011
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.

Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.

Use only the specified brake flu-
id; otherwise, the rubber seals
1. Brake pad wear indicator groove
1
1
1. Minimum level mark
1
1. Minimum level markSpecified brake fluid:
DOT 4
1
