2016 YAMAHA XJR 1300 Owners Manual

Motorcycle care and stora ge
7-4
7
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then pla-
ce the spark plugs on the cylin-
der head so that the electrodes
are grounded. (This will limit
sparking during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turning the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully char- ge it. Store it in a cool, dry place
and charge it once a month. Do
not store the battery in an exces-
sively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-28.
TIPMake any necessary repairs before
storing the motorcycle.
U2PNE1E0.book Page 4 Monday, December 28, 2015 11:03 AM

Specifications
8-1
8
Dimensions:Overall length:2190 mm (86.2 in)
Overall width:
820 mm (32.3 in)
Overall height: 1120 mm (44.1 in)
Seat height: 829 mm (32.6 in)
Wheelbase:
1500 mm (59.1 in)
Ground clearance: 133 mm (5.24 in)
Minimum turning radius: 2800 mm (110.2 in)Wei ght:Curb weight:
240 kg (529 lb)Engine:Engine type:
Air cooled 4-stroke, DOHC
Cylinder arrangement: Inline 4-cylinder
Displacement: 1251 cm³
Bore × stroke:
79.0 × 63.8 mm (3.11 × 2.51 in)
Compression ratio: 9.7 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Without oil filter element replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)
With oil filter element replacement: 3.15 L (3.33 US qt, 2.77 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:Premium unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity: 14.5 L (3.83 US gal, 3.19 Imp.gal)
Fuel reserve amount:
3.1 L (0.82 US gal, 0.68 Imp.gal)Fuel injection:Throttle body:ID mark: 5UXB 10Spark plu g(s):Manufacturer/model:
NGK/DPR8EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:1.750 (98/56)
Final drive: Chain
Secondary reduction ratio:
2.235 (38/17)
Transmission type: Constant mesh 5-speed
Operation: Left foot operation
Gear ratio:
1st: 2.857 (40/14)
2nd:
2.000 (36/18)
3rd: 1.571 (33/21)
4th: 1.292 (31/24)
5th:
1.115 (29/26)Chassis:Frame type:Double cradle
Caster angle:
24.7 °
Trail: 92 mm (3.6 in)
U2PNE1E0.book Page 1 Monday, December 28, 2015 11:03 AM

Specifications
8-2
8
Front tire:Type:Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model: DUNLOP/D252F LRear tire:Type:
Tubeless
Size: 180/55 ZR17M/C (73W)
Manufacturer/model: DUNLOP/D252 LLoa din g:Maximum load:
210 kg (463 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 250 kPa (2.50 kgf/cm², 36 psi)
Loading condition: 90–210 kg (198–463 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Front wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:
Single disc brake
Operation: Right foot operation
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
130 mm (5.1 in)Rear suspension:Type:Swingarm Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 120 mm (4.7 in)
Electrical system:System voltage:12 V
Ignition system: TCI
Charging system:
AC generatorBattery:Model:YTZ14S
Voltage, capacity:
12 V, 11.2 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 60.0 W/55.0 W × 1
Brake/tail light: LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light: 12 V, 10.0 W × 2
Auxiliary light: 12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting: LED
U2PNE1E0.book Page 2 Monday, December 28, 2015 11:03 AM

Specifications
8-3
8
Neutral indicator light:12 V, 1.7 W × 1
High beam indicator light: 12 V, 1.7 W × 1
Oil level warning light:
12 V, 1.7 W × 1
Turn signal indicator light: 12 V, 1.7 W × 2
Engine trouble warning light: 12 V, 1.7 W × 1
Immobilizer system indicator light:
LEDFuse:Main fuse:50.0 A
Headlight fuse:
15.0 A
Taillight fuse: 7.5 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Fuel injection system fuse: 15.0 A
Backup fuse: 7.5 A
U2PNE1E0.book Page 3 Monday, December 28, 2015 11:03 AM

Consumer information
9-1
9

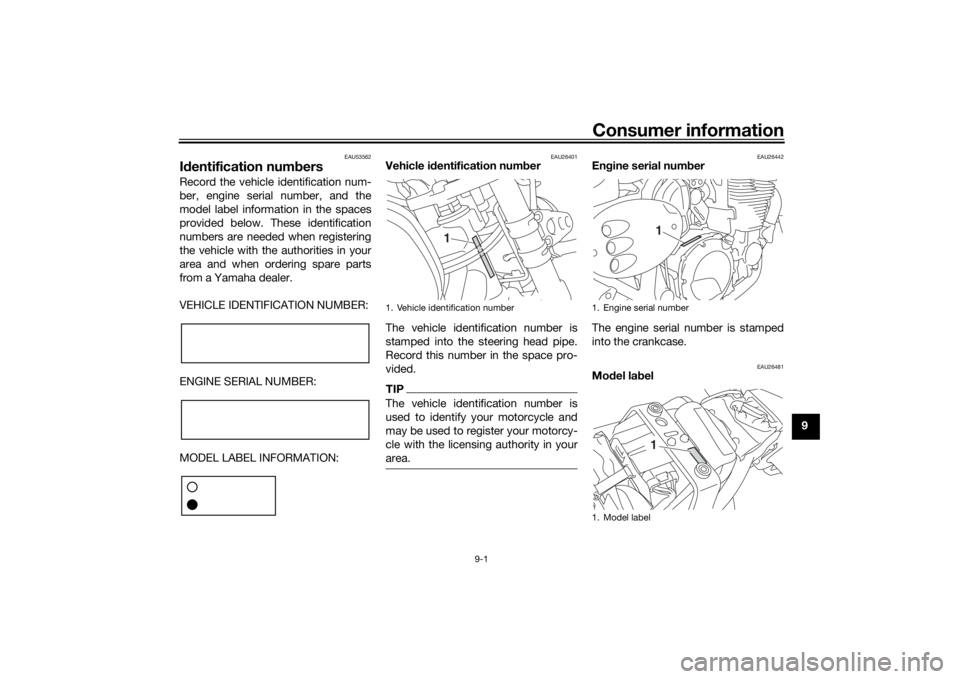

EAU53562
Id entification num bersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442
En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26481
Mo del la bel
1. Vehicle identification number
1
1. Engine serial number
1. Model label
11
U2PNE1E0.book Page 1 Monday, December 28, 2015 11:03 AM

Consumer information
9-2
9The model label is affixed to the frame
under the seat. (See page 3-15.) Re-
cord the information on this label in the
space provided. This information will
be needed when ordering spare parts
from a Yamaha dealer.
U2PNE1E0.book Page 2 Monday, December 28, 2015 11:03 AM

10-1
10
Index
AAir filter element and check hose,
replacing and cleaning ....................... 6-13
Auxiliary light bulb, replacing ............... 6-31BBattery .................................................. 6-28
Brake and clutch fluid levels, checking ............................................. 6-20
Brake and clutch fluids , changing ........ 6-21
Brake and clutch levers, checking and lubricating........................................... 6-25
Brake and shift pedals, checking and
lubricating........................................... 6-24
Brake lever............................................ 3-11
Brake lever free play, checking ............ 6-18
Brake light switches ............................. 6-19
Brake pedal .......................................... 3-12
Brake/tail light....................................... 6-32CCables, checking and lubricating ......... 6-24
Care ........................................................ 7-1
Catalytic converters.............................. 3-14
Clutch lever.................................. 3-10, 6-18DDimmer switch........................................ 3-9
Drive chain, cleaning and lubricating ... 6-23
Drive chain slack .................................. 6-22EEngine break-in ...................................... 5-3
Engine oil and oil filter element............. 6-10
Engine serial number .............................. 9-1
Engine stop switch ................................. 3-9
Engine trouble warning light ................... 3-4
EXUP system ........................................ 3-21
FFront and rear brake pads, checking ... 6-19
Front fork, adjusting ............................. 3-16
Front fork, checking ............................. 6-26
Fuel ...................................................... 3-13
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather hose and overflow
hose ................................................... 3-14
Fuel tank cap........................................ 3-12
Fuses, replacing ................................... 6-29HHandlebar switches ............................... 3-9
Hazard switch ...................................... 3-10
Headlight bulb, replacing ..................... 6-30
High beam indicator light ....................... 3-4
Horn switch ............................................ 3-9IIdentification numbers ........................... 9-1
Ignition circuit cut-off system .............. 3-22
Immobilizer system ................................ 3-1
Immobilizer system indicator light ......... 3-5
Indicator lights and warning lights ......... 3-4LLicense plate light bulb, replacing ....... 6-33
Luggage strap holders ......................... 3-20MMain switch/steering lock ...................... 3-2
Maintenance and lubrication, periodic... 6-4
Maintenance, emission control system ................................................. 6-3
Matte color, caution ............................... 7-1
Model label............................................. 9-1
Multi-function display............................. 3-6
NNeutral indicator light ............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-8
Parking.................................................... 5-4
Part locations.......................................... 2-1
Pass switch............................................. 3-9SSafety information................................... 1-1
Seat....................................................... 3-15
Shifting.................................................... 5-2
Shift pedal............................................. 3-11
Shock absorber assemblies, adjusting ............................................. 3-18
Sidestand.............................................. 3-21
Sidestand, checking and lubricating .... 6-26
Spark plugs, checking ............................ 6-9
Specifications ......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine ................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Supporting the motorcycle ................... 6-35
Swingarm pivots, lubricating ................ 6-26TTachometer............................................. 3-5
Throttle grip and cable, checking and lubricating ........................................... 6-24
Throttle grip free play, checking ........... 6-15
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
U2PNE1E0.book Page 1 Monday, December 28, 2015 11:03 AM

Index
10-2
10
Troubleshooting .................................... 6-38
Troubleshooting chart........................... 6-40
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing............ 6-33
Turn signal switch ................................... 3-9VValve clearance..................................... 6-15
Vehicle identification number ................. 9-1WWheel bearings, checking..................... 6-27
Wheel (front).......................................... 6-35
Wheel (rear) ........................................... 6-37
Wheels .................................................. 6-18
U2PNE1E0.book Page 2 Monday, December 28, 2015 11:03 AM
