2016 YAMAHA XJ6-N engine

Motorcycle care and stora ge
7-4
7
EAU26183
Stora ge
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the mo-
torcycle.
NOTICE
ECA10811
 Storin g the motorcycle in a
poorly ventilated room or cover-
in g it with a tarp, while it is still
wet, will allow water an d humi d-
ity to seep in and cause rust.
 To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are stored .
Long-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter.
2. Fill up the fuel tank and add fuel stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then pla-
ce the spark plugs on the cylin- der head so that the electrodes
are grounded. (This will limit
sparking during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent d am-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully char- ge it. Store it in a cool, dry place
and charge it once a month. Do
not store the battery in an exces-
sively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-33.
UB61E1E0.book Page 4 Wednesday, October 21, 2015 11:19 AM

Specifications
8-1
8
Dimensions:
Overall length:2120 mm (83.5 in)
Overall width:
770 mm (30.3 in)
Overall height: 1085 mm (42.7 in)
Seat height: 785 mm (30.9 in)
Wheelbase:
1440 mm (56.7 in)
Ground clearance: 140 mm (5.51 in)
Minimum turning radius: 2.8 m (9.19 ft)
Wei ght:
Curb weight:
205 kg (452 lb) (XJ6N)
210 kg (463 lb) (XJ6NA)
Engine:
Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train:
DOHC
Cylinder arrangement: Inline
Number of cylinders: 4-cylinder
Displacement:
600 cm³
Bore × stroke:
65.5 × 44.5 mm (2.58 × 1.75 in)
Compression ratio: 12.2 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
Engine oil:
Recommended brand:
YAMALUBE
SAE viscosity grades: 10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA Engine oil quantity:
Oil change:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter removal: 2.80 L (2.96 US qt, 2.46 Imp.qt)
Coolant quantity:
Coolant reservoir (up to the maximum level
mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
2.00 L (2.11 US qt, 1.76 Imp.qt)
Air filter:
Air filter element:Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity:
17 L (4.5 US gal, 3.7 Imp.gal)
Fuel reserve amount: 3.2 L (0.84 US gal, 0.70 Imp.gal)
Fuel injection:
Throttle body:
ID mark: 20SF 20 (XJ6N)
20SF 20 (XJ6NA)
20SJ 30 (XJ6N [35 kW])
20SJ 30 (XJ6NA [35 kW])
Spark plu g(s):
Manufacturer/model:
NGK/CR9E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:Wet, multiple-disc
Drivetrain:
Primary reduction ratio:
1.955 (86/44)
Final drive: Chain
Secondary reduction ratio: 2.875 (46/16)
Transmission type:
Constant mesh 6-speed
Gear ratio: 1st:
2.846 (37/13)
UB61E1E0.book Page 1 Wednesday, October 21, 2015 11:19 AM

Specifications
8-3
8
Battery:
Model:GT12B-4
Voltage, capacity:
12 V, 10.0 Ah (10 HR)
Hea dlig ht:
Bulb type:
Halogen bulb
Bul b watta ge × quantity:
Headlight:
H4, 60.0 W/55.0 W x 1
Brake/tail light: 21.0 W/5.0 W × 1
Front turn signal light:
10.0 W × 2
Rear turn signal light:
10.0 W × 2
Auxiliary light: 5.0 W × 1
License plate light: 5.0 W × 1
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Oil level warning light:
LED
Turn signal indicator light: LED
Coolant temperature warning light: LED
Engine trouble warning light:
LED
ABS warning light: LED (XJ6NA)
Immobilizer system indicator light: LED
Fuse(s):
Main fuse:30.0 A
Headlight fuse: 20.0 A
Taillight fuse:
10.0 A
Signaling system fuse: 7.5 A
Ignition fuse: 10.0 A Radiator fan motor fuse:
20.0 A
Fuel injection system fuse: 10.0 A
ABS control unit fuse:
7.5 A (XJ6NA)
ABS motor fuse: 30.0 A (XJ6NA)
ABS solenoid fuse: 20.0 A (XJ6NA)
Backup fuse:
7.5 A
UB61E1E0.book Page 3 Wednesday, October 21, 2015 11:19 AM

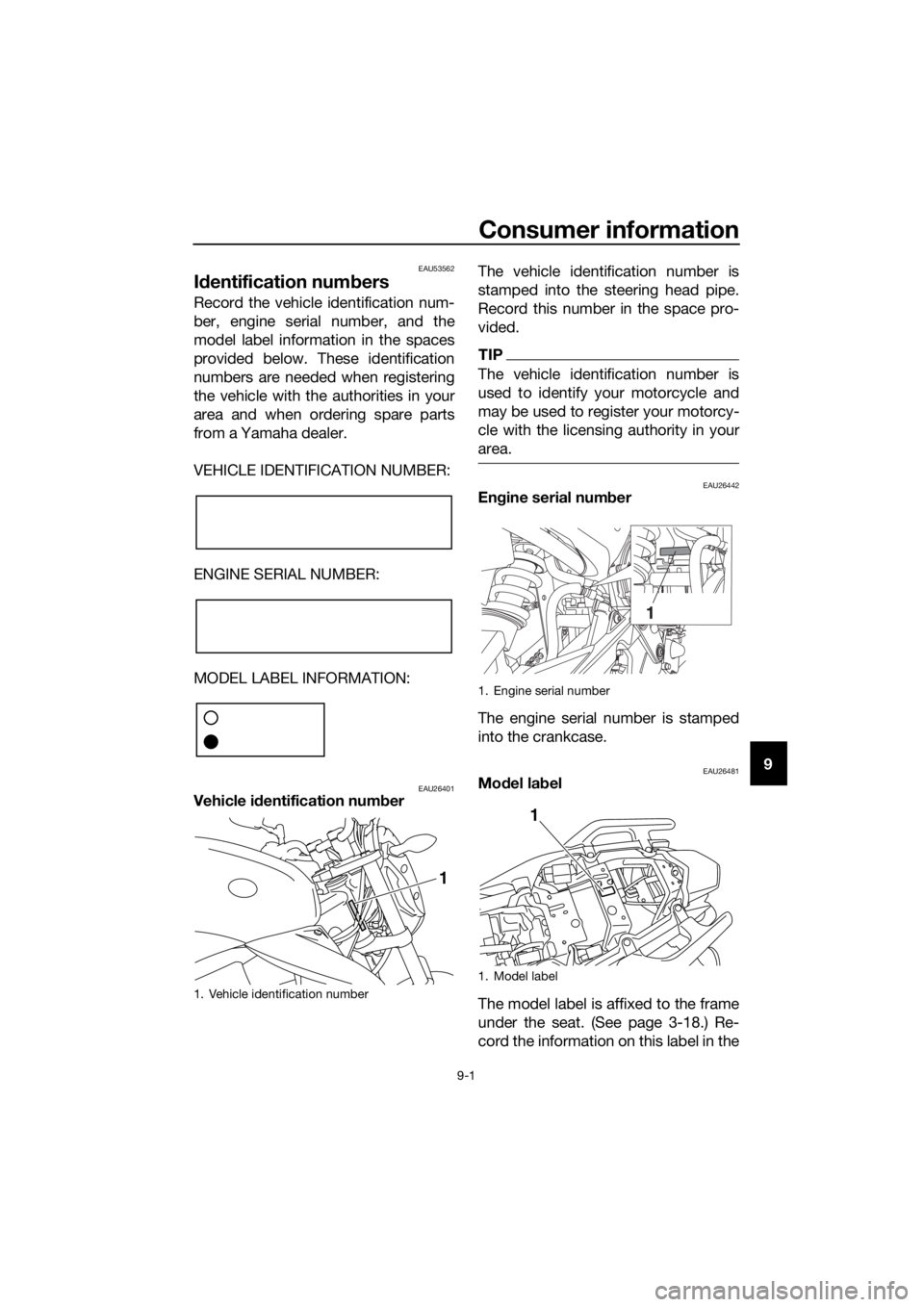

Consumer information
9-1
9
EAU53562
Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle i dentification num ber The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26481Mo del la bel
The model label is affixed to the frame
under the seat. (See page 3-18.) Re-
cord the information on this label in the
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
UB61E1E0.book Page 1 Wednesday, October 21, 2015 11:19 AM

10-1
10
Index
A
ABS (for ABS models) .......................... 3-14
ABS warning light (for ABS models)....... 3-5
Air filter element, replacing................... 6-16
Auxiliary light bulb, replacing ............... 6-38
B
Battery .................................................. 6-33
Brake and clutch levers, checking and
lubricating .......................................... 6-30
Brake and shift pedals, checking and lubricating .......................................... 6-29
Brake fluid, changing ........................... 6-26
Brake fluid level, checking ................... 6-25
Brake lever ........................................... 3-13
Brake lever free play, checking ............ 6-23
Brake light switches ............................. 6-23
Brake pedal .......................................... 3-13
Brake/tail light bulb, replacing ............. 6-39
C
Cables, checking and lubricating ......... 6-28
Care ........................................................ 7-1
Catalytic converter ............................... 3-17
Clutch lever .......................................... 3-12
Clutch lever free play, adjusting ........... 6-22
Coolant ................................................. 6-12
Coolant temperature warning light ......... 3-4
Cowling and panels, removing and installing ............................................... 6-7
D
Dimmer switch ..................................... 3-10
Drive chain, cleaning and lubricating ... 6-28
Drive chain slack .................................. 6-26
E
Engine break-in ...................................... 5-4
Engine idling speed .............................. 6-17
Engine oil and oil filter cartridge ............. 6-9
Engine serial number.............................. 9-1
Engine stop switch ............................... 3-11
Engine trouble warning light................... 3-5
F
Front and rear brake pads, checking ... 6-24
Front fork, checking ............................. 6-31
Fuel....................................................... 3-15
Fuel consumption, tips for reducing ...... 5-4
Fuel tank breather hose and overflow hose ................................................... 3-17
Fuel tank cap........................................ 3-15
Fuses, replacing ................................... 6-34
H
Handlebar position, adjusting .............. 3-20 Handlebar switches .............................. 3-10
Hazard switch ....................................... 3-11
Headlight bulb, replacing ...................... 6-36
Helmet holder ....................................... 3-19
High beam indicator light........................ 3-4
Horn switch........................................... 3-11
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-22
Immobilizer system ................................. 3-1
Immobilizer system indicator light .......... 3-6
Indicator lights and warning lights .......... 3-4
L
License plate light bulb, replacing ........ 6-40
M
Main switch/steering lock ....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-6
N
Neutral indicator light.............................. 3-4
O
Oil level warning light .............................. 3-4
P
Parking .................................................... 5-5
Part locations .......................................... 2-1
Pass switch........................................... 3-10
S
Safety information................................... 1-1
Seat....................................................... 3-18
Shifting .................................................... 5-3
Shift pedal............................................. 3-12
Shock absorber assembly, adjusting ... 3-21
Sidestand .............................................. 3-22
Sidestand, checking and lubricating .... 6-30
Spark plugs, checking ............................ 6-8
Specifications ......................................... 8-1
Starting the engine.................................. 5-2
Start switch ........................................... 3-11
Steering, checking ................................ 6-32
Storage ................................................... 7-4
Storage compartment ........................... 3-20
Supporting the motorcycle ................... 6-40
Swingarm pivots, lubricating ................ 6-31
T
Throttle grip and cable, checking and lubricating ........................................... 6-29
UB61E1E0.book Page 1 Wednesday, October 21, 2015 11:19 AM
