2016 YAMAHA WR 450F sensor

CABLE ROUTING DIAGRAM
2-38
1. Cable guide
2. Speed sensor lead
3. Joint coupler
4. Ground lead
5. Throttle position sensor lead
6. Throttle position sensor coupler
7. Radiator breather hose
8. Radiator hose
9. Fuel hose
10. Coolant temperature sensor coupler
11. Radiator fan motor lead
12. Intake air pressure sensor coupler
13. Intake air temperature sensor coupler
14. Start switch coupler
15. Radiator fan motor coupler
16. Clutch switch coupler
17. Air filter case
18. Plate
19. Bracket
20. Radiator hose clamp
A. Pass the wire harness under the start switch lead
and clutch switch lead.
B. Insert and fix the joint co upler to the plate. After
fixing it, attach the cover.
C. Pass the throttle position sensor lead to the out- side of the tension arm (the outside of the vehi-
cle).
D. After connecting the throttle position sensor cou- pler, attach the cover.
E. Pass the radiator breather hose to the outside of the tension arm and the throttle position sensor
lead (the outside of the vehicle), and to the front
of the radiator hose (the side of the vehicle).
F. Attach the coupler cover to the coolant tempera- ture sensor coupler.
G. Pass the radiator fan motor lead to the inside of the tension arm (the side of the vehicle).
H. Install the ground lead terminal between the plate and the bolt.
I. Fix the ground lead terminal to the detent in the plate. For the ground lead terminal, either side
will do.
J. Detent
K. Route the radiator breather hose between the frame and the radiator fan motor lead coupler so
that the breather hose is not pinched.
L. Install the radiator hose clamp with the locking portion facing the front of the vehicle and tighten
the screw from the right side of the vehicle.
M. Install the radiator hose with the positioning mark facing the rear of the vehicle.

CABLE ROUTING DIAGRAM
2-40
1. Battery negative lead
2. Fuel hose
3. Fuel pump coupler
4. Fuel pump lead
5. Resistor
6. Resistor coupler
7. Battery positive lead
8. Lean angle sensor
9. Starter motor lead
10. Radiator fan motor relay (blue tape)
11. Main relay (red tape)
12. Wire harness
13. Ground lead coupler
14. Starter relay coupler
15. Starter relay
16. Cross member
17. Diode
18. Taillight lead
19. Clamp
20. Fuel tank
21. Damper
22. Rear frame
23. Side cover 6
24. Plastic locking tie
A. After connecting the fuel pump coupler, attach the coupler cover.
B. Pass the fuel hose to the front of the battery.
C. Route the resistor lead to the outside of the leads.
D. Connect the battery positive lead to the starter re- lay terminal (in the left side of the vehicle).
E. Insert the protruding end of the wire harness into
the battery bracket hole and holder plate hole.
F. After connecting the negative lead coupler, place it on the right side of the battery.
G. Route the diode under the cross member and place it on top of the rear fender.
H. Secure the two ends of the taillight coupler with the starter motor lead.
I. Route the taillight lead so that it does not slack at
the rear of the vehicle.
J. Clamp the taillight lead and insert the clip into the rear fender. Clamp it so that the lock faces in-
ward, and then cut off the excess end.
K. Lower end of the rear frame
L. Clamp it so that the lock of the plastic locking tie
faces downward, insert the end into the rear
frame and side cover 6, and then cut off the ex-
cess end. After cutting off the excess end, make
sure that the plastic locki ng tie does not protrude
from the lower end of the rear frame.
M. Clamp it so that the lock of the plastic locking tie
faces downward, and then pass the end between
the fuel hose and rear frame.
N. Clamp the wire harness at the position of the white tape.
O. Route the battery positive lead under the cross member.
P. After connecting the battery positive lead in the direction indicated in the illustration, put the cover
on.

CABLE ROUTING DIAGRAM
2-42
1. Clutch switch lead
2. Engine stop switch lead
3. Clutch cable
4. Brake hose guide
5. Headlight lead
6. Speed sensor lead
7. Indicator light coupler
8. Meter assembly optional switch coupler
9. Meter assembly coupler
10. Speed sensor coupler
11. Start switch lead
12. Plastic band
13. Throttle cable
14. Front brake hose
A. Route the throttle cable, clutch cable, clutch switch lead, engine stop switch lead and start
switch lead between the cable guide of the meter
bracket and handle crown. The cables and leads
may be routed in any order.
B. Clamp the wire harness, clutch switch lead and start switch lead to the meter bracket. The clamp
shall be located at a pos ition where there is no
slack with the handle turned fully to the left.
C. Connect the headlight lead to the headlight.
D. Clamp the start switch lead to the handlebar by the plastic band.
E. Clamp the engine stop switch lead and clutch switch lead to the handlebar by the plastic band.
F. 40°±10°
G. Vertical direction
H. Pass the engine stop switch lead under the han- dlebar.

ELECTRICAL SYSTEM
3-41
2. Attach:• Timing light “1”
• Digital tachometer “2”To the high tension code “3”.
3. Adjust: • Engine idling speedRefer to “ADJUSTING THE ENGINE
IDLING SPEED” on page 3-19.
4. Check: • Ignition timingCheck whether the alignment mark “a” on
the left crankcase cover is within the firing
range “b” on the rotor.
Incorrect firing range  Check rotor and
Crankshaft position sensor.
5. Install: • Timing mark accessing screwEAS2GC1133CHECKING AND CHARGING THE BATTERY
Refer to “CHECKING AND CHARGING THE
BATTERY” on page 9-69.
EAS2GC1134REPLACING THE HEADLIGHT BULBEWA
WARNING
Since the headlight bulb gets extremely hot,
keep flammable products and your hands
away from the bulb until it has cooled down.
1. Remove:• Headlight unit bolt “1”
TIP
After you have removed the headlight unit
bolts, lift and remove the headlight unit.
2. Remove:
• Headlight coupler “1”
• Bulb cover “2”
3. Remove: • Headlight bulb “1”
Timing light
90890-03141
Timing light YU-03141
Digital tachometer 90890-06760
Digital tachometer YU-39951-B
Timing mark accessing screw 6 Nm (0.6 m·kgf, 4.3 ft·lbf)
2
1
3
ba
T R..
11
1
2
1

GENERAL CHASSIS
5-2
Removing the headlight assembly and multi-function meter
OrderJob/Parts to remove Q’tyRemarks
1 Headlight body 1
2 Headlight coupler 1 Disconnect.
3 Headlight unit 1
4 Speed sensor coupler 1 Disconnect.
5 Multi-function meter coupler 2 Disconnect.
6 Multi-function meter optional switch coupler 1 Disconnect.
7 Indicator light coupler 1 Disconnect.
8 Multi-function meter 1
9 Meter bracket 1
For installation, reverse the removal proce-
dure.
4 (2)
6
7
8
9
5
1
3 2
21 Nm (2.1 m kgf, 15 ft Ibf)T.R.3.8 Nm (0.38 m kgf, 2.8 ft Ibf)T.R.
3.8 Nm (0.38 m kgf, 2.8 ft Ibf)T.R.
21 Nm (2.1 m kgf, 15 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.

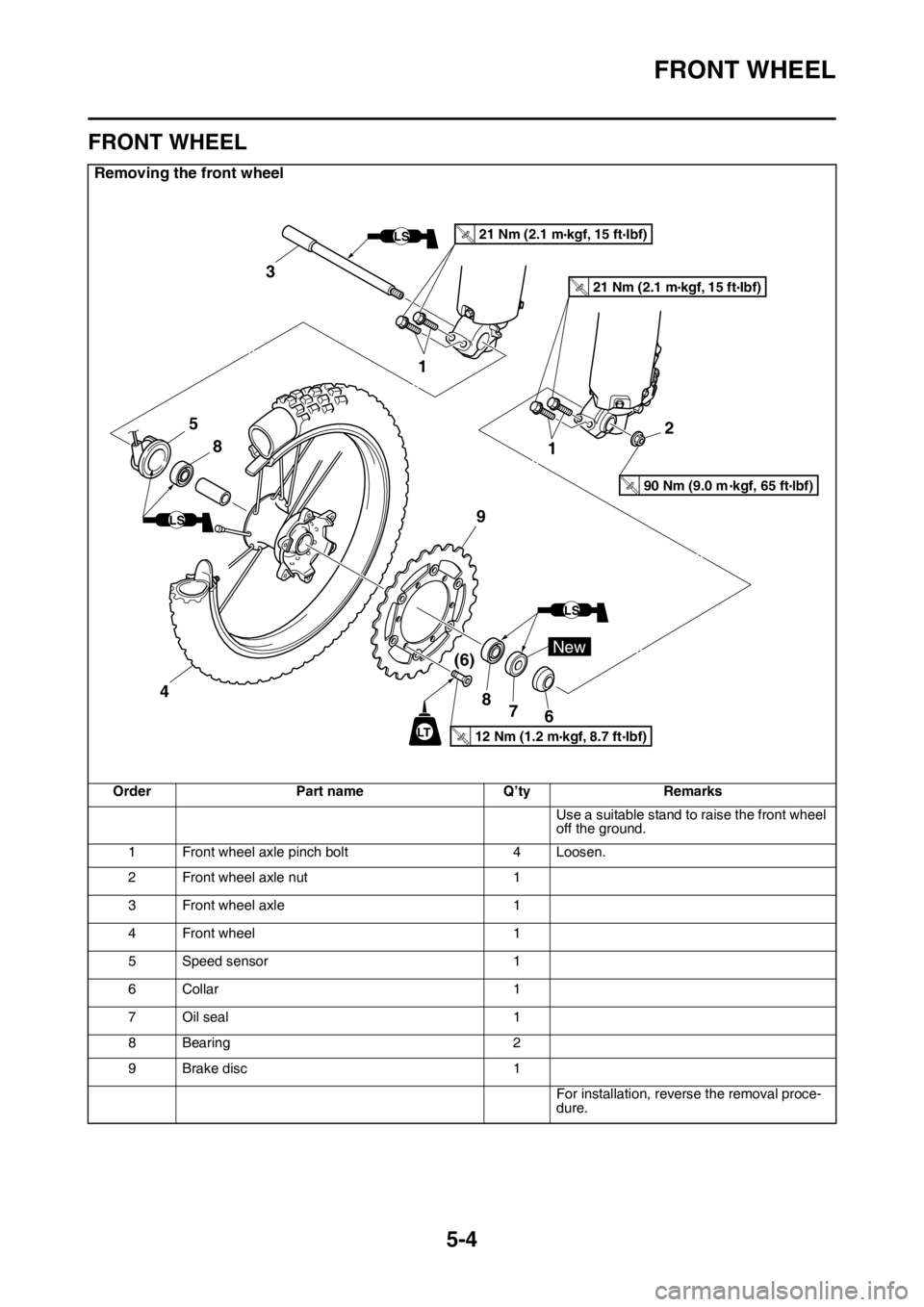

FRONT WHEEL
5-4
EAS2GC1154
FRONT WHEEL
Removing the front wheel
OrderPart name Q’tyRemarks
Use a suitable stand to raise the front wheel
off the ground.
1 Front wheel axle pinch bolt 4 Loosen.
2 Front wheel axle nut 1
3 Front wheel axle 1
4 Front wheel 1
5 Speed sensor 1
6Collar 1
7 Oil seal 1
8 Bearing 2
9 Brake disc 1
For installation, reverse the removal proce-
dure.
12 Nm (1.2 m kgf, 8.7 ft Ibf)T.R.
New
LT
LS
LS
LS
8
7
8
(6)
9
1 2
1
3
21 Nm (2.1 m kgf, 15 ft Ibf)T.R.
21 Nm (2.1 m kgf, 15 ft Ibf)T.R.
4
90 Nm (9.0 m kgf, 65 ft lbf)T.R.
5
6

FRONT WHEEL
5-7
3. Install:• Collar “1”
TIP
Apply the lithium-soap-based grease on the oil
seal lip.
4. Install:
• Speed sensor “1”
TIP
Apply the lithium-soap-based grease on the oil
seal lip of speed sensor.
Make sure the two projections “a” in the wheel
hub are meshed with the two slots “b” in the
speed sensor.
EAS2GC1159INSTALLING THE FRONT WHEEL
1. Install:• Front wheel
TIP
Install the brake disc “1” between the brake
pads “2” correctly. 2. Install:
• Front wheel axle “1”
TIP
Apply the lithium-soap-based grease to the
front wheel axle.
3. Tighten:
• Front wheel axle nut “1”
ECA
NOTICE
Before tightening the front wheel axle nut,
push down hard on the handlebar(s) several
times and check if the front fork rebounds
smoothly.
4. Tighten:• Front wheel axle pinch bolt “1”1
a b
LS
Front wheel axle nut
90 Nm (9.0 m·kgf, 65 ft·lbf)
Front wheel axle pinch bolt 21 Nm (2.1 m·kgf, 15 ft·lbf)
T R..
1
T R..

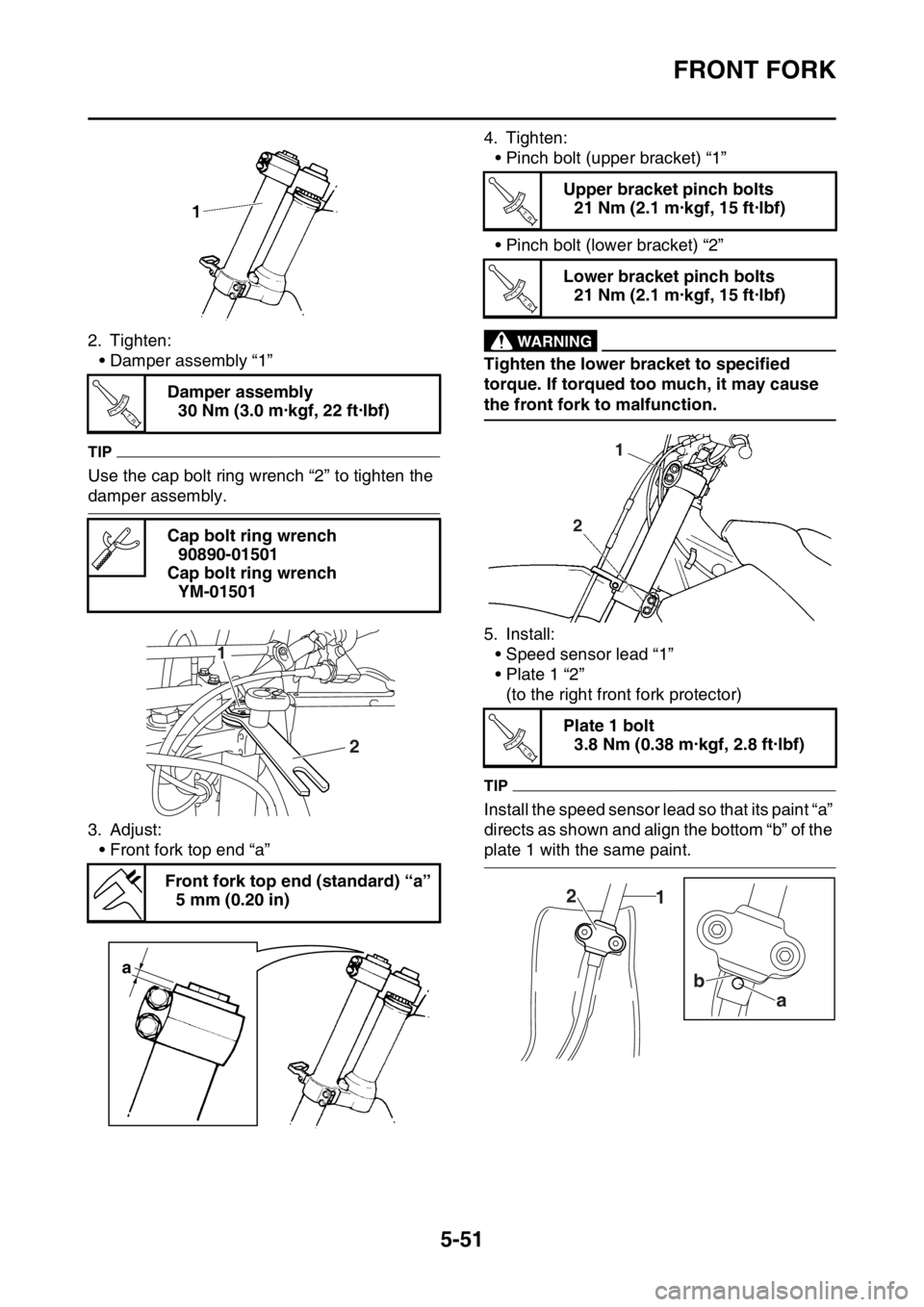

FRONT FORK
5-51
2. Tighten:• Damper assembly “1”
TIP
Use the cap bolt ring wrench “2” to tighten the
damper assembly.
3. Adjust:
• Front fork top end “a” 4. Tighten:
• Pinch bolt (upper bracket) “1”
• Pinch bolt (lower bracket) “2”
EWA
WARNING
Tighten the lower bracket to specified
torque. If torqued too much, it may cause
the front fork to malfunction.
5. Install:• Speed sensor lead “1”
• Plate 1 “2”(to the right front fork protector)
TIP
Install the speed sensor lead so that its paint “a”
directs as shown and align the bottom “b” of the
plate 1 with the same paint.
Damper assembly
30 Nm (3.0 m·kgf, 22 ft·lbf)
Cap bolt ring wrench 90890-01501
Cap bolt ring wrench YM-01501
Front fork top end (standard) “a” 5 mm (0.20 in)
T R..
2
1
a
Upper bracket pinch bolts21 Nm (2.1 m·kgf, 15 ft·lbf)
Lower bracket pinch bolts 21 Nm (2.1 m·kgf, 15 ft·lbf)
Plate 1 bolt 3.8 Nm (0.38 m·kgf, 2.8 ft·lbf)
T R..
T R..
2 1
T R..
1
2
a
b
