2016 YAMAHA MT-09 fuse

Table of contents
Battery ........................................... 6-29
Replacing the fuses ....................... 6-31
Replacing the headlight bulb ......... 6-34
Replacing an auxiliary light bulb .... 6-36
Brake/tail light ................................ 6-37
Replacing a turn signal light bulb ............................................ 6-38
Replacing the license plate light
bulb ............................................ 6-38
Supporting the motor cycle ............. 6-39
Front wheel (for non-ABS
models) ...................................... 6-39
Rear wheel (for non-ABS models) ...................................... 6-41
Troubleshooting............................. 6-42
Troubleshooting charts .................. 6-44
Motorcycle care and storage ........... 7-1
Matte color caution .......................... 7-1
Care................................................. 7-1
Storage ............................................ 7-3
Specifications ................................... 8-1
Consumer information ..................... 9-1
Identification numbers ..................... 9-1
Diagnostic connector (MT09A) ........ 9-2
Index ................................................ 10-1
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

2-1
123
4
5
6
7
8
9
10
11
12
Description
EAU10411
Left view
1
2
3
4,5,6
7
8
9
11
10
1. Front fork spring preload adjusting bolt (page 3-26)
2. Shock absorber assembly rebound damping force adjusting screw (page 3-28)
3. Seat (page 3-25)
4. Fuse box 2 (page 6-31)
5. Main fuse (page 6-31)
6. Fuel injection system fuse (page 6-31)
7. Storage compartment (page 3-26) 8. Shock absorber assembly spring
preload adjusting ring (page 3-28)
9. Shift pedal (page 3-18)
10.Engine oil drain bolt (page 6-9)
11.Coolant drain bolt (page 6-12)
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Description
2-2
12
3
4
5
6
7
8
9
10
11
12
EAU10421
Right view
2
1
3
4
6
7
8
9
10
5
1. Fuel tank cap (page 3-22)
2. Front fork rebound damping force adjusting screw (page 3-26)
3. Headlight (page 6-34)
4. Fuse box 1 (page 6-31)
5. Coolant reservoir (page 6-11)
6. Engine oil level check window (page 6-9)
7. Engine oil filler cap (page 6-9)
8. Brake pedal (page 3-19) 9. Rear brake light switch (page 6-20)
10.Rear brake fluid reservoir (page 6-21)
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Periodic maintenance and adjustment
6-31
1
2
3
4
56
7
8
9
10
11
12
EAU57987
Replacing the fusesFuse box 1 is located behind the right
side panel.
To access fuse box 1, remove and in-
stall the right side panel as follows. 1. Remove the bolt and quick fasten- ers.TIPThe quick fasteners are removed by
pushing in the center pin and then pull-ing the fastener out. 2. Pull the right side panel off as
shown. MT091. Right side panel
2. Bolt
3. Quick fastener
1
3
2
1. Fuse box 1
1. Ignition fuse
2. Parking lighting fuse
3. Auxiliary fuse
4. Signaling system fuse
5. Headlight fuse
6. Spare fuse
1
12
6
345
B87-9-E0_1.book 31 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Periodic maintenance and adjustment6-32
1
2
3
4
567
8
9
10
11
12
MT09A

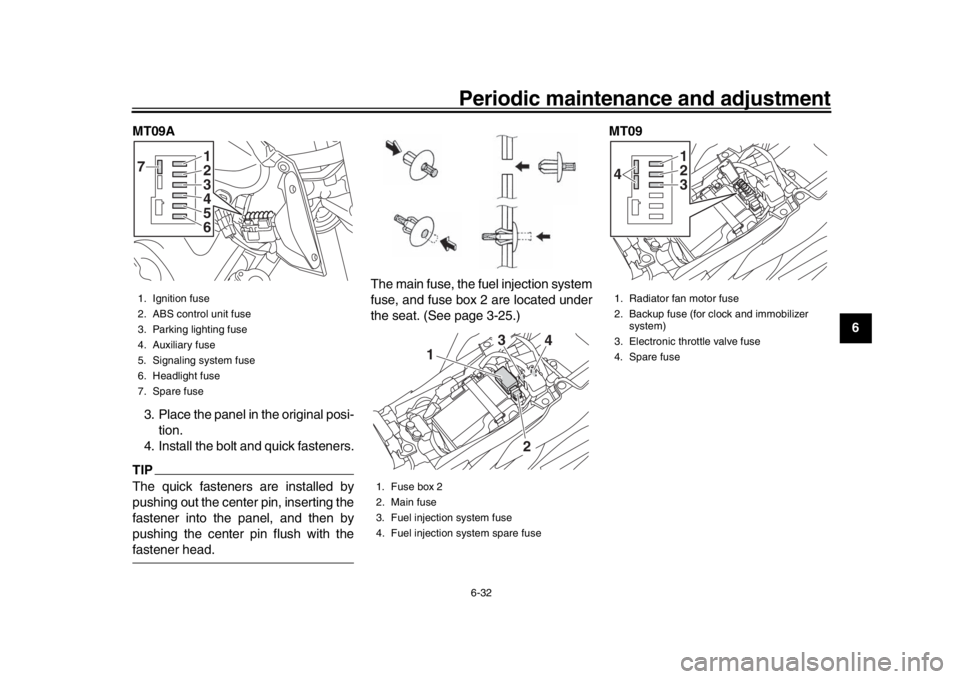

3. Place the panel in the original posi- tion.
4. Install the bolt and quick fasteners.
TIPThe quick fasteners are installed by
pushing out the center pin, inserting the
fastener into the panel, and then by
pushing the center pin flush with thefastener head. The main fuse, the fuel injection system
fuse, and fuse box 2 are located under
the seat. (See page 3-25.)
MT091. Ignition fuse
2. ABS control unit fuse
3. Parking lighting fuse
4. Auxiliary fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
123
7
456
1. Fuse box 2
2. Main fuse
3. Fuel injection system fuse
4. Fuel injection system spare fuse
2
3
4
1
1. Radiator fan motor fuse
2. Backup fuse (for clock and immobilizer
system)
3. Electronic throttle valve fuse
4. Spare fuse
123
4
B87-9-E0_1.book 32 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Periodic maintenance and adjustment
6-33
1
2
3
4
56
7
8
9
10
11
12 MT09A
TIPTo access the fuel injection system
fuse, remove the starter relay cover bypulling it upward.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
1. Radiator fan motor fuse
2. Backup fuse (for clock and immobilizer system)
3. Electronic throttle valve fuse
4. ABS solenoid fuse
5. ABS motor fuse
6. Spare fuse
123
6
45
1. Starter relay cover
2. Fuel injection system fuse
3. Fuel injection system spare fuse
1
2
3
Specified fuses: Main fuse:50.0 A
Auxiliary fuse:
2.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse: 15.0 A
ABS motor fuse:
30.0 A (MT09A)
ABS solenoid fuse: 15.0 A (MT09A)
Fuel injection system fuse: 10.0 A
ABS control unit fuse:
7.5 A (MT09A)
Backup fuse: 7.5 A
Electronic throttle valve fuse: 7.5 A
B87-9-E0_1.book 33 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Specifications
8-3
1
2
3
4
5
6
789
10
11
12
Bulb wattage  quantity:Headlight:
H4, 60.0 W/55.0 W x 1
Brake/tail light: LED
Front turn signal light: 10.0 W  2
Rear turn signal light:
10.0 W  2
Auxiliary light: 5.0 W  2
License plate light: 5.0 W  1
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Oil level warning light:
LED
Turn signal indicator light: LED
Coolant temperature warning light: LED
Engine trouble warning light:
LED
ABS warning light: LED (MT09A)
Immobilizer system indicator light: LED
Traction control system indicator/warning
light:
LED (MT09A)
Fuse(s):Main fuse:50.0 A
Auxiliary fuse: 2.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
7.5 A
Ignition fuse: 15.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse:
15.0 A
Fuel injection system fuse: 10.0 A
ABS control unit fuse: 7.5 A (MT09A)
ABS motor fuse:
30.0 A (MT09A)
ABS solenoid fuse: 15.0 A (MT09A)
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
B87-9-E0_1.book 3 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

10-1
1
2
3
4
5
6
7
8
910
11
12
IndexAABS (for ABS models) .............................3-20
ABS warning light (for ABS models) ..........3-5
Air filter element .......................................6-14
Auxiliary DC connector ............................3-32
Auxiliary light bulb, replacing ...................6-36BBattery......................................................6-29
Brake and clutch levers, checking and lubricating ..............................................6-27
Brake and shift pedals, checking and lubricating ..............................................6-26
Brake fluid, changing ...............................6-23
Brake fluid level, checking .......................6-21
Brake lever ...............................................3-19
Brake lever free play, checking ................6-19
Brake light switches .................................6-20
Brake pedal ..............................................3-19
Brake/tail light ..........................................6-37CCables, checking and lubricating .............6-25
Care ...........................................................7-1
Catalytic converter ...................................3-24
Clutch lever ..............................................3-18
Clutch lever free play, adjusting ...............6-19
Coolant.....................................................6-11
Coolant temperature warning light .............3-4DDiagnostic connector .................................9-2
Dimmer switch .........................................3-16
D-mode (drive mode) ...............................3-15
Drive chain, cleaning and lubricating .......6-25
Drive chain slack ......................................6-23
EEngine break-in ......................................... 5-5
Engine idling speed, checking ................. 6-15
Engine oil and oil filter cartridge ................ 6-9
Engine serial number................................. 9-1
Engine trouble warning light ...................... 3-5FFront and rear brake pads, checking ....... 6-21
Front fork, adjusting ................................. 3-26
Front fork, checking ................................. 6-28
Fuel.......................................................... 3-23
Fuel consumption, tips for reducing........... 5-4
Fuel tank breather hose and overflow
hose ...................................................... 3-24
Fuel tank cap ........................................... 3-22
Fuses, replacing ...................................... 6-31HHandlebar switches ................................. 3-16
Hazard switch .......................................... 3-17
Headlight bulb, replacing ......................... 6-34
High beam indicator light ........................... 3-4
Horn switch .............................................. 3-17IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-30
Immobilizer system .................................... 3-1
Immobilizer system indicator light.............. 3-6
Indicator lights and warning lights ............. 3-4LLicense plate light bulb, replacing ........... 6-38
Luggage strap holders ............................. 3-29MMain switch/steering lock........................... 3-2
Maintenance and lubrication, periodic ....... 6-4 Maintenance, emission control system ..... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function meter unit ............................ 3-7
NNeutral indicator light ................................ 3-4OOil level warning light ................................ 3-4PParking ...................................................... 5-5
Part locations ............................................ 2-1
Pass switch ............................................. 3-16SSafety information ..................................... 1-1
Seat ......................................................... 3-25
Shifting ...................................................... 5-3
Shift pedal ............................................... 3-18
Shock absorber assembly, adjusting ...... 3-28
Sidestand ................................................ 3-30
Sidestand, checking an
d lubricating........ 6-27
Spark plugs, checking ............................... 6-8
Specifications ............................................ 8-1
Starting the engine .................................... 5-2
Steering, checking................................... 6-29
Stop/Run/Start switch.............................. 3-17
Storage...................................................... 7-3
Storage compartment.............................. 3-26
Supporting the motorcycle ...................... 6-39
Swingarm pivots, lubricating ................... 6-28TThrottle grip and cable, checking and lubricating ............................................. 6-26
Throttle grip free play, checking .............. 6-15
Tires ........................................................ 6-16
