2016 YAMAHA MT-09 display

Instrument and control functions
3-7
1
23
4
5
6
7
8
9
10
11
12
EAU73263
Multi-function meter unit
MT09 MT09A
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
1. “SELECT” button
2. “RESET” button
2
1
1. Transmission gear display
2. Tachometer
3. Drive mode display
4. Fuel meter
5. Eco indicator “ECO”
6. Multi-function display
7. Clock
8. Speedometer1
2
3
4
5
6
7
8
1. Transmission gear display
2. Tachometer
3. Eco indicator “ECO”
4. TCS display
5. Drive mode display
6. Fuel meter
7. Multi-function display
8. Clock
9. Speedometer1
2
4
3
5
6
7
8
9
B87-9-E0_1.book 7 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-8
1
234
5
6
7
8
9
10
11
12
The multi-function meter unit is
equipped with the following:

a speedometer

a tachometer

a clock

a fuel meter

an eco indicator

a transmission gear display

a drive mode display

a TCS display (for equipped mod-
els)

a multi-function display
TIP
Except when switching to the
brightness control mode or to dis-
play the clock, turn the key to “ON”
before using the “SELECT” and
“RESET” buttons to adjust the
multi-function meter.

For the UK: To switch the speed-
ometer and multi-function displays
between kilometers and miles,
press the “SELECT” button for onesecond.
Speedometer
The speedometer shows the vehicle’s
traveling speed.
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer will sweep across the r/min
range and then return to zero r/min in
order to test the electrical circuit.
NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.Red zone: 11250 r/min and above
Clock
The clock uses a 12-hour time system.
When the key is not in the “ON” posi-
tion, the clock can be viewed for 10
1. Speedometer
1. Tachometer
2. Tachometer red zone
1
2
1
1. Clock
1
B87-9-E0_1.book 8 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-9
1
23
4
5
6
7
8
9
10
11
12 seconds by pushing the “SELECT” but-
ton.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for two
seconds.
3. When the hour digits start flashing, push the “RESET” button to set the
hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it to start the clock. Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (empty) as the fuel level
decreases. When the last segment
starts flashing (“ ” will also flash for
MT09), refuel as soon as possible.
TIPIf a problem is detected in the electrical
ciruit, the fuel level segments and “ ”
will flash repeatedly. If this occurs, havea Yamaha dealer check vehicle. Eco indicator
MT09
MT09A
This indicator comes on when the vehi-
cle is being operated in an environmen-
tally friendly, fuel-efficient manner. The1. Fuel meter
1
1. Eco indicator “ECO”
1. Eco indicator “ECO”
1
1
B87-9-E0_1.book 9 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-10
1
234
5
6
7
8
9
10
11
12
indicator goes off when the vehicle is
stopped.
TIPConsider the following tips to reduce
fuel consumption:
Avoid high engine speeds during
acceleration.

Travel at a constant speed.

Select the transmission gear that
is appropriate for the vehiclespeed.
Transmission gear display
This display shows the selected gear.
The neutral position is indicated by “ ” and by the neutral indicator light.
Drive mode display
MT09
MT09A
This display indicates which drivemode has been selected: “STD”, “A” or
“B”. For more details on the modes and
on how to select them, see pages 3-15
and 3-17.
TCS display (for equipped models)
MT09A
This display indicates which traction
control system setting has been select-
ed: “1”, “2” or “OFF”. For more details
on the TCS settings and on how to se-
lect them, see page 3-21.
1. Transmission gear display
2. Neutral indicator light “ ”1
2
1. Drive mode display
1. Drive mode display
11
1. TCS display
1
B87-9-E0_1.book 10 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-11
1
23
4
5
6
7
8
9
10
11
12 Multi-function display
The multi-function display is equipped
with the following:

an odometer

two tripmeters (which show the
distance traveled since they were
last reset)

a fuel reserve tripmeter (which
shows the distance traveled since
the last segment of the fuel meter
started flashing)

an instantaneous fuel consump-
tion display

an average fuel consumption dis-
play

a coolant temperature display

an air intake temperature display

self-diagnosis mode (MT09)

a brightness control display
TIP
The odometer will lock at 999999
and cannot be reset.

The tripmeters will lock at 9999.9but can be manually reset.
Push the “SELECT” button to switch
the display between the instantaneous
fuel consumption mode “km/L” or “L/
100 km”, average fuel consumption
mode “AVE_ _._ km/L” or “AVE_ _._ L/
100 km”, coolant temperature mode
“  C”, air intake temperature mode “Air_
_ C”, odometer mode “ODO”, and trip-
meter modes “TRIP 1” and “TRIP 2” in
the following order:
km/L or L/100 km  AVE_ _._ km/L or
AVE_ _._ L/100 km   C  Air_ _ C
 ODO  TRIP 1  TRIP 2
For the UK:
Push the “SELECT” button to switch
the display between the instantaneous
fuel consumption mode “km/L”, “L/100
km” or “MPG”, average fuel consump-
tion mode “AVE_ _._ km/L”, “AVE_ _._ L/100 km” or “AVE_ _._ MPG”, coolant
temperature mode “
C”, air intake tem-
perature mode “Air_ _ C”, odometer
mode “ODO”, and tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
km/L, L/100 km or MPG  AVE_ _._
km/L, AVE_ _._ L/100 km or AVE_ _._
MPG  C  Air_ _ C  ODO 
TRIP 1  TRIP 2
TIP
Push the “RESET” button to switch
the display in the reverse order.

The fuel reserve tripmeter and
self-diagnosis modes come on au-tomatically.
If the last segment of the fuel meter
starts flashing (“ ” wi ll also flash for
MT09), the display automatically
changes to the fuel reserve tripmeter
mode “F-TRIP” and starts counting the
distance traveled from that point. In this
case, push the “SELECT” button to
switch the display in the following order:
F-TRIP  km/L or L/100 km  AVE_
_._ km/L or AVE_ _._ L/100 km   C
1. Multi-function display
1
B87-9-E0_1.book 11 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-12
1
234
5
6
7
8
9
10
11
12

Air_ _ C  ODO  TRIP 1  TRIP
2  F-TRIP
For the UK:
F-TRIP  km/L, L/100 km or MPG 
AVE_ _._ km/L, AVE_ _._ L/100 km or
AVE_ _._ MPG   C  Air_ _ C 
ODO  TRIP 1  TRIP 2  F-TRIP
TIP
To reset a tripmeter, select it by
pushing the “SELECT” button, and
then push the “RESET” button for
one second.

If you do not reset the fuel reserve
tripmeter manually, it resets auto-
matically and disappears after re-fueling and traveling 5 km (3 mi). Instantaneous fuel consumption
mode
The instantaneous fuel consumption
display can be set to either “km/L”, “L/
100 km” or “MPG” (for the UK).

“km/L”: The distance that can be
traveled on 1.0 L of fuel under the
current riding conditions is shown.

“L/100 km”: The amount of fuel
necessary to travel 100 km under
the current riding conditions is
shown.

“MPG” (for the UK): The distance
that can be traveled on 1.0 Imp.gal
of fuel under the current riding con-
ditions is shown.
To switch between the instantaneous fuel consumption display settings, push
the “SELECT” button for one second.
TIPIf traveling at speeds under 20 km/h (12mi/h), “_ _._” is displayed.
Average fuel consumption mode
This display shows the average fuel
consumption since it was last reset.
The average fuel consumption display
can be set to either “AVE_ _._ km/L”,
“AVE_ _._ L/100 km” or “AVE_ _._
MPG” (for the UK).
“AVE_ _._ km/L”: The average dis-
tance that can be traveled on 1.0 L
of fuel is shown.

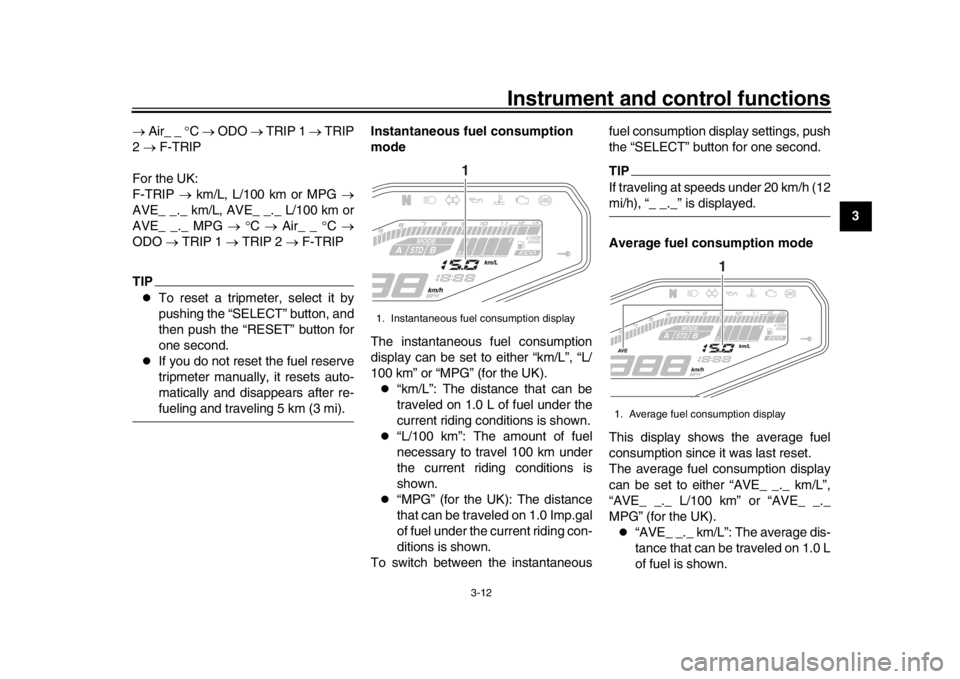

1. Instantaneous fuel consumption display
1
1. Average fuel consumption display
1
B87-9-E0_1.book 12 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-13
1
23
4
5
6
7
8
9
10
11
12

“AVE_ _._ L/100 km”: The average
amount of fuel necessary to travel
100 km is shown.

“AVE_ _._ MPG” (for the UK): The
average distance that can be trav-
eled on 1.0 Imp.gal of fuel is
shown.
To switch between the average fuel
consumption display settings, push the
“SELECT” button for one second.
To reset the average fuel consumption,
push the “RESET” button for one sec-
ond.
TIPAfter resetting the average fuel con-
sumption, “_ _._” will be shown until thevehicle has traveled 1 km (0.6 mi). Coolant temperature mode
This display shows the coolant temper-
ature from 40 
C to 116 C in 1 C incre-
ments.
If the message “HI” flashes, stop the
vehicle, then stop the engine, and let
the engine cool. (See page 6-45.)
TIP
When the coolant temperature is
below 40  C, “LO” will be dis-
played.

The coolant temperature varies
with changes in the weather andengine load. Air intake temperature mode
The air intake temperature display indi-
cates the temperature of the air drawn
into the air filter case.
This display shows the air intake tem-
perature from –9 
C to 99 C in 1  C in-
crements.
TIP
–9 C will be displayed even if the
air intake temperature falls below
–9 C.

The air intake temperature may
vary from the ambient tempera-ture.
1. Coolant temperature display
1
1. Air intake temperature display
1
B87-9-E0_1.book 13 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-14
1
234
5
6
7
8
9
10
11
12
Self-diagnosis mode (MT09)
This model is equipped with a self-diag-
nosis device for vari
ous electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the display will indi-
cate an error code.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi- lizer system circuits, the immobilizer
system indicator light will flash and the
display will indicate an error code.
TIPIf the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and try starting the engine with the
standard keys.
3. If one or both of the standard keys do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
NOTICE
ECA11591
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
Brightness control mode
The brightness of the multi-function
meter unit panel can be adjusted.
To adjust the brightness1. Turn the key to “OFF”.
2. While pushing the “SELECT” but-ton, turn the key to “ON” and con-
tinue pushing the button until the
display switches to the brightness
1. Error code display
2. Engine trouble warning light “ ”
3. Immobilizer system indicator light “ ”
1
2
3
1. Brightness level display
1
B87-9-E0_1.book 14 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分
