Instrument and control functions
3-4
3
er gear. (See page 3-9 for a more de-
tailed explanation of this indicator light
and on how to set it.)
The electrical circuit of the indicator
light can be checked by turning the key
to “ ”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ ”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
EAUN0871
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle
before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g settin
gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.
The multi-function meter unit is
equipped with the following:
 a speedometer
 a tachometer
 a clock
 a fuel meter
 a coolant temperature meter
 a transmission gear display
 a multi-function display
 a shift timing indicator light
 a self-diagnosis deviceTIPBe sure to turn the key to “ ” be-
fore using the “SEL” and “RES”
buttons, except for setting the
shift timing indicator light control
mode.
 For the UK only: To switch the
speedometer and multi-function
displays between kilometers and
miles, press the “SEL” button for
at least one second.
1. “SEL” button
2. “RES” button
3. Tachometer
4. Fuel meter
5. Shift timing indicator light
6. Clock
7. Transmission gear display
8. Speedometer
9. Multi-function display
10.Coolant temperature meter
10
9
1 32
4
6
5
7
8
km/hkm/L
L/100kmMPHmileMPG
UB08E1E0.book Page 4 Friday, October 2, 2015 9:33 AM

Instrument and control functions
3-5
3 Speed
ometer
The speedometer shows the vehicle’s
traveling speed.
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ ”, the ta-
chometer will sweep across the r/min
range and then return to zero r/min in
order to test the electrical circuit.
NOTICE
ECA10032
Do not operate the en gine in the ta-
chometer red zone. Re
d zone: 12500 r/min an d a bove
Clock
The clock is displayed when the key is
turned to “ ”.
To set the clock1. Turn the key to “ ”.
2. Push the “SEL” button and “RES”
button together for at least two
seconds.
3. When the hour digits start flash- ing, push the “RES” button to set
the hours.
4. Push the “SEL” button, and the minute digits will start flashing.
5. Push the “RES” button to set the minutes. 6. Push the “SEL” button and then
release it to start the clock.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank.
When the key is turned to “ ”, the dis-
play segments of the fuel meter will
sweep once across the fuel level range
and then return to the current amount
in order to test the electrical circuit.
The display segments of the fuel meter
disappear towards “E” (Empty) as the
fuel level decreases. When the last
segment starts flashing, refuel as soon
as possible.
1. Tachometer
2. Tachometer red zone
2
1
km/hkm/L
L/100kmMPHmileMPG
1. Clock
1
1. Fuel meter
1
UB08E1E0.book Page 5 Friday, October 2, 2015 9:33 AM

Instrument and control functions
3-6
3
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, the fol-
lowing cycle is repeated until the
malfunction is corrected: fuel level seg-
ments flash eight times, then go off for
approximately three seconds. If this
occurs, have a Yamaha dealer check
the electrical circuit.Coolant temperature meter
The coolant temperature meter indi-
cates the temperature of the coolant.
When the key is turned to “ ”, the dis-
play segments of the digital coolant
temperature meter will sweep once across the temperature range and then
return to “C” in order to test the electri-
cal circuit.
If the last segment on the right flashes,
stop the vehicle, then stop the engine,
and let the engine cool. (See page
6-37.)
NOTICE
ECA10022
Do not continue to operate the en-
g
ine if it is overheatin g.TIPThe coolant temperature varies with
changes in the weather and engine
load.
Transmission gear display
This display shows the selected gear.
The neutral position is indicated by “ ”
and by the neutral indicator light.
Multi-function display
1. Coolant temperature meter
1
1. Neutral indicator light “ ”
2. Transmission gear display
1. Multi-function display
1
2
MPH
km/h
km
1
UB08E1E0.book Page 6 Friday, October 2, 2015 9:33 AM

Instrument and control functions
3-7
3 The multi-function display is equipped
with the following:
 an odometer
 two tripmeters
 a fuel reserve tripmeter
 an instantaneous fuel consump-
tion display
 an average fuel consumption dis-
play
 an oil change tripmeter
 an oil change indicator
The odometer shows the total distance
traveled by the vehicle.
The tripmeters show the distance trav-
eled since they were last set to zero.
The fuel reserve tripmeter shows the
distance traveled since the fuel level
warning light came on.
Except for the UK:
Push the “SEL” button to switch the
display between the odometer mode
“ODO”, tripmeter modes “TRIP 1” and
“TRIP 2”, instantaneous fuel consump-
tion mode “L/100 km” or “km/L”, aver-
age fuel consumption mode “AVE_ _._ L/100 km” or “AVE_ _._ km/L” and oil
change tripmeter mode “OIL TRIP” in
the following order:
ODO
→ TRIP 1 → TRIP 2 → L/100 km
or km/L → AVE_ _._ L/100 km or AVE_
_._ km/L → OIL TRIP → ODO
If the left segment of the fuel meter
starts flashing, the display automati-
cally changes to the fuel reserve trip-
meter mode “TRIP F” and starts
counting the distance traveled from
that point. In that case, push the “SEL”
button to switch the display between
the various tripmeter, odometer, in-
stantaneous fuel consumption and av-
erage fuel consumption modes in the
following order:
TRIP F → L/100 km or km/L → AVE_
_._ L/100 km or AVE_ _._ km/L → OIL
TRIP → ODO → TRIP 1 → TRIP 2 →
TRIP F
To reset a tripmeter, select it by push-
ing the “SEL” button, and then push
the “RES” button for at least one sec-
ond. If you do not reset the fuel reserve trip-
meter manually, it resets itself auto-
matically and the display returns to the
prior mode after refueling and traveling
5 km (3 mi).
For the UK only:
Push the “SEL” button to switch the
display between the odometer mode
“ODO”, tripmeter modes “TRIP 1” and
“TRIP 2”, instantaneous fuel consump-
tion mode “MPG”, “L/100 km” or
“km/L”, average fuel consumption
mode “AVE_ _._ MPG”, “AVE_ _._
L/100 km” or “AVE_ _._ km/L” and oil
change tripmeter mode “OIL TRIP” in
the following order:
ODO
→ TRIP 1 → TRIP 2 → MPG,
L/100 km or km/L → AVE_ _._ MPG,
AVE_ _._ L/100 km or AVE_ _._ km/L →
OIL TRIP → ODO
If the left segment of the fuel meter
starts flashing, the display automati-
cally changes to the fuel reserve trip-
meter mode “TRIP F” and starts
counting the distance traveled from
UB08E1E0.book Page 7 Friday, October 2, 2015 9:33 AM

Instrument and control functions
3-8
3
that point. In that case, push the “SEL”
button to switch the display between
the various tripmeter, odometer, in-
stantaneous fuel consumption and av-
erage fuel consumption modes in the
following order:
TRIP F
→ MPG, L/100 km or km/L →
AVE_ _._ MPG, AVE_ _._ L/100 km or
AVE_ _._ km/L → OIL TRIP → ODO →
TRIP 1 → TRIP 2 → TRIP F
To reset a tripmeter, select it by push-
ing the “SEL” button, and then push
the “RES” button for at least one sec-
ond.
If you do not reset the fuel reserve trip-
meter manually, it resets itself auto-
matically and the display returns to the
prior mode after refueling and traveling
5 km (3 mi).
TIP The odometer will lock at 999999.
 The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.

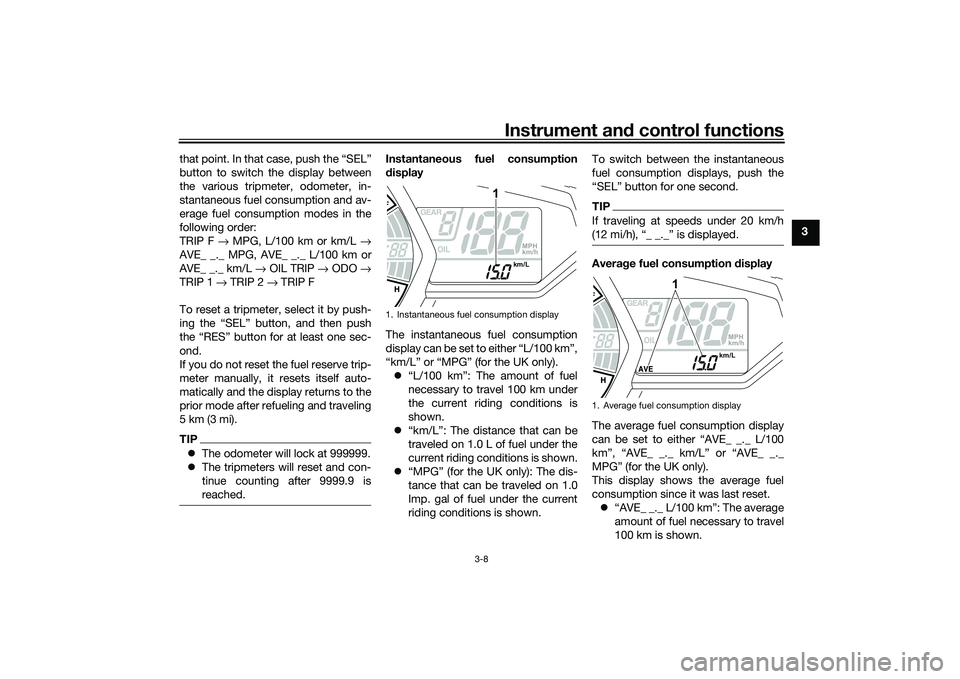

Instantaneous fuel consumption
display
The instantaneous fuel consumption
display can be set to either “L/100 km”,
“km/L” or “MPG” (for the UK only).  “L/100 km”: The amount of fuel
necessary to travel 100 km under
the current riding conditions is
shown.
 “km/L”: The distance that can be
traveled on 1.0 L of fuel under the
current riding conditions is shown.
 “MPG” (for the UK only): The dis-
tance that can be traveled on 1.0
Imp. gal of fuel under the current
riding conditions is shown. To switch between the instantaneous
fuel consumption displays, push the
“SEL” button for one second.
TIPIf traveling at speeds under 20 km/h
(12 mi/h), “_ _._” is displayed.Avera
ge fuel consumption display
The average fuel consumption display
can be set to either “AVE_ _._ L/100
km”, “AVE_ _._ km/L” or “AVE_ _._
MPG” (for the UK only).
This display shows the average fuel
consumption since it was last reset.  “AVE_ _._ L/100 km”: The average
amount of fuel necessary to travel
100 km is shown.
1. Instantaneous fuel consumption display
MPH
km/h
km/L
1
1. Average fuel consumption display
MPH
km/h
km/L
1
UB08E1E0.book Page 8 Friday, October 2, 2015 9:33 AM

Instrument and control functions
3-9
3 
“AVE_ _._ km/L”: The average dis-
tance that can be traveled on 1.0 L
of fuel is shown.
 “AVE_ _._ MPG” (for the UK only):
The average distance that can be
traveled on 1.0 Imp. gal of fuel is
shown.
To switch between the average fuel
consumption displays, push the “SEL”
button for one second.
To reset the average fuel consumption
display, push the “RES” button for at
least one second.
TIPAfter resetting the average fuel con-
sumption display, “_ _._” is shown until
the vehicle has traveled 1 km (0.6 mi).
Oil chan ge tripmeter
The oil change tripmeter shows the
distance traveled since it was last reset
(i.e., since the last oil change).
The oil change indicator “OIL” will flash
at the initial 1000 km (600 mi), then at
5000 km (3000 mi) and every 5000 km
(3000 mi) thereafter to indicate that the
engine oil should be changed.
After changing the engine oil, reset the
oil change tripmeter and the oil change
indicator. To reset them both, select
the oil change tripmeter, and then push
the “RES” button for one second.
Then, while “OIL” and the oil change tripmeter are flashing, push the “RES”
button for three seconds. The oil
change indicator will be reset.
If the engine oil is changed before the
oil change indicator comes on (i.e., be-
fore the periodic oil change interval has
been reached), the oil change tripmeter
must be reset for the next periodic oil
change to be indicated at the correct
time.
Shift timin
g in dicator li ght
The shift timing indicator light has four
settings which can be adjusted.1. Oil change indicator “OIL”
2. Oil change tripmeter
MPH
km/h
km
2
1
1. Shift timing indicator light
2. Brightness level display
1
2
km/hMPH
UB08E1E0.book Page 9 Friday, October 2, 2015 9:33 AM

Instrument and control functions
3-11
3 12000 r/min to 13500 r/min, the in-
dicator light can be set in incre-
ments of 200 r/min.
 Be sure to set the deactivation
point to a higher engine speed
than for the activation point, other-
wise the shift timing indicator light
will not come on.
1. Push the “RES” button to select
the desired engine speed for de-
activating the indicator light.
2. Push the “SEL” button to confirm the selected engine speed. The
control mode changes to the
brightness setting mode.
To adjust the brightness1. Push the “RES” button to select the desired shift indicator light
brightness level.
2. Push the “SEL” button to confirm the selected brightness level. The
display exits the shift timing light
control mode and returns to the
standard multi-function display
mode. Self-
dia gnosis device
This model is equipped with a self-di-
agnosis device for various electrical
circuits.
If a problem is detected in any of those
circuits, the engine trouble warning
light will come on and the display will
indicate an error code.
NOTICE
ECA11591
If the display in dicates an error
co de, the vehicle shoul d b e checked
as soon as possi ble in or der to avoi d
en gine damag e.
EAU1234H
Handle bar switchesLeft
Ri ght
1. Engine trouble warning light “ ”
2. Error code display
2
1
km/hMPH
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1. Engine stop switch “ / ”
2. Start switch “ ”
4312
21
UB08E1E0.book Page 11 Friday, October 2, 2015 9:33 AM

Operation and important rid ing points
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU62513
TIPThis model is equipped with:  a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the display will indicate error
code 30, but this is not a malfunc-
tion. Turn the key to “ ” and then
to “ ” to clear the error code.
Failing to do so will prevent the en-
gine from starting even though the
engine will crank when pushing
the start switch.
 an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start
switch to restart the engine.
EAU67610
Startin g the en gineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
 The transmission is in the neutral
position.
 The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-22 for more informa-
tion.
1. Turn the key to “ ” and make sure that the engine stop switch is
set to “ ”.
The engine trouble warning light
should come on for a few sec-
onds, then go off. NOTICE: If the
warnin g lig ht does not go off,
have a Yamaha dealer check its
electrical circuit.
[ECAT1121]
The ABS warning light should
come on when the main switch is
turned to “ON” and then go off af-
ter traveling at a speed 10 km/h (6
mi/h) or higher.
UB08E1E0.book Page 1 Friday, October 2, 2015 9:33 AM
