Page 369 of 396
11 Specifications
11
}}
367

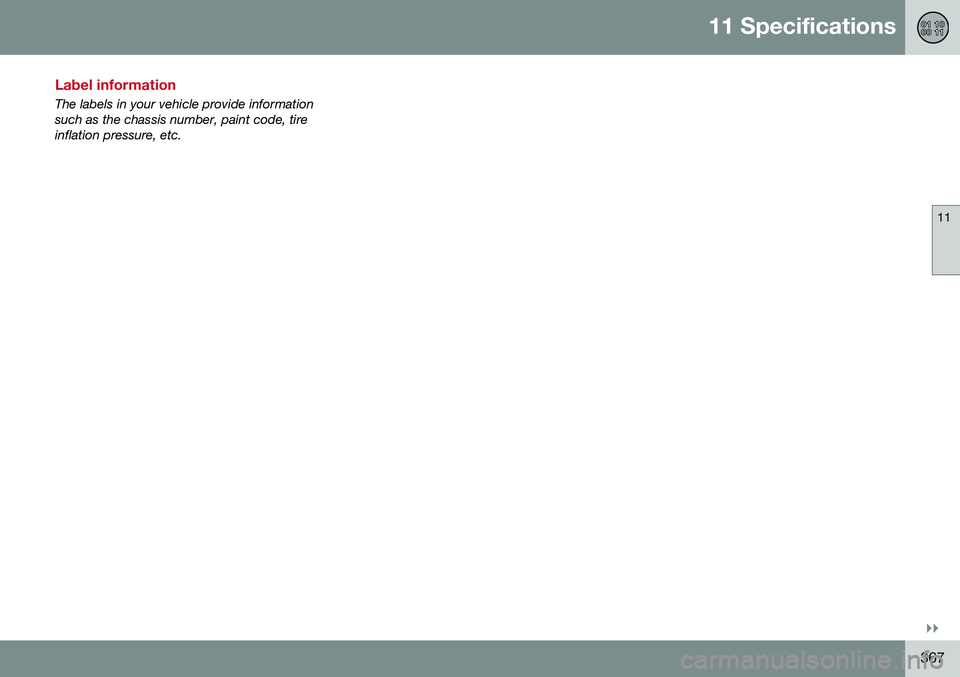

Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.
Page 370 of 396
||
11 Specifications
11
368

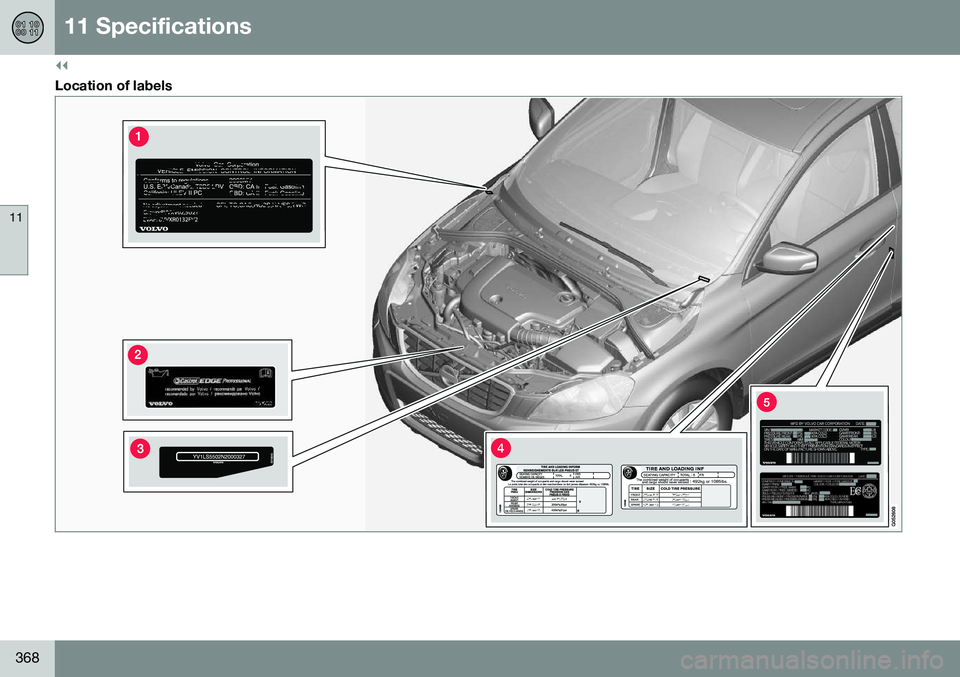

Location of labels
Page 371 of 396

11 Specifications
11
369
List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.
Related information
• Weights (p. 372)
• Engine specifications (p. 373)
Page 372 of 396
11 Specifications
11
370
Dimensions
This section lists your vehicle's most impor- tant dimensions.
Dimensions
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people)A7.7 (195 )
BWheelbase110.8 (2815)
CLength190.5 (4838)
DLoad length, floor, seatback down73.9 (1878)
ELoad length, floor42.9 (1089)
FHeight63.1 (1604)
Page 373 of 396
11 Specifications
11
371
PositionDimensionin. (mm)
GLoad height28.5 (724)
HTrack, front63.5 (1614)B
63.1 (1604) C
ITrack, rear62.2 (1580)B
61.8 (1570) C
JLoad width, floor45.4 (1153)
KWidth73.6 (1870) 73.9 (1876)D
LWidth incl. door mirrors (folded out)83.4 (2119)
MWidth incl. door mirrors (folded in)75.8 (1925)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B 16" 50 wheels
C 17/18" 55 wheels
D Models with the optional keyless drive
Page 374 of 396
11 Specifications
11
372
Weights
The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight4-cyl. FWDA
: 5100 lbs
5-cyl. AWD B
: 5180 lbs4-cyl. FWD A
: 2310 kg
5-cyl. AWD B
: 2350 kg
Capacity weightAll models: 900 lbsAll models: 410 kg
Permissible axle weights, front4-cyl. FWD: 2690 lbs 5-cyl. AWD: 2690 lbs4-cyl. FWD: 1220 kg 5-cyl. AWD: 1220 kg
Permissible axle weights, rear4-cyl. FWD: 2560 lbs 5-cyl. AWD: 2645 lbs4-cyl. FWD: 1160 kg 5-cyl. AWD: 1200 kg
Curb weight3890 - 4100 lbs1760 - 1870 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
A Front Wheel Drive
B All Wheel Drive
Related information
• Loading specifications (p. 301)
• Loading specifications – load limit (p. 301)
Page 375 of 396
11 Specifications
11
373
Engine specifications
The following table provides technical data for the respective engines. Engine specificationsfor Special Edition vehicles may vary.Some of the engines listed here may notbe available in all markets.
Engine specifications
Specification/Model5-cyl.2.0 4-cyl. T11
Engine designationB5254T12B4204T11
Output (kW/rps)187/90179/93
Output (hp/rpm)250/5400 rpm240/5600
Torque (Nm/rps)360/30-70350/25-75
Torque (ft. lbs./rpm)266/1800-4200258/1500–4500
No. of cylinders54
Bore (in/mm)3.27/833.23/82
Stroke (in/mm)3.63/92.33.67/93.2
Displacement2.497 liters / (152.4 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio9.5:110.8:1
Related information
•
Coolant – specification and volume (p. 376)
• Oil specifications (p. 374)
• Oil volume (p. 375)
Page 376 of 396

11 Specifications
11
374
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.
CAUTION
4-cylinder engines only:
Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.
Related information
• Oil volume (p. 375)
• Engine compartment – engine oil (p. 329)
