2016 VOLKSWAGEN SCIROCCO Owners Manual

Inflate a spare wheel to the pressure specified for the vehicle's road wheels on the tire pressure label; inflate a compact spare wheel to the pressure specified for the compact spare on the tire pressure label or on a separate label for the compact spare, if there is one.
WARNING
Incorrect tire pressure can cause a sudden tire failure or blowout, loss of control, collision, serious personal injury, and even death.
x Always inflate tires to the recommended and correct cold tire pressure before driving off.
x Low tire pressure can cause tires to get too hot, resulting in tread separation, sudden loss of pressure, and blowouts. Tires with excessively low pressure flex (bend) more, which can cause the tire to overheat and fail suddenly without warning.
x Excessive speed and/or overloading can cause heat buildup, sudden tire failure including a blowout and sudden deflation and loss of control.
x If the tire pressure is too low or too high, the tires will wear prematurely and the vehicle will not handle well.
x Regularly check tire inflation pressure, at least once a month, and also especially before a long trip.
x Check the pressure in all 4 tires when the tires are still cold. Never reduce air pressure in warm tires to match cold tire inflation pressure.
NOTICE
x Make sure not to jam the tire pressure gauge into the valve stem. Otherwise you can damage the tire valves.
x Driving without valve caps, with the wrong valve caps, or with valve caps that are not properly screwed on can damage the tire valves. To help prevent damage, always use valve stem caps like those originally installed at the factory. The caps must be screwed on tightly. Do not use metal valve caps or “comfort” valve stem caps.
Underinflation increases fuel consumption.
When the TPMS warns that the pressure in at least one tire is too low, check the tire pressure in all 4 tires with an accurate tire pressure gauge. Low tire pressure usually cannot be spotted by looking
at the tire. This is especially true for low-profile tires. When checking the tire pressures, refer to ⇒ Tire Pressure Monitoring System (TPMS).
Tire inflation pressure in cold tires

Engine Tire size Comfort tire pressure(full load) Standard tire pressure (full load)
psi kPa bar psi kPa bar
(125 kW) 205/55 R16 91H 32 220 2.2 36 250 2.5
225/45 R17 91H 32 220 2.2 36 250 2.5
225/40 R18 92H xl - - - 35 240 2.4
The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation
pressure is listed on the tire inflation pressure label on the driver door jamb ⇒ fig. 103. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated whenever you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical
to those that were removed and even if the tire pressure does not change ⇒ page 186.

Tread depth and tread wear indicators

Fig. 104 Tread pattern: Wear indicator.

Tread wear indicator (TWI) in the tire
The 1/16 in. (1.6 mm) high wear indicators are molded into the bottom of the tread grooves of the
original tires running across the treads ⇒ fig. 104. Several wear indicators are evenly spaced around the tire. Markings on the sides of the tires (for example “TWI” or symbols) show the position of the wear indicators.
Wear indicators show when the tires are worn down. The tires must be replaced no later than when the tread pattern is worn down to the wear indicators.
WARNING
Worn tires are dangerous and can cause loss of vehicle control including serious personal injuries.
x Never drive a vehicle when the tread on any tire is worn down to the wear indicators, replace them sooner.
x Worn tires do not grip the road properly, especially on wet roads, increasing your risk of “hydroplaning” and loss of control.
x Worn tires reduce the ability of your vehicle to handle well in normal and difficult driving situations and increase braking distances and the risk of skidding.
Tire wear and damage

steering and suspension systems. Have all wheels rebalanced. A wheel must always be rebalanced if a new tire has been mounted.
Wheel alignment – Incorrect wheel alignment causes excessive and uneven tire wear, impairing vehicle safety. If you notice excessive or uneven tire wear, have the wheel alignment checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
WARNING
Unusual vibrations or pulling to one side can indicate tire damage.
x Reduce speed immediately and stop when it is safe to do so.
x Check tires and wheel rims for damage.
x Never drive with a damaged tire or rim. Get expert assistance instead.
x If no external damage is visible, slowly and carefully drive to the nearest authorized Volkswagen dealer, authorized Volkswagen Service Facility, or other qualified workshop and have the vehicle checked.
Spare wheel or compact spare wheel

Fig. 105 In the luggage compartment: Handwheel holding the spare wheel in place.

Fig. 106 In the luggage compartment: Compact spare wheel (if equipped).

Removing the spare wheel or compact spare wheel
x Open the rear hatch, lift up the floor covering, and hook it in the stops on either side of the luggage
compartment ⇒ Storage.
x If applicable, remove the subwoofer ⇒ Removing the subwoofer.
x If necessary, pull the securing clip ⇒ fig. 105 (1) out and up.
x Completely unscrew the handwheel in the center of the spare wheel (2) or compact spare wheel
⇒ fig. 106 counterclockwise and remove the spare wheel.
Stowing the replaced wheel
x Open the rear hatch, lift up the floor covering, and hook it in the stops on either side of the luggage compartment.
x If the wheel you took off the vehicle fits in the spare wheel well, position it so that the center hole of the rim is aligned with the threaded pin in the center of the well.
x Turn the handwheel ⇒ fig. 105 (2) clockwise until the wheel is securely in place.
x If necessary, insert the securing clip (1) in the stud slot so that the handwheel can no longer be turned.
x If necessary, return the vehicle tool kit to its location in the luggage compartment.
x Unhook the floor covering and fold it back down onto the floor of the luggage compartment.
x Close the rear hatch.
If the replaced wheel does not fit in the spare wheel well, stow it securely in the luggage compartment on top of the floor covering.
If the spare wheel is different from the road wheels
If the spare is different from the road wheels, a compact spare wheel, for example, or if the road wheels are winter tires, the spare wheel must be used only in the event of a flat tire, only for a brief
time, and only when driving with extra caution ⇒ .
Replace it with a tire matching the others on your vehicle as soon as possible.
Please heed the following:
x Do not drive faster than 50 mph (80 km/h)!
x Avoid full-throttle acceleration, hard braking, and fast cornering!
x Do not use snow chains on the compact spare wheel ⇒ Snow chains.
x After installing the spare wheel or compact spare wheel, check the tire pressure as soon as
possible ⇒ Tire inflation pressure.
Check the tire inflation pressure of the spare or compact spare whenever you check the tire pressure of the road wheels, at least once a month. Inflate a spare wheel to the cold tire pressure specified for the vehicle's road wheels on the tire pressure label; inflate a compact spare wheel to the cold tire pressure specified for the compact spare on the tire pressure label or on a separate label for the compact spare, if there is one.

WARNING
Improper use of a spare wheel or a compact spare wheel can cause loss of vehicle control, a crash or other accident, and serious personal injury.
x Never use a spare wheel or compact spare wheel if it is damaged or worn down to the wear indicators.
x In some vehicles, the spare wheel or compact spare wheel is smaller than the original tire. A smaller compact spare wheel is identified with a sticker and the words “50 mph” or “80 km/h”. This is the maximum permissible speed when driving with this tire.
x Never drive faster than 50 mph (80 km/h) with a compact spare wheel. Avoid full-throttle acceleration, heavy braking, and fast cornering!
x Never drive more than 125 miles (200 km) if a compact spare wheel is installed on the front axle (drive axle).
x Replace the compact spare with a normal wheel and tire as soon as possible. Compact spare tires are designed for brief use only.
x Regularly check the U.S. DOT Tire Identification Number (TIN) to determine the age of the
compact spare wheel ⇒ Tire labeling. Tires age even if they are not being used and can fail suddenly, especially at higher speeds.
x Tires that are more than 6 years old can only be used in an emergency and then with special care and at lower speeds.
x The compact spare wheel must always be secured with the wheel bolts provided by the factory.
x Never drive using more than one compact spare wheel.
x After installing the compact spare wheel, the tire pressure must be checked as soon as
possible ⇒ Tire inflation pressure.
x Snow chains cannot be used on the compact spare wheel. If you must use snow chains and have a compact spare wheel mounted, move the compact spare wheel to the rear axle if a front tire has to be replaced. The tire taken off the rear axle can then be used to replace the flat front tire. Be sure you do not change the tire's direction of rotation. Install the snow chains on the full-sized road tire.
NOTICE
When the spare wheel or compact spare is being used, the TPMS indicator light can light up
after a couple of minutes ⇒ Tire Pressure Monitoring System (TPMS).
If possible, attach the spare wheel, compact spare wheel, or the wheel you took off the vehicle securely in the luggage compartment.

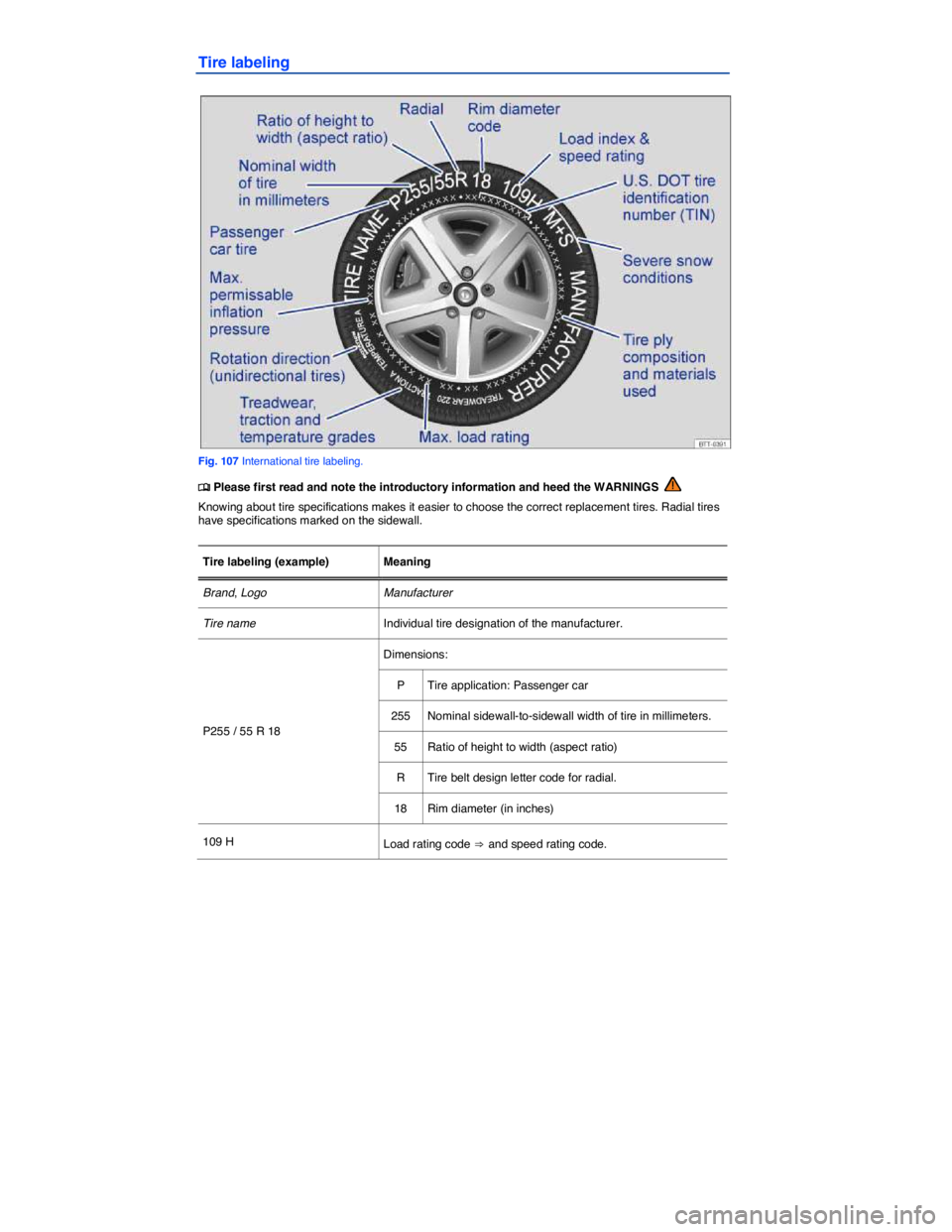

Tire labeling

Fig. 107 International tire labeling.

Tire labeling (example) Meaning
XL Indicates “reinforced” tire (heavy-duty)
M+S or M/S Indicates Mud and Snow capability (also M/S) ⇒ Winter tires.
RADIAL TUBELESS Tubeless radial tire.
E4 ... Labeling according to international regulations (E) including number of the approving country. The multi-digit approval number is listed next.
DOT BT RA TY5 1709
Tire identification number (TIN)7 – In some cases the manufacturing date is only on one side of the tire:
DOT The tire complies with the requirements of the United States Department of Transportation, responsible for issuing safety standards.
BT Identification letter of the manufacturing site.
RA Manufacturer information regarding tire dimensions.
TY5 Tire characteristics provided by the manufacturer.
1709 Manufacturing date: 17th week in 2009.
TWI Marks the position of the treadwear indicator.
Made in Germany Country of manufacture.
MAX LOAD 615 KG (1356 LBS) United States maximum load rating per wheel.
MAX INFLATION 350 KPA (51 PSI) United States maximum permissible inflation pressure.
ROTATION Rotation direction (unidirectional tires)
SIDEWALL 1 PLY RAYON Tire ply composition and materials used: 1 layer of rayon.
TREAD 4 PLIES 1 RAYON + 2 STEEL + 1 NYLON
Tire tread composition and materials used: In this example there are 4 layers under the tread: 1 layer of rayon, 2 layers of steel belt and 1 layer of nylon.
Consumer information regarding comparison to specified base tires (standardized test
procedure) ⇒
TREADWEAR 220 Relative service life expectancy of the tire referenced to a U.S.-specific standard test.
7 TIN represents the serial number of the tire.
