4IntroductionDanger, Warnings andCautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

12In brief22Steering wheel adjustment ..73
23 Bonnet release lever ..........155
24 Auxiliary heater ...................109
25 Storage compartment ..........64
Fuse box ............................ 171Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 95, Automatic light
control 3 95, Headlight warning
device 3 91, Adaptive forward
lighting 3 98.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsr:rear fog lights
Front and rear fog lights 3 98,
3 99.

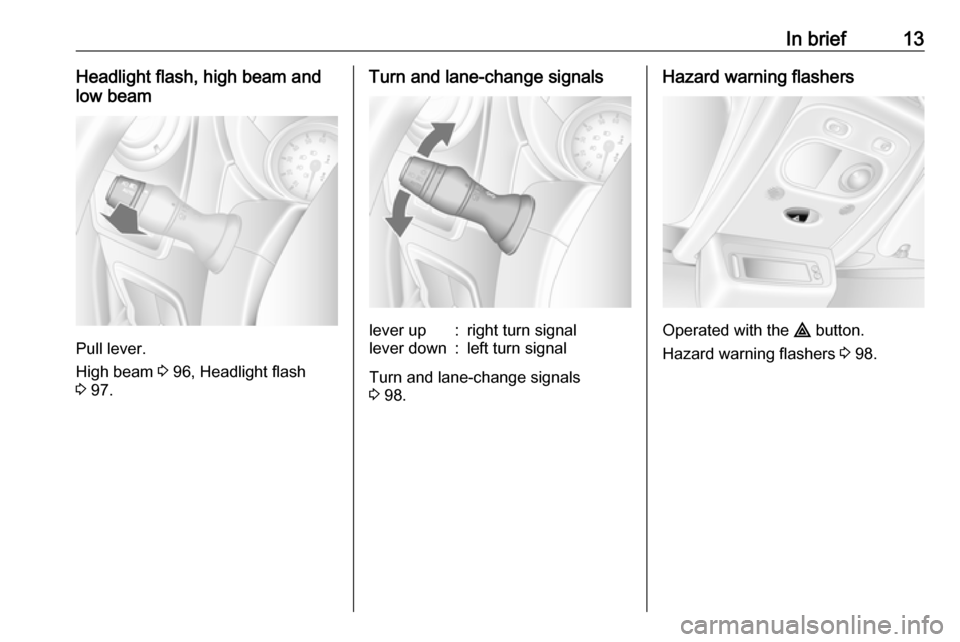

In brief13Headlight flash, high beam and
low beam
Pull lever.
High beam 3 96, Headlight flash
3 97.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 98.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 98.

In brief17Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre (DIC).
● Turn key to position 3 and
release.
Starting the engine 3 118.
Stop-start system
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Move the selector lever to N.
● Release the clutch pedal.
An Autostop is indicated when control indicator Ï illuminates green in the
instrument cluster.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 119.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.

20Keys, doors and windowsWhen the vehicle is taken to a
workshop, this vehicle data is needed in order to perform certain operations.
Radio remote control
Used to operate: ● central locking system
● anti-theft locking system
● anti-theft alarm system
Depending on model, the vehicle may use a 2-button or 3-button remote
control.
The remote control has a range of
approx. 5 metres. It can be affected
by external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Interference from higher-power radio waves from other sources.
Unlocking 3 21.
Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.

24Keys, doors and windowsAutomatic locking when exiting the
vehicle
Depending on version, the e switch
can also be used to lock all doors and the load compartment automatically
when closing the front door and
exiting the vehicle:
Remove key from ignition switch then press and hold the e switch for more
than 5 seconds; vehicle is locked
when the front door is closed.
Automatic locking after driving off
3 25.
Fault in remote control system Unlocking
Manually unlock the front door by
turning the key in the lock.
Switch on the ignition and press the central locking switch e to open all
doors and the load compartment.
Locking
Manually lock the front door by
turning the key in the lock.Fault in central locking system
Unlocking
Manually unlock the front door by
turning the key in the lock. The other
doors can be opened by pulling the
interior handles.
Locking
Push inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key.
Power door locks
Combi, Bus For safety, it is possible for the driver
to operate the passenger door locks
remotely.
All doors must be fully closed and
automatic locking deactivated 3 25.
To lock, press l side of switch; the
warning light alongside the switch will
flash once and a beep will be heard.

Keys, doors and windows25Warning lights in the appropriate
doors remain illuminated.
To unlock, press 0 side of switch.
Fault
In the event of a fault in the system,
the warning light alongside the switch
remains illuminated and an audible warning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Automatic lockingAutomatic locking after driving off
Depending on version, this security
feature can be configured to
automatically lock all doors and the
load compartment as soon as the
vehicle is driven.
Activation
With the ignition switched on, press
and hold the central locking switch e
for approx. 5 seconds. An audible
signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
Deactivation
With the ignition switched on, press
and hold e for approx. 5 seconds. An
audible signal confirms deactivation.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.

26Keys, doors and windowsDoors
Sliding door
Lock and unlock the sliding side door
with the remote control or key (if
equipped).
Open and close the sliding side door
only when the vehicle is at a standstill with the parking brake applied (on
certain models, a warning chime will
sound when the sliding side door is
open and the parking brake is
released).
The sliding side door can be locked
from inside the vehicle with the
interior lock switch.
Ensure the side door is fully closed
and secure before driving the vehicle.9 Warning
Take care when operating the
sliding side door. Risk of injury.
Ensure that nothing becomes
trapped during operation and no-
one is standing within the moving
area.
If the vehicle is parked on a slope,
open sliding doors may move
accidentally on account of their
weight.
Close the sliding doors before
driving off.
Power sliding door
Opening
With vehicle at a standstill and the
parking brake applied, press switch
on instrument panel to open the
power sliding door automatically; the
LED in the switch flashes during
operation.
Notice
If the parking brake is not applied
when the switch is pressed, a
warning chime will sound.
