2016 VAUXHALL COMBO fuse box

In brief111Fixed air vents ..................... 105
2 Side air vents ...................... 105
3 Light switch .......................... 94
Turn and lane-change
signals, headlight flash,
low beam and high beam .....96
4 Instruments .......................... 70
Driver Information Centre ...... 85
5 Windscreen wiper,
windscreen washer
system, rear window
wiper/washer ........................ 66
Trip odometer reset ............... 70
6 Centre air vents .................. 105
7 Document holder, pocket
for Personal Navigation
Device .................................. 56
8 Headlight range
adjustment ........................... 95
Driver Information Centre
controls ................................ 85
Trip computer ........................ 91
Instrument illumination ..........97
Hazard warning flashers .......95Front fog lights .....................96
Rear fog light ........................ 96
Heated rear window ..............31
Heated exterior mirrors .........28
9 Front passenger airbag ........48
10 Glovebox .............................. 57
11 Climate control system ........ 101
Electronic climate control
system ................................. 103
12 Selector lever, manual
transmission ....................... 114
Manual transmission
automated ........................... 115
13 Ignition switch with
steering wheel lock ............108
14 Steering wheel controls .......65
15 Horn ..................................... 65
Driver airbag ........................ 48
16 Steering wheel adjustment ..65
17 Cruise control .....................122
18 Fuse box ............................. 148
19 Bonnet release lever ..........134Exterior lighting
Turn light switch:
§:off / daytime running lights9:sidelights / headlights
Lighting 3 94, Daytime running
lights 3 95.

132Vehicle careVehicle careGeneral Information...................132
Accessories and vehicle modifications .......................... 132
Vehicle storage ........................133
End-of-life vehicle recovery .....133
Vehicle checks ........................... 134
Performing work ......................134
Bonnet ..................................... 134
Engine oil ................................. 135
Engine coolant ......................... 136
Power steering fluid .................136
Washer fluid ............................ 137
Brakes ..................................... 137
Brake fluid ............................... 137
Vehicle battery ......................... 137
Wiper blade replacement ........139
Bulb replacement .......................140
Halogen headlights ..................140
Fog lights ................................. 142
Tail lights ................................. 142
Side turn signal lights ..............143
Centre high-mounted brake light ......................................... 143
Number plate light ...................143Interior lights ............................ 144
Instrument panel illumination ...145
Electrical system ........................146
Fuses ....................................... 146
Engine compartment fuse box . 147
Instrument panel fuse box .......148
Vehicle tools .............................. 149
Tools ........................................ 149
Wheels and tyres .......................150
Winter tyres ............................. 150
Tyre designations ....................150
Tyre pressure .......................... 151
Tyre pressure monitoring
system .................................... 151
Tread depth ............................. 153
Changing tyre and wheel size . 153 Wheel covers ........................... 154
Tyre chains .............................. 154
Tyre repair kit .......................... 154
Wheel changing .......................157
Spare wheel ............................ 158
Jump starting ............................. 161
Towing ....................................... 162
Towing the vehicle ...................162
Towing another vehicle ...........163
Appearance care .......................164
Exterior care ............................ 164
Interior care ............................. 166General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Do not make any modifications to the
electrical system, e.g. changes of
electronic control units (chip tuning).Caution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.

146Vehicle careElectrical systemFuses
Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
● on the right of the engine compartment, next to the battery
● behind a cover on the lower part of the instrument panel, on the
driver's side
Before replacing a fuse, turn off the
respective switch and the ignition.
There are different types of fuses in
the vehicle.
Depending on the type of fuse, a
blown fuse can be recognised by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
It is advisable to carry a full set of
fuses.
Some functions are protected by
several fuses. Fuses may also be
inserted without existence of a
function.
Notice
Not all fuse box descriptions in this
Owner's Manual may apply to your
vehicle. Refer to the fuse box label,
where fitted.

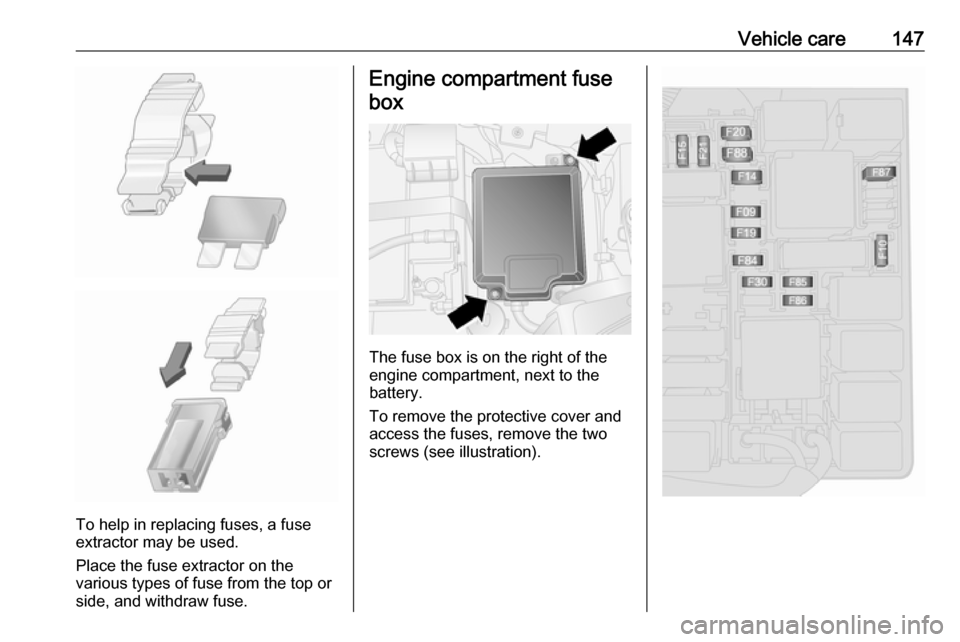

Fuse extractor
Use a fuse extractor to remove fuses.

Vehicle care147
To help in replacing fuses, a fuse
extractor may be used.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fuse
box
The fuse box is on the right of the
engine compartment, next to the
battery.
To remove the protective cover and
access the fuses, remove the two
screws (see illustration).

148Vehicle careNo.CircuitF09Rear door switchF10HornF14High beamF15PTCI heaterF19Air conditioning systemF20Heated rear windowF21Fuel pumpF30Fog lightsF84CNG systemF85Power outletsF86Cigarette lighter / heated seatsF87Stop-start systemF88Mirror heating
After having changed defective fuses
refit the fuse box cover.
If the fuse box cover is not closed
correctly, malfunction may occur.
Instrument panel fuse box
The fuse box is located behind a
cover on the lower part of the
instrument panel, on the driver's side.

Vehicle care149No.CircuitF12Right low beamF13Left low beam / headlight range
adjustmentF31Fusebox relays / body control
unit relaysF32Courtesy lightsF36Diagnostic connector / climate
control system / Infotainment
system / tyre pressure moni‐
toring system / alarm sirenF37Instrument panel / braking
systemF38Central locking systemF43Windscreen washer systemF47Power windowsF48Power windowsF49Exterior mirrors / Infotainment
system / parking assist / tyre
pressure monitoring system /
instrument illumination / rain
sensorNo.CircuitF51Infotainment system / braking
system / clutch / interior heaterF53Instrument panelF94Power outlet load compartmentF95Cigarette lighter / power outletF96Cigarette lighter / power outletF97Heated front seatF98Heated front seatVehicle tools
Tools
Van
The tools and the vehicle jacking
equipment are in the storage area behind the front seat. Pull front handle
and slide seat forwards to access
3 34.
