2016 TOYOTA tC Owners Manual (in English)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
H-Hour set
M-Minute set
Closing operation
Push once to partially close; again to fully
close
Air Conditioning/Heating
Airflow vent
“ ” mode uses outside air (“
” indicator OFF) to reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Rear window defogger
Windshield airflow
Recirculate cabin air (outside air when OFF)
AUX port/USB port
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
For details,
refer to Scion.com to download the SCION Audio System Owner’s Manual or
Scion Bespoke Audio with Navigation Owner’s Manual .
2016_Scion-tC-02.indd 157/7/15 8:06 PM

16
SAFETY AND EMERGENCY FEATURES
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Then allow the vehicle to sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Scion dealer.
Seat belts
Door locks
Tire Pressure Monitoring (warning)
System
p.55 doorlock (same)
p.317 TPWS
(CHECK VERBIAGE) (same)
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the
Owner’s Manual.
Steering wheel switches
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
system OFF.
“ ”
Use to search within the selected audio medium (radio, strike CD, aha™, etc.).
Refer to Scion.com to download the SCION Audio System Owner’s Manual or Scion
Bespoke Audio with Navigation Owner’s Manual .
>>
Volume control
Power outlet
Designed for car accessories. Ignition switch must be in the “ACC” or “ON”
position for use.
Parking brake
Pull(2) Push
(1) Pull slightly
(3) Lower
Set
Release
FEATURES/OPERATIONS
2016_Scion-tC-02.indd 167/7/15 8:07 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
SAFETY AND EMERGENCY FEATURES
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Then allow the vehicle to sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.

If the

tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Scion dealer.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Lock
Unlock
Door locks
Tire Pressure Monitoring (warning)
System
If tire pressure
indicator light is
on, check/adjust
each tire.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn audio
system OFF.
“ ”
Use to search within the selected audio medium (radio, strike CD, Aha iPod
®, etc.).
Refer to Scion.com to download the SCION Audio System Owner’s Manual or Scion
Bespoke Audio with Navigation Owner’s Manual .
Designed for car accessories. Ignition switch must be in the “ACC” or “ON”
position for use.
(1) Pull slightly
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
2016_Scion-tC-02.indd 177/2/15 5:50 PM

18
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control. Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
SAFETY AND EMERGENCY FEATURES
All new Scion vehicles come standard with the Star Safety SystemTM, which combines
Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking System
(ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop
Technology (SST).
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Wheel nut wrenchFront towing eyelet
Jack handle
(1)
(2)
Spare tire
Jack
2016_Scion-tC-02.indd 187/2/15 5:37 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control. Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
SAFETY AND EMERGENCY FEATURES
All new Scion vehicles come standard with the Star Safety SystemTM, which combines
Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking System
(ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop
Technology (SST).
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Front towing eyelet
2016_Scion-tC-02.indd 197/2/15 5:37 PM

20

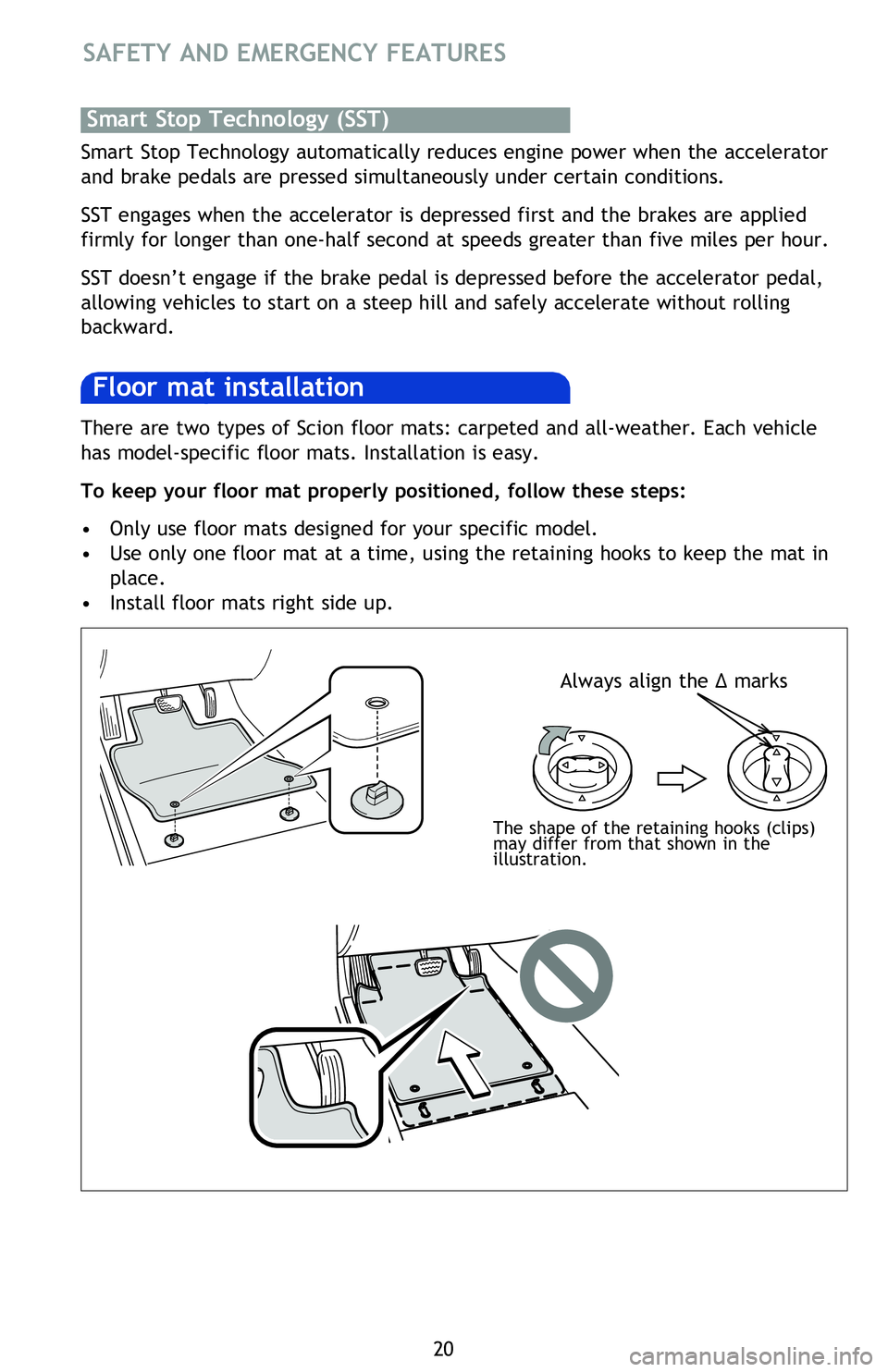

NOTESSAFETY AND EMERGENCY FEATURES
There are two types of Scion floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
•
Only
use floor mats designed for your specific model.
•

Use
only one floor mat at a time, using the retaining hooks to keep the mat in
place.
•

Install
floor mats right side up.
Floor mat installation
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)
Always align the ∆ marks
The shape of the retaining hooks (clips)
may differ from that shown in the
illustration.
2016_Scion-tC-02.indd 207/7/15 8:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
SAFETY AND EMERGENCY FEATURES
There are two types of Scion floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.

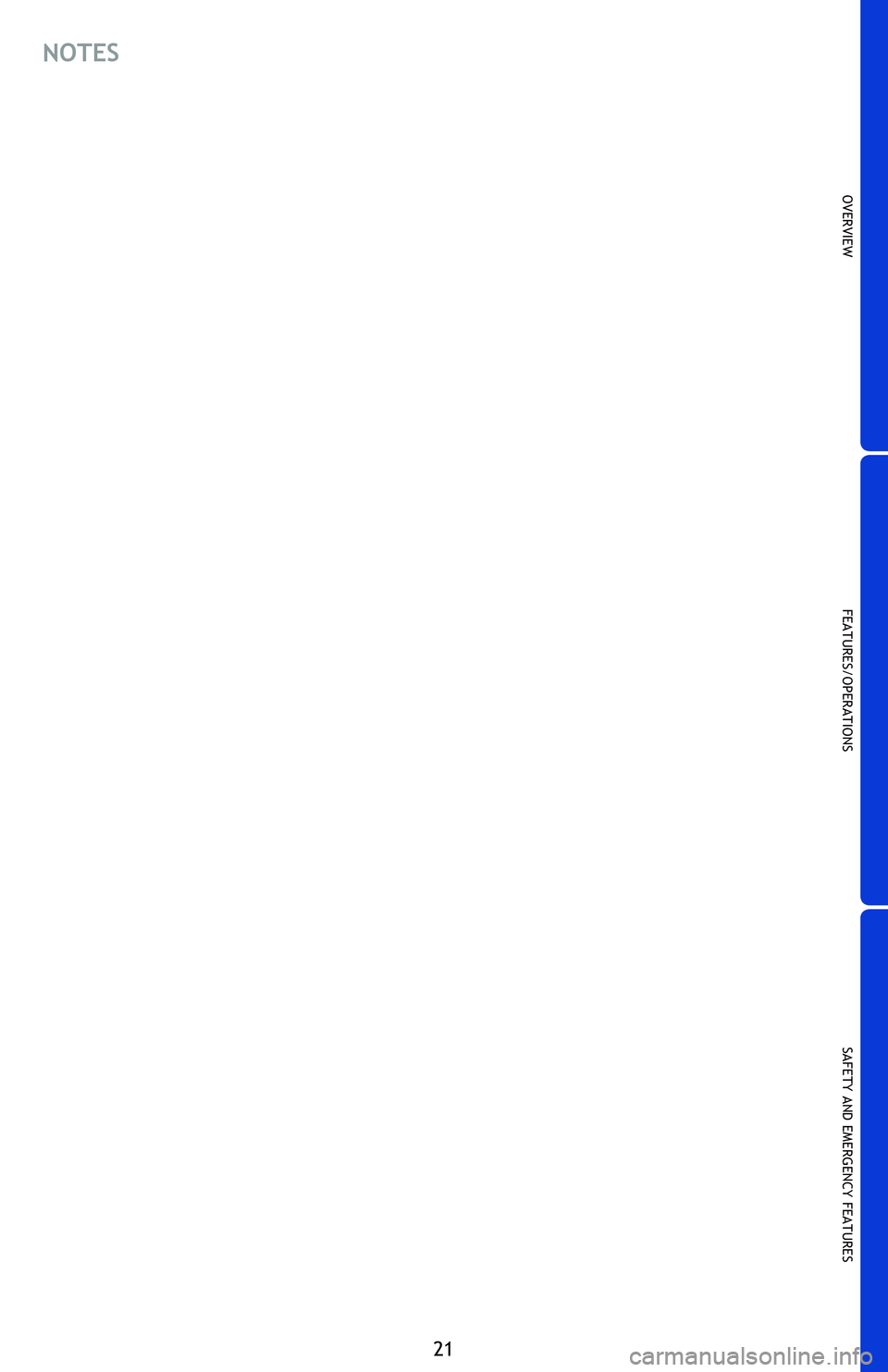

NOTES
2016_Scion-tC-02.indd 217/2/15 5:38 PM

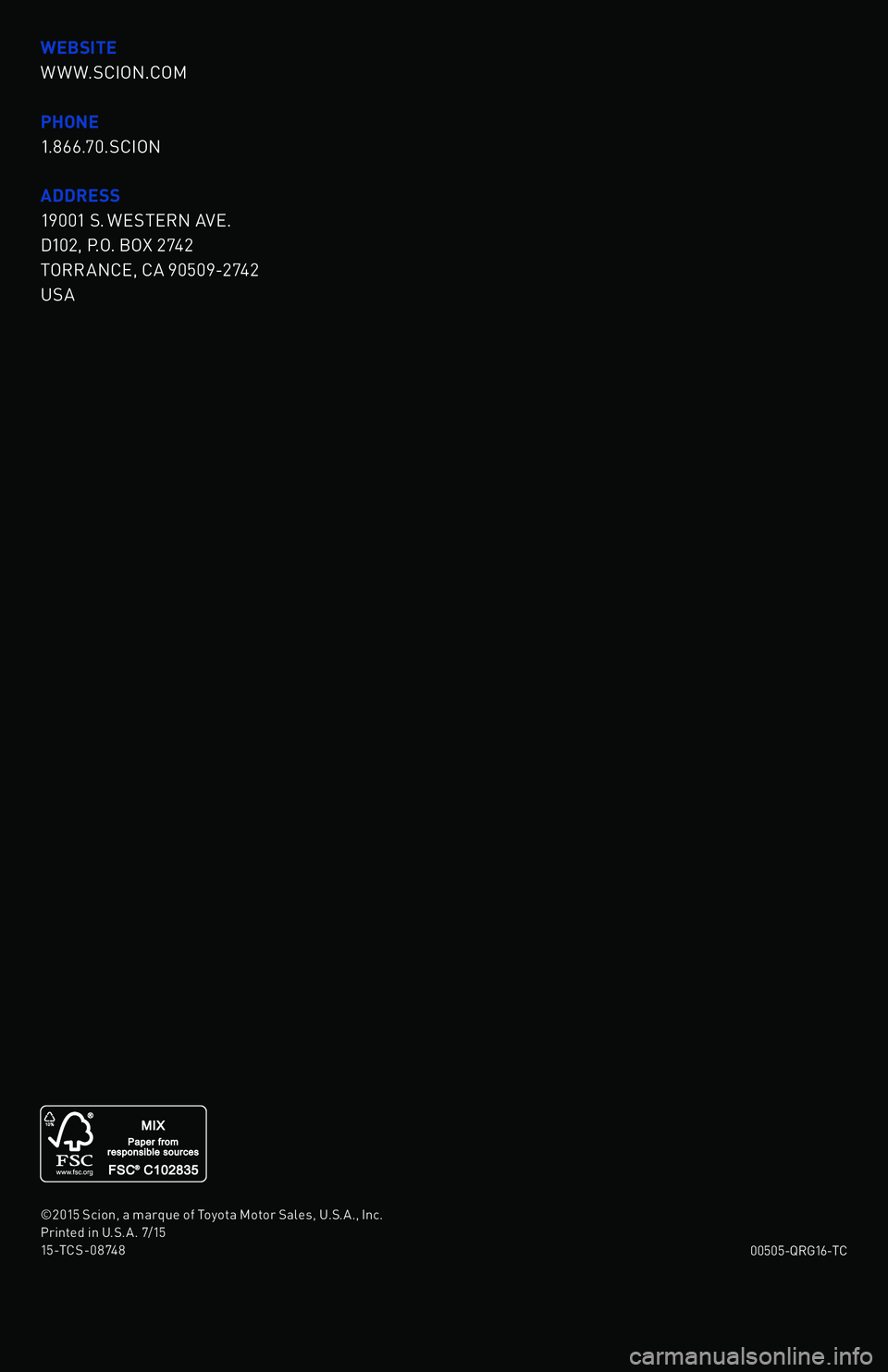

WEBSITE
W W W.SCION.COM
PHONE
1.866.70.SCION
ADDRESS
19001 S. WESTERN A\fE.
D102, \b.O. BOX 2742
TORR ANCE, CA 90509-2742
USA
2016 QUICK
REFERENCE
GUIDE
00505-QRG16-TC
©2015 Scion, a marque of Toyota Motor Sales, U.S. A., Inc.
\brinted in U.S. A . 7/15
15 -T C S - 0 8 74 8
15-TCS-08748_QRG_Scion_tC_BC-FC.indd 17/2/15 5:32 PM
