2016 TOYOTA tC display

117
5. SETUP
5
SETUP
1Touch “Connect Audio Player
From”.
“Vehicle”: Touch to connect the audio
system to the audio player.
“Device”: Touch to connect the audio
player to the audio system.
Depending on the audio player, the “Vehi-
cle” or “Device” connection method may
be best. As such, refer to the manual that
comes with the audio player.
To reset the connection method, touch
“Default”.
1Display the “Bluetooth* Setup” screen.
(→P.113)
2Touch “System Settings”.
3Touch the desired item to be set.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
SETTING AUDIO PLAYER
CONNECTION METHODDETAILED Bluetooth®
SETTINGS
The Bluetooth® settings can be con-
firmed and changed.

118
5. SETUP
1Touch “Bluetooth* Power”.
When “Bluetooth* Power” is on:
Vehicles without a smart key system
The Bluetooth
® device is automatically
connected when the engine switch is
turned to the “ACC” or “ON” position.
Vehicles with a smart key system The
Bluetooth
® device is automatically con-
nected when the “POWER” <“ENGINE
START STOP”> switch is turned to AC-
CESSORY or ON
mode.
When “Bluetooth* Power” is off:
The Bluetooth
® device is disconnected,
and the system will not connect to it next
time.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Touch “Bluetooth* Name”.
2Enter a name and touch “OK”.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Touch “Bluetooth* PIN”.
2Enter a PIN-code and touch “OK”.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
No.InformationPage
Touch to set Bluetooth®
connection on/off.11 8
Displays system name.
Can be changed to a de-
sired name.11 8
PIN-code used when the
Bluetooth® device was
registered. Can be
changed to a desired
code.
11 8
Device address is
unique to the device and
cannot be changed.

Touch to set the phone
connection status dis-
play on/off.

Touch to set the connec-
tion status display of the
audio player on/off.
Compatibility profile of
the system device.
Touch to reset all setup
items.
CHANGING THE Bluetooth®
POWER
INFORMATION
While driving, the auto connection state
can be changed from off to on, but can-
not be changed from on to off.
EDITING THE Bluetooth® NAME
EDITING THE PIN-CODE

119
5. SETUP
5
SETUP
1Touch “Display Phone Status”.
2Touch “On” or “Off”.
On: The status is displayed.
Off: The status is not displayed.
1Touch “Default”.
If the state of “Bluetooth* Power” is
changed from “Off” into “On”, Bluetooth®
connection will begin.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
CHANGING THE DISPLAY
PHONE STATUS
INITIALINZING THE Bluetooth®
SETTINGS
You can initialize the settings.

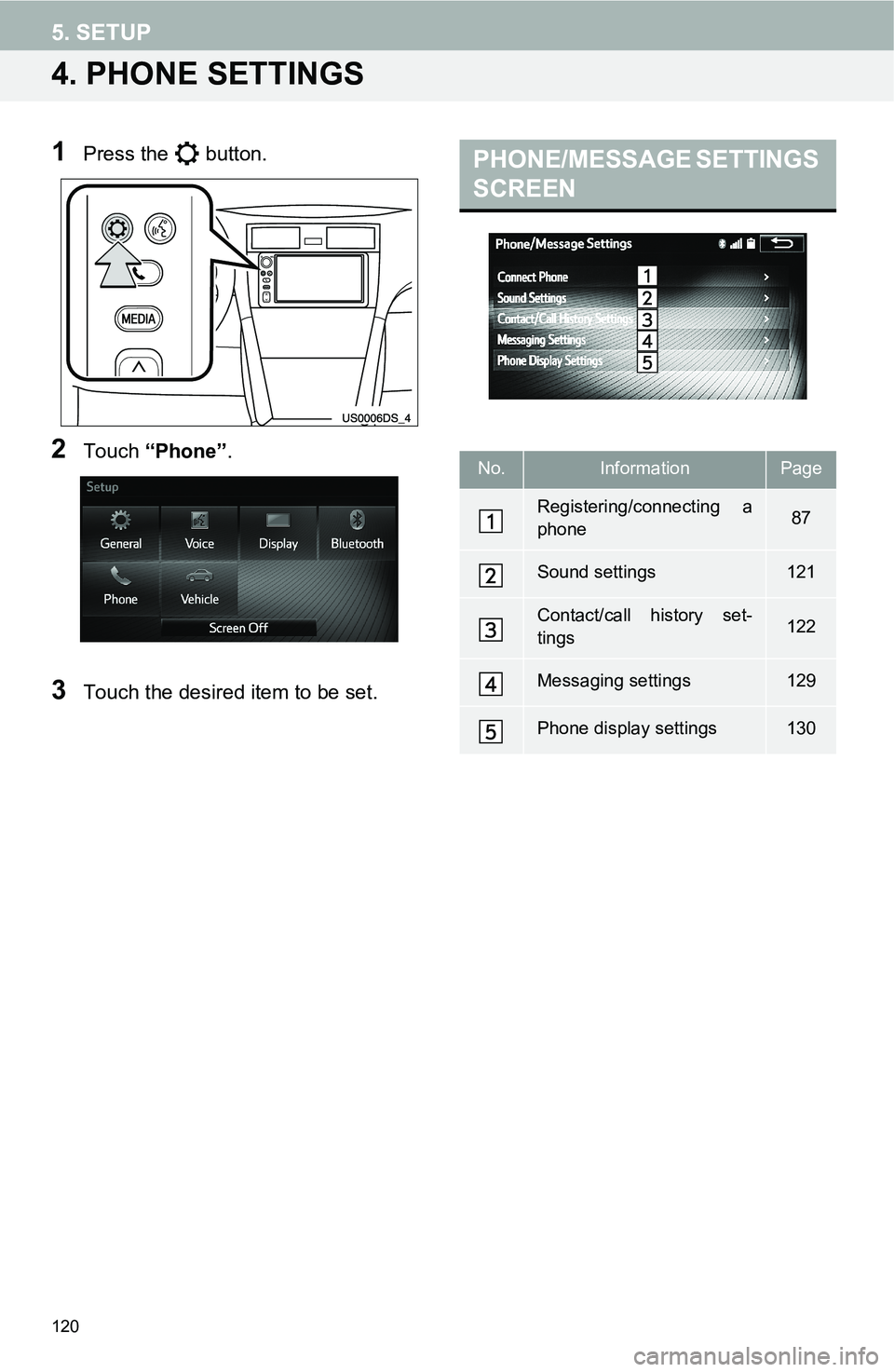

120
5. SETUP
4. PHONE SETTINGS
1Press the button.
2Touch “Phone”.
3Touch the desired item to be set.
PHONE/MESSAGE SETTINGS
SCREEN
No.InformationPage
Registering/connecting a
phone87
Sound settings121
Contact/call history set-
tings122
Messaging settings129
Phone display settings130

121
5. SETUP
5
SETUP
1Display the phone top screen. (P.94)
2Touch “Settings”.
1Display the “Phone/Message Settings”
screen. (P.120)
2Touch “Sound Settings”.
3Touch the desired item to be set.
DISPLAYING THE PHONE/
MESSAGE SETTINGS SCREEN
IN A DIFFERENT WAY
“Sound Settings” SCREEN
The call and ringtone volume can be
adjusted. A ringtone can be selected.
No.Function
Touch to set the desired ringtone.
Touch “+” or “-” to adjust the ring-
tone volume.
Touch “+” or “-” to adjust the mes-
sage readout volume.
Touch to set the desired incoming
SMS/MMS tone.
Touch to adjust the incoming SMS/
MMS tone volume
Touch to set the desired incoming
email tone.
Touch to adjust the incoming e-mail
tone volume.
Touch “+” or “-” to adjust the de-
fault volume of the other party’s
voice.
Touch to reset all setup items.
INFORMATION
Depending on the type of phone, certain
functions may not be available.

122
5. SETUP
1Display the “Phone/Message Settings”
screen. (P.120)
2Touch “Contact/Call History Set-
tings”.
3Touch the desired item to be set.
*: For PBAP compatible Bluetooth
®
phones, this function is available when
“Automatic Transfer” is set to off.
“Contact/Call History
Settings” SCREEN
The contact can be transferred from a
Bluetooth
® phone to the system. The
contact also can be added, edited and
deleted.
The call history can be deleted and
contact and favorites can be changed.
No.FunctionPage
For PBAP compatible
Bluetooth® phones,
touch to set automatic
contact/history transfer
on/off. When set to on,
the phone’s contact data
and history are automat-
ically transferred.

Touch to update con-
tacts from the connected
phone.123
Touch to sort contacts by
the first name or last
name field.

Touch to add contacts to
the favorites list.127
Touch to delete contacts
from the favorites list.128
Touch to set the trans-
ferred contact image dis-
play on/off.

*Touch to clear contacts
from the call history.
*Touch to add new con-
tacts to the contact list124
*Touch to edit contacts in
the contact list125
*Touch to delete contacts
from the contact list.126
Touch to reset all setup
items.

123
5. SETUP
5
SETUP
FOR PBAP COMPATIBLE Bluetooth®
PHONES
1Touch “Update Contacts from
Phone”.
Contacts are transferred automatically.
2Check that a confirmation screen is
displayed when the operation is com-
plete.
This operation may be unnecessary
depending on the type of cellular phone.
Depending on the type of cellular phone,
OBEX authentication may be required
when transferring contact data. Enter
“1234” into the Bluetooth
® phone.
If another Bluetooth
® device is connected
when transferring contact data, depending
on the phone, the connected Bluetooth
®
device may need to be disconnected.
Depending on the type of Bluetooth
®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Touch “Update Contacts from
Phone”.
2Transfer the contact data to the system
using a Bluetooth
® phone.
This operation may be unnecessary
depending on the type of cellular phone.
Depending on the type of cellular phone,
OBEX authentication may be required
when transferring contact data. Enter
“1234” into the Bluetooth
® phone.
To cancel this function, touch “Cancel”.
3Check that a confirmation screen is
displayed when the operation is com-
plete.
INFORMATION
Depending on the type of phone, certain
functions may not be available.
Contact data is managed independently
for every registered phone. When one
phone is connected, another phone’s
registered data cannot be read.
UPDATE CONTACTS FROM
PHONE
Operation methods differ between
PBAP compatible and PBAP incom-
patible but OPP compatible Bluetooth
®
phones.
If your cellular phone is neither PBAP
nor OPP compatible, the contacts can-
not be transferred.
This operation cannot be performed
while driving.

124
5. SETUP
UPDATING THE CONTACTS IN A
DIFFERENT WAY (FROM THE “Call
History” SCREEN)
1Display the phone top screen. (P.94)
2Touch the “Call History” tab and
touch a contact not yet registered in the
contact list.
3Touch “Update Contact”.
4Touch the desired contact.
5Touch a phone type for the phone
number.
1Touch “New Contact”.
2Enter the name and touch “OK”.
3Enter the phone number and touch
“OK”.
4Touch the phone type for the phone
number.
5To add another number to this contact,
touch “Yes”.
For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
(P.122)
REGISTERING A NEW
CONTACT TO THE CONTACT
LIST
New contact data can be registered.
Up to 4 numbers per person can be
registered. For PBAP compatible
Bluetooth
® phones, this function is
available when “Automatic Transfer” is
set to off. (P.122)
