2016 TOYOTA RAV4 display

154
1. USEFUL INFORMATION
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic” .
3Check that the “Traffic Map” screen is
displayed.Traffic map information can be re-
ceived via the HD Radio.
DISPLAYING TRAFFIC MAP
INFORMATION
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic
INFORMATION
●Traffic map information is available in
the 48 states, D.C. and Alaska of the
United States.
*: Entune Audio Plus only

156
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
1. REAR VIEW MONITORSYSTEM...................... ............... 158
REAR VIEW MONITOR SYSTEM ....... 158
DRIVING PRECAUTIONS ................... 158
SCREEN DESCRIPTION .................... 160
2. REAR VIEW MONITOR SYSTEM
PRECAUTIONS ......................... 162
AREA DISPLAYED ON SCREEN........ 162
THE CAMERA ..................................... 163
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 164
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 165
3. THINGS YOU SHOULD KNOW ........................................ 167
IF YOU NOTICE ANY SYMPTOMS .... 167
1. TOYOTA PARKING ASSISTMONITOR .................................. 168
TOYOTA PARKING ASSIST
MONIT OR .......................................... 168
DRIVING PRECAUTIONS ................... 168
SCREEN DISPLAY .............................. 170
USING THE SYSTEM .......................... 171
2. ESTIMATED COURSE LINE DISPLAY MODE ....................... 173
SCREEN DESCRIPTION ..................... 173
PARKING ............................................. 174
3. PARKING ASSIST GUIDE LINEDISPLAY MODE ....................... 175
SCREEN DESCRIPTION ..................... 175
PARKING ............................................. 176
4. TOYOTA PARKING ASSISTMONITOR PRECAUTIONS ....... 177
AREA DISPLAYED ON SCREEN ........ 177
THE CAMERA ...................................... 178
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 179
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 180
5. THINGS YOU SHOULD KNOW ....................................... 182
IF YOU NOTICE ANY SYMPTOMS ..... 182
1REAR VIEW MONITOR
SYSTEM2TOYOTA PARKING ASSIST
MONITOR
6
PERIPHERAL MONITORING SYSTEM

6
157
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
1
2
3
4
5
6
7
8
9
1. PANORAMIC VIEW MONITOR .................................. 184
DRIVING PRECAUTIONS................... 184
CAMERA SWITCH .............................. 187
DISPLAY ............................................. 187
HOW TO SWITCH THE DISPLAY ...... 189
2. CHECKING AROUND THEVEHICLE .................................... 191
SCREEN DISPLAY ............................. 191
3. CHECKING THE FRONT ANDAROUND THE VEHICLE ........... 192
SCREEN DISPLAY ............................. 192
4. CHECKING THE SIDES OF
THE VEHICLE............................ 195
SCREEN DISPLAY ............................. 195
5. CHECKING THE REAR ANDAROUND THE VEHICLE ........... 198
SCREEN DISPLAY ............................. 198
GUIDE LINES DISPLAYED ON THE
SCREEN ........................................... 200
PARKING ............................................ 203
6. PANORAMIC VIEW MONITOR PRECAUTIONS......................... 205
AREA DISPLAYED ON SCREEN ........ 205
THE CAMERA ..................................... 208
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 210
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 212
7. THINGS YOU SHOULD KNOW ....................................... 215
IF YOU NOTICE ANY SYMPTOMS .... 215
PRODUCT LICENSE ........................... 217
3PANORAMIC VIEW MONITOR
PERIPHERAL MONITORING SYSTEM

158
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
REAR VIEW MONITOR
SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
*: If equipped

159
1. REAR VIEW MONITOR SYSTEM
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
PERIPHERAL MONITORING SYSTEM
6
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
WA R N I N G
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the back door is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes.
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances. ( P.164)

160
1. REAR VIEW MONITOR SYSTEM
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
SCREEN DESCRIPTION
Vehicles without a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine switch is in “ON” position.
 Vehicles with a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Vehicle width guide lines
Displays a guide path when the vehicle is being backed
straight up.
 The displayed width is wider than the actual vehicle
width.
Vehicle center guide lineThese line indicates the estimated vehicle center on the
ground.
Distance guide lineShows distance behind the vehicle.
 Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
*Intuitive parking assist
If an obstacle is detected while the intuitive parking assist
is on, a display is shown in the top right corner of the
screen.
*: If equipped

162
1. REAR VIEW MONITOR SYSTEM
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
navigation screen. ( P. 4 0 )

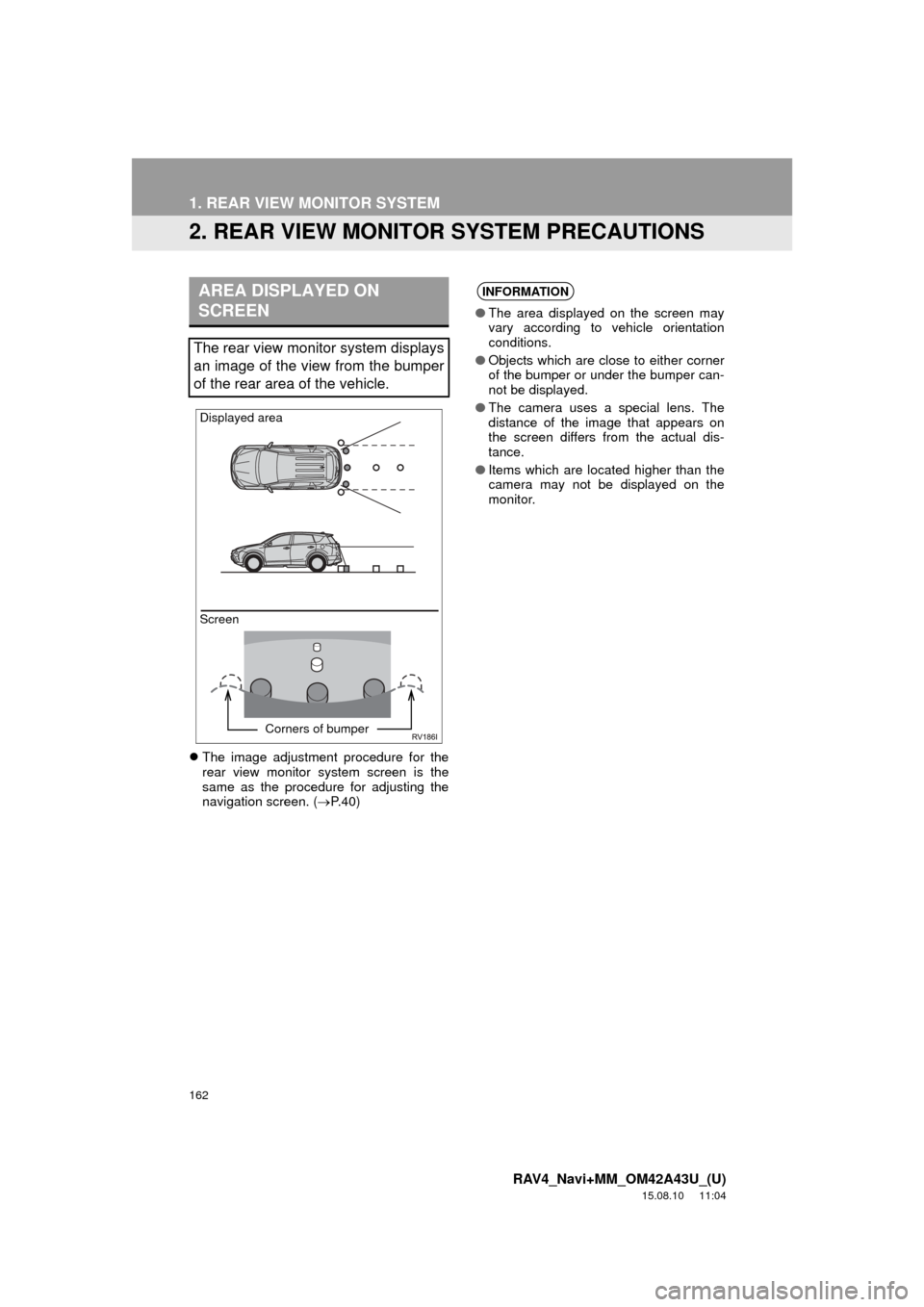

AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
Screen Displayed area
Corners of bumper
INFORMATION
●The area displayed on the screen may
vary according to vehicle orientation
conditions.
● Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
● The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
● Items which are located higher than the
camera may not be displayed on the
monitor.

165
1. REAR VIEW MONITOR SYSTEM
RAV4_Navi+MM_OM42A43U_(U)
15.08.10 11:04
PERIPHERAL MONITORING SYSTEM
6
WHEN THE GROUND BEHIND
THE VEHICLE SLOPES DOWN
SHARPLY
The distance guide lines will appear to
be further from the vehicle than the ac-
tual distance. Because of this, objects
will appear to be closer than they actu-
ally are. In the same way, there will be
a margin of error between the guide-
lines and the actual distance/course on
the road.WHEN ANY PART OF THE
VEHICLE SAGS
When any part of the vehicle sags due
to the number of passengers or the dis-
tribution of the load, there is a margin
of error between the fixed guide lines
on the screen and the actual distance/
course on the road.
WHEN APPROACHING
THREE-DIMENSIONAL
OBJECTS
The distance guide lines are displayed
according to flat surfaced objects
(such as the road). It is not possible to
determine the position of three-dimen-
sional objects (such as vehicles) using
the vehicle width guide lines and dis-
tance guide lines. When approaching a
three-dimensional object that extends
outward (such as the flatbed of a
truck), be careful of the following.
A margin of error
