7-2. Maintenance
■Repair and replacement
It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or if
a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.
■Resetting the maintenance required reminder light/message indicating
maintenance is required (U.S.A. only)
After the required maintenance is preformed according to the maintenance
schedule, please reset the reminder light/message.
To reset the reminder light/message, follow the procedures described below:
Switch the display to the trip meter “A” (P. 91) when the hybrid system is
operating.
Turn the power switch off.
While pressing the MPH or km/h button (P. 93), turn the power switch to
ON mode (do not start the hybrid system because otherwise the reset
mode will be canceled). Continue to press and hold the button until the trip
meter displays “000000” and the indicator stops flashing to indicate that the
reset is complete.
■Allow inspection and repairs to be performed by a Toyota dealer
●Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operation of
all systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
■Handling of the 12-volt battery
●Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
●12-volt battery posts, terminals and related accessories contain lead and
lead compounds which are known to cause brain damage. Wash your
hands after handling. (P. 439)
1
2
3

PRIUS v_OM_OM47B12U_(U)
4417-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the 12-volt battery.
●Keep children away from the 12-volt battery.
■Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the
12-volt battery in a garage or closed room where there is insufficient ventila-
tion.
■How to recharge the 12-volt battery
Only perform a slow charge (4.2 A or less). The 12-volt battery may explode
if charged at a quicker rate.
■Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
■When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause
gas (hydrogen) to enter the passenger compartment, causing a fire or
explosion.
For replacement of the 12-volt battery, contact your Toyota dealer.

5098-2. Steps to take in an emergency
PRIUS v_OM_OM47B12U_(U)
8
When trouble arises

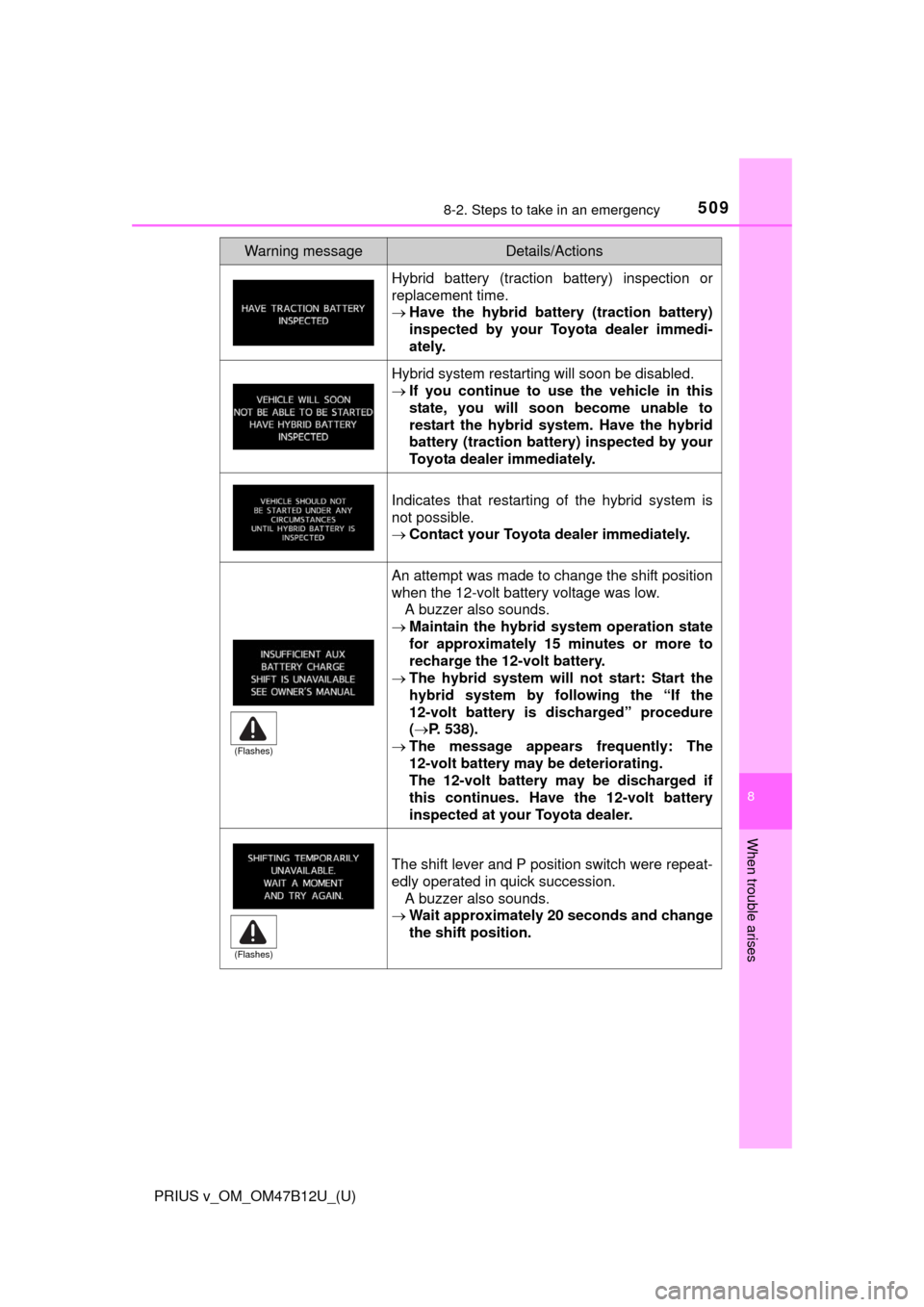

Warning messageDetails/Actions
Hybrid battery (traction battery) inspection or
replacement time.
Have the hybrid battery (traction battery)
inspected by your Toyota dealer immedi-
ately.
Hybrid system restarting will soon be disabled.
If you continue to use the vehicle in this
state, you will soon become unable to
restart the hybrid system. Have the hybrid
battery (traction battery) inspected by your
Toyota dealer immediately.
Indicates that restarting of the hybrid system is
not possible.
Contact your Toyota dealer immediately.
An attempt was made to change the shift position
when the 12-volt battery voltage was low.
A buzzer also sounds.
Maintain the hybrid system operation state
for approximately 15 minutes or more to
recharge the 12-volt battery.
The hybrid system will not start: Start the
hybrid system by following the “If the
12-volt battery is discharged” procedure
(P. 538).
The message appears frequently: The
12-volt battery may be deteriorating.
The 12-volt battery may be discharged if
this continues. Have the 12-volt battery
inspected at your Toyota dealer.
The shift lever and P position switch were repeat-
edly operated in quick succession.
A buzzer also sounds.
Wait approximately 20 seconds and change
the shift position.
(Flashes)
(Flashes)
