Page 9 of 56
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
7
Smart Key System (if equipped)
Start function
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle or pushing unlock button on rear hatch
will unlock all doors. (If equipped)
NOTE: Fuel consumption and energy information of the hybrid system are
shown on the Dual Multi-Information Displays
p 225, 709
p 165,
p 171,
Locking
Carry remote to lock
All-door lock
Touch
Back door lock/unlock (if equipped)
Carry remote to
lock/unlockLockUnlock
Unlocking
Carry remote to unlock
Driver door unlock*
Grasp
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Power modes (without starting Hybrid System)
2ff - All systems 2 ) ). (mergency
Page 10 of 56
8
OVERVIEW

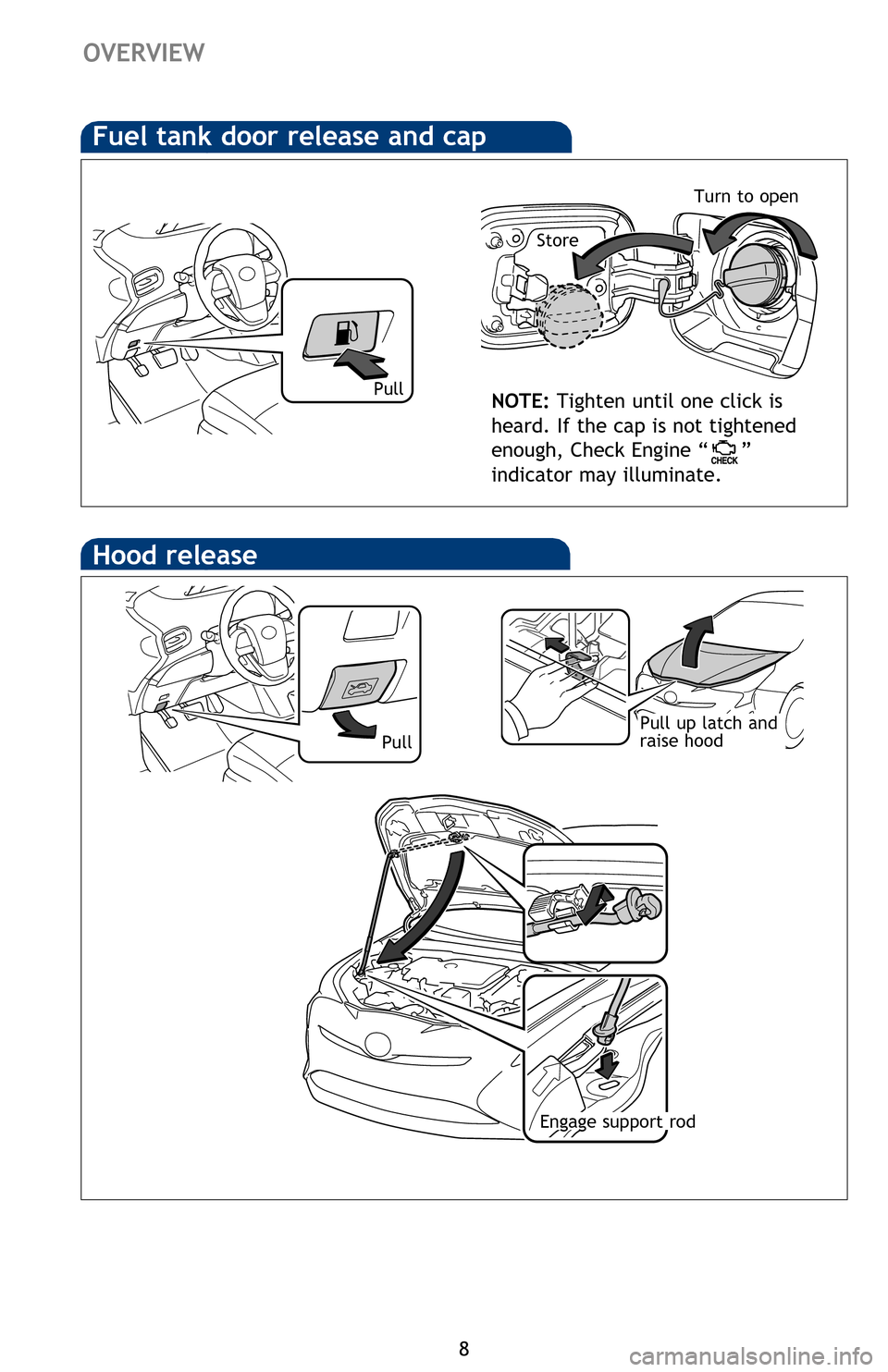

Hood release
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Pull
Turn to open
Store
Engine coolant reservoir
Engine oil level dipstick
(ngine oil filler cap
:indshield washer
Page 11 of 56
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
9

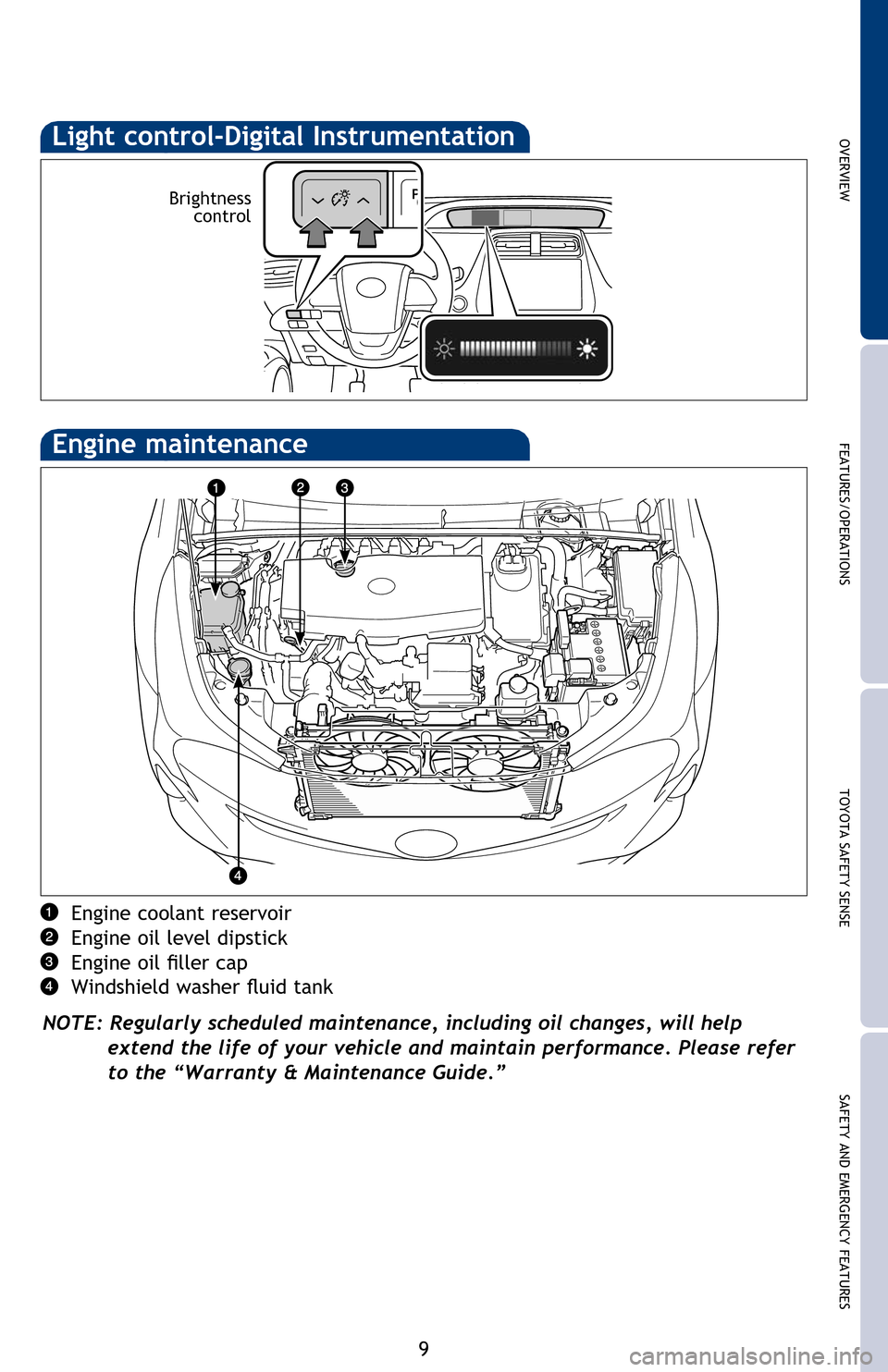

OVERVIEW
Engine coolant reservoir
Engine oil level dipstick
(ngine oil filler cap
:indshield washer
Page 12 of 56
10
FEATURES/OPERATIONS
Hybrid transmission
Driving mode select switch
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the hybrid system are shown on the Multi-Information Displays.
Tips for improved fuel economy
- (nsure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details. (1) Depress the brake pedal, and
press the “POWER” switch
brie
Page 13 of 56
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
11
Hybrid transmission
Driving mode select switch
*
The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the hybrid system are shown on the Multi-Information Displays.
- (nsure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the Air Conditioning.
Park button
Reverse
Neutral
Drive
Engine brake *
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details. (1) Depress the brake pedal, and
press the “POWER” switch
brie
Page 14 of 56
12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
AngleLock release lever
Parking brake
Set: Depress
Release: Depress again
Seats-Head restraints (if equipped)
Front
Lock release button
Seat-Folding down rear seat
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Lumbar support
Manual seat
Length
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to the Owner’s Manual for more details.
Push
Vehicle Stability Control (VSC)/TRAC OFF switch
134261_Prius_QRG_GUTS.indd 1212/18/15 1:30 PM
Page 15 of 56
SAFETY AND EMERGENCY FEATURES
TOYOTA SAFETY SENSE
FEATURES/OPERATIONS
OVERVIEW
13
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Set: Depress
Release: Depress again p 184
p 189
p 187
Seats-Head restraints (if equipped)
Front
Rear center
Lock release buttonLock release button
Rear outboard
Lock release button
(2) Fold down
(1) Release lever
Seat-Folding down rear seat
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Lumbar support
Manual seatPower seat (if equipped)*
*Driver’s side only
Length
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While car is stopped, press switch to disable the TRAC system.
To disable both VSC and TRAC systems, press the switch for at least 3 seconds.
Refer to the Owner’s Manual for more details.
134261_Prius_QRG_GUTS.indd 1312/18/15 1:30 PM
Page 16 of 56
14
FEATURES/OPERATIONS
Windshield wipers & washers
Front-Intermittent (if equipped)
Front-Auto (Rain-sensing)(if equipped)
pg 202
Windows-Power
UpDown
Window lock switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. 1 Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Rear (if equipped)
Pull to wash and wipe
Adjust sensitivity
2
Pull to wash and wipe
Adjustment frequency*
Type A
Type A
Type A
Moon roof (if equipped)
Tilting operationSliding operation
Push to wash and wipe
p 198
Recommended open
position to minimize
wind noise
Push once to open partway; again to open
completely.
