2016 TOYOTA PRIUS PLUG-IN HYBRID display

1032-1. Plug-in hybrid system
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
■If a warning light comes on, a warning message is displayed or the 12-
volt battery is disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel level
warning light (P. 644) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The standard amount of fuel is about
7.5 L [2.0 gal., 1.7 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)
■Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electro-
magnetic shielding, and therefore emit approximately the same amount of
electromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
●Your vehicle may cause sound interference in some third party-produced
radio parts.
■Hybrid battery (traction battery) (lithium-ion battery)
The hybrid battery (traction battery) has a limited service life.
The hybrid battery (traction battery) capacity (the ability to hold a charge)
reduces with time and use in the same way as other rechargeable batteries.
The extent at which capacity reduces changes drastically depending on the
environment (ambient temperature, etc.) and usage conditions, such as how
the vehicle is driven and how the hybrid battery (traction battery) is charged.
This is a natural characteristic of lithium-ion batteries, and is not a malfunc-
tion. Also, even though the distance that can be driven in EV mode decreases
when the hybrid battery (traction battery) capacity reduces, vehicle perfor-
mance does not significantly become worse.
In order to reduce the possibility of the capacity reducing, follow the directions
listed on P. 149, “Capacity reduction of the hybrid battery (traction battery)”.
■Starting the hybrid system in an extremely cold environment
When the hybrid battery (traction battery) is extremely cold (below approxi-
mately -30C [-22F]) under the influence of the outside temperature, it may
not be possible to start the hybrid system. In this case, try to start the hybrid
system again after the temperature of the hybrid battery increases due to the
outside temperature increase etc.
■Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100
(Battery electric vehicle safety).

1072-1. Plug-in hybrid system
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

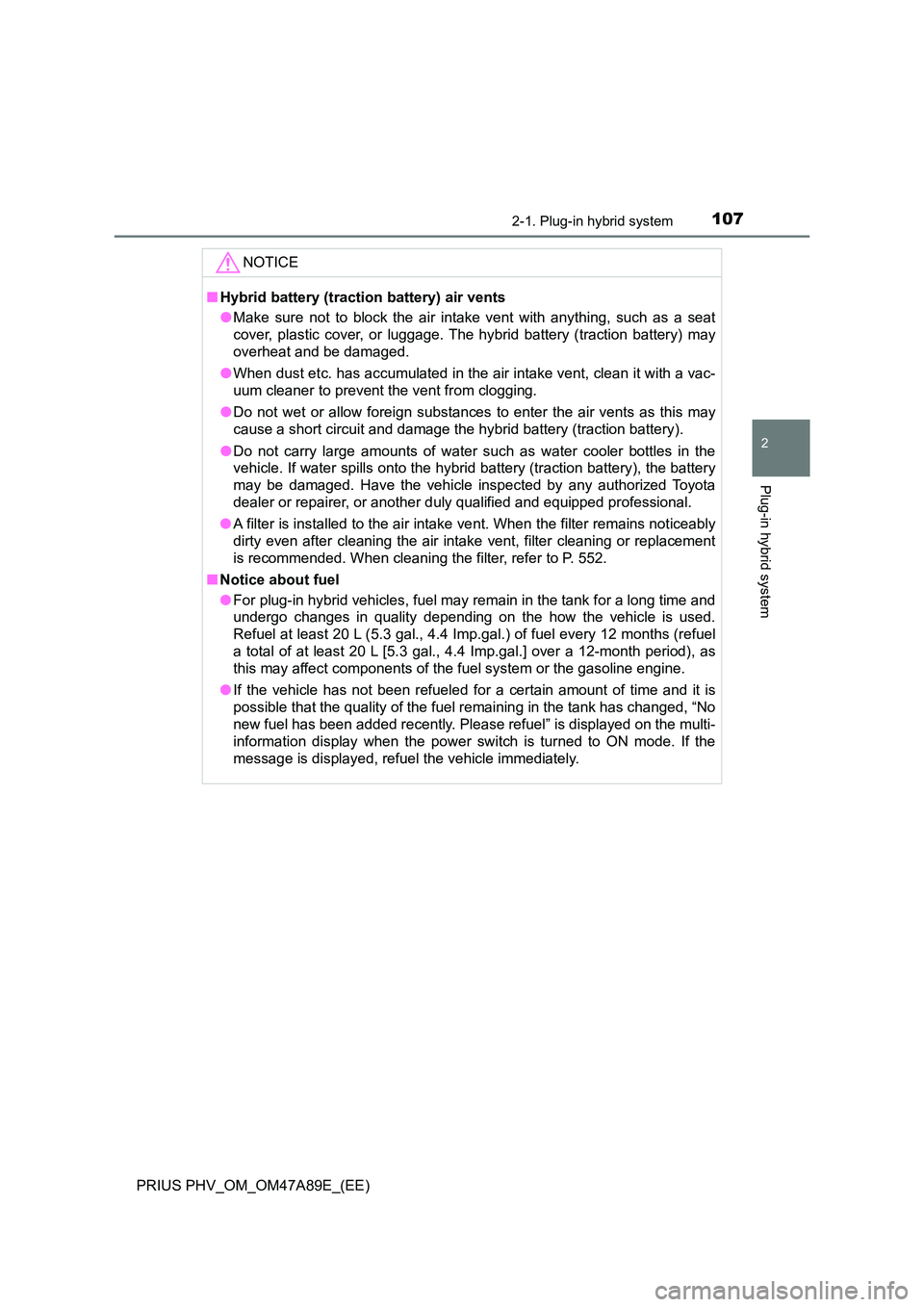

NOTICE
■Hybrid battery (traction battery) air vents
● Make sure not to block the air intake vent with anything, such as a seat
cover, plastic cover, or luggage. The hybrid battery (traction battery) may
overheat and be damaged.
● When dust etc. has accumulated in the air intake vent, clean it with a vac-
uum cleaner to prevent the vent from clogging.
● Do not wet or allow foreign substances to enter the air vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
● A filter is installed to the air intake vent. When the filter remains noticeably
dirty even after cleaning the air intake vent, filter cleaning or replacement
is recommended. When cleaning the filter, refer to P. 552.
■ Notice about fuel
● For plug-in hybrid vehicles, fuel may remain in the tank for a long time and
undergo changes in quality depending on the how the vehicle is used.
Refuel at least 20 L (5.3 gal., 4.4 Imp.gal.) of fuel every 12 months (refuel
a total of at least 20 L [5.3 gal., 4.4 Imp.gal.] over a 12-month period), as
this may affect components of the fuel system or the gasoline engine.
● If the vehicle has not been refueled for a certain amount of time and it is
possible that the quality of the fuel remaining in the tank has changed, “No
new fuel has been added recently. Please refuel” is displayed on the multi-
information display when the power switch is turned to ON mode. If the
message is displayed, refuel the vehicle immediately.

111
2
2-1. Plug-in hybrid system
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

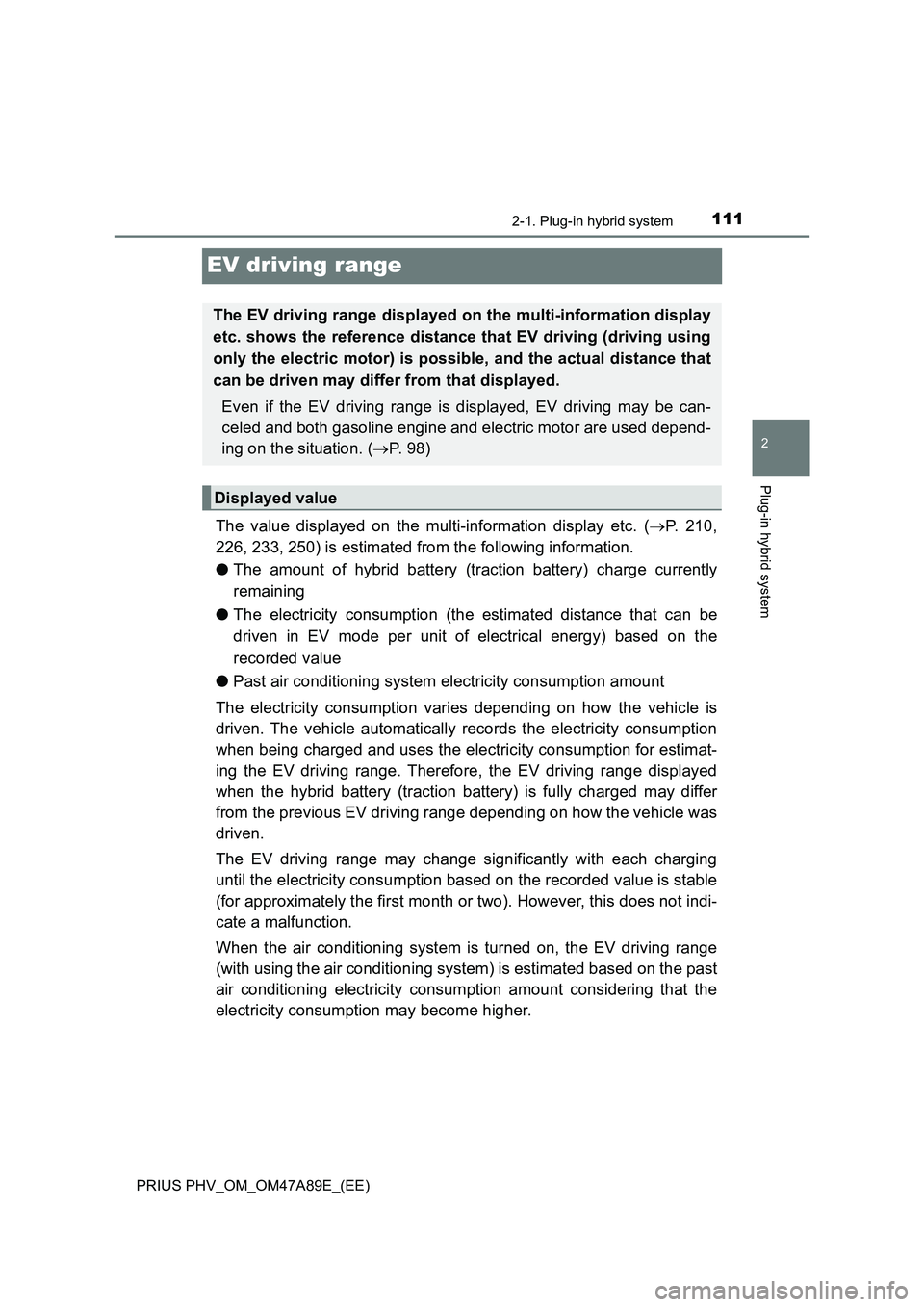

EV driving range
The value displayed on the multi-information display etc. (P. 210,
226, 233, 250) is estimated from the following information.
●The amount of hybrid battery (traction battery) charge currently
remaining
●The electricity consumption (the estimated distance that can be
driven in EV mode per unit of electrical energy) based on the
recorded value
●Past air conditioning system electricity consumption amount
The electricity consumption varies depending on how the vehicle is
driven. The vehicle automatically records the electricity consumption
when being charged and uses the electricity consumption for estimat-
ing the EV driving range. Therefore, the EV driving range displayed
when the hybrid battery (traction battery) is fully charged may differ
from the previous EV driving range depending on how the vehicle was
driven.
The EV driving range may change significantly with each charging
until the electricity consumption based on the recorded value is stable
(for approximately the first month or two). However, this does not indi-
cate a malfunction.
When the air conditioning system is turned on, the EV driving range
(with using the air conditioning system) is estimated based on the past
air conditioning electricity consumption amount considering that the
electricity consumption may become higher.
The EV driving range displayed on the multi-information display
etc. shows the reference distance that EV driving (driving using
only the electric motor) is possible, and the actual distance that
can be driven may differ from that displayed.
Even if the EV driving range is displayed, EV driving may be can-
celed and both gasoline engine and electric motor are used depend-
ing on the situation. (P. 9 8 )
Displayed value

1122-1. Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
The distance that can be driven in EV mode varies significantly
depending on how the vehicle is driven, road conditions, the weather,
the outside temperature, usage conditions of electrical components
and the number of occupants.
The distance that can be driven in EV mode can be extended if the fol-
lowing is performed:
●Maintain a safe distance from the vehicle in front and avoid unnec-
essary acceleration and deceleration
●Accelerate and decelerate the vehicle as smoothly as possible
●Drive at moderate speeds as much as possible and maintain a con-
stant speed
●
Set the air conditioning to a moderate temperature and turn the “A/C”
switch ( ) off when it is not needed
●Use tires of the specified size and maintain the specified tire pres-
sure
●Use the EV/HV mode selection switch to drive in HV mode when
driving on a highway
Electricity consumption will increase substantially when driving on a
highway in EV mode.
●Do not add unnecessary weight to the vehicle
The following indicate that charging has been carried out properly.
●The charging indicator turns off
●The Hybrid battery (traction battery) status indicators illuminate for
approximately 15 seconds. (P. 1 1 5 )
●“Charging Complete” is displayed on the multi-information display
when starting off (P. 146)
Regardless of the type of power source or whether the charging timer
function is used, charging is completed if the above can be confirmed.
Charging-related messages: P. 1 8 4
Tips for extending the EV driving range
Display when charging is completed

1172-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

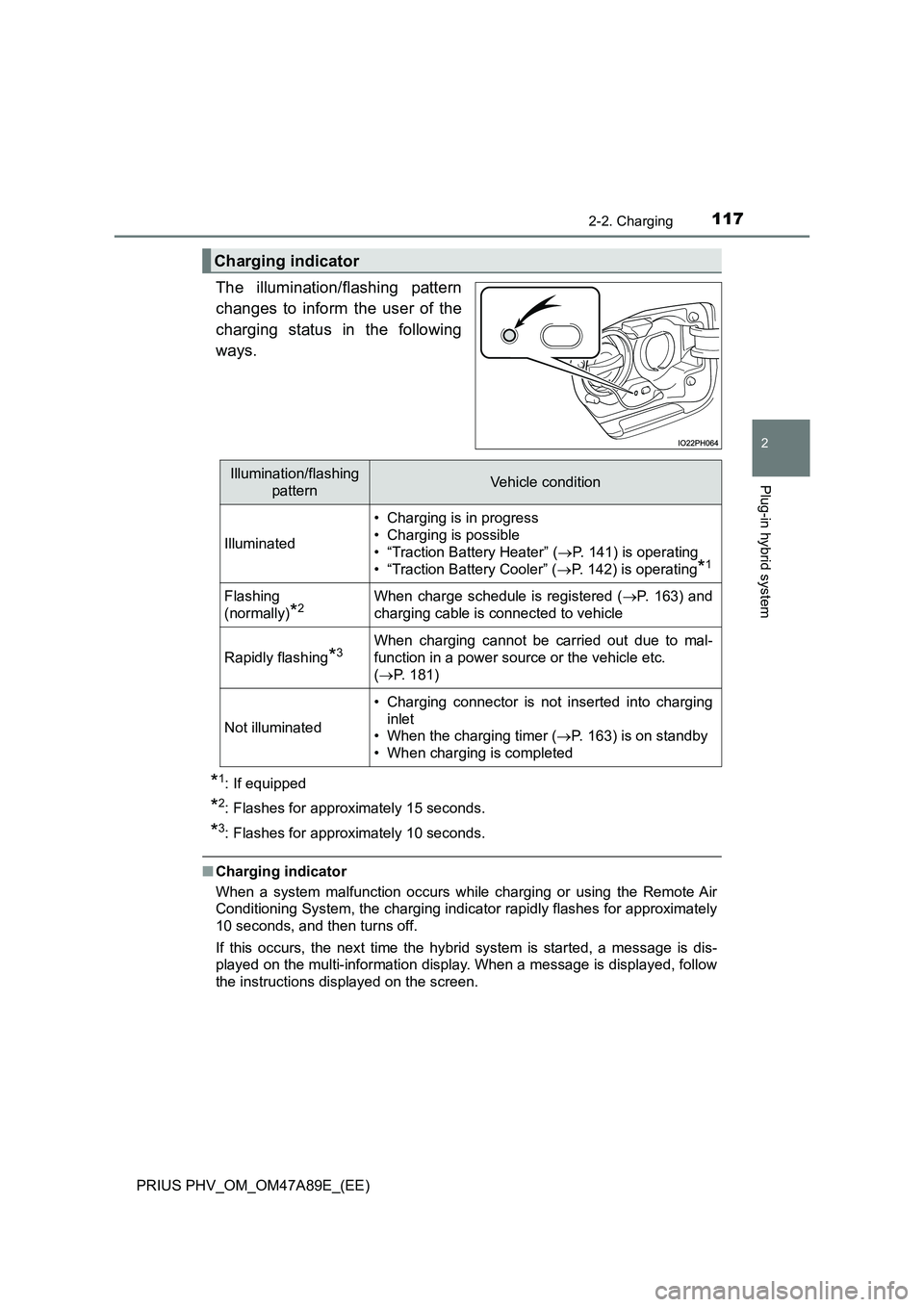

The illumination/flashing pattern
changes to inform the user of the
charging status in the following
ways.
*1: If equipped
*2: Flashes for approximately 15 seconds.
*3: Flashes for approximately 10 seconds.
■Charging indicator
When a system malfunction occurs while charging or using the Remote Air
Conditioning System, the charging indicator rapidly flashes for approximately
10 seconds, and then turns off.
If this occurs, the next time the hybrid system is started, a message is dis-
played on the multi-information display. When a message is displayed, follow
the instructions displayed on the screen.
Charging indicator
Illumination/flashing
patternVehicle condition
Illuminated
• Charging is in progress
• Charging is possible
• “Traction Battery Heater” (P. 141) is operating
• “Traction Battery Cooler” (P. 142) is operating
*1
Flashing
(normally)
*2When charge schedule is registered (P. 163) and
charging cable is connected to vehicle
Rapidly flashing*3When charging cannot be carried out due to mal-
function in a power source or the vehicle etc.
(P. 181)
Not illuminated
• Charging connector is not inserted into charging
inlet
• When the charging timer (P. 163) is on standby
• When charging is completed

1372-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
■The charging environment
For safe charging, the following charging equipment and settings are recom-
mended.
●Rain-tight socket
When charging outdoors, connect the plug to a rain-tight socket, and ensure
that the plug remains waterproof while the plug is connected.
●Dedicated circuit
• To reduce the risk of fire, connect only to an at least 13A branch circuit
with an over-current protection.
• To reduce the risk of electric shock when working with the plug, connect
to a socket that has a Residual Current Circuit-Breaker (RCCB) installed.
●Remote switch
Allows the electricity from the socket to be interrupted by operating a switch,
thus allowing safe removal and insertion of the plug on rainy days.
■When your circuit breaker trips during charging
The upper limit of the charging current can be changed in the “Vehicle Set-
tings” settings on the multi-information display.
Press or of the meter control switches to select (Vehicle
Settings) in the screen, and then press .
Press or of the meter control switches to select “Charge Setting”,
and then press .
The “Charge Setting” screen will display.
Press or of the meter control switches to select “Charge Setting”,
and then press .
The “Charge Current” screen will display.
Press or of the meter control switches to select “8A”, and then
press .
The maximum charging current during charging will be restricted to 8A.
*
If the breaker still trips while charging, even after changing the upper limit of
the charging current, check if the connected power source meets the speci-
fied charging conditions. (P. 136)
*: Restricting the charging current will lengthen the charging time.
1
2
3
4

1422-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)■
“Traction Battery Cooler” (if equipped)
When the hybrid battery (traction battery) is hot, this function pro-
tects it by using the vehicle air conditioning to cool it before
charging is carried out.
When the hybrid battery (trac-
tion battery) is above a certain
temperature and the power
switch is turned off, a check
screen is displayed on the
multi-information display that
indicates whether “Traction Bat-
tery Cooler” is implemented.
When “No” is selected, the hybrid battery (traction battery) cooling sys-
tem does not operate.
■“Traction Battery Heater”
●“Traction Battery Heater” may operate when charging is not being per-
formed.
●When “Traction Battery Heater” is operating, the charging indicator illumi-
nates.
●When “Traction Battery Heater” is operating during charging, the charging
time may be longer than normal.
●If the outside temperature becomes high while “Traction Battery Heater” is
operating, charging may complete earlier than the “Departure” time set.
(P. 163)
●“Traction Battery Heater” can be turned on and off in the “Vehicle Settings”
settings on the multi-information display. (P. 708)

1432-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)■“Traction Battery Cooler” (if equipped)
●When the hybrid battery (traction battery) is above a certain temperature
and the power switch is turned off, a check screen is displayed on the multi-
information display that indicates whether “Traction Battery Cooler” is imple-
mented. Approximately 5 minutes after selecting “Yes” on this screen, sys-
tem operation becomes possible.
●When charging starts, “Traction Battery Cooler” only operates if the hybrid
battery (traction battery) temperature is hot.
●The charging indicator is illuminated while “Traction Battery Cooler” is on
standby or operating.
●“Traction Battery Cooler” is implemented for a maximum of approximately
30 minutes. However, when the “Departure” time is set (P. 163) and there
is not sufficient time between the current time and the time that charging will
complete, “Traction Battery Cooler” operation time may become shorter.
●When there is a small amount of remaining charge in the hybrid battery
(traction battery), even if the hybrid battery (traction battery) is hot, “Traction
Battery Cooler” may not be implemented.
●When the following operations are performed while “Traction Battery Cooler”
is operating, the hybrid battery (traction battery) cooling operation stops.
• A door is opened
• The hood is opened
• The power switch is turned to any mode other than off
• The alarm operates (if equipped) (P. 8 1 )
• The shift position is changed to any position other than P
• The Remote Air Conditioning System is operated (P. 516)
• “Charge Now” is implemented (P. 171)
• The amount of remaining charge in the hybrid battery (traction battery) is
below a certain amount
●When the power switch is turned off, a check screen is displayed on the
multi-information display that indicates whether “Traction Battery Cooler” is
implemented. This check screen can be turned on and off in the “Meter Cus-
tomize” settings on the multi-information display (P. 245). However, when
the check screen is set to “Off”, “Traction Battery Cooler” is no longer oper-
ates.
●“Traction Battery Cooler” uses the power of the hybrid battery (traction bat-
tery) and external power source.
• While “Traction Battery Cooler” is operating, the amount of the remaining
charge of the hybrid battery (traction battery) increases and decreases in
a certain range, and does not increase as in normal charging.
• The operation of “Traction Battery Cooler” is recognized as charging by a
charging equipment. The charging equipment that calculates the fee
according to charging time causes a charging fee.
