2016 TOYOTA COROLLA Quick Reference Guide

OVERVIEWFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended open position to
minimize wind noise.
Push once to open partway; again to
open completely.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever
AngleLength
Hold wheel, push lever down,
set angle and length, and
return lever.
Drive monitor display/
Multi-Information Display
Drive monitor display
* Except vehicles with Manual Transmission.Engine coolant temperature gauge
ECO Driving Indicator Zone Display*
Outside temperature display
Shift position and gear position indicator*
Trip information
Driving monitor
Warning messages
Multi-Information Display

16
FEATURES/OPERATIONS
Automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Fan speed
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Outside rearview mirror*/Rear defogger
Windshield airflow/defogger
Climate control OFF
Air Conditioning/Heating
Manual Air Conditioning
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror defoggers*/Rear window defogger
Recirculate cabin air (fresh air when OFF)
* If equipped
* If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

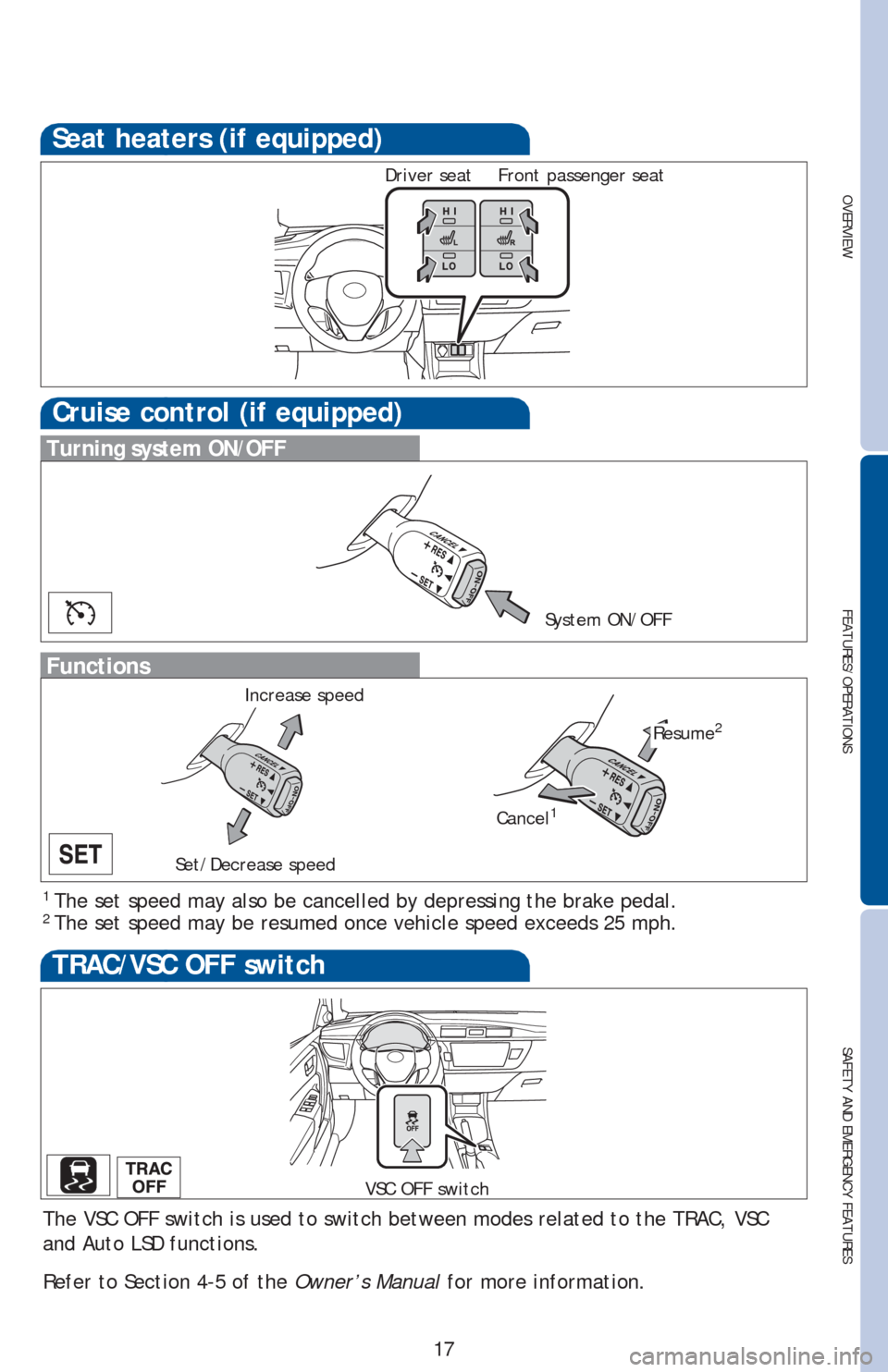

Cruise control (if equipped)
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Set/Decrease speedCancel
1
Resume2
Seat heaters (if equipped)
Driver seat Front passenger seat
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
The VSC OFF switch is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to Section 4-5 of the Owner’s Manual for more information.
VSC OFF switch
TRAC/VSC OFF switch

FEATURES/OPERATIONS
Audio
Type 1 - Non-display Audio System
Type 3 - Entune™ Audio Plus with Connected Navigation App Suite
Type 2 - Entune™ Audio
3HOME Button
Access to Home screen.
HOME SCREEN - the home screen
offers a two panel and a three panel
layout. Information and layout will
vary depending on selected set up. AUDIO Button
Access to audio functions.
APPS Button
$FFHVVWRWUDIÀFDQGZHDWKHU
APPS Button
Access to Entune®
App Suite, sports,
VWRFNVQHZVWUDIÀFDQGZHDWKHU1
2a
2b
Type 4 - Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
1 Refer to the “Navigation System Owner’s Manual” and “2016 Entune™ Audio
Quick Reference Guide.”
18
Preset buttons - functions in other
modes indicated above number
Map card
insert1
1
Access to
navigation
system
132b
1
2a
1
3
Turn to tune
radio stations
manually or
select tracks or
files
End call Start call
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Station/CD track selectView CD text Mode
Bluetooth®
hands-
free system fuel
consumption
screen

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

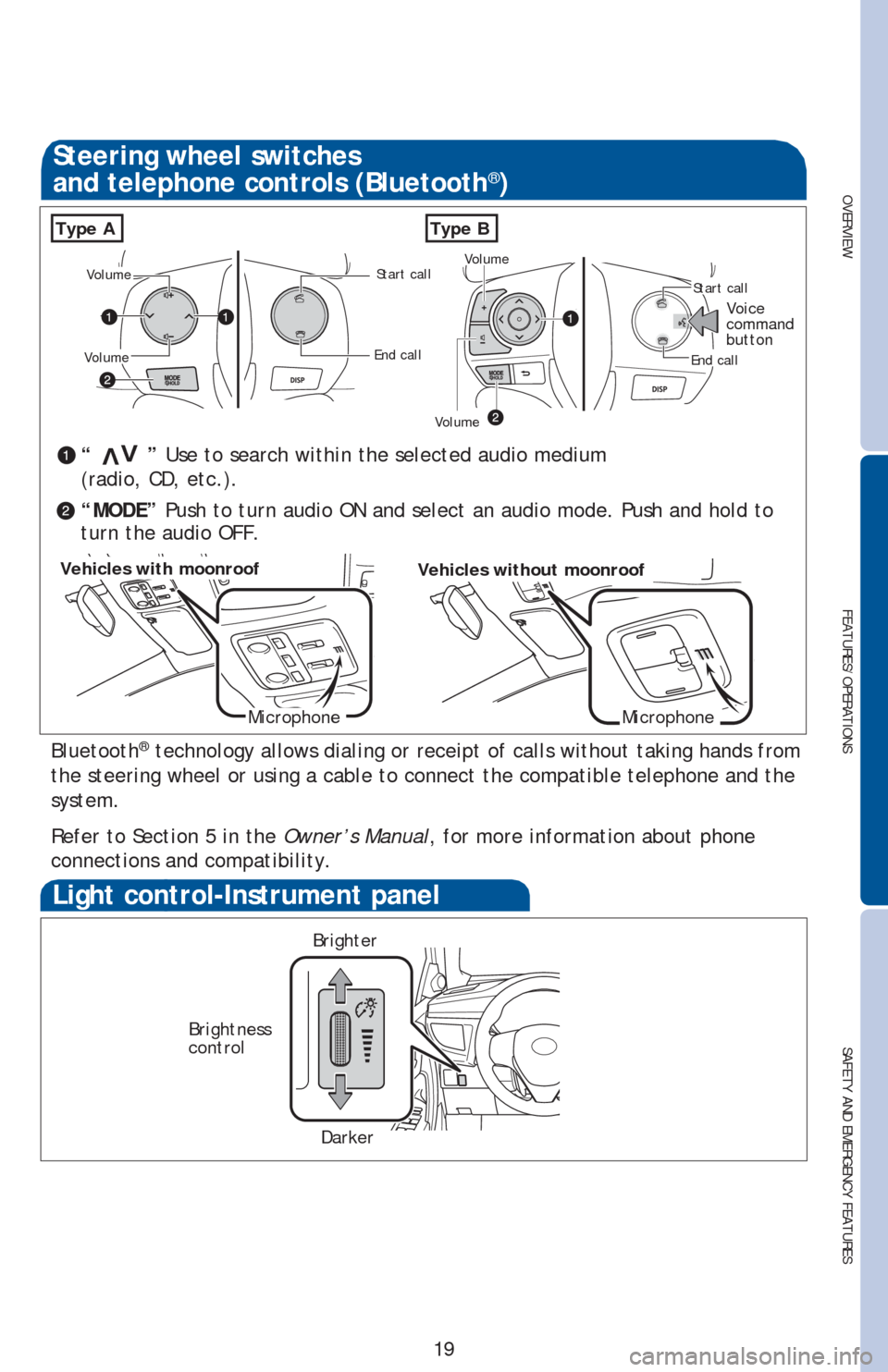

19 Bluetooth
® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to Section 5 in the Owner’s Manual, for more information about phone
connections and compatibility.
Vehicles with moonroofVehicles without moonroof
MicrophoneMicrophone
Steering wheel switches
and telephone controls (Bluetooth®)
End call
Volume
Voice
command
buttonStart call
VolumeVolume
VolumeEnd call
Start call
“>>” Use to search within the selected audio medium
(radio, CD, etc.).
“MODE” Push to turn audio ON and select an audio mode. Push and hold to
turn the audio OFF.
Type AType B
Light control-Instrument panel
Brightness
control
Brighter
Darker

20
FEATURES/OPERATIONS
Cup holders-Adjust size
Reinsert divider in
different position
Auxiliary storage
Console boxUpper level box
Pull upPull up
Pull
Pull
Remove dividerFront
Rear
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for more details on this system.
Rear view monitor system (if equipped)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt adjustment
SAFETY AND EMERGENCY FEATURES
Pushing down the lever will allow the door to be opened only from the outside.
Rear door
Doors-Child safety locks
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.

22
SAFETY AND EMERGENCY FEATURES
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Trunk-Internal release
Push
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the engine switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
