2016 TOYOTA COROLLA hood release

17Pictorial index
COROLLA_TMMMS_TMMC_U (OM12J84U)Drive monitor display
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 77
Multi-information display
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning messages are displayed
*3. . . . . . . . . . . . . P. 510
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 222
Warning buzzer/message
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 510
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Headlights/front parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Front fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 196
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
Warning lights
*1, 2/warning messages*1, 3 . . . . . . . . . . . P. 500, 512
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 488
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Tilt and telescopic steering control lever . . . . . . . . . . . . . . P. 131
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 386, 392
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386, 392
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387, 395
Audio system
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Entune Audio system
*1, 4. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Navigation system
*1, 4
*1: If equipped
*2: Vehicles with a drive monitor display
*3: Vehicles with a multi-information display
*4: For vehicles with a navigation system or Entune Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
4
5
6
7
8
9
10
11
12

4377-3. Do-it-yourself maintenance
7
Maintenance and care
COROLLA_TMMMS_TMMC_U (OM12J84U)
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the support rod into the slot.

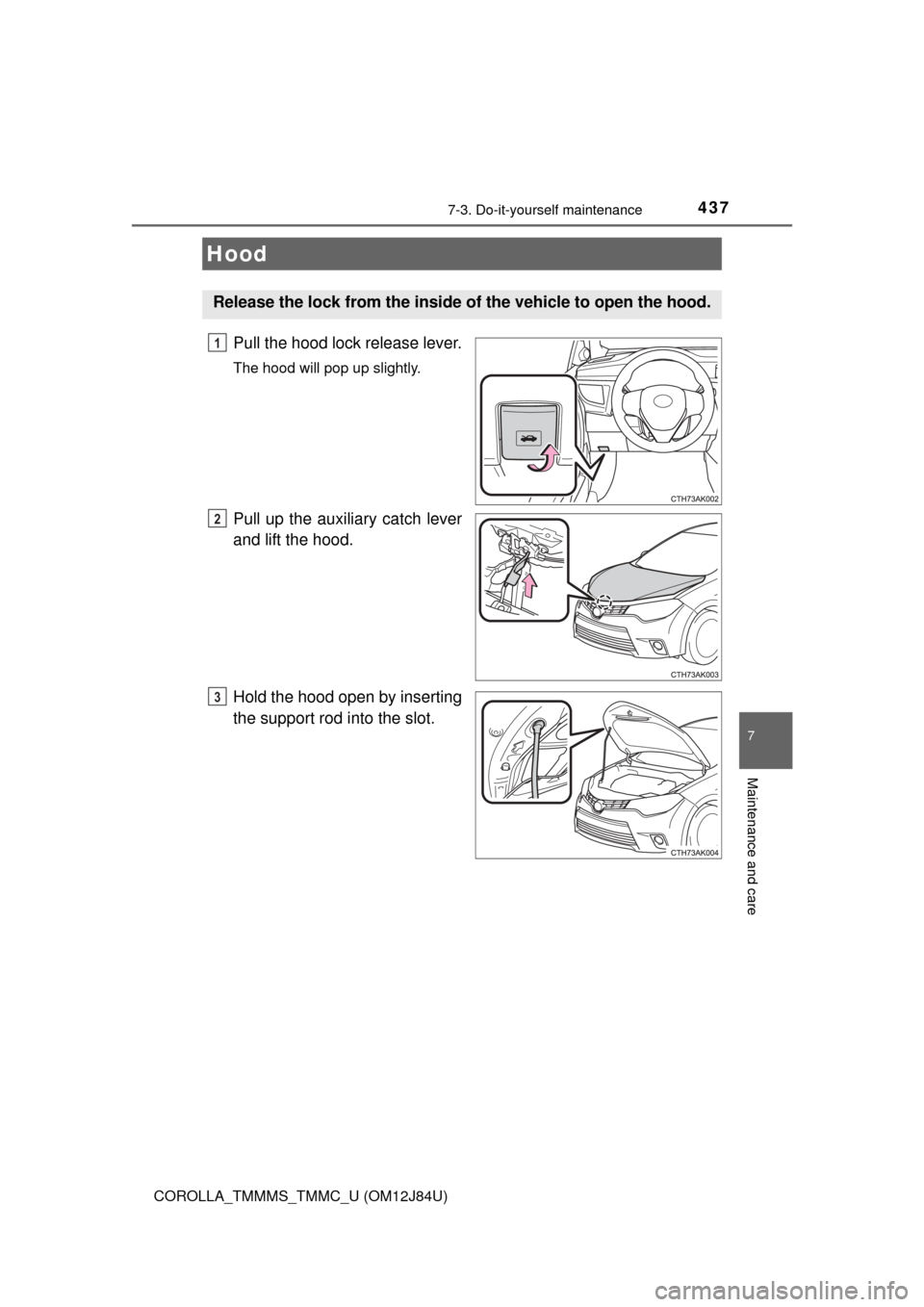

Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
3

612Alphabetical index
COROLLA_TMMMS_TMMC_U (OM12J84U)
JackPositioning the jack ............... 439
Vehicle-equipped jack........... 521
Jack handle .............................. 521
Jam protection function Moon roof.............................. 142
Power window....................... 138
Keyless entry Smart key system ......... 101, 110
Wireless remote
control......................... 101, 111
Keys ............................................ 96
Battery-saving function ......... 118
Electronic key ......................... 96
Engine switch................ 165, 168
If the electronic key does not operate properly ........... 535
Key number plate.................... 96
Keyless entry .......................... 97
Mechanical key ....................... 97
Replacing the battery ............ 469
Warning buzzer..................... 116
Wireless remote control .......... 97
Knee airbags .............................. 34 LATCH anchors ......................... 58
Lever
Auxiliary catch lever.............. 437
Hood lock release lever....................... 437
Shift lever...... 176, 178, 180, 184
Turn signal lever ................... 186
Wiper lever ........................... 196
License plate lights ................. 188 Light switch ........................... 188
Replacing light bulbs ............ 484
Wattage ................................ 559
Light bulbs Replacing.............................. 475
Wattage ................................ 559
Lights Fog light switch ..................... 195
Front Interior light ................. 402
Headlight switch ................... 188
Illuminated entry system ....... 403
Interior lights list.................... 401
Personal lights ...................... 402
Rear interior light .................. 403
Replacing light bulbs ............ 475
Trunk light ............................. 112
Turn signal lever ................... 186
Wattage ................................ 559
Lock steering column ..... 166, 173
J
K
L

620
COROLLA_TMMMS_TMMC_U (OM12J84U)

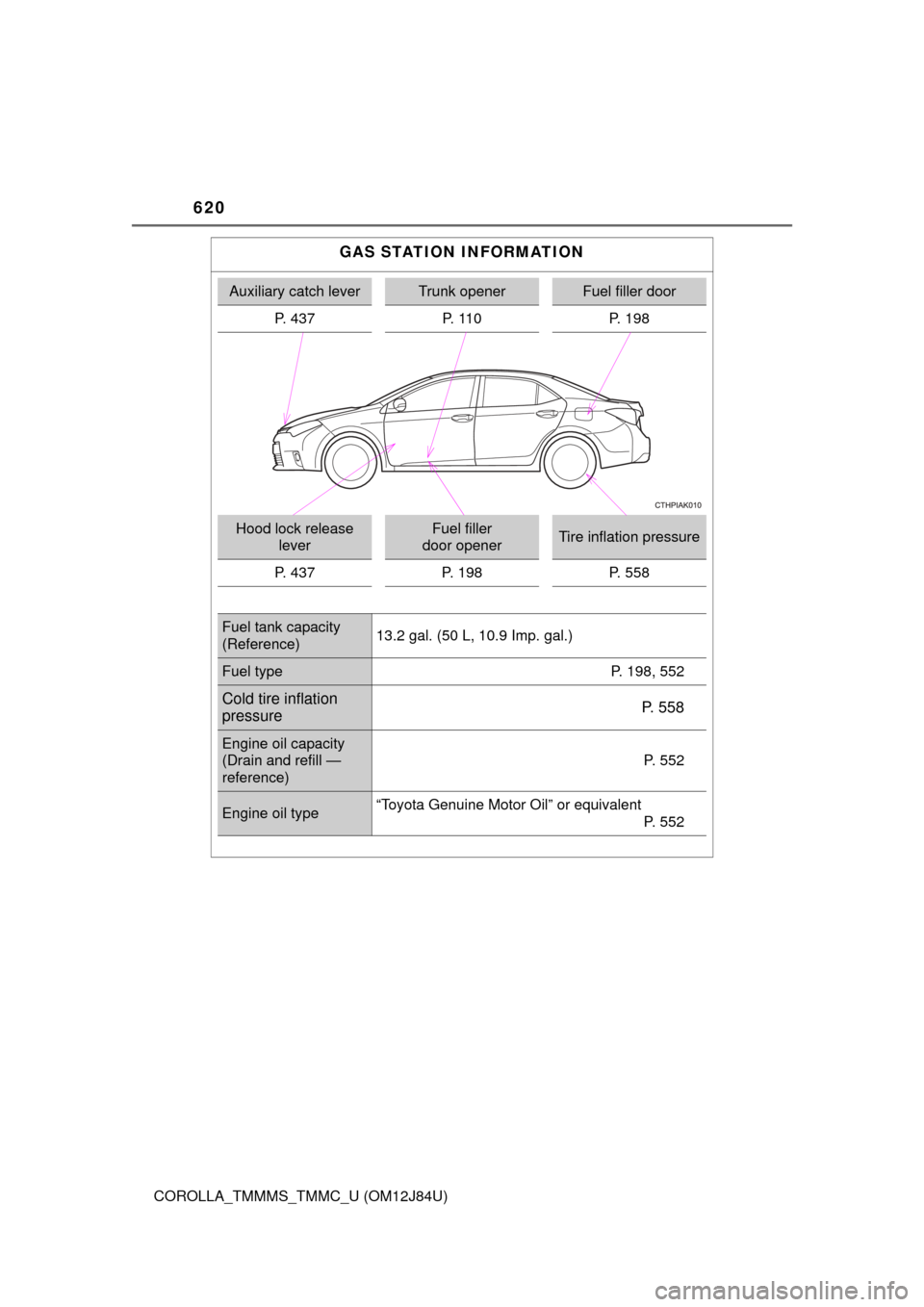

GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 437 P. 110 P. 198
Hood lock release leverFuel filler
door openerTire inflation pressure
P. 437 P. 198 P. 558
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 10.9 Imp. gal.)
Fuel type
P. 198, 552
Cold tire inflation
pressure P. 5 5 8
Engine oil capacity
(Drain and refill —
reference) P. 552
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 552
