2016 TOYOTA CAMRY Owners Manual

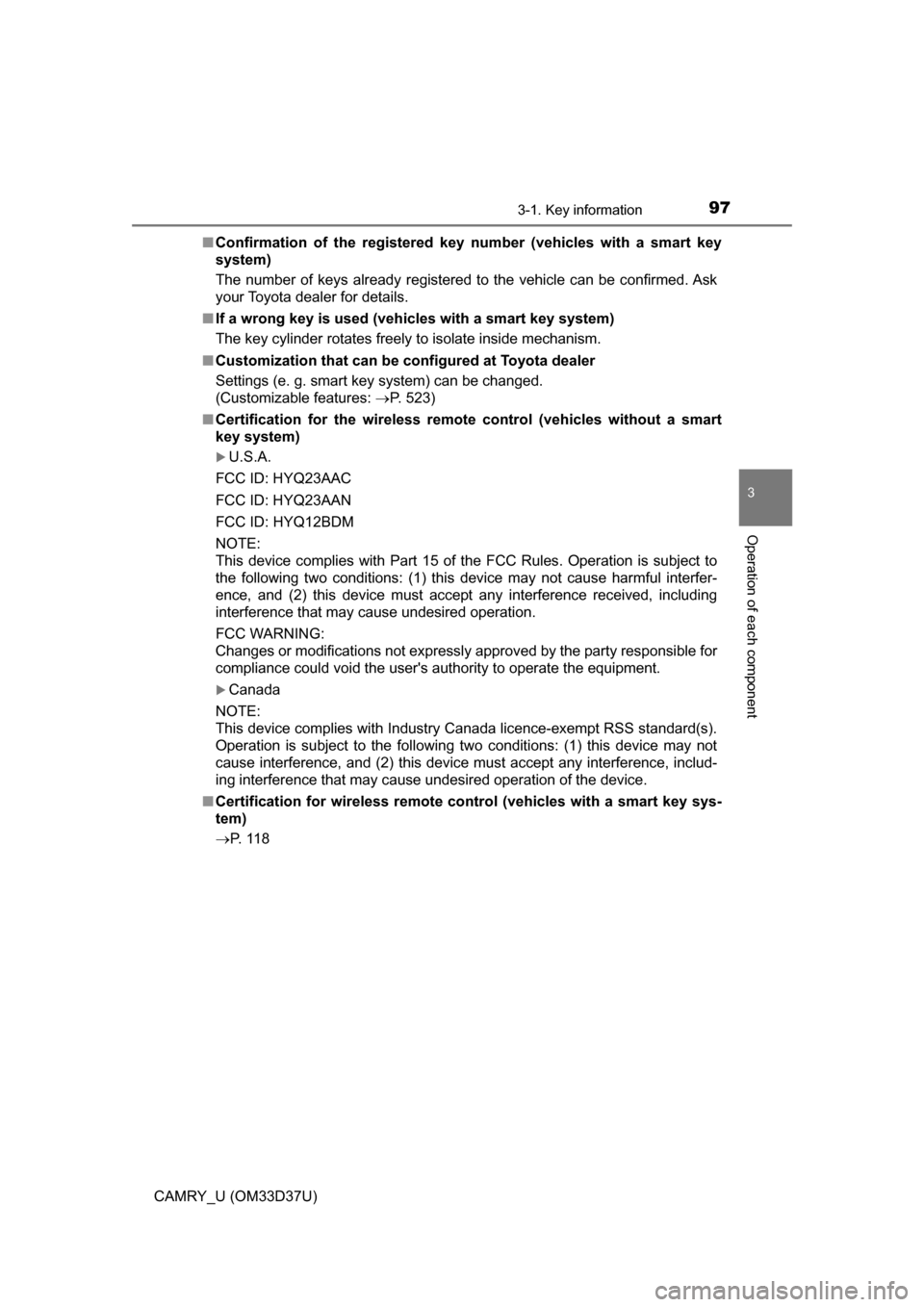

973-1. Key information
3
Operation of each component
CAMRY_U (OM33D37U)■
Confirmation of the registered key number (vehicles with a smart key
system)
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.
■ Customization that can be co nfigured at Toyota dealer
Settings (e. g. smart key system) can be changed.
(Customizable features: P. 523)
■ Certification for the wireless remote control (vehicles without a smart
key system)
U.S.A.
FCC ID: HYQ23AAC
FCC ID: HYQ23AAN
FCC ID: HYQ12BDM
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
■ Certification for wireless remote control (vehicles with a smart key sys-
tem)
P. 1 1 8

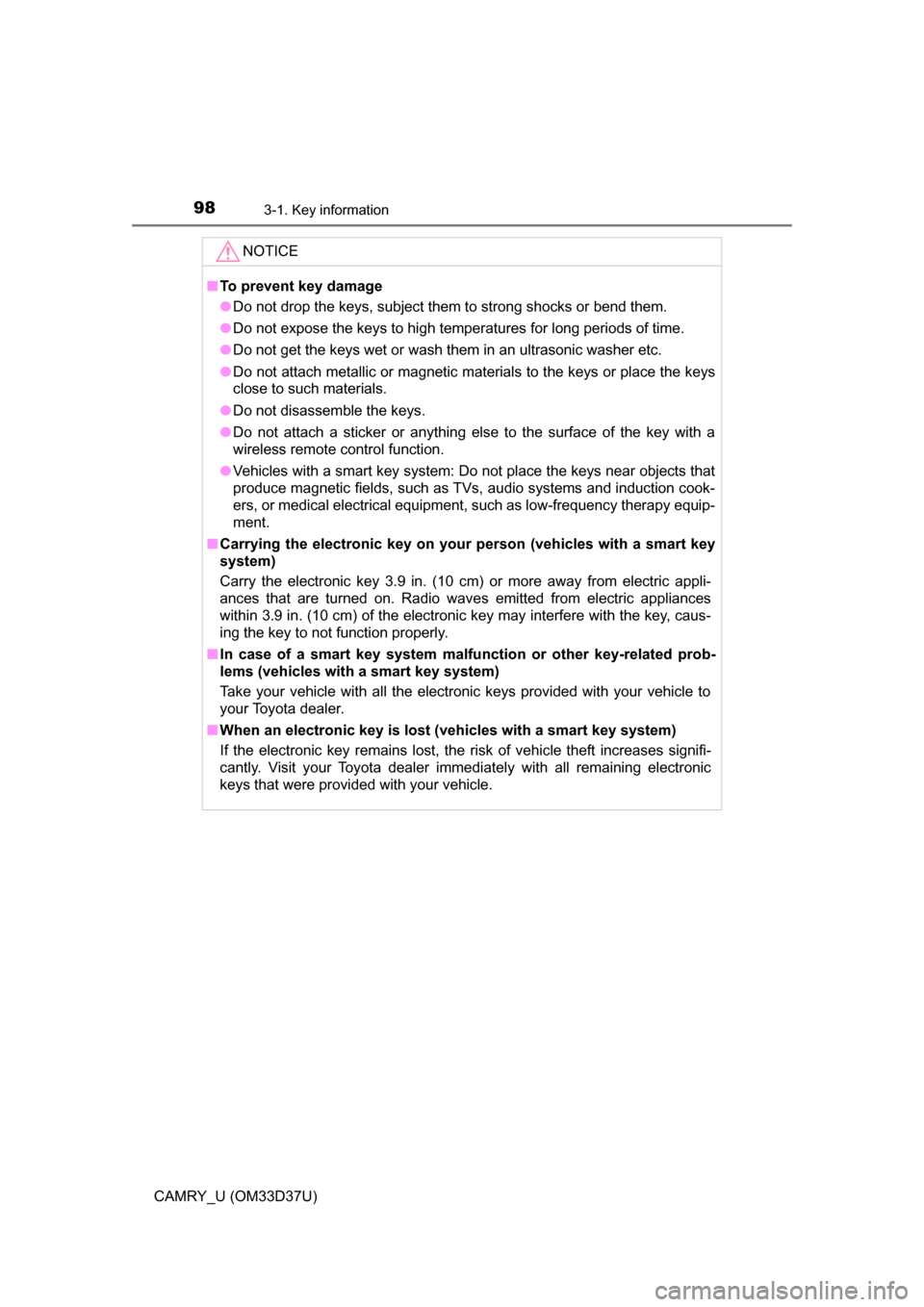

983-1. Key information
CAMRY_U (OM33D37U)
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key with a
wireless remote control function.
● Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that were provided with your vehicle.

99
3
Operation of each component
CAMRY_U (OM33D37U)
3-2. Opening, closing and locking the doors
◆Smart key system (if equipped)
Carry the electronic key to enable this function.Grip the driver’s door handle
to unlock the door. Grip the
front passenger’s door han-
dle to unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. ( P. 105)
Touch the lock sensor (the indentation on the side of the door
handle) to lock the doors.
Check that the door is securely locked.
◆Wireless remote control
Vehicles without a smart key system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Press and hold to open the
driver’s window and moon roof.
*
(P. 132, 135)
*: This setting must be customized
at your Toyota dealer.
Doors
Unlocking and locking the doors from the outside
1
2
Type A
Type B
1
2

1003-2. Opening, closing and locking the doors
CAMRY_U (OM33D37U)
Vehicles with a smart key systemLocks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Press and hold to open the
driver’s window and moon roof.
*
(P. 132, 135)
*: This setting must be customized at your Toyota dealer.
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart key system Locks all the doors
Turn and hold to close the win-
dows and moon roof.
*
(P. 132, 135)
Unlocks the door
Turning the key unlocks the
driver's door. Turning the key
again unlocks the other doors.
Turn and hold to open the
driver’s window and moon roof.
*
(P. 132, 135)
*: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical key.
(  P. 485)
1
2
1
2

1013-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (OM33D37U)
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Driver’s window and moon roof:
A buzzer sounds to indicate that the driver’s window and moon roof are open-
ing.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door ca nnot be locked by the lock sen sor on the upper part of
the door handle
■ Door lock buzzer (vehicles with a smart key system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer will sound for 5 seconds. Fully close the door to stop the buzzer, and
lock the doors again.
■ Alarm (if equipped)
Locking the doors will set the alarm system. ( P. 69)
■ If the smart key system or the wireless remote control does not operate
properly (vehicles with a smart key system)
Use the mechanical key to lock and unlock the doors. ( P. 485)
Replace the battery with a new one if it is depleted. ( P. 420)
If the door will not lock even when the top-
side sensor area is touched, try using
your palm to touch the lock sensor.

1023-2. Opening, closing and locking the doors
CAMRY_U (OM33D37U)
◆Door lock switchesLocks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if eit her of the front doors is open and
the key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if t he engine switch is in ACCESSORY
or IGNITION ON mode, or the elec tronic key is left inside the vehi-
cle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

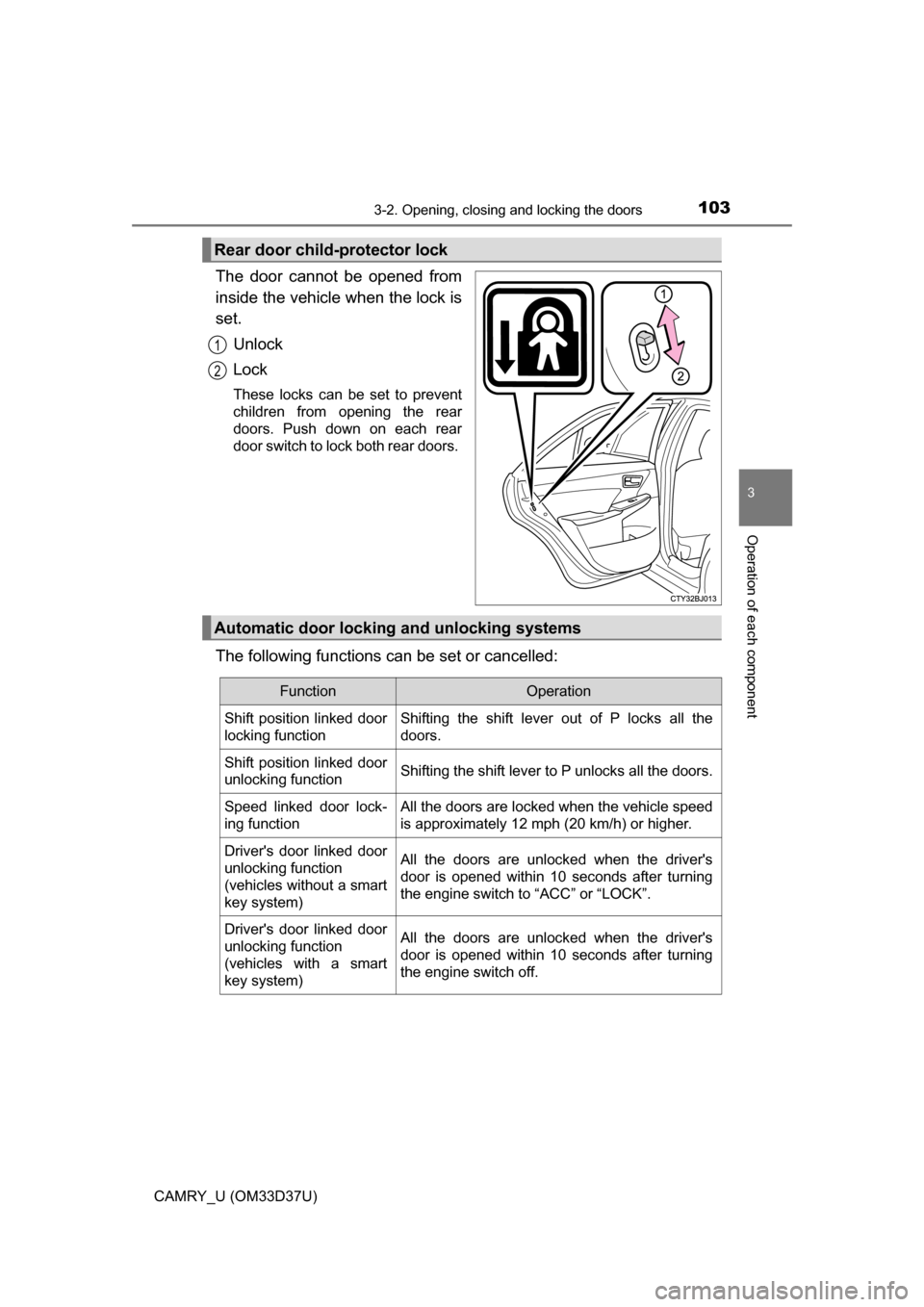

1033-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (OM33D37U)
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
The following functions can be set or cancelled:
Rear door child-protector lock
1
2
Automatic door lockin g and unlocking systems
FunctionOperation
Shift position linked door
locking function Shifting the shift lever out of P locks all the
doors.
Shift position linked door
unlocking function Shifting the shift lever to P unlocks all the doors.
Speed linked door lock-
ing function All the doors are locked when the vehicle speed
is approximately 12 mph (20 km/h) or higher.
Driver's door linked door
unlocking function
(vehicles without a smart
key system) All the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the engine switch to “ACC” or “LOCK”.
Driver's door linked door
unlocking function
(vehicles with a smart
key system) All the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the engine switch off.

1043-2. Opening, closing and locking the doors
CAMRY_U (OM33D37U)■
Setting and canceling the functions
The automatic door locking and unlocking functions can be set or
canceled on the audio system screen (
P. 523) or by following the
procedure below.
Vehicles without a smart key sy stem: Close all the doors and
switch the engine switch to the “ON” position. (Perform step
within 10 seconds.)
Vehicles with a smart key system: Close all the doors and switch
the engine switch to IGNITION ON mode. (Perform step
within 10 seconds.)
Shift the shift lever to P or N,
and press and hold the
driver's door lock switch
(
or ) for
approximately 5 seconds and
then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to cancel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
1
2
2
2
FunctionShift lever positionDriver’s door lock switch position
Shift position linked door lock-
ing function
PShift position linked door
unlocking function
Speed linked door locking func-
tion
NDriver's door linked door
unlocking function
