1544-1. Before driving
CAMRY_HV_U (OM33C35U)
NOTICE
nWhen driving the vehicle
lDo not depress the accelerator and brake pedals at the same time during
driving, as this may restrain driving torque.
l Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
n When parking the vehicle
Always shift the shift lever to P. Failure to do so may cause the vehicle to
move or the vehicle may accelerate suddenly if the accelerator pedal is
accidentally depressed.
n Avoiding damage to vehicle parts
lDo not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
l When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
n If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehi-
cle.
lIt may be difficult to control your vehicle.
l The vehicle will make abnormal sounds or vibrations.
l The vehicle will lean abnormally.
Information on what to do in case of a flat tire ( P. 473)
n When encounterin g flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
l Engine stalling
l Short in electrical components
l Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
l Brake function
l Changes in quantity and quality of oil and fluid used for the engine, hybrid
transmission, etc.
l Lubricant condition for the bearings and suspension joints (where possi-
ble), and the function of all joints, bearings, etc.
5109-1. Specifications
CAMRY_HV_U (OM33C35U)
*: The fluid capacity is a reference quantity. If replacement is necessary, con-tact your Toyota dealer.
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N,51 kgf) while the hybrid system is operating
*2: Parking brake pedal travel when depre ssed with a force of 67 lbf (300 N,
31 kgf).

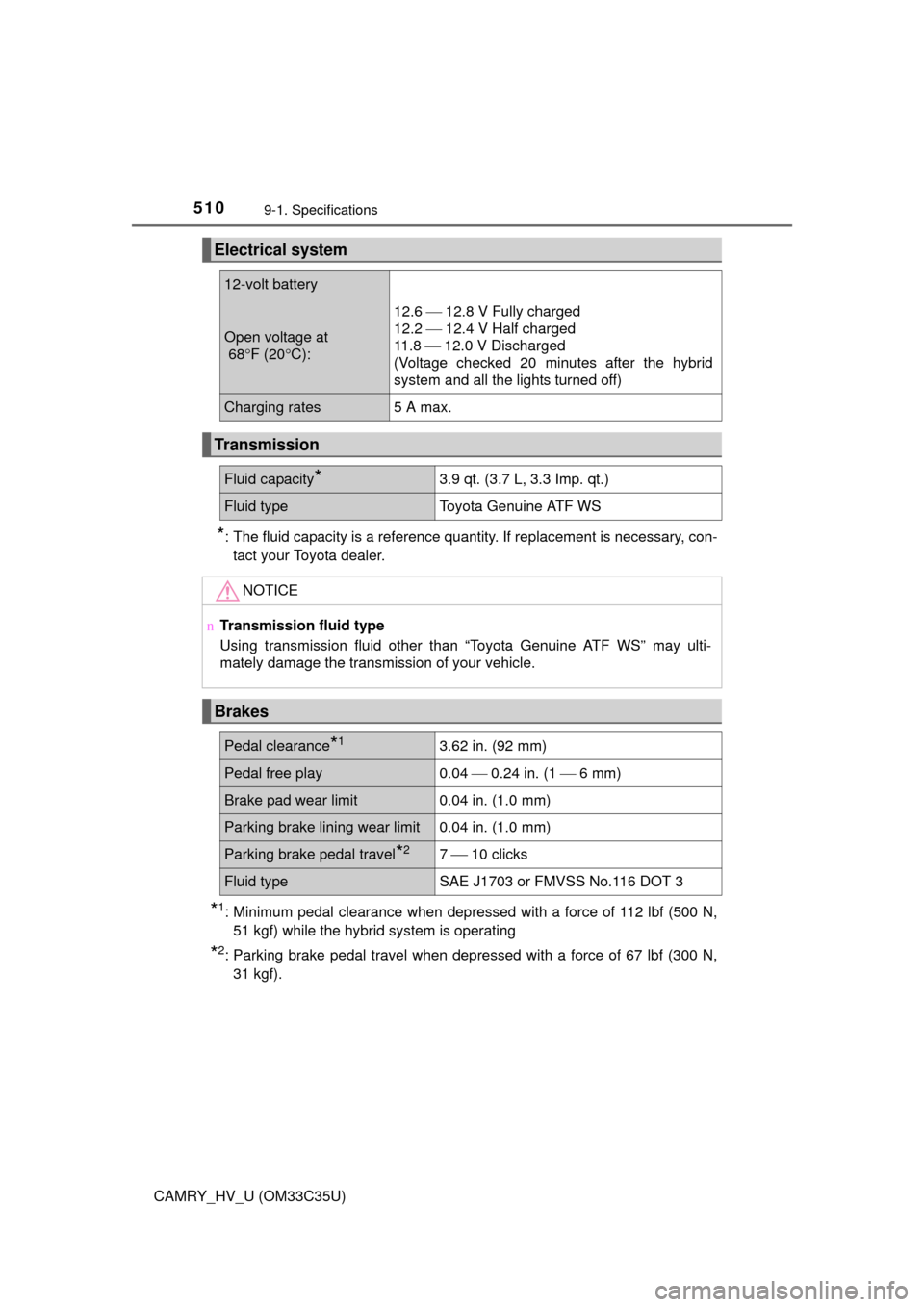

Electrical system
12-volt battery
Open voltage at
68 F (20 C):
12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage checked 20 minutes after the hybrid
system and all the lights turned off)
Charging rates5 A max.
Transmission
Fluid capacity*3.9 qt. (3.7 L, 3.3 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
nTransmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the transmission of your vehicle.
Brakes
Pedal clearance*13.62 in. (92 mm)
Pedal free play 0.04 0.24 in. (1 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*27 10 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
