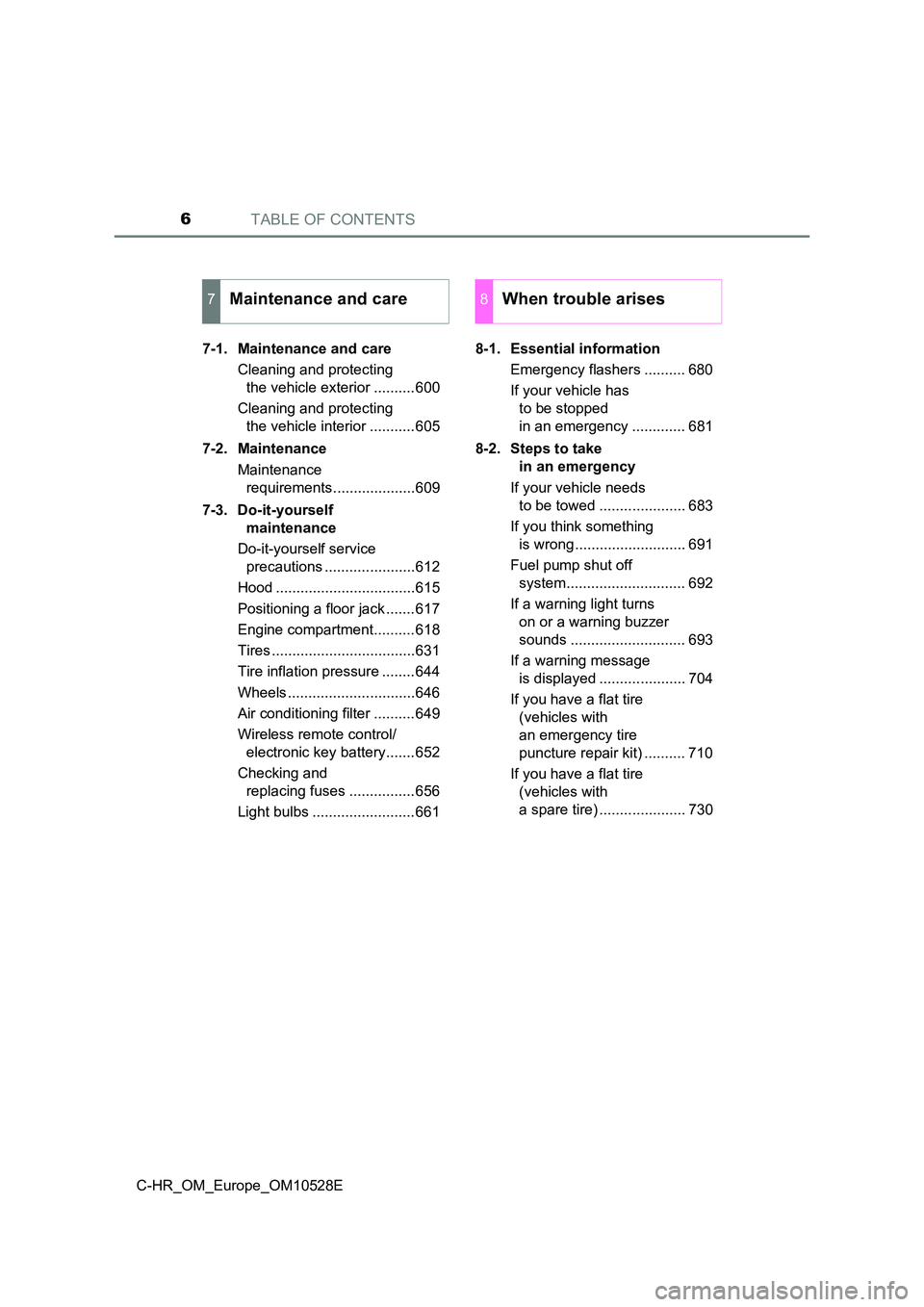

TABLE OF CONTENTS6
C-HR_OM_Europe_OM10528E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........600
Cleaning and protecting
the vehicle interior ...........605
7-2. Maintenance
Maintenance
requirements....................609
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ......................612
Hood ..................................615
Positioning a floor jack .......617
Engine compartment..........618
Tires ...................................631
Tire inflation pressure ........644
Wheels ...............................646
Air conditioning filter ..........649
Wireless remote control/
electronic key battery.......652
Checking and
replacing fuses ................656
Light bulbs .........................661
8-1. Essential information
Emergency flashers .......... 680
If your vehicle has
to be stopped
in an emergency ............. 681
8-2. Steps to take
in an emergency
If your vehicle needs
to be towed ..................... 683
If you think something
is wrong ........................... 691
Fuel pump shut off
system............................. 692
If a warning light turns
on or a warning buzzer
sounds ............................ 693
If a warning message
is displayed ..................... 704
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit) .......... 710
If you have a flat tire
(vehicles with
a spare tire) ..................... 730
7Maintenance and care8When trouble arises

15Pictorial index
C-HR_OM_Europe_OM10528E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
To prevent freezing (windshield wiper de-icer*3) . . . . . . . . . . . P. 570
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 602
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 764
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 631
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 772
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 631
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 710, 730
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 765
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 756
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255, 265
Front fog lights*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255
Stop lights/tail lights/turn signal lights . . . . . . . . . . . . P. 255, 265
Tail lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Back-up light
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 244, 250
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 661, Watts: P. 773)
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: If equipped
8
9
10
11
12
13
14

561-1. For safe use
C-HR_OM_Europe_OM10528E
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead
to an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer
as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.

1112. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
*4: Vehicles with monochrome display
*4LDA indicator (yellow) (if equipped) P. 696
*3Stop & Start cancel indicator (if equipped) P. 697
*3Parking brake indicator P. 697
Low fuel level warning light P. 697
Driver’s and front passenger’s seat belt
reminder light P. 6 9 7
Rear passengers’ seat belt reminder lights (on
the center panel) P. 6 9 7
*1Tire pressure warning light P. 698
*1Master warning light P. 698
Warning lightsPages

1142. Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with monochrome display only
*3: Vehicles with a manual transmission
*4: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without
a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system), the BSM function is enabled on the
screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-
information display, the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*5: The light flashes to indicate that the system is operating.
*6: The light turns on when the system is off.

1162. Instrument cluster
C-HR_OM_Europe_OM10528E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by any
authorized retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with color display only
*3: Vehicles with a Multidrive
*4: Vehicles with a manual transmission
*2Stop & Start indicator (if equipped) P. 374
*2Speed limit sign (if equipped) P. 330
Low outside temperature indicator P. 120
IndicatorsPages

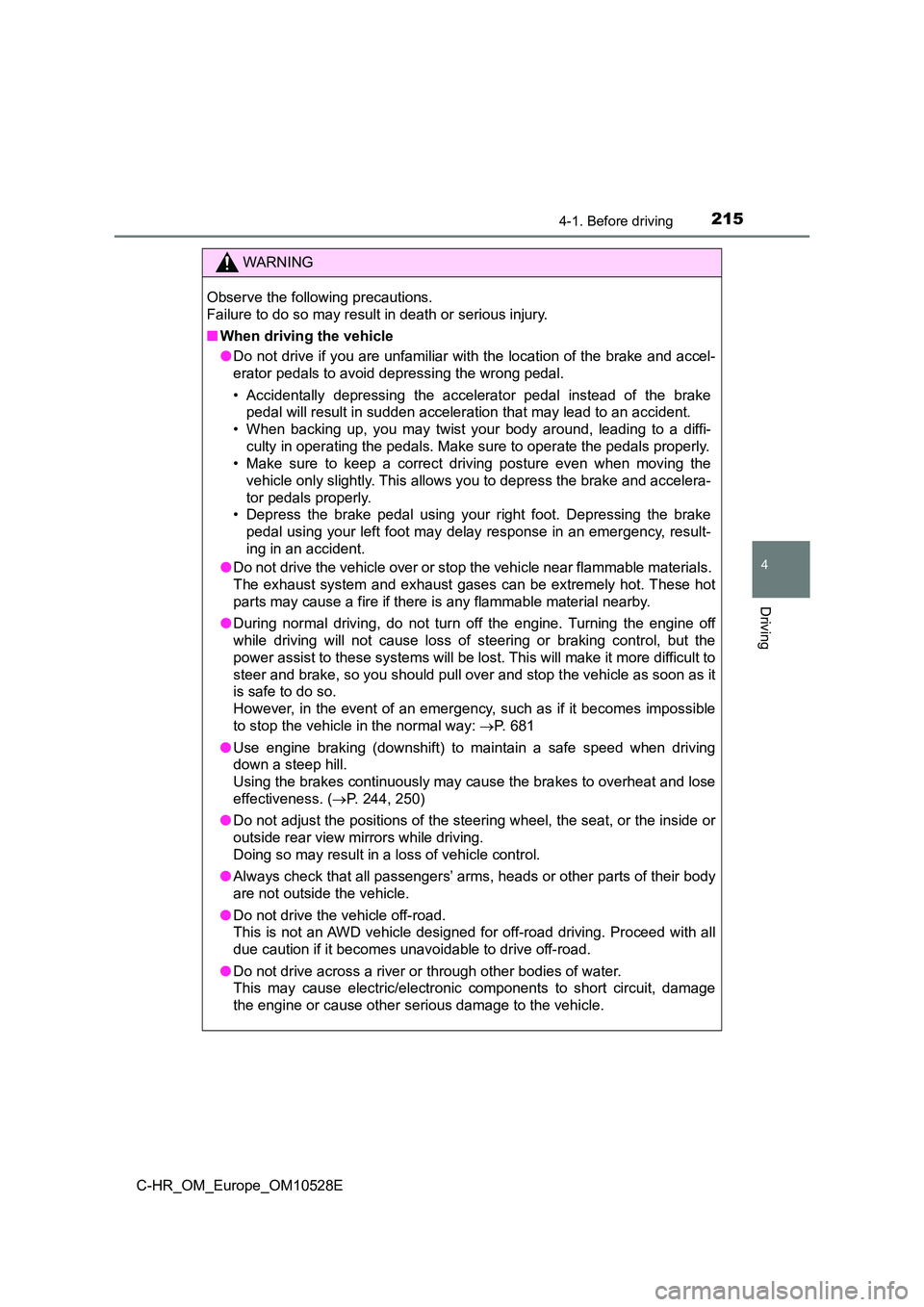

2154-1. Before driving
4
Driving
C-HR_OM_Europe_OM10528E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 681
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 244, 250)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.
● Do not drive the vehicle off-road.
This is not an AWD vehicle designed fo r off-road driving. Proceed with all
due caution if it becomes unavoidable to drive off-road.
● Do not drive across a river or through other bodies of water.
This may cause electric/electronic components to short circuit, damage
the engine or cause other serious damage to the vehicle.

2434-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
NOTICE
■To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If “ACCESSORY” or “IGNITION ON” is displayed on the multi-information
display, the engine switch is not off. When exiting the vehicle, always
check that the engine switch is off.
● Vehicles with a Multidrive: Do not stop the engine when the shift lever is in
a position other than P. If the engine is stopped in another shift lever posi-
tion, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
