2016 TOYOTA C-HR stop start

2033-5. Opening and closing the windows
3
Operation of each component
C-HR_OM_Europe_OM10528E

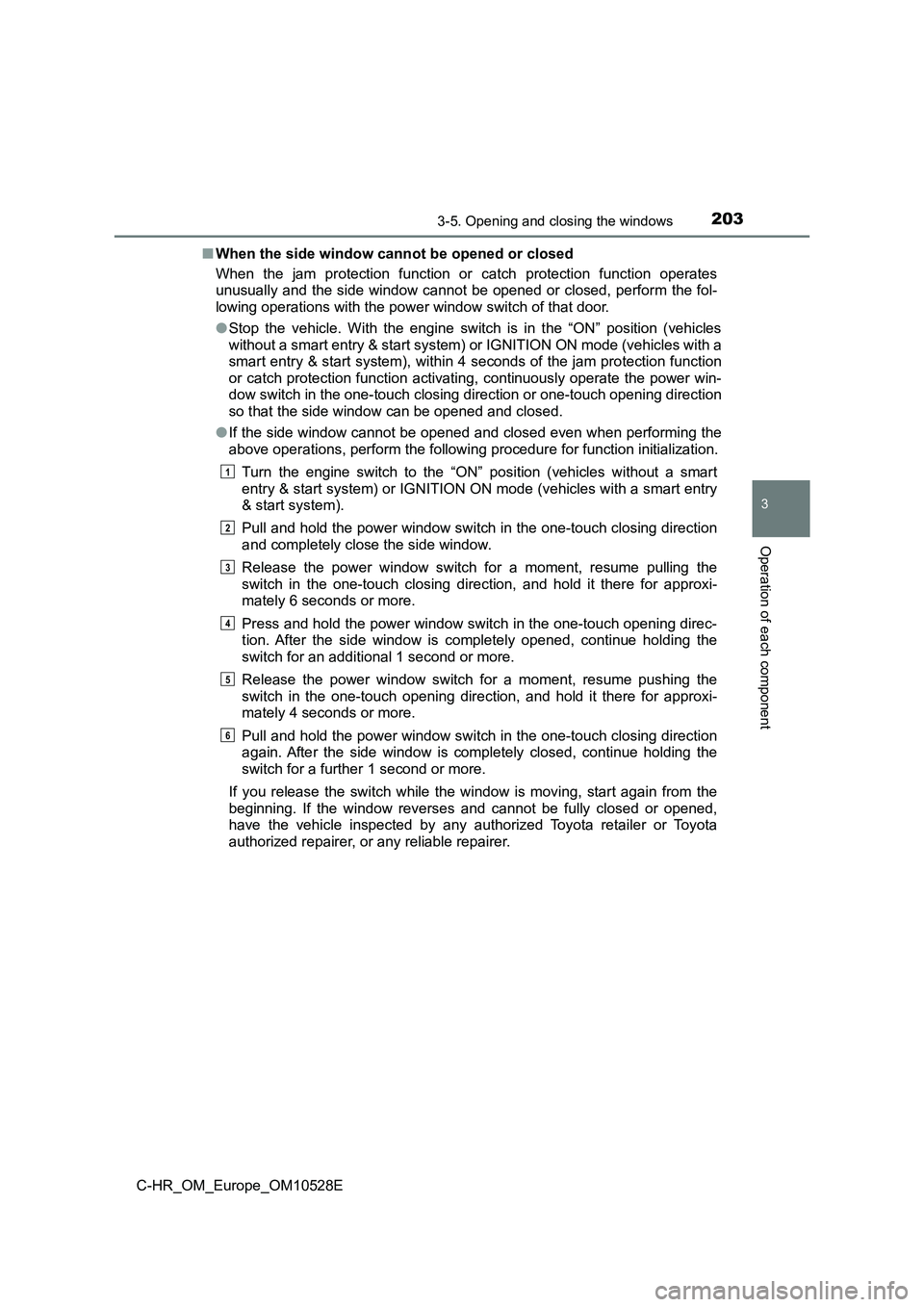

■ When the side window cannot be opened or closed
When the jam protection function or catch protection function operates
unusually and the side window cannot be opened or closed, perform the fol-
lowing operations with the power window switch of that door.
● Stop the vehicle. With the engine switch is in the “ON” position (vehicles
without a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system), within 4 seconds of the jam protection function
or catch protection function activating, continuously operate the power win-
dow switch in the one-touch closing direction or one-touch opening direction
so that the side window can be opened and closed.
● If the side window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.
Turn the engine switch to the “ON” position (vehicles without a smart
entry & start system) or IGNITION ON mode (vehicles with a smart entry
& start system).
Pull and hold the power window switch in the one-touch closing direction
and completely close the side window.
Release the power window switch for a moment, resume pulling the
switch in the one-touch closing direction, and hold it there for approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After the side window is completely opened, continue holding the
switch for an additional 1 second or more.
Release the power window switch for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the side window is completely closed, continue holding the
switch for a further 1 second or more.
If you release the switch while the window is moving, start again from the
beginning. If the window reverses and cannot be fully closed or opened,
have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
1
2
3
4
5
6

207
4Driving
C-HR_OM_Europe_OM10528E
4-1. Before driving
Driving the vehicle ............. 208
Cargo and luggage ............ 222
Trailer towing ..................... 223
4-2. Driving procedures
Engine (ignition) switch
(vehicles without
a smart entry & start
system) ............................ 233
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 236
Multidrive ........................... 244
Manual transmission.......... 250
Turn signal lever ................ 255
Parking brake .................... 256
Brake hold ......................... 262
4-3. Operating the lights
and wipers
Headlight switch ................ 265
Automatic High Beam ........ 271
Fog light switch .................. 276
Windshield wipers
and washer ...................... 278
Rear window wiper
and washer ...................... 283
4-4. Refueling
Opening the fuel tank
cap ................................... 285
4-5. Using the driving
support systems
Toyota Safety Sense ......... 290
PCS (Pre-Collision
System) ........................... 298
LDA (Lane Departure
Alert with steering
control)............................. 315
RSA (Road Sign Assist)..... 330
Dynamic radar cruise
control with full-speed
range ............................... 336
Dynamic radar cruise
control .............................. 351
Cruise control..................... 369
Stop & Start system ........... 374
Driving mode select .......... 385
Speed limiter ...................... 387
BSM
(Blind Spot Monitor) ......... 392
• BSM function ................. 398
•RCTA function................ 403
Toyota parking
assist-sensor ................... 408
S-IPA (Simple Intelligent
Parking Assist System).... 420
Driving assist systems ....... 462
4-6. Driving tips
Winter driving tips .............. 470

2094-1. Before driving
4
Driving
C-HR_OM_Europe_OM10528E

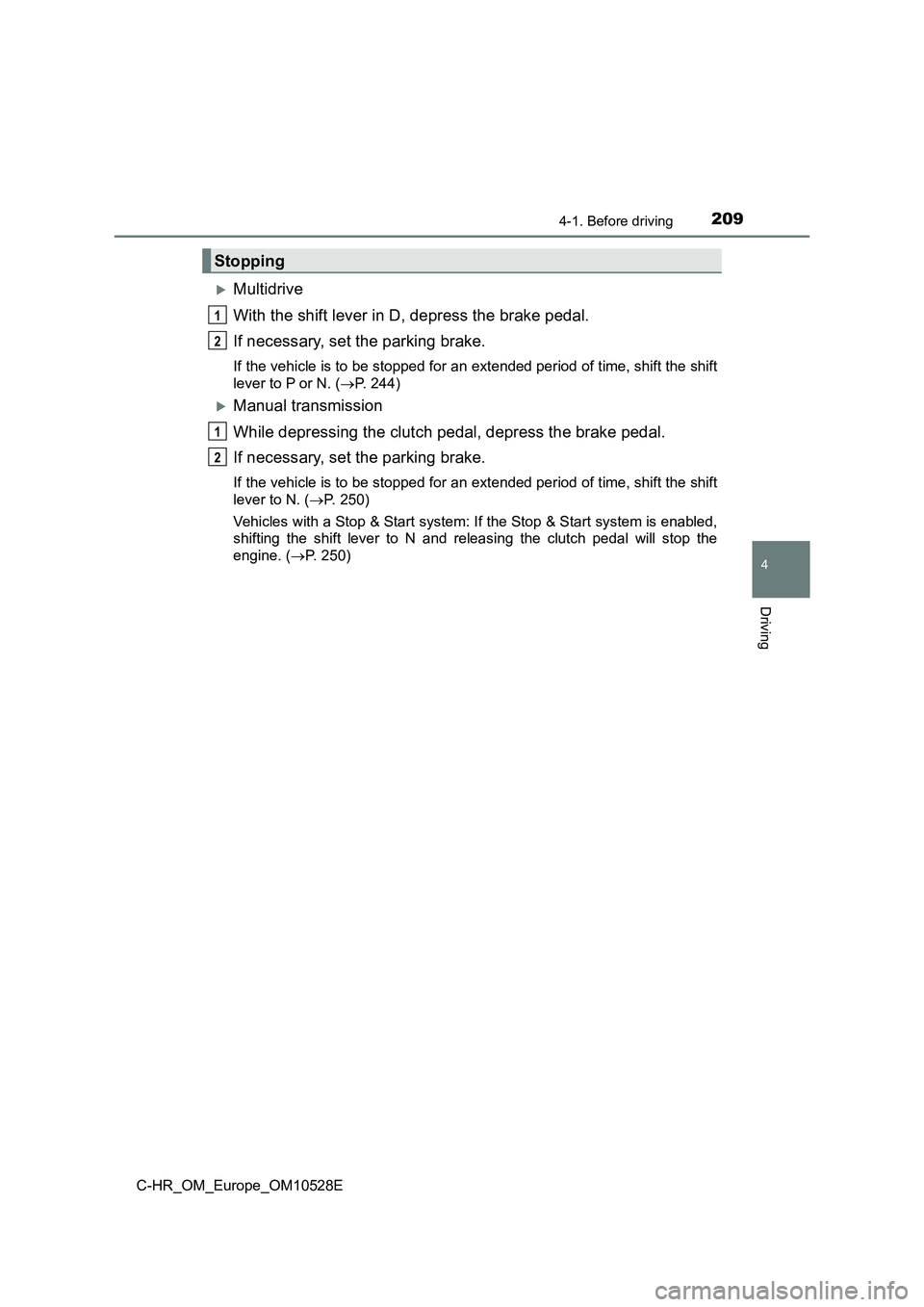

Multidrive
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. ( P. 244)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( P. 250)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. ( P. 250)
Stopping
1
2
1
2

2104-1. Before driving
C-HR_OM_Europe_OM10528E
Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake ( P. 258), and shift the shift lever to P.
( P. 244)
If the parking brake is in automatic mode, the parking brake is set automat-
ically when shifting the shift lever to P. ( P. 256)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. ( P. 258)
If the parking brake is in automatic mode, the parking brake is set automat-
ically when stop the engine. ( P. 257)
Shift the shift lever to N. (P. 250)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Parking the vehicle
1
2
3
4
1
2
3
4
5

2134-1. Before driving
4
Driving
C-HR_OM_Europe_OM10528E
■ Restraining sudden start (Drive-Start Control) (vehicles with a Multid-
rive)
● When the following unusual operation is performed, the engine output may
be restrained.
• When the shift lever is shifted from R to D, D to R, N to R, P to D, or P to
R (D includes M) with the accelerator pedal depressed, a warning mes-
sage appears on the multi-information display.
• When the accelerator pedal is depressed too much while the vehicle is in
reverse.
● While Drive-Start Control is being activated, your vehicle may have trouble
escaping from the mud or fresh snow. In such case, deactivate TRC to can-
cel Drive-Start Control so that the vehicle may become able to escape from
the mud or fresh snow.
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 300 km (186 miles):
Avoid sudden stops.
● For the first 800 km (500 miles):
Do not tow a trailer.
● For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.

2144-1. Before driving
C-HR_OM_Europe_OM10528E

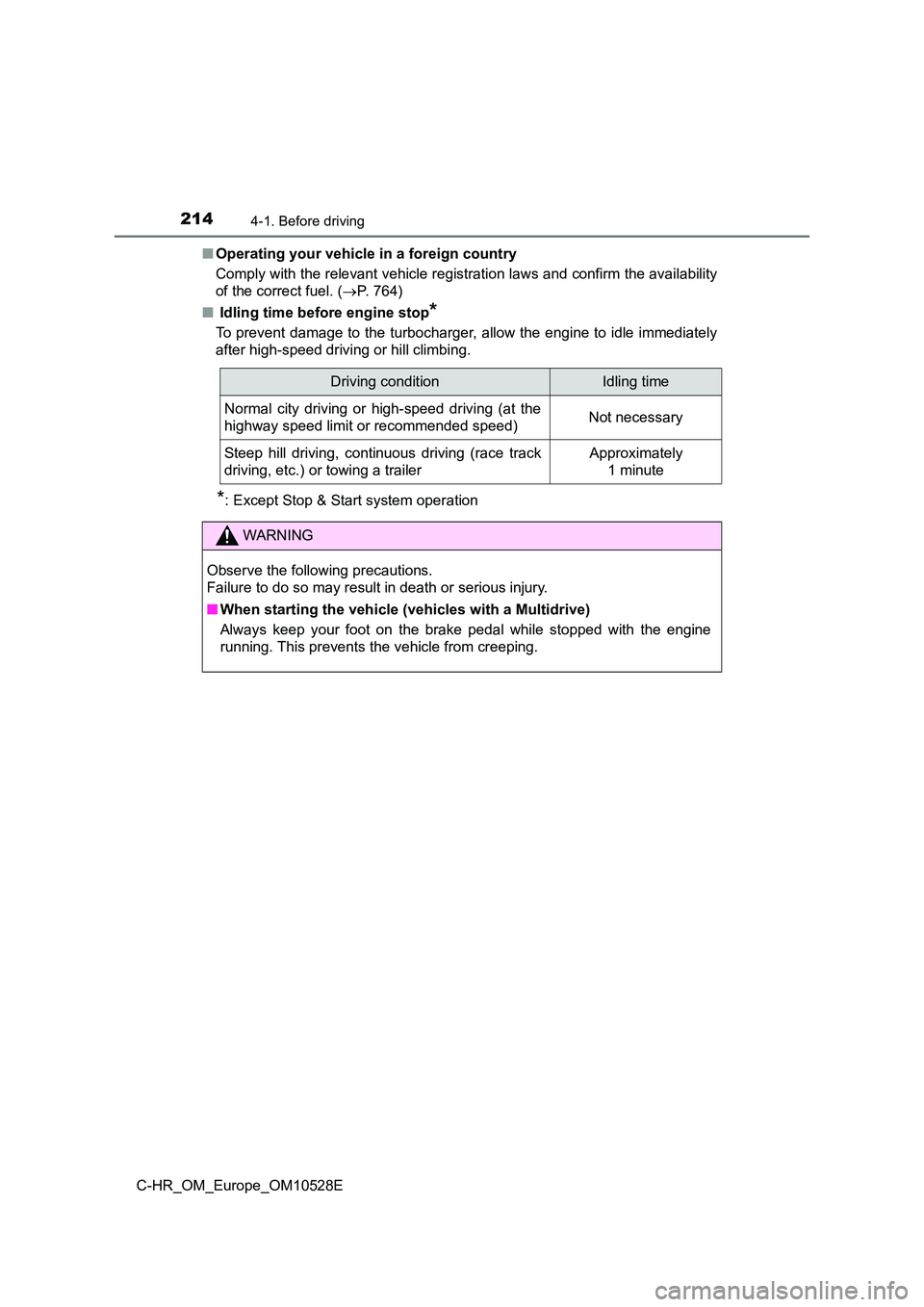

■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 764)
■ Idling time before engine stop*
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or hill climbing.
*: Except Stop & Start system operation
Driving conditionIdling time
Normal city driving or high-speed driving (at the
highway speed limit or recommended speed) Not necessary
Steep hill driving, continuous driving (race track
driving, etc.) or towing a trailer
Approximately
1 minute
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle (vehicles with a Multidrive)
Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from creeping.

2184-1. Before driving
C-HR_OM_Europe_OM10528E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
● Always apply the parking brake, shift the shift lever to P (Multidrive), stop
the engine and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
Vehicles with a Multidrive: If the vehicle is parked with the shift lever in P
but the parking brake is not set, the vehicle may start to move, possibly
leading to an accident.
● Do not touch the exhaust pipes while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.

2204-1. Before driving
C-HR_OM_Europe_OM10528E

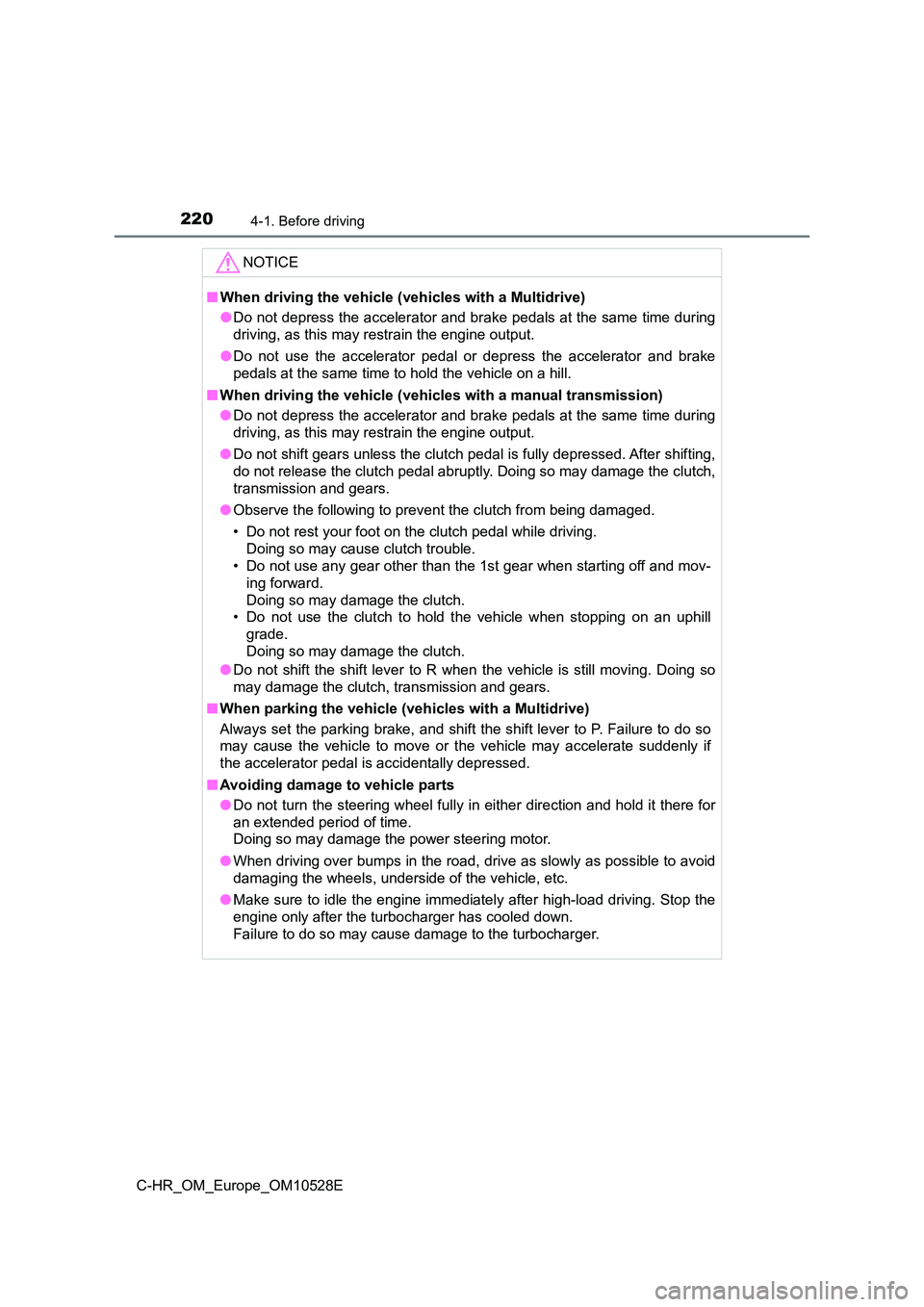

NOTICE
■When driving the vehicle (vehicles with a Multidrive)
● Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain the engine output.
● Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
■ When driving the vehicle (vehicles with a manual transmission)
● Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain the engine output.
● Do not shift gears unless the clutch pedal is fully depressed. After shifting,
do not release the clutch pedal abruptly. Doing so may damage the clutch,
transmission and gears.
● Observe the following to prevent the clutch from being damaged.
• Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
• Do not use any gear other than the 1st gear when starting off and mov-
ing forward.
Doing so may damage the clutch.
• Do not use the clutch to hold the vehicle when stopping on an uphill
grade.
Doing so may damage the clutch.
● Do not shift the shift lever to R when the vehicle is still moving. Doing so
may damage the clutch, transmission and gears.
■ When parking the vehicle (vehicles with a Multidrive)
Always set the parking brake, and shift the shift lever to P. Failure to do so
may cause the vehicle to move or the vehicle may accelerate suddenly if
the accelerator pedal is accidentally depressed.
■ Avoiding damage to vehicle parts
● Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
● When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
● Make sure to idle the engine immediately after high-load driving. Stop the
engine only after the turbocharger has cooled down.
Failure to do so may cause damage to the turbocharger.
