TABLE OF CONTENTS6
C-HR_HV_OM_Europe_OM10538E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........512
Cleaning and protecting
the vehicle interior ...........517
7-2. Maintenance
Maintenance
requirements....................520
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ......................523
Hood ..................................526
Positioning a floor jack .......528
Engine compartment..........529
Tires ...................................541
Tire inflation pressure ........553
Wheels ...............................555
Air conditioning filter ..........558
Electronic key battery ........561
Checking and replacing
fuses ................................564
Light bulbs .........................568
8-1. Essential information
Emergency flashers .......... 586
If your vehicle has to
be stopped in an
emergency ...................... 587
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 588
If you think something is
wrong .............................. 594
If a warning light turns
on or a warning buzzer
sounds ............................ 595
If a warning message
is displayed ..................... 606
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit) ......... 612
If you have a flat tire
(vehicles with
a spare tire) ..................... 632
If the hybrid system will
not start ........................... 646
If the electronic key does
not operate properly ........ 648
If the 12-volt battery is
discharged ...................... 651
If your vehicle
overheats ........................ 657
If the vehicle becomes
stuck................................ 662
7Maintenance and care8When trouble arises

15Pictorial index
C-HR_HV_OM_Europe_OM10538EWindshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 256
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
To prevent freezing (windshield wiper de-icer
*) . . . . . . . . . . . P. 482
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 514
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 669
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 674
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 541
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 612, 632
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 526
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 526
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 670
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 657
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235, 244
Front fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Stop lights/tail lights/turn signal lights . . . . . . . . . . . . P. 235, 244
Tail lights (LED type)
Back-up light
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 568, Watts: P. 676)
*: If equipped
8
9
10
11
12
13
14

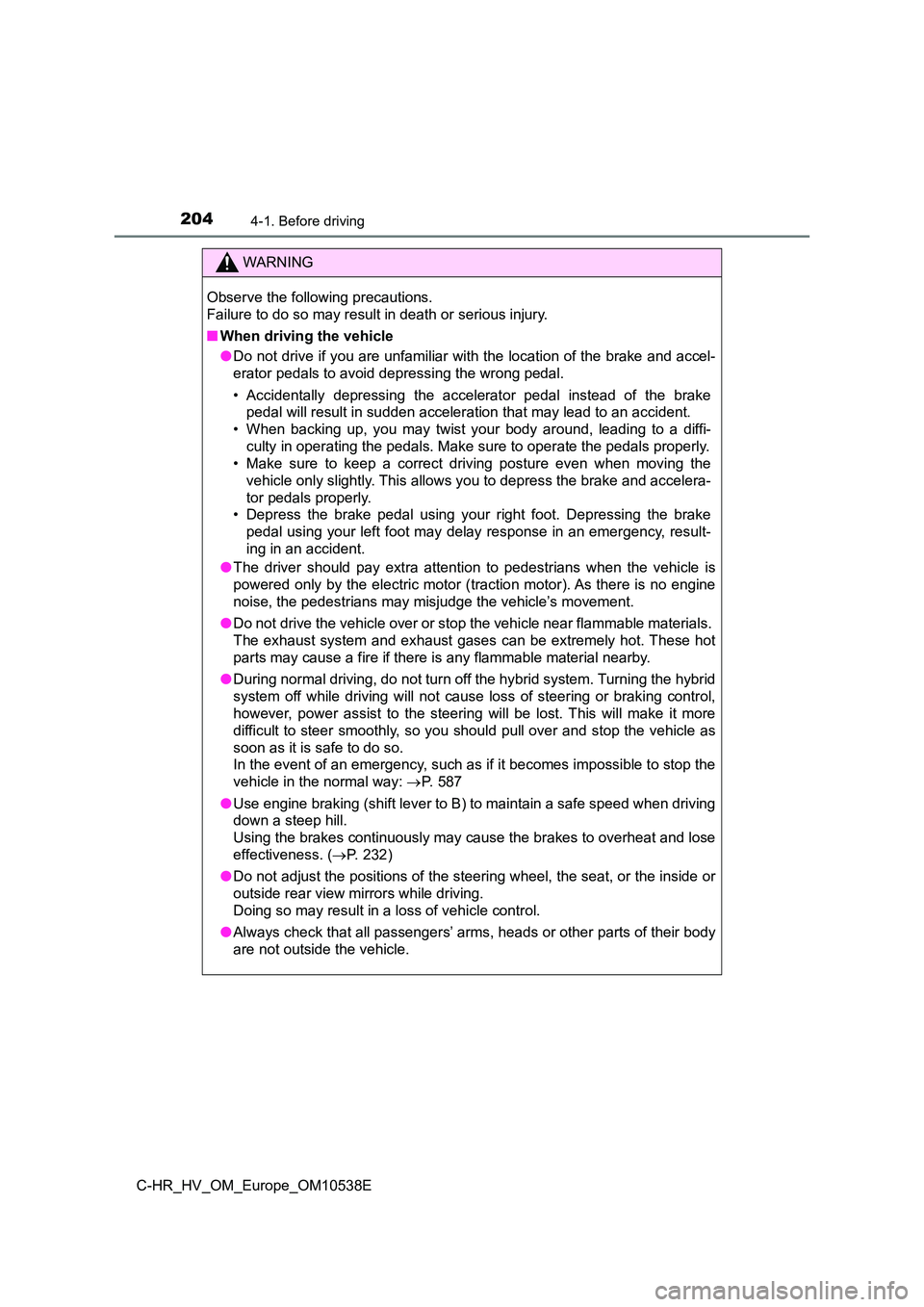

2044-1. Before driving
C-HR_HV_OM_Europe_OM10538E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● The driver should pay extra attention to pedestrians when the vehicle is
powered only by the electric motor (traction motor). As there is no engine
noise, the pedestrians may misjudge the vehicle’s movement.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
● During normal driving, do not turn off the hybrid system. Turning the hybrid
system off while driving will not cause loss of steering or braking control,
however, power assist to the steering will be lost. This will make it more
difficult to steer smoothly, so you should pull over and stop the vehicle as
soon as it is safe to do so.
In the event of an emergency, such as if it becomes impossible to stop the
vehicle in the normal way: P. 587
● Use engine braking (shift lever to B) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 2 3 2 )
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.

221
4
4-2. Driving procedures
Driving
C-HR_HV_OM_Europe_OM10538E
Power (ignition) switch
Check that the parking brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal.
and a message will be displayed on the multi-information display.
If it is not displayed, the hybrid system cannot be started.
Press the power switch shortly
and firmly.
When operating the power switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The hybrid system can be started
from any power switch mode.
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a solid light and
the buzzer sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine
is stopped. (The gasoline engine starts or stops automatically in accor-
dance with the state of the vehicle.)
Performing the following operations when carrying the elec-
tronic key on your person starts the hybrid system or changes
power switch modes.
Starting the hybrid system
1
2
3
4
5

4104-6. Driving tips
C-HR_HV_OM_Europe_OM10538E
◆When braking
Make sure to operate the brakes gently and in a timely manner. A
greater amount of electrical energy can be regenerated when slow-
ing down.
◆Delays
Repeated acceleration and deceleration, as well as long waits at
traffic lights, will lead to bad fuel economy. Check traffic reports
before leaving and avoid delays as much as possible. When driving
in a traffic jam, gently release the brake pedal to allow the vehicle to
move forward slightly while avoiding overuse of the accelerator
pedal. Doing so can help control excessive gasoline consumption.
◆Highway driving
Control and maintain the vehicle at a constant speed. Before stop-
ping at a toll booth or similar, allow plenty of time to release the
accelerator and gently apply the brakes. A greater amount of elec-
trical energy can be regenerated when slowing down.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recircu-
lated air mode. Doing so will help to reduce the burden on the air
conditioning system and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically cut out
until it and the interior of the vehicle are warm, it will consume fuel.
Fuel consumption can be improved by avoiding overuse of the
heater.

4124-6. Driving tips
C-HR_HV_OM_Europe_OM10538E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires*.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
*: Tire chains cannot be mounted on 18 inch tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

511
7Maintenance and care
C-HR_HV_OM_Europe_OM10538E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 512
Cleaning and protecting
the vehicle interior ........... 517
7-2. Maintenance
Maintenance
requirements.................... 520
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ...................... 523
Hood .................................. 526
Positioning a floor jack ....... 528
Engine compartment.......... 529
Tires ................................... 541
Tire inflation pressure ........ 553
Wheels ............................... 555
Air conditioning filter .......... 558
Electronic key battery ........ 561
Checking and replacing
fuses ................................ 564
Light bulbs ......................... 568

700Alphabetical index
C-HR_HV_OM_Europe_OM10538E
ECB (Electronically
Controlled Brake System) .... 402
Eco drive mode ........................ 328
Electric motor
Location .................................. 87
Specification.......................... 669
Electric Power Steering (EPS)
Function ................................ 403
Warning light ......................... 596
Electronic key
If the electronic key does not
operate properly ................. 648
Replacing the battery ............ 561
Electronically Controlled
Brake System (ECB).............. 402
Emergency flashers................. 586
Emergency, in case of
If a warning buzzer sounds ... 595
If a warning light turns on ...... 595
If a warning message is
displayed ............................ 606
If the 12-volt battery is
discharged .......................... 651
If the electronic key does not
operate properly ................. 648
If the hybrid system will not
start..................................... 646
If you have a flat tire...... 612, 632
If you lose your keys ..... 145, 148
If you think something is
wrong .................................. 594
If your vehicle becomes
stuck ................................... 662
If your vehicle has to be
stopped in an emergency ... 587
If your vehicle needs to be
towed .................................. 588
If your vehicle overheats ....... 657
Energy monitor ........................ 138
Engine
Accessory mode ................... 222
Compartment ........................ 529
Engine switch........................ 221
Exhaust gas precautions ........ 56
Hood ..................................... 526
How to start the hybrid
system ................................ 221
Identification number ............ 668
If the hybrid system will not
start .................................... 646
If your vehicle has to be
stopped in an emergency ... 587
Ignition switch
(power switch) .................... 221
Overheating .......................... 657
Power switch......................... 221
Engine coolant
Capacity ................................ 672
Checking ............................... 533
Preparing and checking
before winter....................... 412
Warning light ......................... 600
Engine oil
Capacity ................................ 670
Checking ............................... 530
Oil pressure warning light ..... 595
Preparing and checking
before winter....................... 412
Engine switch .......................... 221
Auto power off function ......... 223
Changing the power switch
modes................................. 222
If your vehicle has to be
stopped in an emergency ... 587
Starting the hybrid system .... 221
EPS (Electronic Power Steering)
Function ................................ 403
Warning light ......................... 596
EV indicator.............................. 122
EV drive mode.......................... 228
Exhaust gas precautions .......... 56
E
