2016 TOYOTA AURIS TOURING SPORTS sensor

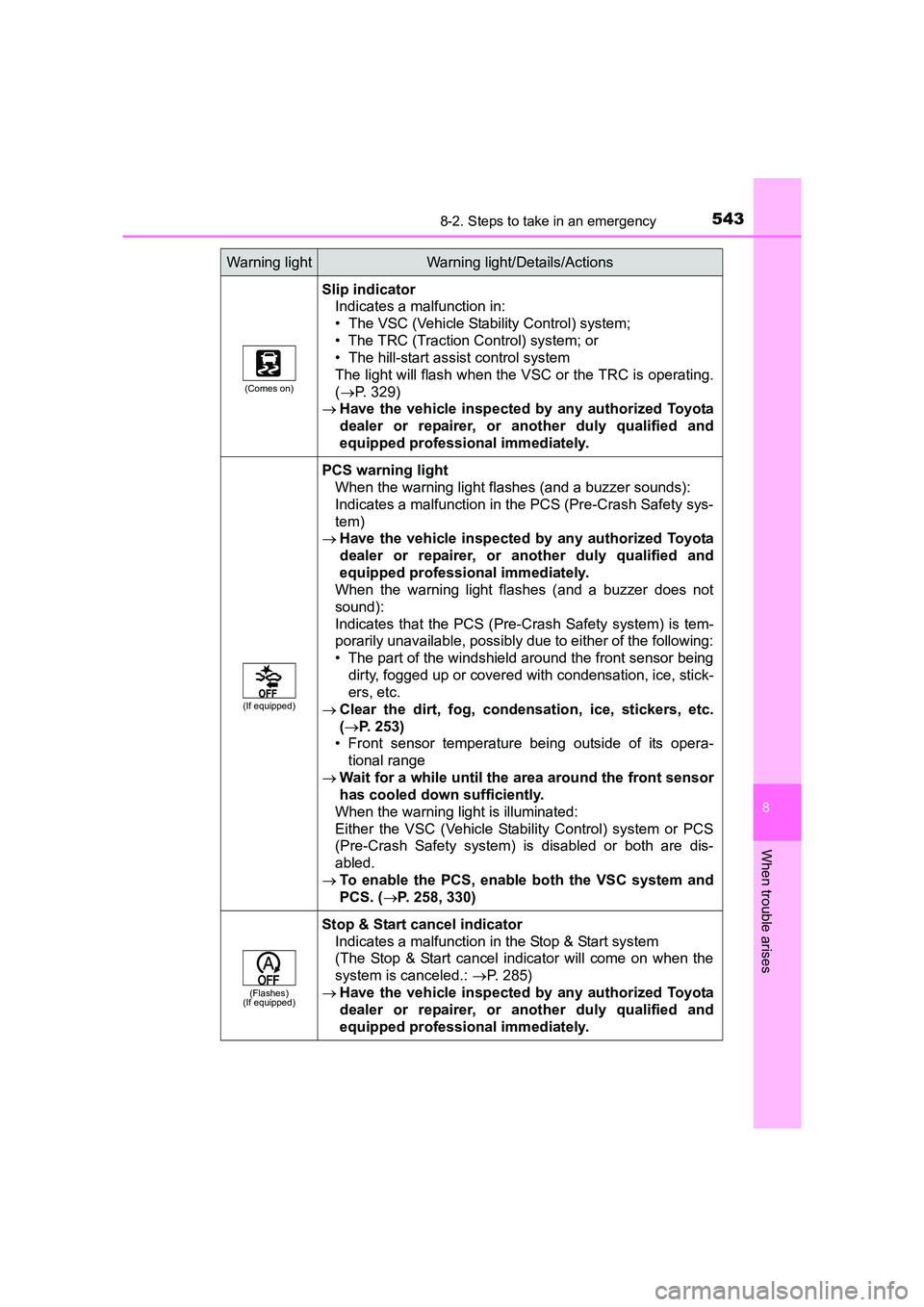

5438-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
(Comes on)
Slip indicatorIndicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC or the TRC is operating.
(→ P. 329)
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
(If equipped)
PCS warning light When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem)
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
When the warning light flashes (and a buzzer does not
sound):
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable, possibly due to either of the following:
• The part of the windshield around the front sensor being
dirty, fogged up or covered with condensation, ice, stick-
ers, etc.
→ Clear the dirt, fog, condensation, ice, stickers, etc.
(→ P. 253)
• Front sensor temperature being outside of its opera-
tional range
→ Wait for a while until the area around the front sensor
has cooled down sufficiently.
When the warning light is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS
(Pre-Crash Safety system) is disabled or both are dis-
abled.
→ To enable the PCS, enab le both the VSC system and
PCS. ( →P. 258, 330)
(Flashes)
(If equipped)
Stop & Start cancel indicator
Indicates a malfunction in the Stop & Start system
(The Stop & Start cancel indicator will come on when the
system is canceled.: →P. 285)
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Warning lightWarning light/Details/Actions

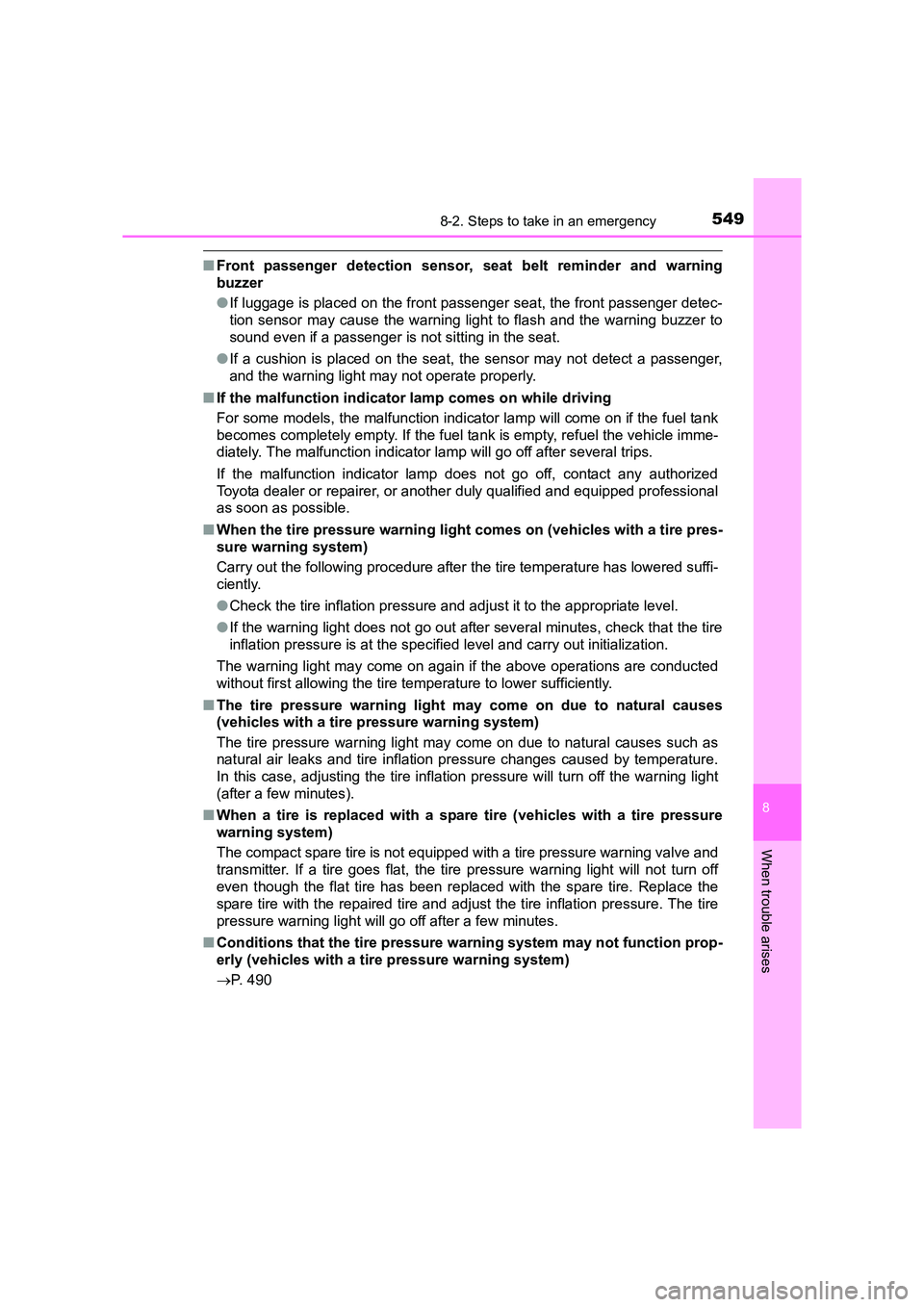

5498-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
■Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust it to the appropriate level.
● If the warning light does not go out after several minutes, check that the tire
inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace the
spare tire with the repaired tire and adjus t the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
■ Conditions that the tire pressure warning system may not function prop-
erly (vehicles with a ti re pressure warning system)
→ P. 490

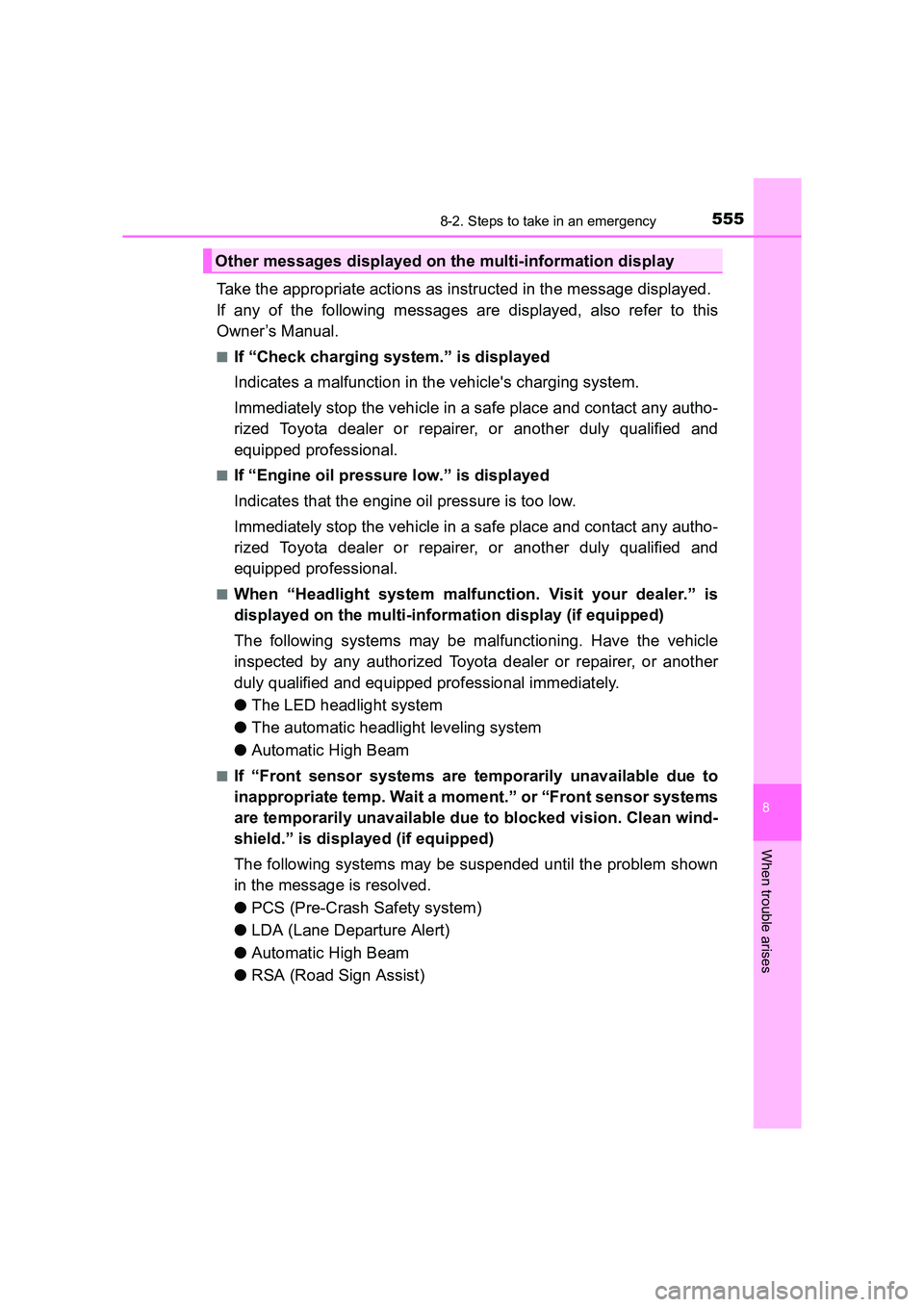

5558-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■If “Check charging system.” is displayed
Indicates a malfunction in the vehicle's charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
●The LED headlight system
● The automatic headlight leveling system
● Automatic High Beam
■If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front sensor systems
are temporarily unavailable due to blocked vision. Clean wind-
shield.” is displayed (if equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
●PCS (Pre-Crash Safety system)
● LDA (Lane Departure Alert)
● Automatic High Beam
● RSA (Road Sign Assist)
Other messages displayed on the multi-information display

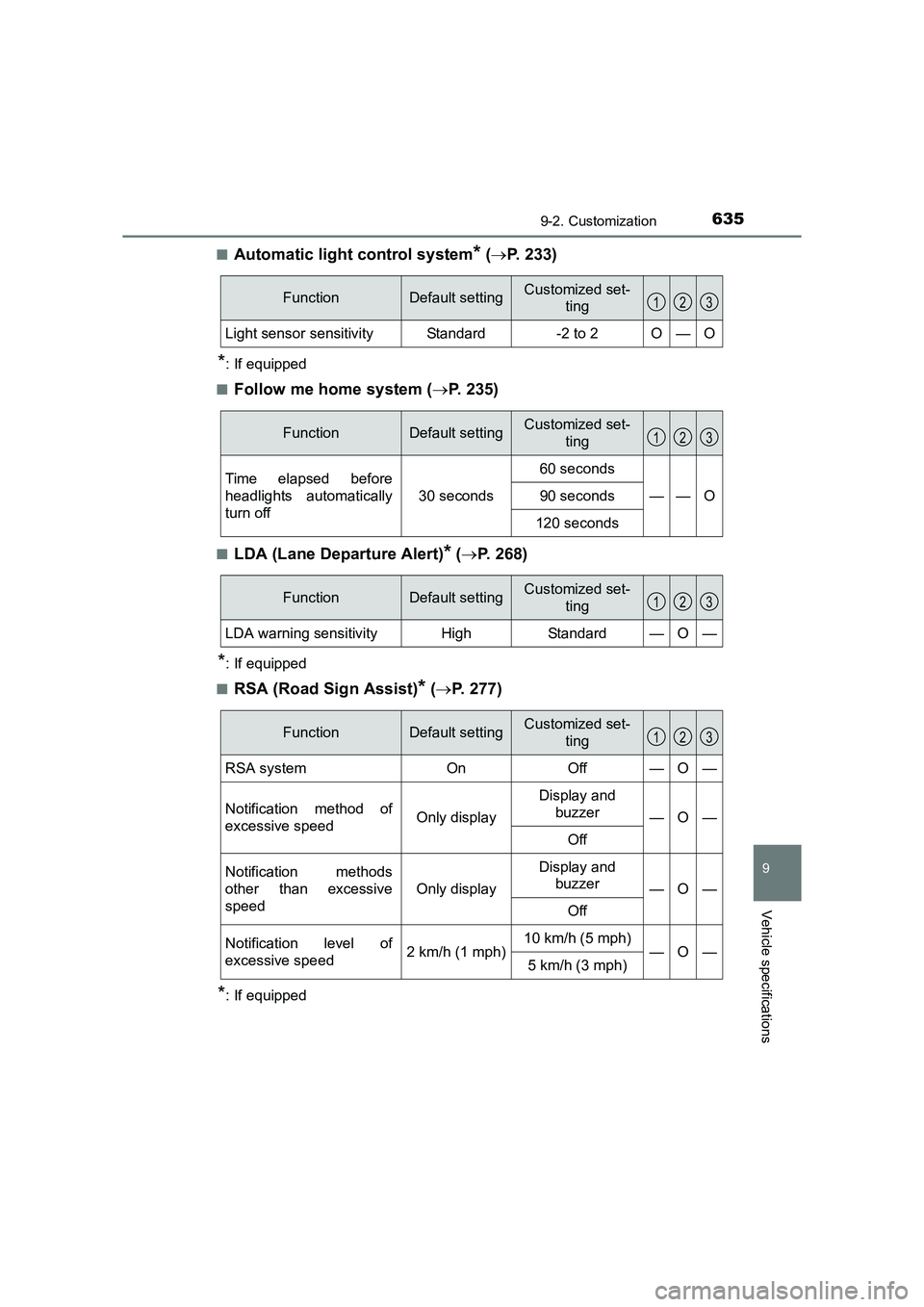

6359-2. Customization
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
■Automatic light control system* (→ P. 233)
*: If equipped
■
Follow me home system ( →P. 235)
■LDA (Lane Departure Alert)* (→ P. 268)
*: If equipped
■
RSA (Road Sign Assist)* ( → P. 277)
*: If equipped
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
123
FunctionDefault settingCustomized set-ting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
——O90 seconds
120 seconds
123
FunctionDefault settingCustomized set-
ting
LDA warning sensitivityHighStandard—O—
123
FunctionDefault settingCustomized set-ting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and buzzer
—O—
Off
Notification methods
other than excessive
speed
Only display
Display and buzzer
—O—
Off
Notification level of
excessive speed 2 km/h (1 mph)10 km/h (5 mph)—O—5 km/h (3 mph)
123

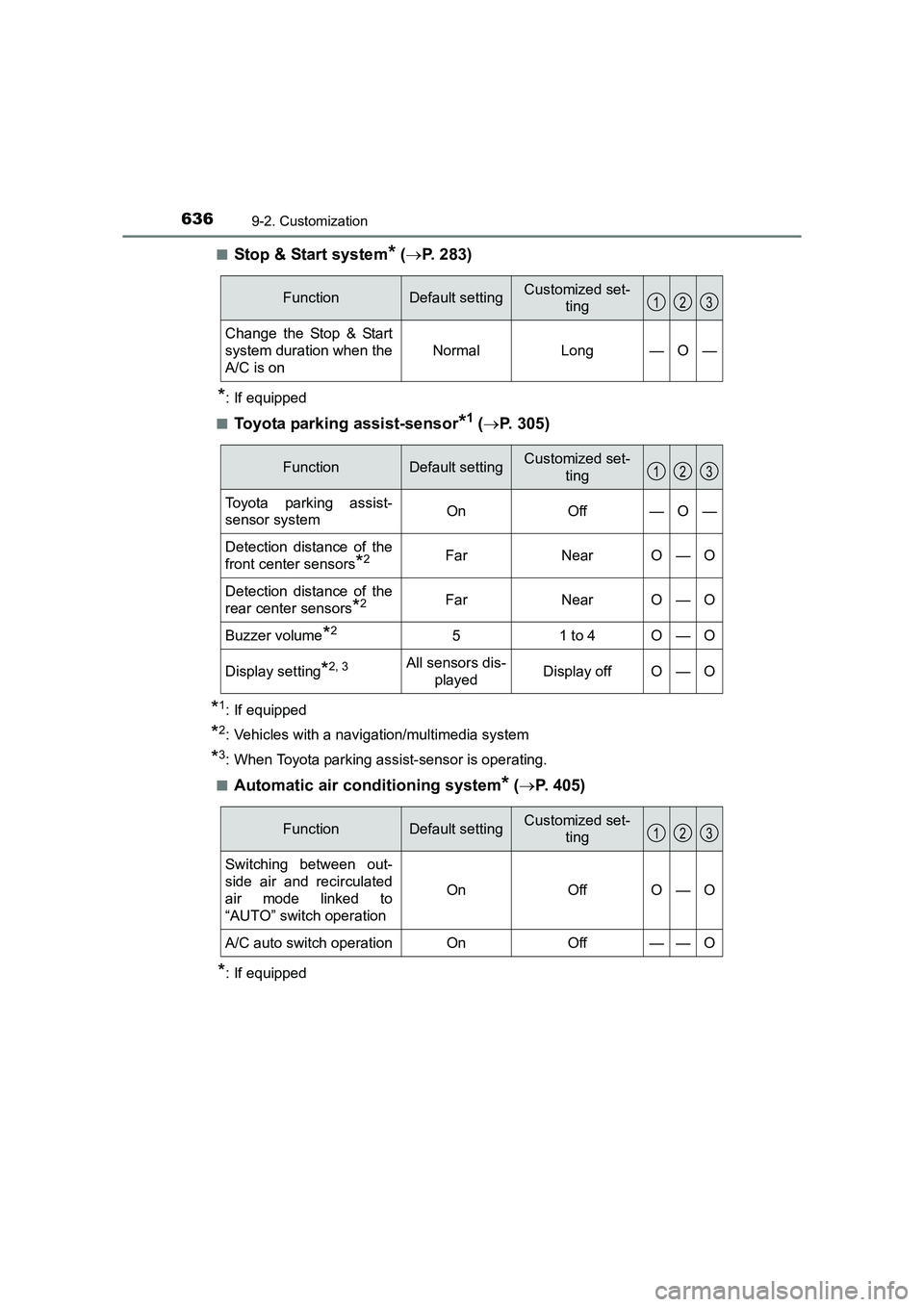

6369-2. Customization
AURIS Touring Sports_EE (12K53E)■
Stop & Start system* (
→ P. 283)
*: If equipped
■
Toyota parking assist-sensor*1 ( → P. 305)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
■
Automatic air conditioning system* ( → P. 405)
*: If equipped
FunctionDefault settingCustomized set-
ting
Change the Stop & Start
system duration when the
A/C is on
NormalLong—O—
123
FunctionDefault settingCustomized set-
ting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors
*2FarNearO—O
Detection distance of the
rear center sensors
*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors dis-playedDisplay offO—O
123
FunctionDefault settingCustomized set- ting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO—O
A/C auto switch operationOnOff——O
123

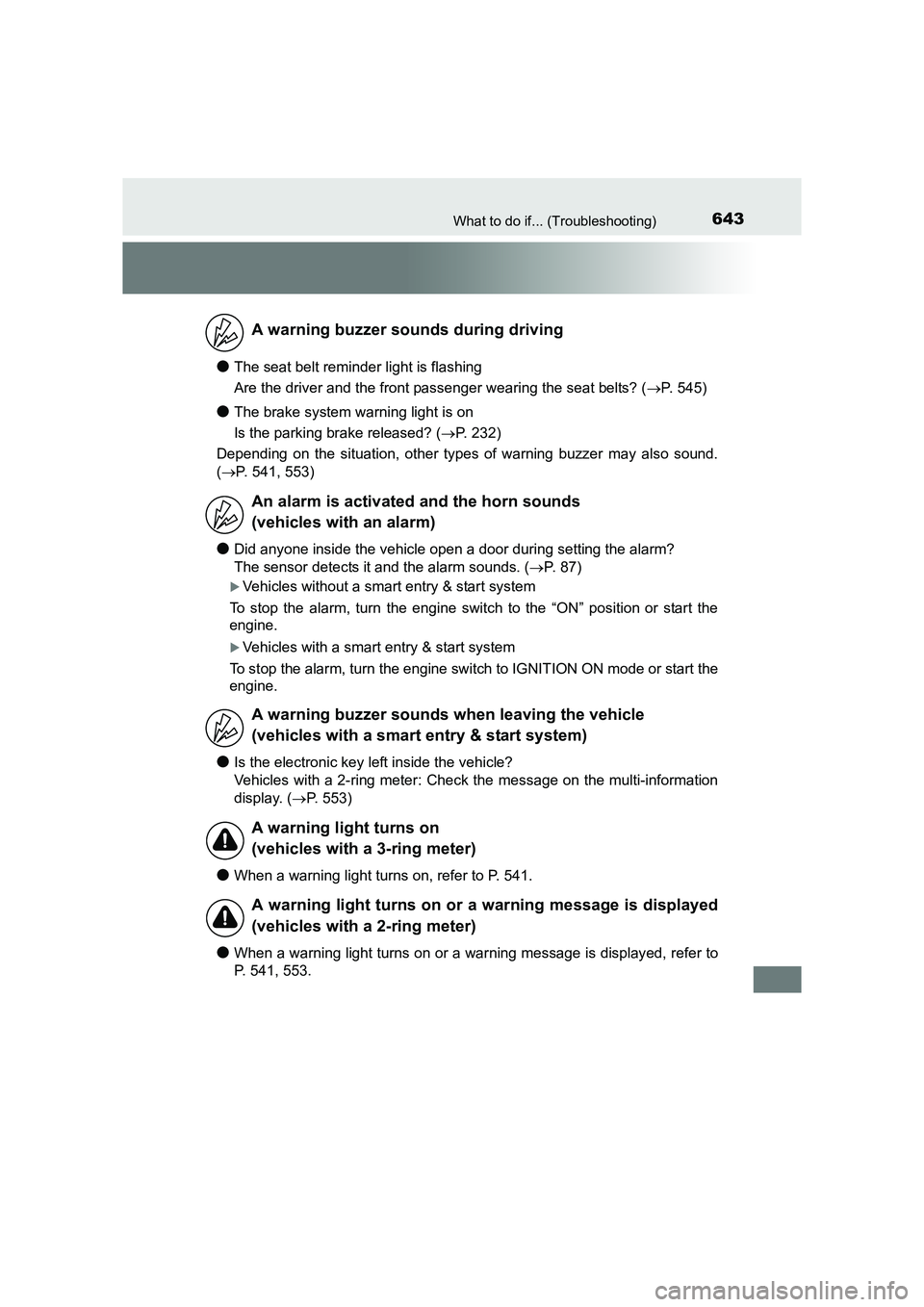

643What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12K53E)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (→P. 545)
●The brake system warning light is on
Is the parking brake released? ( →P. 232)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 541, 553)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 87)
XVehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
XVehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle?
Vehicles with a 2-ring meter: Check the message on the multi-information
display. ( →P. 553)
●When a warning light turns on, refer to P. 541.
●When a warning light turns on or a warning message is displayed, refer to
P. 541, 553.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a 3-ring meter)
A warning light turns on or a warning message is displayed
(vehicles with a 2-ring meter)

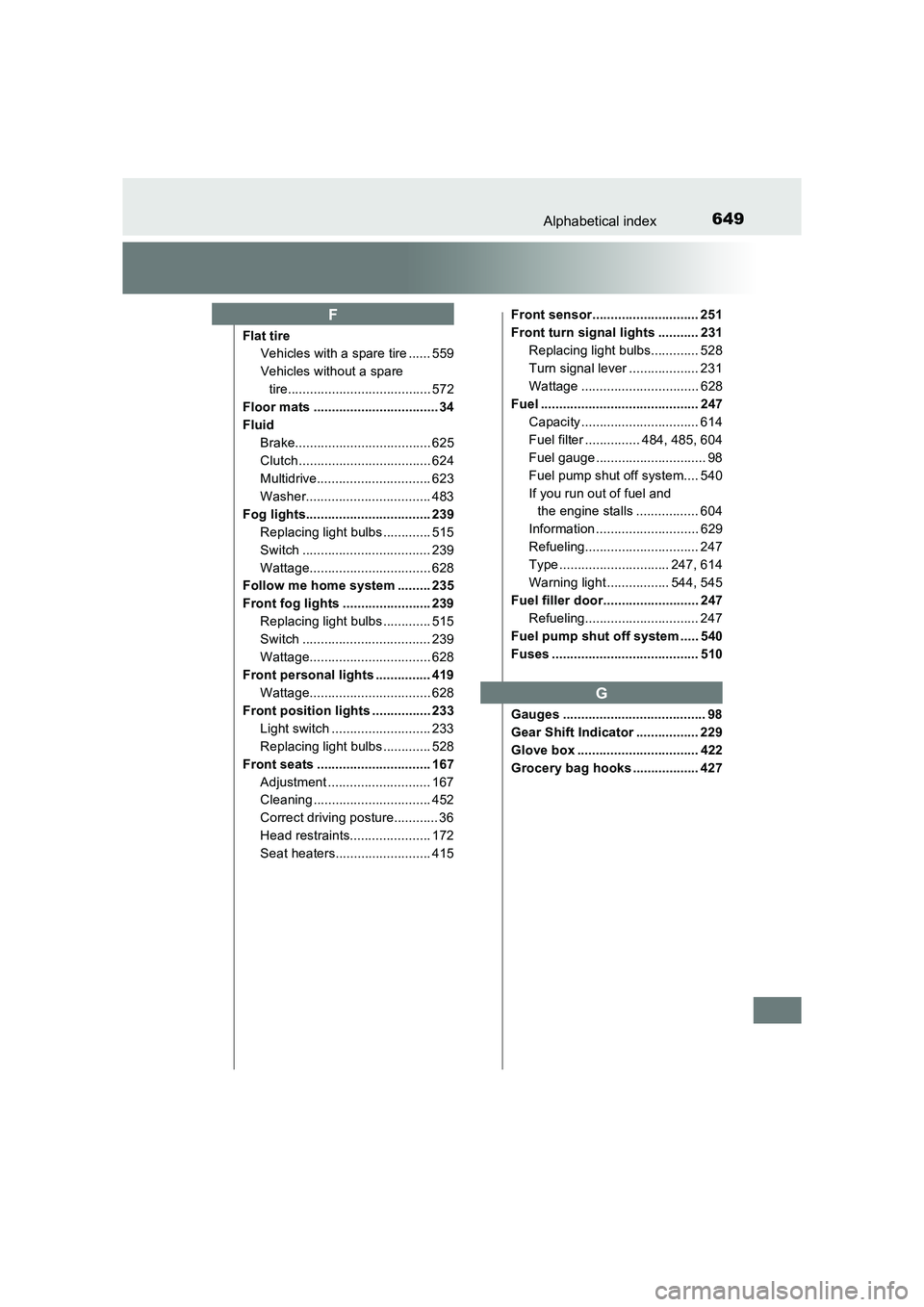

649Alphabetical index
AURIS Touring Sports_EE (12K53E)
Flat tireVehicles with a spare tire ...... 559
Vehicles without a spare
tire....................................... 572
Floor mats .................................. 34
Fluid Brake..................................... 625
Clutch.................................... 624
Multidrive............................... 623
Washer.................................. 483
Fog lights.................................. 239 Replacing light bulbs ............. 515
Switch ................................... 239
Wattage................................. 628
Follow me home system ......... 235
Front fog lights ........................ 239
Replacing light bulbs ............. 515
Switch ................................... 239
Wattage................................. 628
Front personal lights ............... 419 Wattage................................. 628
Front position lights ................ 233 Light switch ........................... 233
Replacing light bulbs ............. 528
Front seats ............................... 167 Adjustment ............................ 167
Cleaning ................................ 452
Correct driving posture............ 36
Head restraints...................... 172
Seat heaters.......................... 415 Front sensor............................. 251
Front turn signal lights ........... 231
Replacing light bulbs............. 528
Turn signal lever ................... 231
Wattage ................................ 628
Fuel ........................................... 247 Capacity ................................ 614
Fuel filter ............... 484, 485, 604
Fuel gauge .............................. 98
Fuel pump shut off system.... 540
If you run out of fuel and the engine stalls ................. 604
Information ............................ 629
Refueling............................... 247
Type .............................. 247, 614
Warning light ................. 544, 545
Fuel filler door.......................... 247 Refueling............................... 247
Fuel pump shut off system ..... 540
Fuses ........................................ 510
Gauges ....................................... 98
Gear Shift Indicator ................. 229
Glove box ................................. 422
Grocery bag hooks .................. 427
F
G

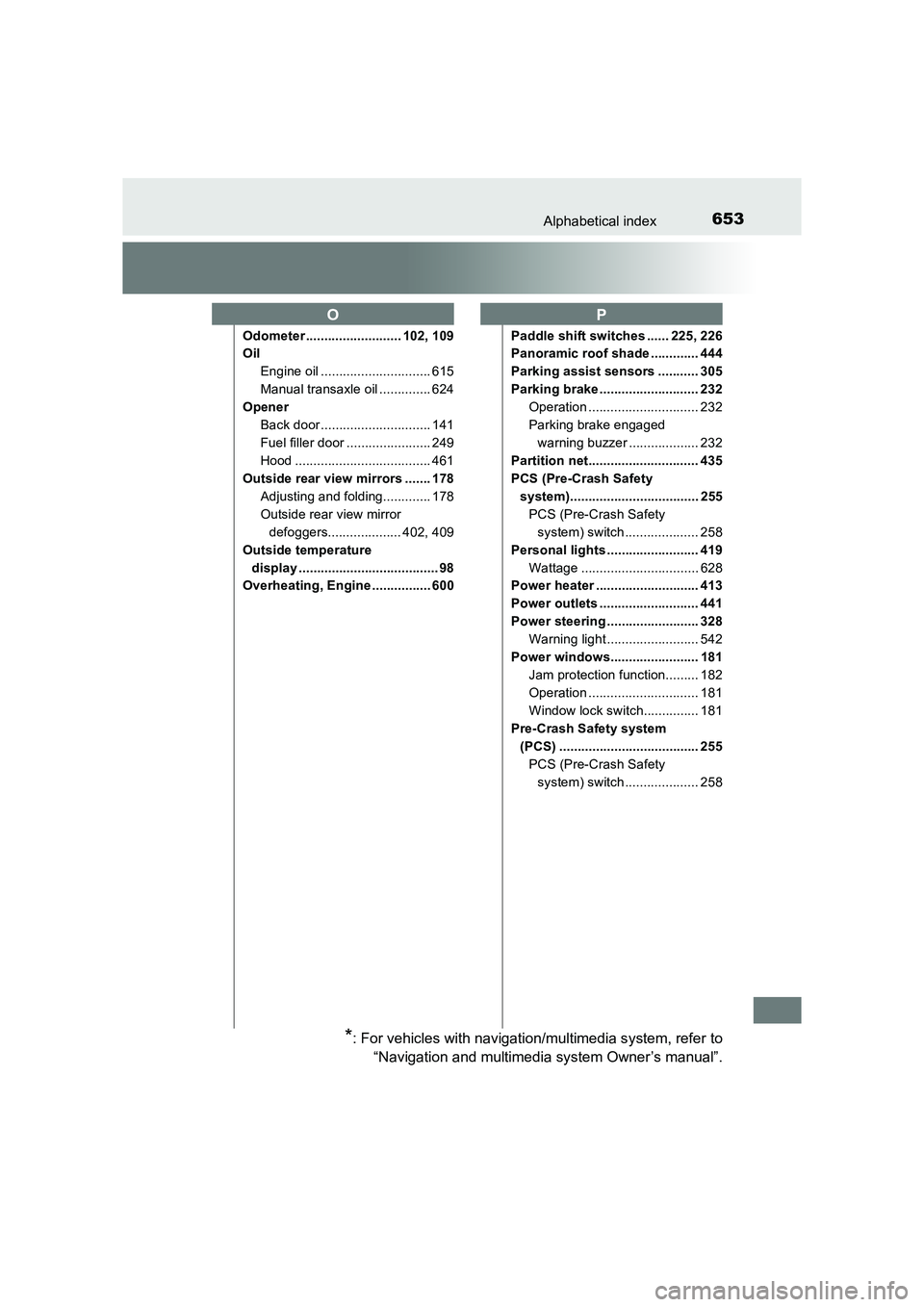

653Alphabetical index
AURIS Touring Sports_EE (12K53E)
Odometer .......................... 102, 109
OilEngine oil .............................. 615
Manual transaxle oil .............. 624
Opener Back door .............................. 141
Fuel filler door ....................... 249
Hood ..................................... 461
Outside rear view mirrors ....... 178 Adjusting and folding............. 178
Outside rear view mirror defoggers.................... 402, 409
Outside temperature display ...................................... 98
Overheating, Engine ................ 600 Paddle shift switches ...... 225, 226
Panoramic roof shade ............. 444
Parking assist sensors ........... 305
Parking brake ........................... 232
Operation .............................. 232
Parking brake engaged warning buzzer ................... 232
Partition net.............................. 435
PCS (Pre-Crash Safety
system)................................... 255PCS (Pre-Crash Safety system) switch .................... 258
Personal lights ......................... 419 Wattage ................................ 628
Power heater ............................ 413
Power outlets ........................... 441
Power steering ......................... 328
Warning light ......................... 542
Power windows........................ 181 Jam protection function......... 182
Operation .............................. 181
Window lock switch............... 181
Pre-Crash Safety system (PCS) ...................................... 255PCS (Pre-Crash Safety system) switch .................... 258
OP
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
