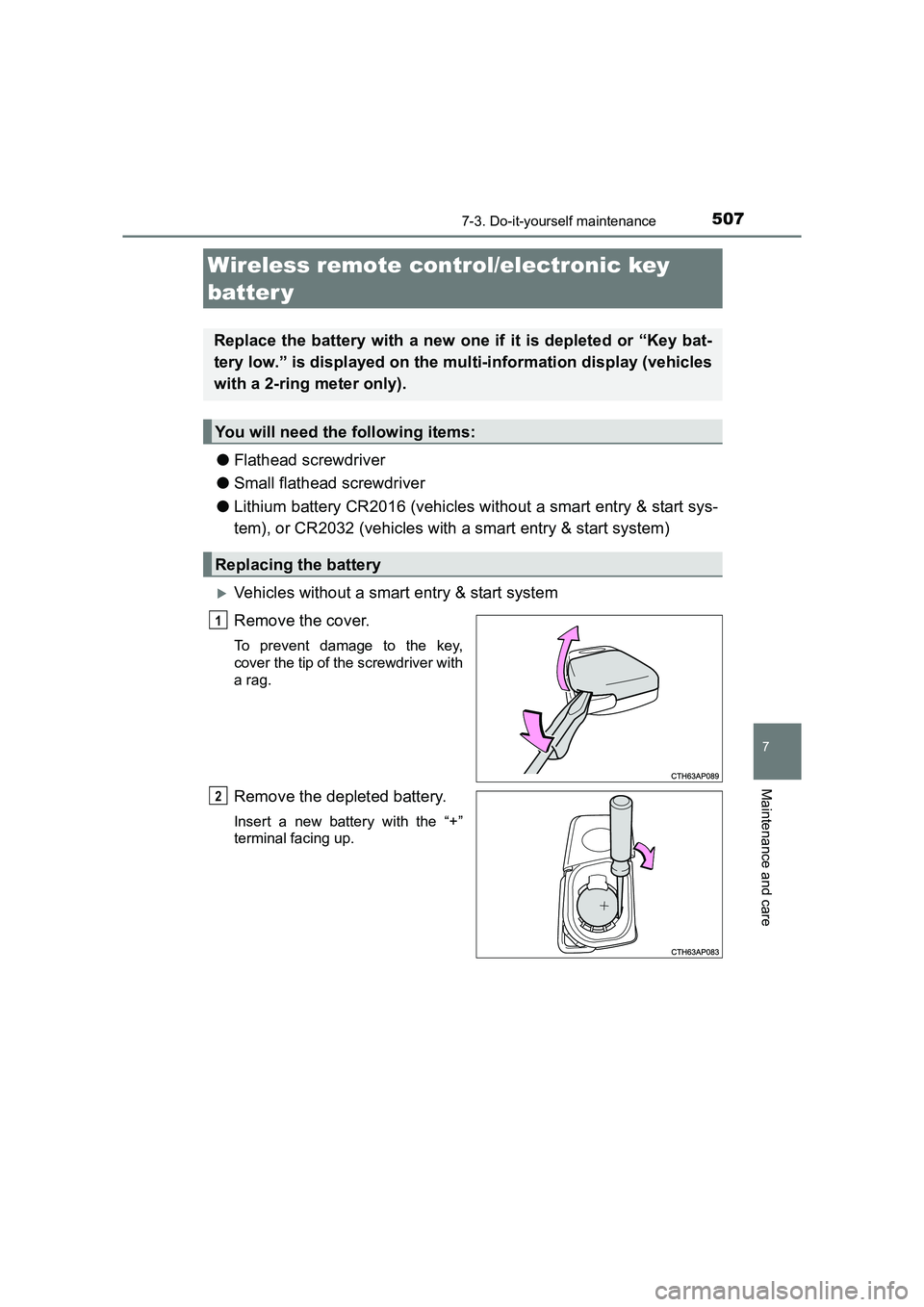

5077-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
●Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
XVehicles without a smart entry & start system
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Wireless remote control/electronic key
batter y
Replace the battery with a new one if it is depleted or “Key bat-
tery low.” is displayed on the multi-information display (vehicles
with a 2-ring meter only).
You will need the following items:
Replacing the battery
1
2

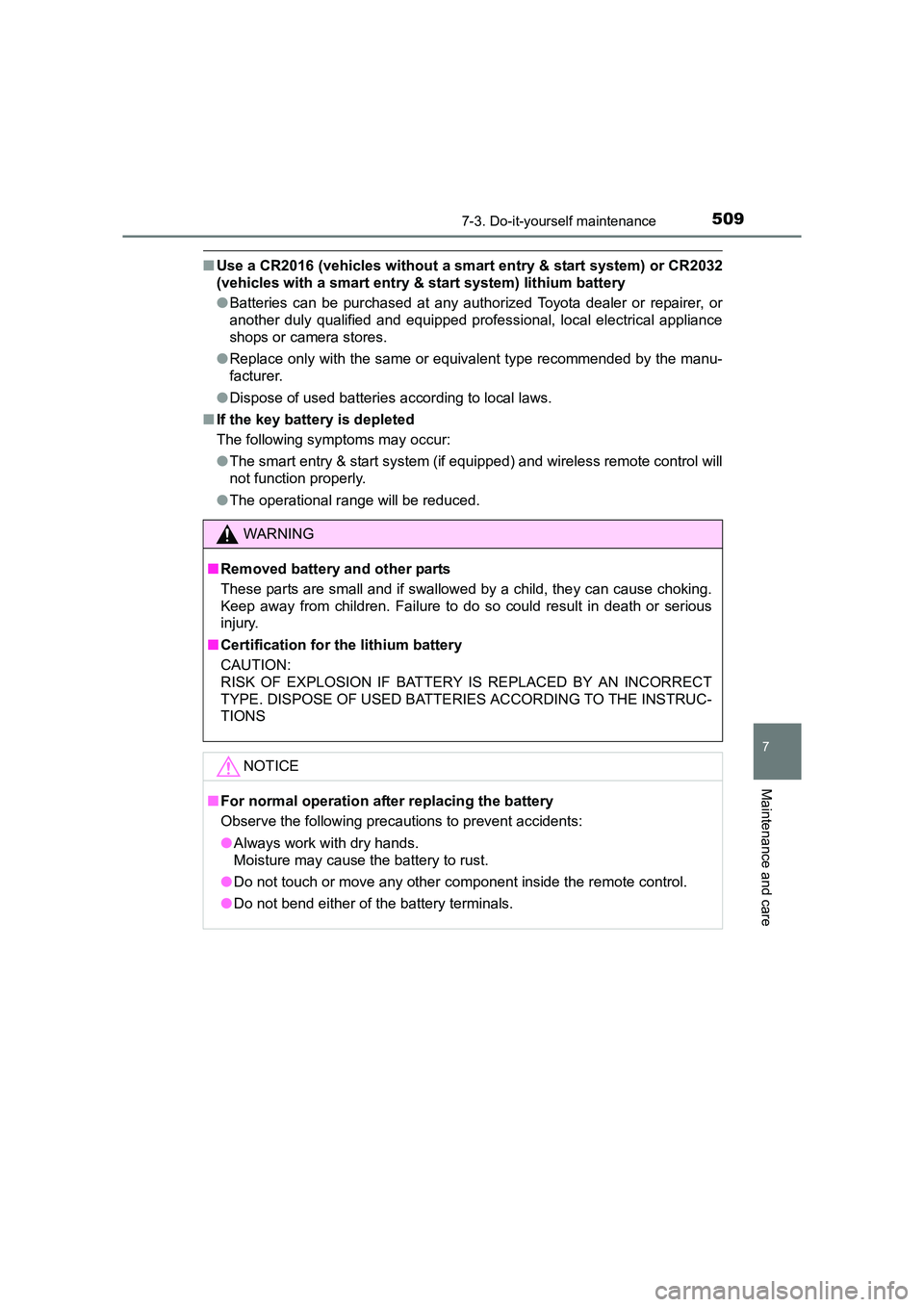

5097-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
■Use a CR2016 (vehicles without a smart entry & start system) or CR2032
(vehicles with a smart entry & start system) lithium battery
●Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the lithium battery
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTER IES ACCORDING TO THE INSTRUC-
TIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

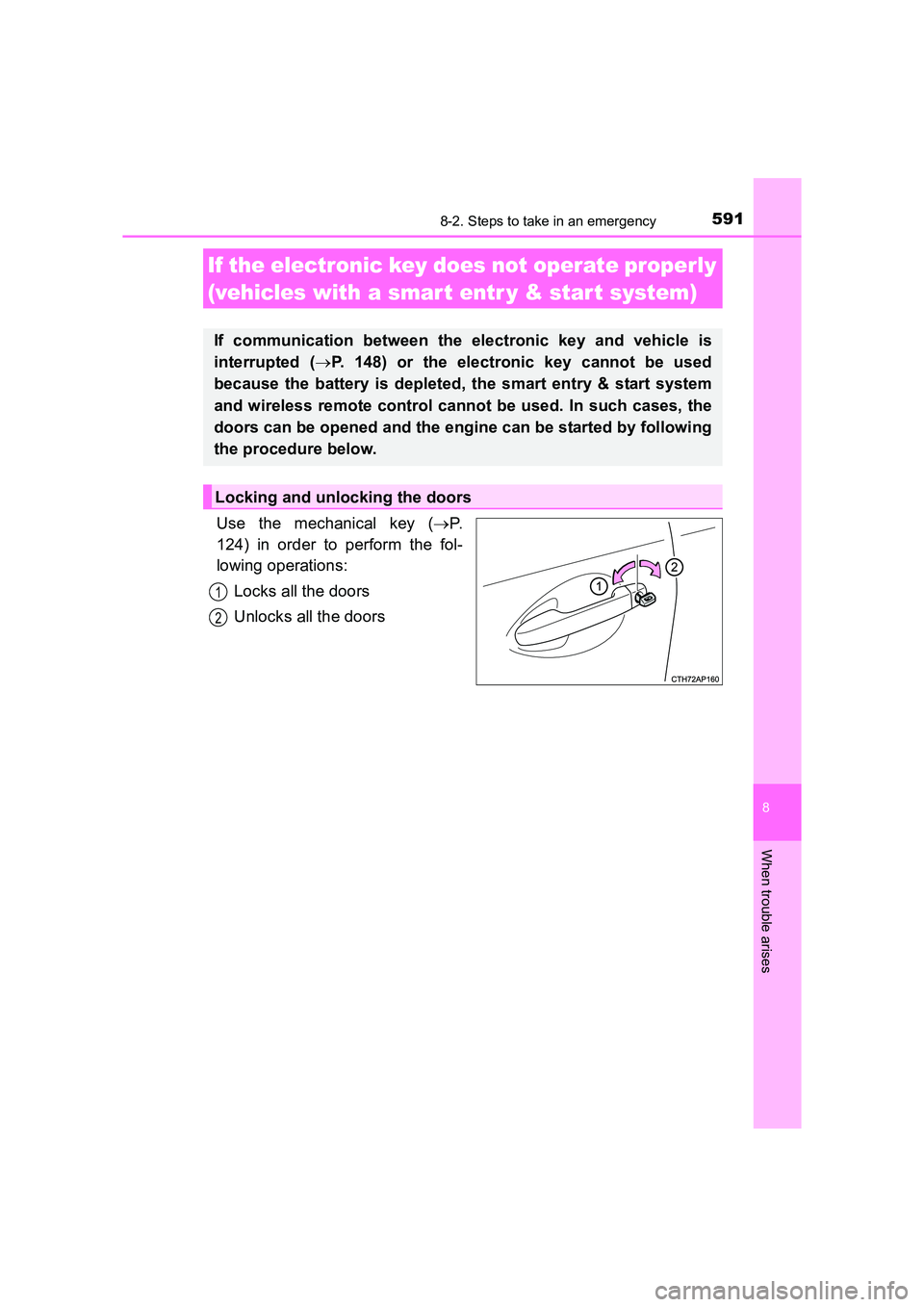

5918-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises
Use the mechanical key (→P.
124) in order to perform the fol-
lowing operations:
Locks all the doors
Unlocks all the doors
If the electronic key does not operate properly
(vehicles with a smart entr y & start system)
If communication between the electronic key and vehicle is
interrupted ( →P. 148) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system
and wireless remote control cannot be used. In such cases, the
doors can be opened and the engine can be started by following
the procedure below.
Locking and unlocking the doors
1
2

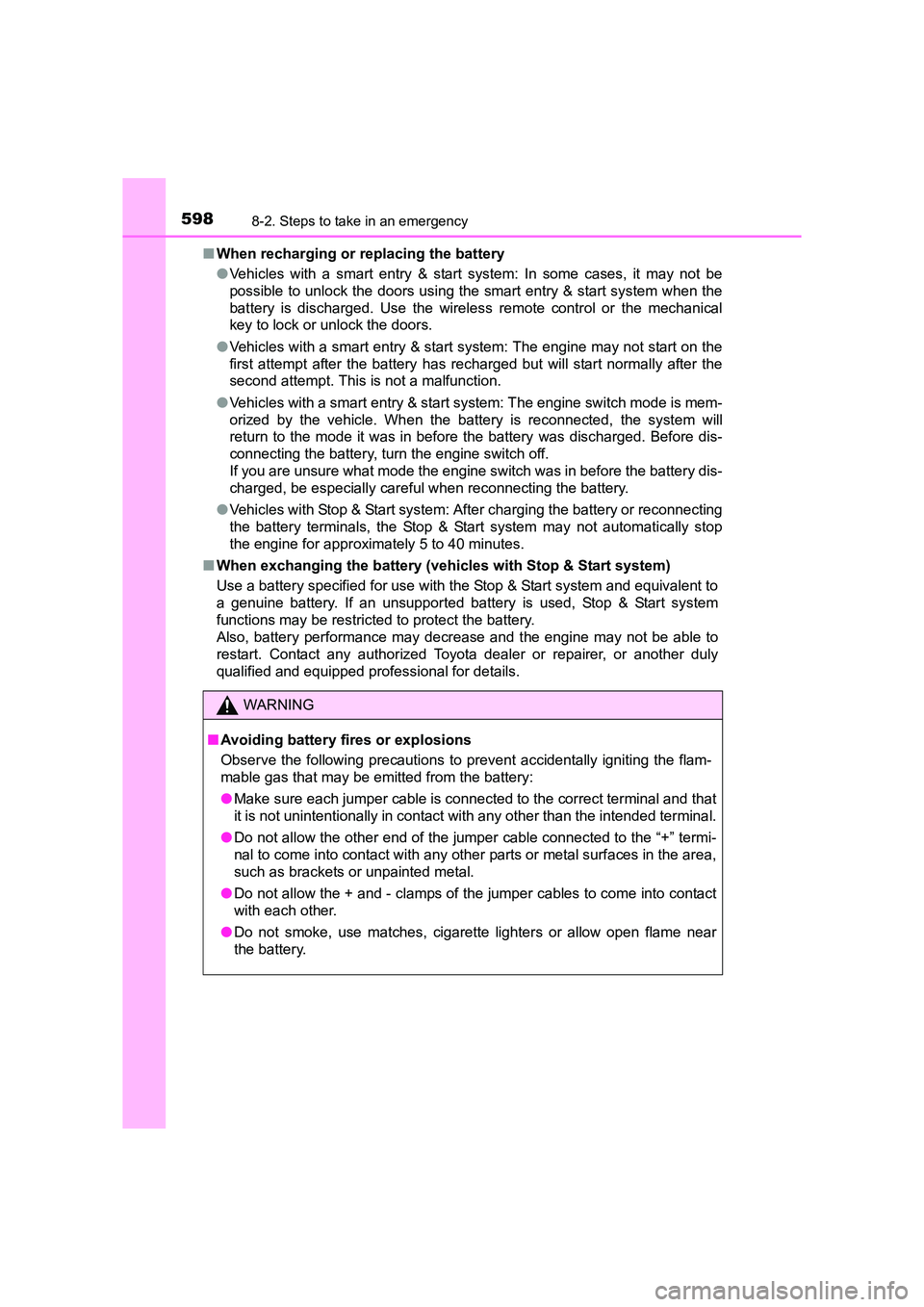

5988-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)■
When recharging or replacing the battery
●Vehicles with a smart entry & start system: In some cases, it may not be
possible to unlock the doors using the smart entry & start system when the
battery is discharged. Use the wireless remote control or the mechanical
key to lock or unlock the doors.
● Vehicles with a smart entry & start system: The engine may not start on the
first attempt after the battery has recharged but will start normally after the
second attempt. This is not a malfunction.
● Vehicles with a smart entry & start system: The engine switch mode is mem-
orized by the vehicle. When the battery is reconnected, the system will
return to the mode it was in before the battery was discharged. Before dis-
connecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
● Vehicles with Stop & Start system: After charging the battery or reconnecting
the battery terminals, the Stop & Start system may not automatically stop
the engine for approximately 5 to 40 minutes.
■ When exchanging the battery (vehicles with Stop & Start system)
Use a battery specified for use with the Stop & Start system and equivalent to
a genuine battery. If an unsupported battery is used, Stop & Start system
functions may be restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to
restart. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for details.
WARNING
■ Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.

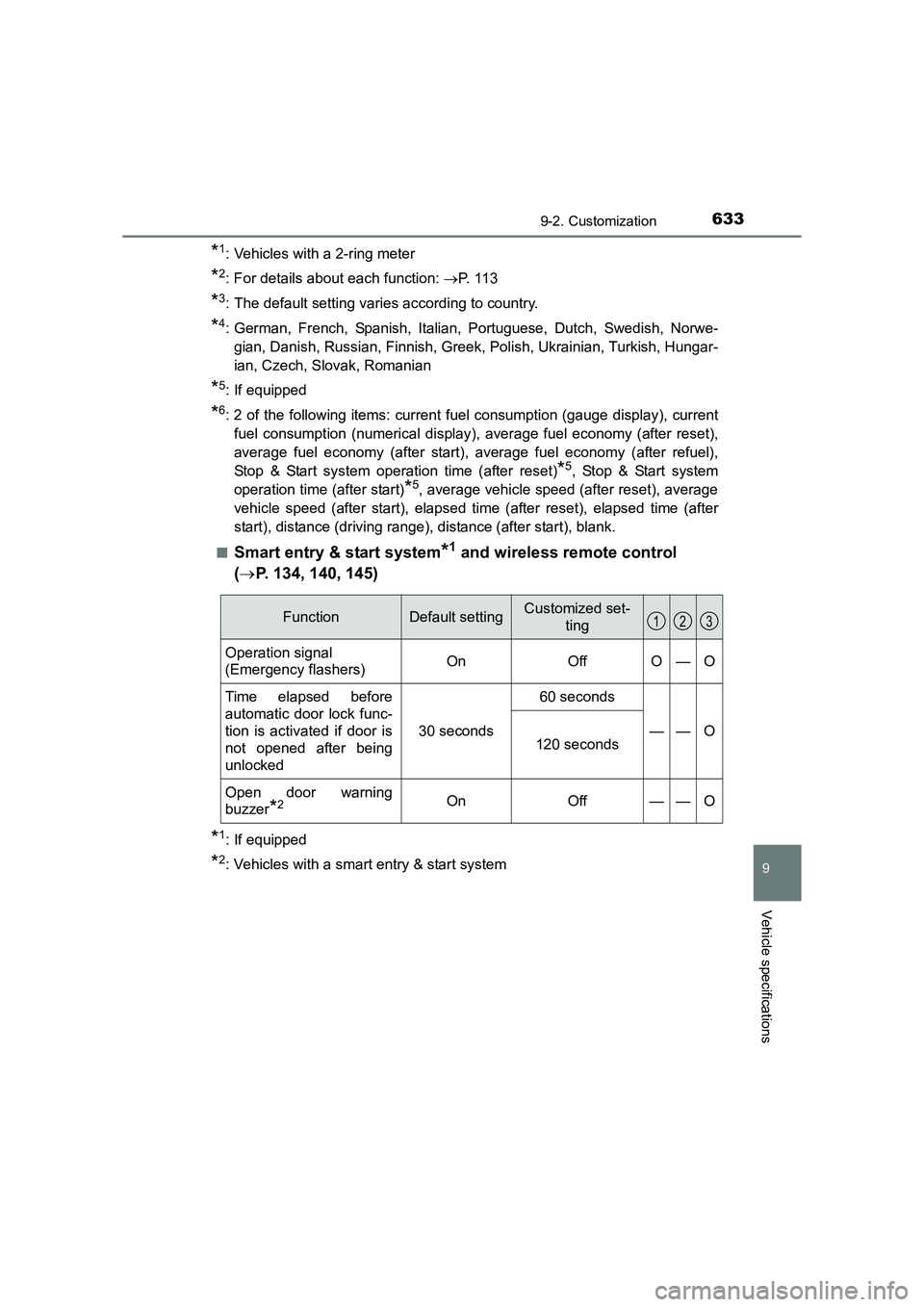

6339-2. Customization
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
*1: Vehicles with a 2-ring meter
*2: For details about each function: →P. 1 1 3
*3: The default setting varies according to country.
*4: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*5: If equipped
*6: 2 of the following items: current fuel consumption (gauge display), currentfuel consumption (numerical display) , average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
Stop & Start system operation time (after reset)
*5, Stop & Start system
operation time (after start)
*5, average vehicle speed (after reset), average
vehicle speed (after start), elapsed time (after reset), elapsed time (after
start), distance (driving range), distance (after start), blank.
■
Smart entry & start system*1 and wireless remote control
( → P. 134, 140, 145)
*1: If equipped
*2: Vehicles with a smart entry & start system
FunctionDefault settingCustomized set-
ting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning
buzzer
*2OnOff——O
123

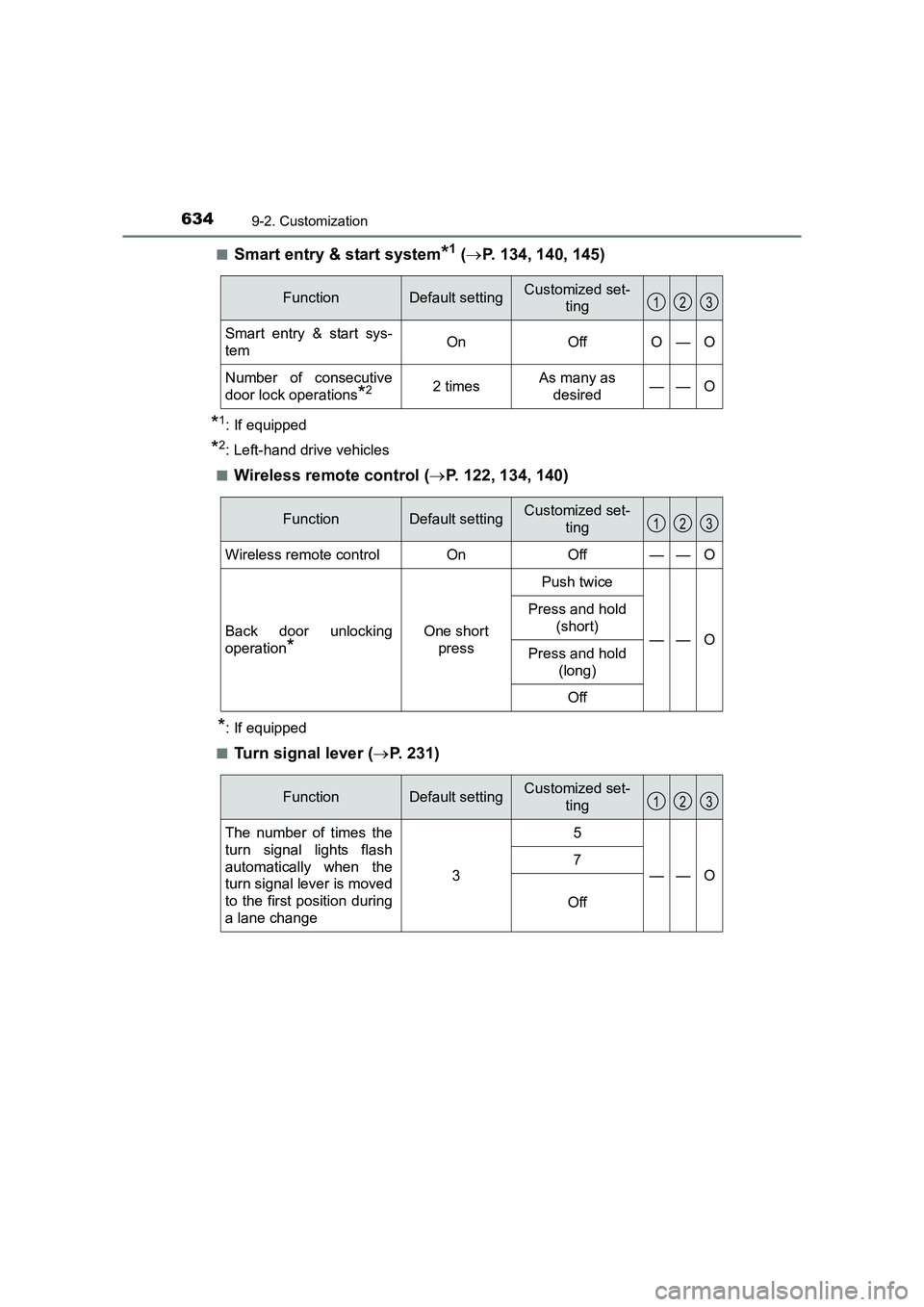

6349-2. Customization
AURIS Touring Sports_EE (12K53E)■
Smart entry & start system*1 (
→ P. 134, 140, 145)
*1: If equipped
*2: Left-hand drive vehicles
■
Wireless remote control ( →P. 122, 134, 140)
*: If equipped
■
Turn signal lever ( →P. 231)
FunctionDefault settingCustomized set-
ting
Smart entry & start sys-
temOnOffO—O
Number of consecutive
door lock operations
*22 timesAs many as desired——O
123
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOff——O
Back door unlocking
operation
*
One short press
Push twice
——O
Press and hold (short)
Press and hold (long)
Off
123
FunctionDefault settingCustomized set- ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
3
5
——O
7
Off
123

647Alphabetical index
AURIS Touring Sports_EE (12K53E)
Child-protectors ....................... 138
Cleaning............................ 448, 452Aluminum wheels.................. 449
Exterior.................................. 448
Interior................................... 452
Seat belts .............................. 453
Clock ......................................... 440
Coat hooks ............................... 443
Condenser ................................ 479
Console box ............................. 422
Cooling system ........................ 477 Engine overheating ............... 600
Cruise control .......................... 296
Cup holders .............................. 424
Curtain shield airbags ............... 42
Customizable features ............ 631
Daytime running light system .................................... 237
Deck board ............................... 428
Defogger
Outside rear view mirrors ........................ 402, 409
Rear window ................. 402, 409
Windshield .................... 402, 409
Dimensions .............................. 608
Display
Multi-information display ........................ 101, 107
Warning message ................ 553 Do-it-yourself maintenance .... 458
Door lock
Back door.............................. 140
Side doors............................. 134
Smart entry & start system ................ 134, 140
Wireless remote control......................... 134, 140
Doors Back door.............................. 140
Door lock....................... 134, 140
Door windows ....................... 181
Double locking system ............ 90
Open door warning buzzer......................... 138, 141
Open door warning light........ 545
Outside rear view mirrors...... 178
Rear door child-protector ...... 138
Side doors............................. 134
Double locking system ............. 90
DPF Diesel Particulate Filter system ................................ 326
Warning light ......................... 544
Drive information ..................... 111
Driving ...................................... 186 Break-in tips .......................... 189
Correct driving posture ........... 36
Procedures ........................... 186
Winter drive tips .................... 334
D
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

651Alphabetical index
AURIS Touring Sports_EE (12K53E)
JackPositioning the jack ............... 463
Vehicle-equipped jack........... 560
Jack handle .............................. 560
Jam protection function Panoramic roof shade........... 445
Power window ....................... 182
Keyless entry Smart entry & start system ................ 134, 140
Wireless remote control ......................... 134, 140
Keys .......................................... 122 Battery-saving function ......... 147
Electronic key........................ 122
Engine switch ................ 209, 213
If the electronic key does not operate properly ................. 591
If you lose your keys ............. 124
Key number plate.................. 122
Keyless entry ................ 134, 140
Mechanical key ..................... 124
Replacing the battery ............ 507
Warning buzzer..................... 146
Wireless remote control key ...................................... 123
Knee airbags .............................. 42 Lane Departure Alert (LDA) .... 268
Language (multi-information
display)................................... 114
LDA (Lane Departure Alert) .... 268
Lever Auxiliary catch lever .............. 461
Hood lock release lever ........ 461
Shift lever...................... 223, 228
Turn signal lever ................... 231
Wiper lever.................... 241, 245
License plate lights ................. 233 Light switch ........................... 233
Replacing light bulbs............. 515
Wattage ................................ 628
Light bulbs
Replacing.............................. 515
Wattage ................................ 628
Lights Automatic High Beam system ................................ 273
Fog light switch ..................... 239
Follow me home system ....... 235
Headlight switch.................... 233
Illuminated entry system ....... 420
Interior lights ......................... 418
Interior lights list .................... 417
Luggage compartment
light..................................... 141
Personal lights ...................... 419
Replacing light bulbs............. 515
Turn signal lever ................... 231
Vanity lights .......................... 418
Wattage ................................ 628
Lock steering column ............. 219
Low profile tire ......................... 489
Luggage cover ......................... 432
J
K
L
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
