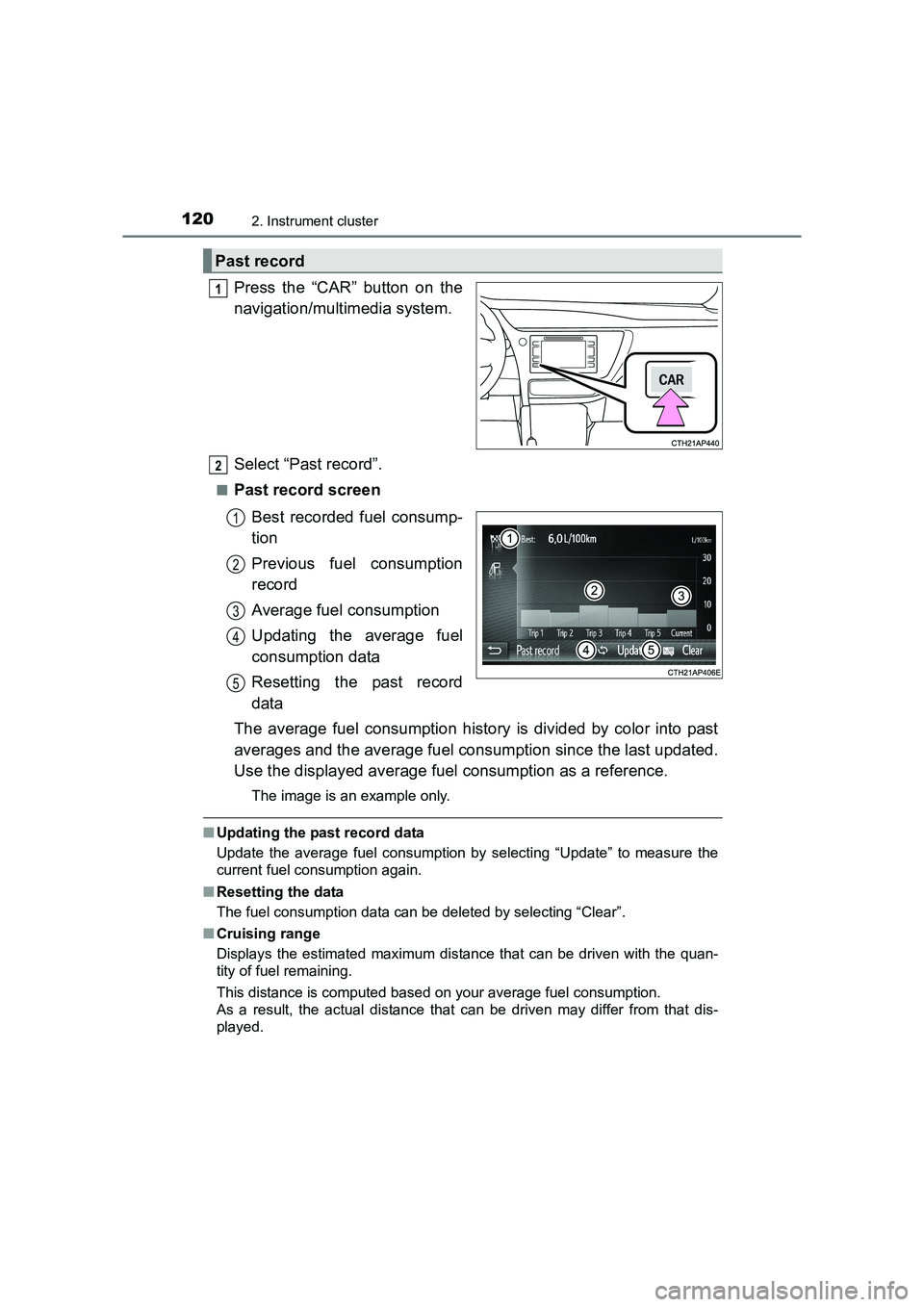

2016 TOYOTA AURIS TOURING SPORTS navigation

1202. Instrument cluster
AURIS Touring Sports_EE (12K53E)
Press the “CAR” button on the
navigation/multimedia system.
Select “Past record”.
■Past record screenBest recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
2
1
2
3
4
5

2814-5. Toyota Safety Sense
AURIS Touring Sports_EE (12K53E)
4
Driving
■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
● The front sensor is misaligned due to a strong impact being applied to the
sensor, etc.
● Dirt, snow, stickers, etc., are on the windshield near the front sensor.
● In inclement weather such as heavy rain, fog, snow or sand storms
● Light from an oncoming vehicle, the sun, etc., enters the front sensor.
● The sign is small, dirty, faded, tilted or bent, and if an electronic sign, the
contrast is poor.
● All or part of the sign is hidden by the leaves of a tree, a pole, etc.
● The sign is only visible to the front sensor for a short amount of time.
● The driving scene (turning, lane change, etc.) is judged incorrectly.
● Even if it is a sign not appropriate for the currently traveled lane, such a sign
exists directly after a freeway branches, or in an adjacent lane just before
merging.
● Stickers are attached to the rear of the preceding vehicle.
● A sign resembling a system compatible sign is recognized.
● The vehicle is driven in a country with a different direction of traffic.
● Side road speed signs may be detected and displayed (if positioned in sight
of the front sensor) while the vehicle is traveling on the main road.
● Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front sensor) while traveling on a roundabout.
● The speed information displayed on the meter and that displayed on the
Navigation system (if equipped) may be different due to the Navigation sys-
tem using map data.

3054-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
■Types of sensors
Toyota parking assist-sensor∗
∗: If equipped
Vehicles without a navigation/multimedia system:
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display
and a buzzer. Always check the surrounding area when using
this system.
Vehicles with a navigation/multimedia system:
Refer to the “Navigation and multimedia system Owner’s man-
ual”.
Front center sensors
Front corner sensors
Front side sensorsRear corner sensors
Rear center sensors1
2
3
4
5

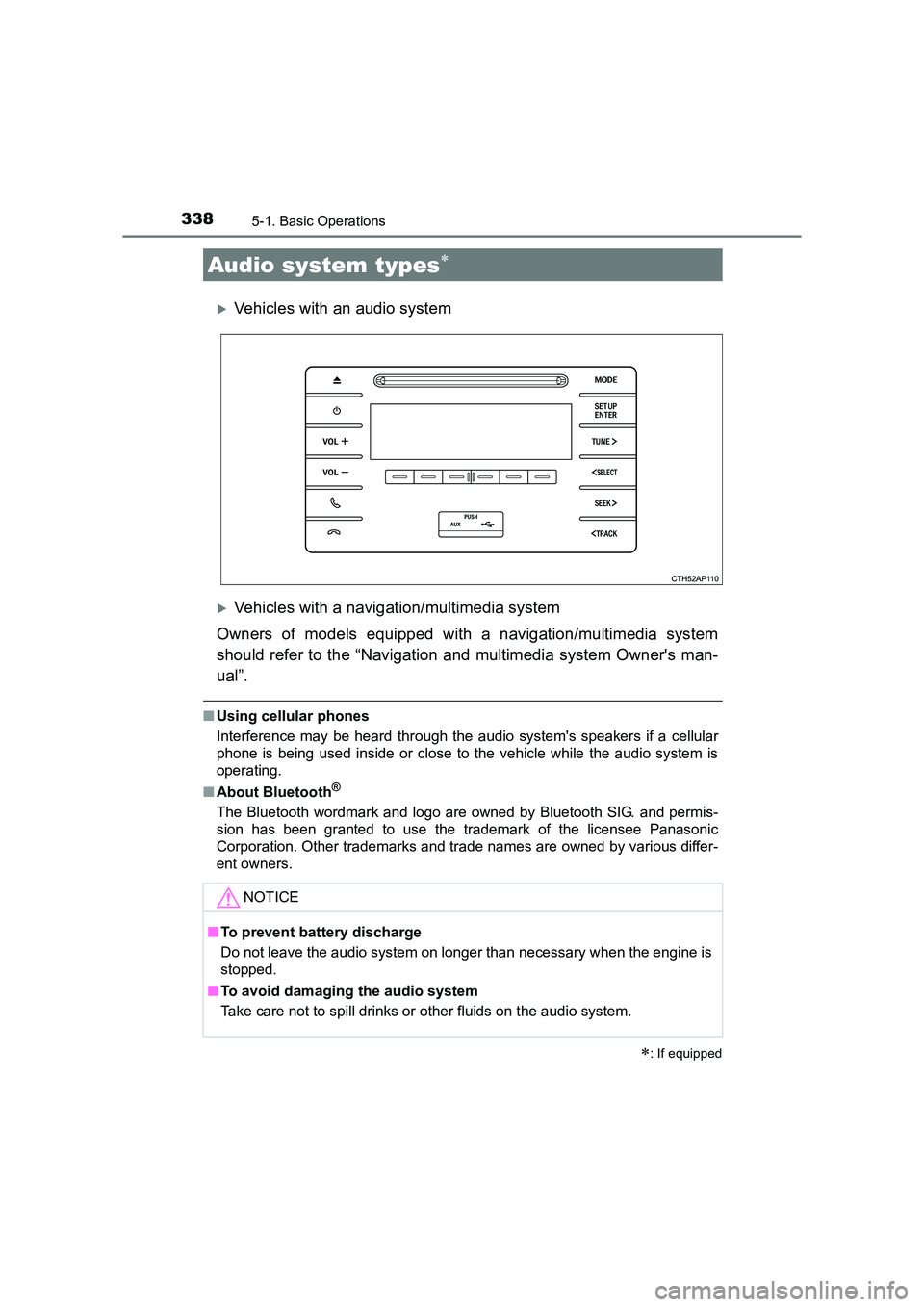

338
AURIS Touring Sports_EE (12K53E)
5-1. Basic Operations
XVehicles with an audio system
XVehicles with a navigation/multimedia system
Owners of models equipped with a navigation/multimedia system
should refer to the “Navigation and multimedia system Owner's man-
ual”.
■ Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
■ About Bluetooth
®
The Bluetooth wordmark and logo are owned by Bluetooth SIG. and permis-
sion has been granted to use the trademark of the licensee Panasonic
Corporation. Other trademarks and trade names are owned by various differ-
ent owners.
Audio system types∗
∗: If equipped
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.

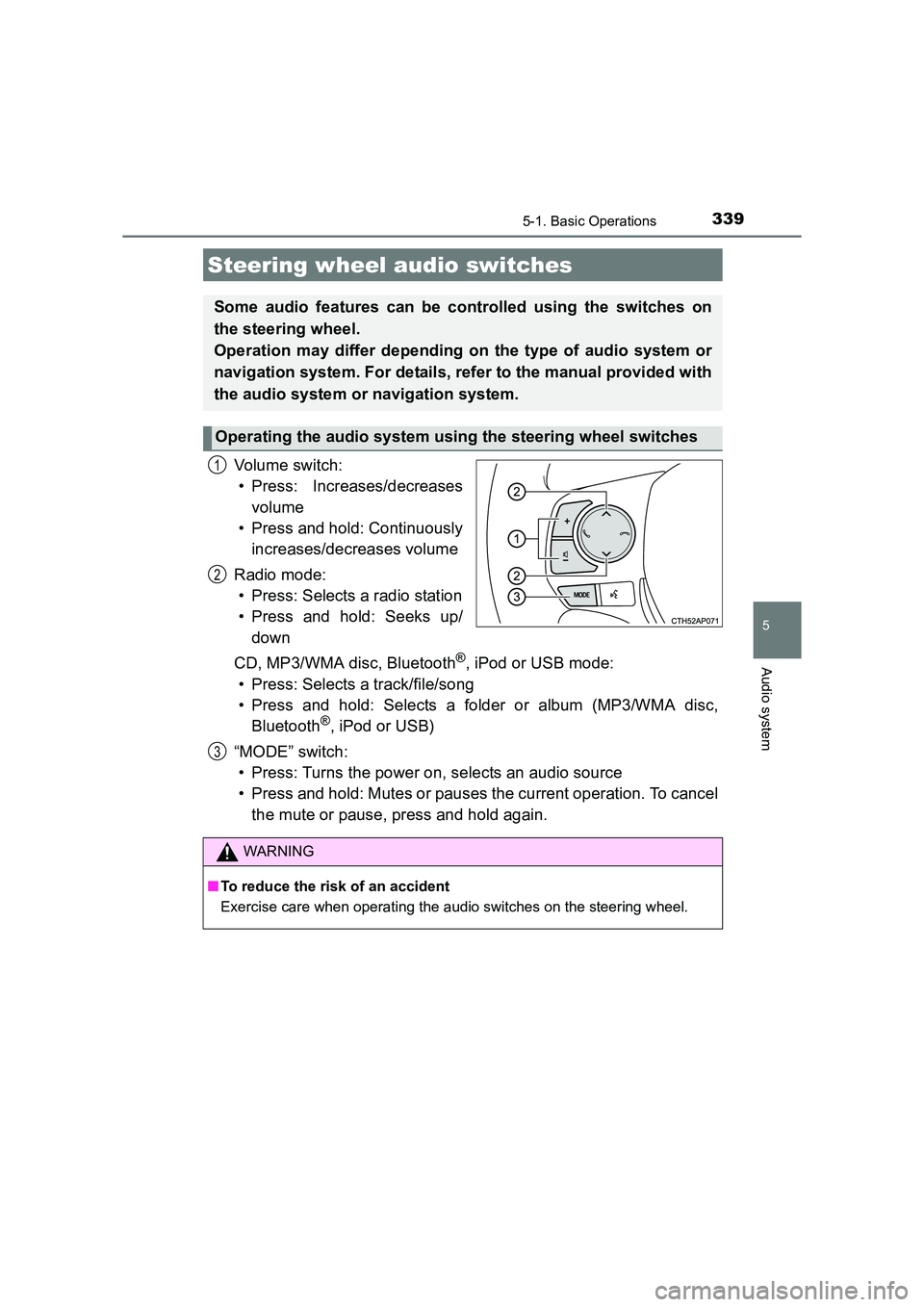

3395-1. Basic Operations
AURIS Touring Sports_EE (12K53E)
5
Audio system
Vo lu m e swi tc h :• Press: Increases/decreases
volume
• Press and hold: Continuously
increases/decreases volume
Radio mode: • Press: Selects a radio station
• Press and hold: Seeks up/ down
CD, MP3/WMA disc, Bluetooth
®, iPod or USB mode:
• Press: Selects a track/file/song
• Press and hold: Selects a folder or album (MP3/WMA disc, Bluetooth
®, iPod or USB)
“MODE” switch: • Press: Turns the power on, selects an audio source
• Press and hold: Mutes or pauses the current operation. To cancel the mute or pause, press and hold again.
Steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
1
2
3
WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

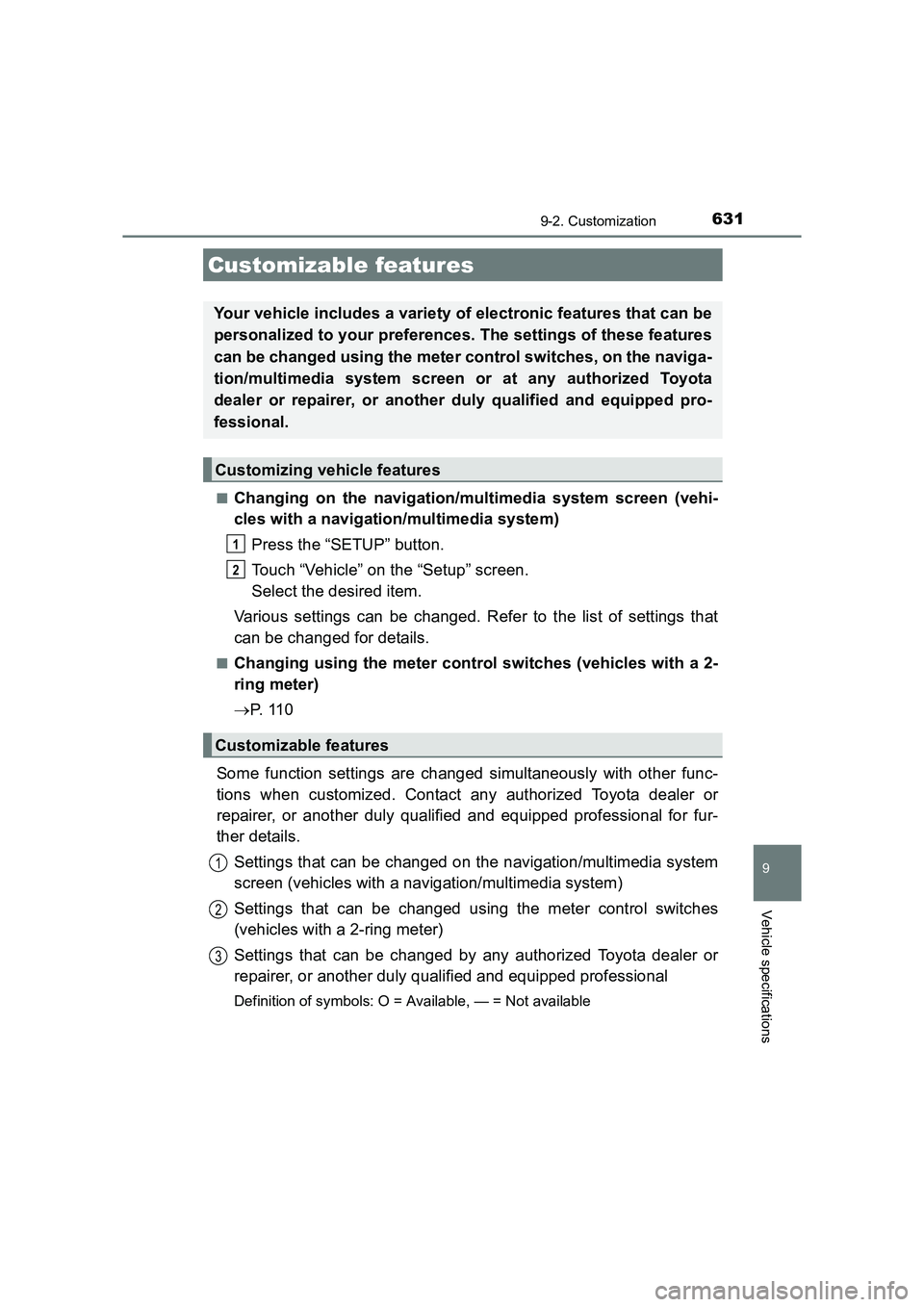

631
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
9-2. Customization
■Changing on the navigation/multimedia system screen (vehi-
cles with a navigation/multimedia system)Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
■Changing using the meter control switches (vehicles with a 2-
ring meter)
→ P. 1 1 0
Some function settings are changed simultaneously with other func-
tions when customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details. Settings that can be changed on the navigation/multimedia system
screen (vehicles with a navigation/multimedia system)
Settings that can be changed using the meter control switches
(vehicles with a 2-ring meter)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Av ailable, — = Not available
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the meter control switches, on the naviga-
tion/multimedia system screen or at any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional.
Customizing vehicle features
Customizable features
1
2
1
2
3

6369-2. Customization
AURIS Touring Sports_EE (12K53E)■
Stop & Start system* (
→ P. 283)
*: If equipped
■
Toyota parking assist-sensor*1 ( → P. 305)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
■
Automatic air conditioning system* ( → P. 405)
*: If equipped
FunctionDefault settingCustomized set-
ting
Change the Stop & Start
system duration when the
A/C is on
NormalLong—O—
123
FunctionDefault settingCustomized set-
ting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors
*2FarNearO—O
Detection distance of the
rear center sensors
*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors dis-playedDisplay offO—O
123
FunctionDefault settingCustomized set- ting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO—O
A/C auto switch operationOnOff——O
123

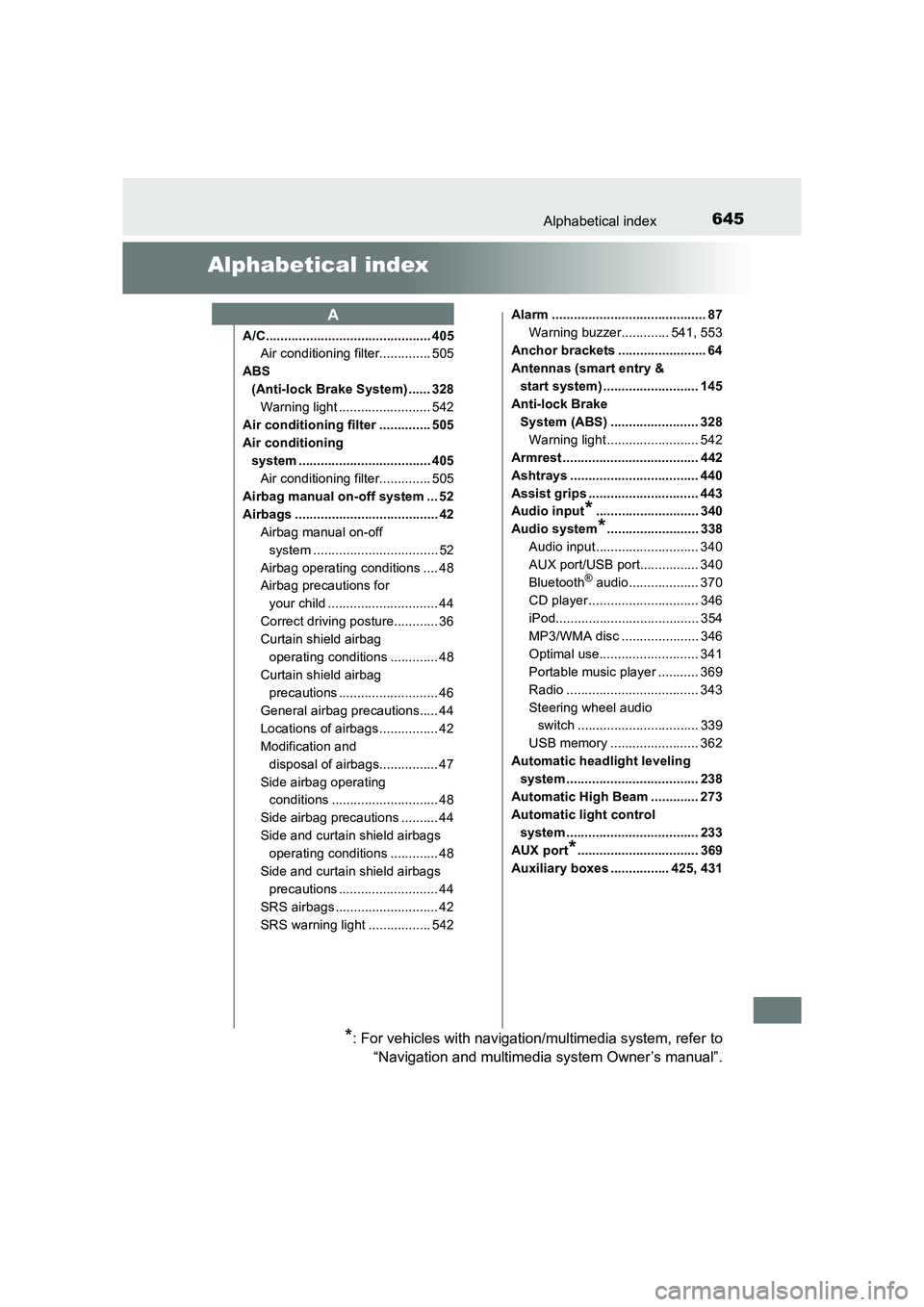

645
AURIS Touring Sports_EE (12K53E)
Alphabetical index
Alphabetical index
A/C............................................. 405Air conditioning filter.............. 505
ABS (Anti-lock Brake System) ...... 328Warning light ......................... 542
Air conditioning filter .............. 505
Air conditioning system .................................... 405
Air conditioning filter.............. 505
Airbag manual on-off system ... 52
Airbags ....................................... 42 Airbag manual on-off system .................................. 52
Airbag operating conditions .... 48
Airbag precautions for your child .............................. 44
Correct driving posture............ 36
Curtain shield airbag operating conditions ............. 48
Curtain shield airbag precautions ........................... 46
General airbag precautions..... 44
Locations of airbags................ 42
Modification and disposal of airbags................ 47
Side airbag operating conditions ............................. 48
Side airbag precautions .......... 44
Side and curtain shield airbags operating conditions ............. 48
Side and curtain shield airbags precautions ........................... 44
SRS airbags ............................ 42
SRS warning light ................. 542 Alarm .......................................... 87
Warning buzzer............. 541, 553
Anchor brackets ........................ 64
Antennas (smart entry & start system) .......................... 145
Anti-lock Brake System (ABS) ........................ 328Warning light ......................... 542
Armrest ..................................... 442
Ashtrays ................................... 440
Assist grips .............................. 443
Audio input
*............................ 340
Audio system
*......................... 338
Audio input ............................ 340
AUX port/USB port................ 340
Bluetooth
® audio................... 370
CD player .............................. 346
iPod....................................... 354
MP3/WMA disc ..................... 346
Optimal use........................... 341
Portable music player ........... 369
Radio .................................... 343
Steering wheel audio switch ................................. 339
USB memory ........................ 362
Automatic headlight leveling system .................................... 238
Automatic High Beam ............. 273
Automatic light control system .................................... 233
AUX port
*................................. 369
Auxiliary boxes ................ 425, 431
A
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
