2016 TOYOTA AURIS TOURING SPORTS instrument cluster

972. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.

982. Instrument cluster
AURIS Touring Sports_EE (12K53E)

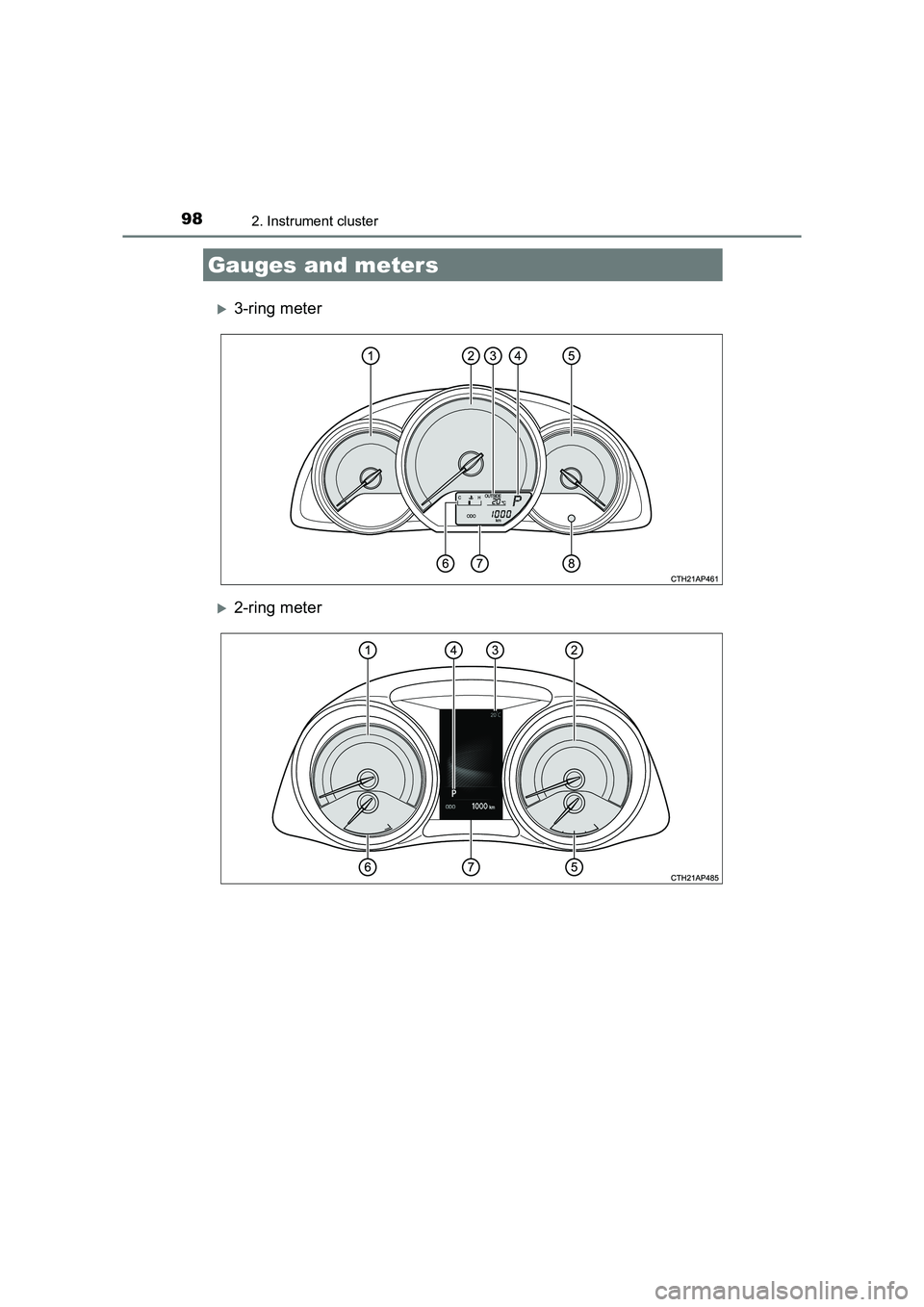

X3-ring meter
X2-ring meter
Gauges and meters

992. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F).
2-ring meter: Low outside temperature indicator comes on when the ambi-
ent temperature is 3°C (37°F) or lower.
Shift position and gear position indicator (if equipped)
→P. 223
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
3-ring meter (vehicles with a Multidrive): When the average fuel economy
is displayed, the Eco Driving Indicator zone display ( →P. 105) will be dis-
played instead of the engine coolant temperature gauge.
Multi-information display
→ P. 101, 107
Display change switch
Changes the item displayed on the multi-information display.
The “DISP” switch on the steering wheel can also be used to change the
item displayed on the multi-information display.
1
2
3
4
5
6
7
8

1002. Instrument cluster
AURIS Touring Sports_EE (12K53E)
■The meters and display illuminate when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 15 km/h [9 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “ − − ” is displayed continuously, the system may be malfunctioning. Take
your vehicle to any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. ( →P. 600)
• 3-ring meter: The high engine coolant temperature warning light comes on
• 2-ring meter: The engine coolant temperature gauge enters the red zone

1012. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature.
●Engine coolant temperature
gauge ( →P. 9 8 )
● Outside temperature ( →P. 9 8 )
● Shift position and gear position
indicator (if equipped)
(→ P. 223)
● Trip information/Drive informa-
tion/Meter light control ( →P.
102)
Displays the following items: •Odometer
•Trip meter
• Stop & Start system operation time (if equipped)
• Stop & Start system total operation time (if equipped)
• Average fuel consumption
• Driving range
• Meter light control
● Display customization ( →P. 104)
• Eco Driving Indicator Light (if equipped)
• Stop & Start system operation time (if equipped)
Multi-information display (3-ring meter)
Display content

1022. Instrument cluster
AURIS Touring Sports_EE (12K53E)

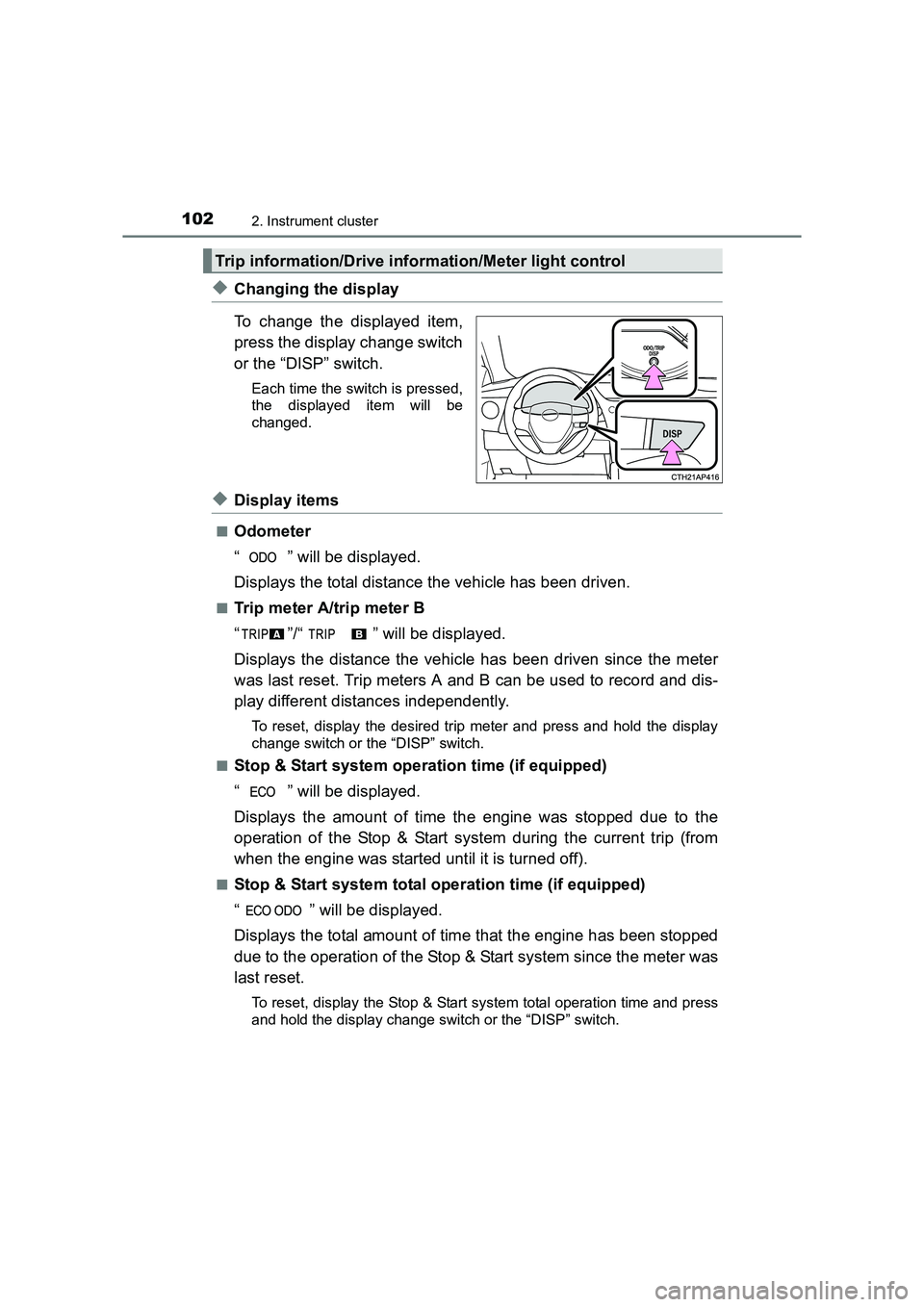

◆Changing the display
To change the displayed item,
press the display change switch
or the “DISP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
“ ” will be displayed.
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
“ ”/“ ” will be displayed.
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the display
change switch or the “DISP” switch.
■
Stop & Start system operation time (if equipped)
“ ” will be displayed.
Displays the amount of time the engine was stopped due to the
operation of the Stop & Start system during the current trip (from
when the engine was started until it is turned off).
■Stop & Start system total operation time (if equipped)
“ ” will be displayed.
Displays the total amount of time that the engine has been stopped
due to the operation of the Stop & Start system since the meter was
last reset.
To reset, display the Stop & Start system total operation time and press
and hold the display change switch or the “DISP” switch.
Trip information/Drive information/Meter light control

1032. Instrument cluster
AURIS Touring Sports_EE (12K53E)
2
Instrument cluster
■Average fuel consumption
“ ” will be displayed.
Displays the average fuel consumption since the function was
reset.
• To reset, display the average fuel consumption and press and hold thedisplay change switch or the “DISP” switch.
• Vehicles with a Multidrive: When the display is changed to the average
fuel economy display, the Eco Driving Indicator zone display ( →P. 105)
will be displayed instead of the engine coolant temperature gauge.
• Use the displayed average fuel consumption as a reference.
■
Driving range
“ ” will be displayed.
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may not be updated.
• When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
■
Meter light control display
Displays the meter light control display.
• The meter light control display can only be displayed when the tail lights are on.
• The brightness of the meters can only be adjusted when the tail lights are on.
• To adjust the brightness, display the meter light control display and
press and hold the display change switch or the “DISP” switch.

1042. Instrument cluster
AURIS Touring Sports_EE (12K53E)

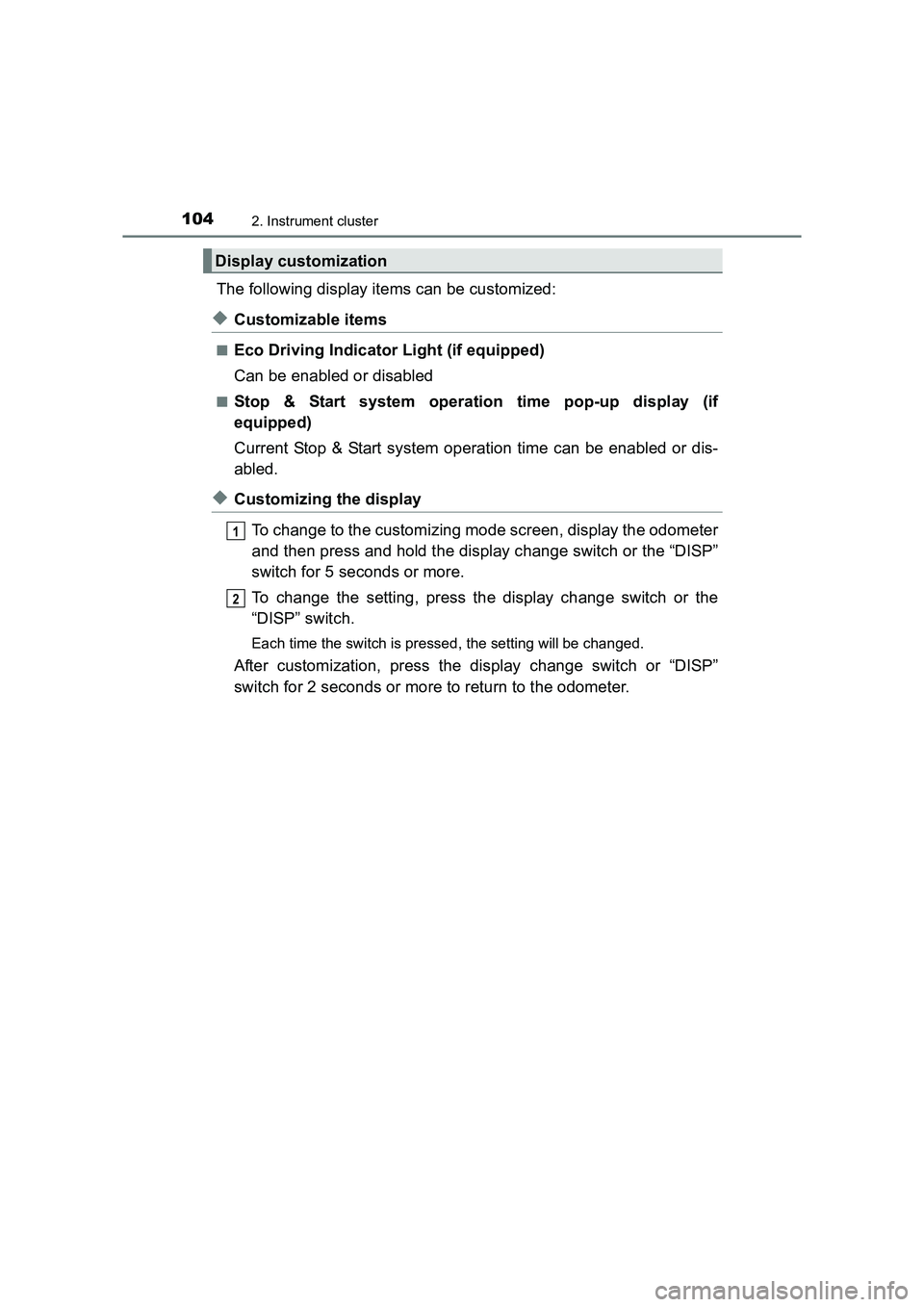

The following display items can be customized:
◆Customizable items
■Eco Driving Indicator Light (if equipped)
Can be enabled or disabled
■Stop & Start system operation time pop-up display (if
equipped)
Current Stop & Start system operation time can be enabled or dis-
abled.
◆Customizing the displayTo change to the customizing mode screen, display the odometer
and then press and hold the display change switch or the “DISP”
switch for 5 seconds or more.
To change the setting, press the display change switch or the
“DISP” switch.
Each time the switch is pressed, the setting will be changed.
After customization, press the display change switch or “DISP”
switch for 2 seconds or more to return to the odometer.
Display customization
1
2
