2016 TOYOTA AURIS TOURING SPORTS warning

4276-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
6
Interior features
Raise the hooks to use.
Cargo hooks are provided for
securing loose items.

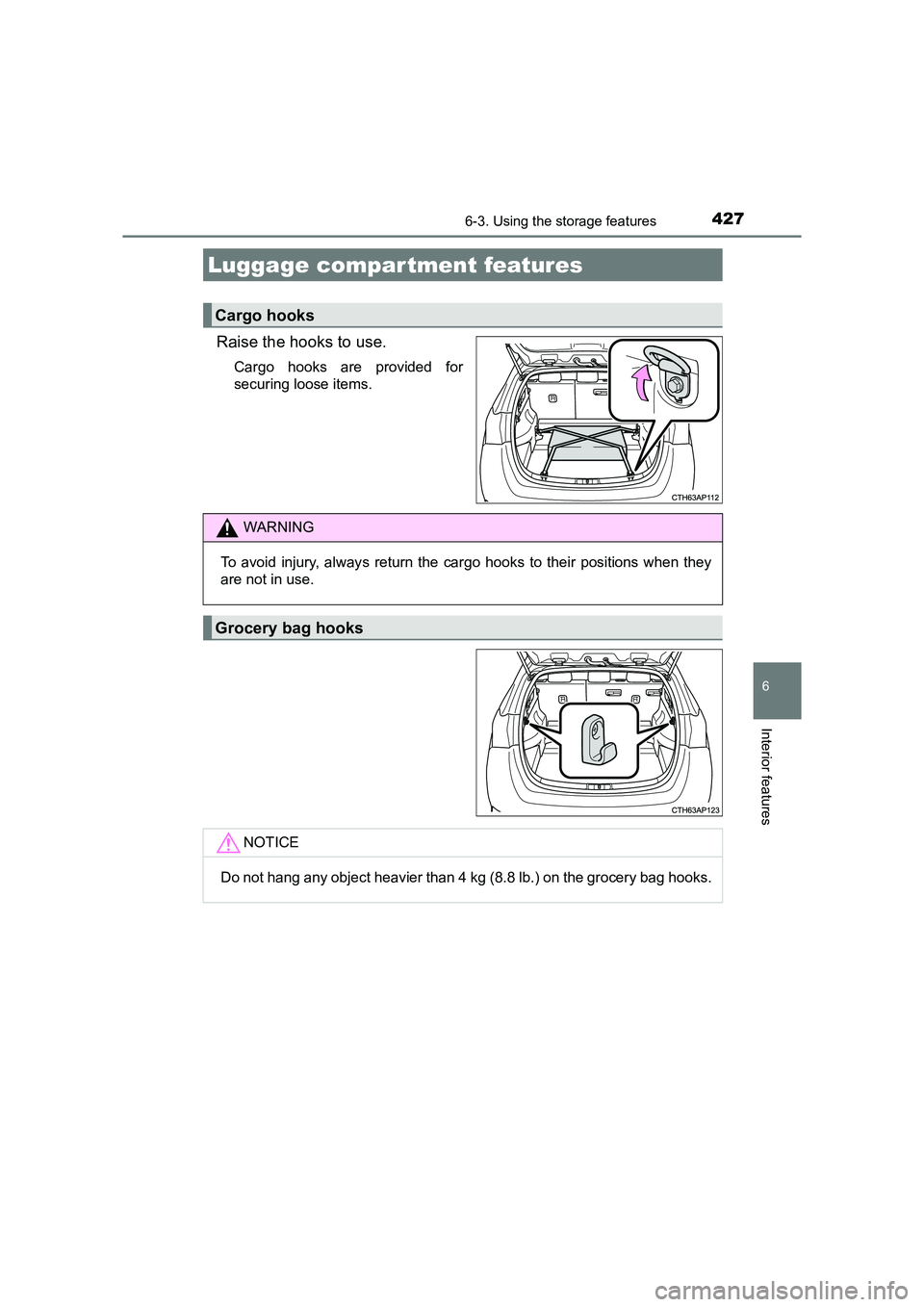

Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.

4306-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
XStorage box
Remove the front and rear center deck boards.
Lift the storage box and pull it
toward you to remove it.
1
2
WARNING
● Do not place anything on the center deck boards when operating the
board. Otherwise, your fingers may be caught or an accident may result
causing injuries.
● Do not drive with any of the center deck boards opened. Items may fall out
and cause injury.

4316-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
6
Interior features

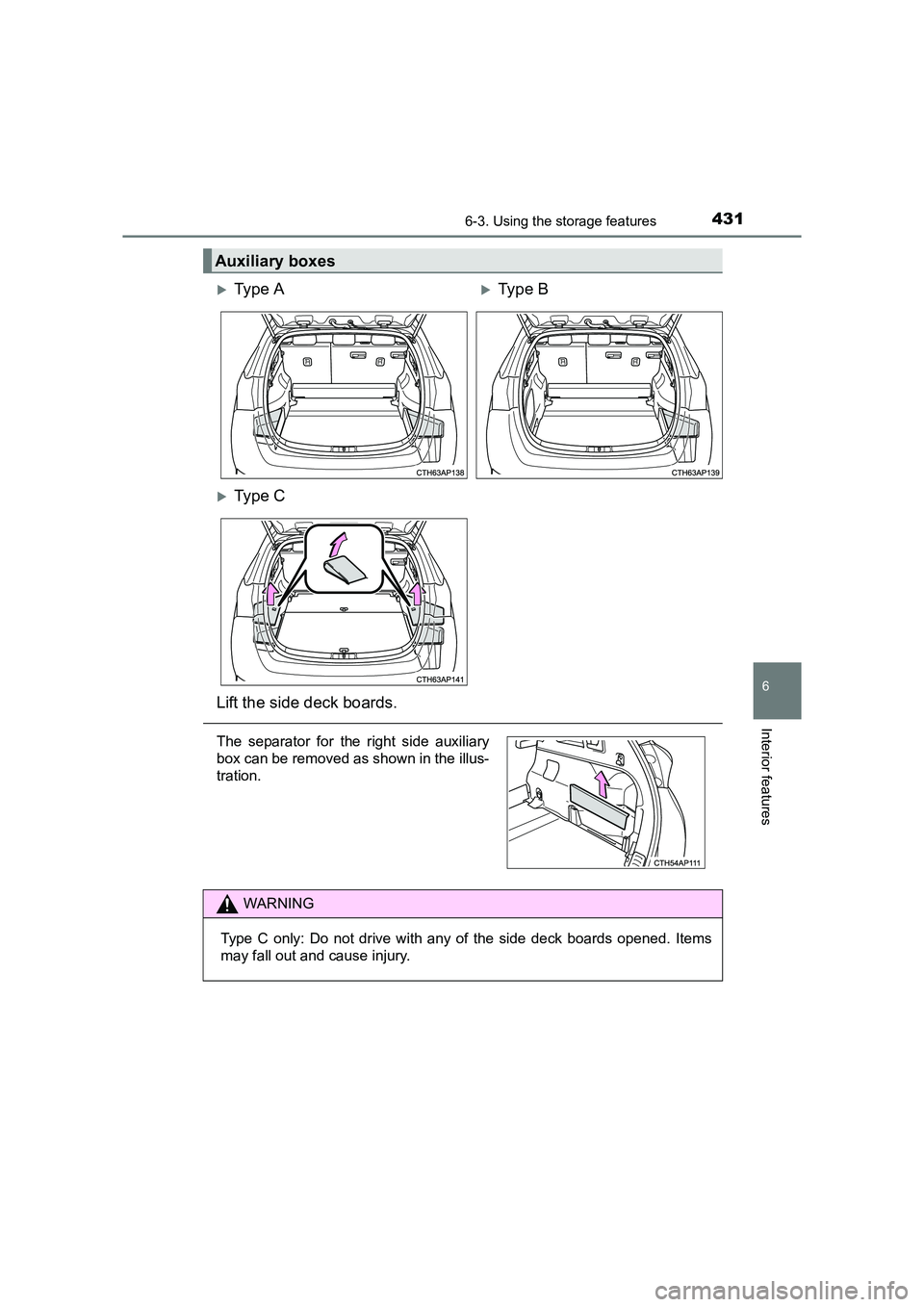

Auxiliary boxes
XTy pe AXType B
XTy pe C
Lift the side deck boards.
The separator for the right side auxiliary
box can be removed as shown in the illus-
tration.
WARNING
Type C only: Do not drive with any of the side deck boards opened. Items
may fall out and cause injury.

4346-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
WARNING
■ When installing the luggage cover
Make sure that the luggage cover is securely installed. Failure to do so may
result in serious injury in the event of sudden braking or a collision.
■ When using the luggage cover
Observe the following precautions. If the vehicle is driven with the luggage
cover lifted up, the driver's rear view will be obscured, possibly causing an
accident that may lead to death or serious injury.
● When closing the luggage cover, make sure that both left and right hooks
are securely engaged to the anchors. If the hooks are not engaged
securely, the hooks may be accidentally disengaged, causing the luggage
cover to lift up.
● When carrying cargo taller than the installation height of the luggage
cover, do not use the luggage cover. Otherwise, the hooks may be acci-
dentally disengaged, causing the luggage cover to lift up.
● Do not drive with the luggage cover lifted up.
■ Caution for the luggage cover
●Do not place anything on the luggage cover to avoid death or serious
injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

4386-3. Using the storage features
AURIS Touring Sports_EE (12K53E)
WARNING
■ When installing the partition net
Make sure that the partition net unit is securely installed. Failure to do so
may result in serious injury in the event of sudden braking or a collision.
■ When using the partition net
■ Storage precaution
As the partition net is not designed to protect passengers and driver from all
type of luggage stored in the luggage compartment if thrown, make sure
that the luggage is securely fixed even if the partition net is used.
Make sure that the hooks are engaged in
the correct position on the anchors. Fail-
ure to do so may result in serious injury in
the event of sudden braking or a colli-
sion.

4406-4. Other interior features
AURIS Touring Sports_EE (12K53E)
The clock can be adjusted by pressing the buttons.Adjusts the hours
Adjusts the minutes
●Vehicles without a smart entry & start system:
The clock is displayed when the engine switch is in the “ACC” or “ON” posi-
tion.
Vehicles with a smart entry & start system:
The clock is displayed when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
● When the battery terminals are disconnected and reconnected, the clock
will automatically be set to 1:00.
The ashtray can be installed in a
cup holder. ( →P. 424)
Clock
1
2
Portable ashtray (if equipped)
WARNING
● When not in use, keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
● To prevent fire, fully extinguish matches and cigarettes before putting them
in the ashtray, then make sure the ashtray is fully closed.
● To prevent fire, do not place paper or any other type of flammable object in
the ashtray.

4436-4. Other interior features
AURIS Touring Sports_EE (12K53E)
6
Interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Coat hooks are provided on the
rear assist grips.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

4456-4. Other interior features
AURIS Touring Sports_EE (12K53E)
6
Interior features
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the panoramic roof shade
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
● Do not allow children to operate the panoramic roof shade.
Closing a panoramic roof shade on someone can cause death or serious
injury.
The driver is responsible for instructing children not to operate the pan-
oramic roof shade.
■ Jam protection function
●Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.
