Page 13 of 344

SKODA KODIAQ 2016 1.G Owners Manual AbbreviationsAbbreviationDefinitionrpmEngine revolutions per minuteABSAnti-lock brake systemACCAdaptive cruise controlAGMVehicle battery typeAPNName of the access point for the data connectionTCSTract

Page 217 of 344

SKODA KODIAQ 2016 1.G Owners Manual Assist systems
General information
Introduction
This chapter contains information on the following subjects:
Radar sensor
215WARNING■ The assistance systems only serve to support the driver and d

Assist systems
General information
Introduction
This chapter contains information on the following subjects:
Radar sensor
215WARNING■ The assistance systems only serve to support the driver and do not re-
lieve the driver of the responsibility for driving the vehicle.■
The increased safety provision, as well as the increased occupant protec-
tion provided by the assistance systems must not tempt you to take risks -
risk of accident!
■
Adjust the speed and driving style to the current visibility, weather, road
and traffic conditions.
■
The assistance systems have physical and system-related limitations. For
this reason, the driver may experience some undesired or delayed system
responses in certain situations. You should therefore always be alert and
ready to intervene!
■
Only enable, disable or set the assistance systems when you have the car
fully under control, in every traffic situation - risk of accident!
Radar sensor
Fig. 264
Installation location of the radar
sensor
Read and observe on page 215 first.
The radar sensor (hereinafter referred to only sensor) uses electromagnetic
waves to capture the traffic situation ahead of the vehicle. The radar is located
under a cover » Fig. 264.
The sensor is part of the ACC » page 243 and Front Assist » page 248systems.
The sensor function may be impaired in the event of one of the following sit-
uations arising. ▶ The sensor cover is soiled (e.g. with mud, snow and the like).
▶ The area in front of and around the sensor cover is obscured (e.g. by labels,
auxiliary headlights and the like(.
▶ When visibility is poor (e.g. fog, heavy rain, thick snowfall).
▶ In exceptional cases, the sensor may be covered in the area beneath the cov-
er, e.g. due to snow.
If the sensor cover or the sensor is dirty or covered, a message to that effect
from the ACC system » page 248, Malfunctions or Front Assist » page 251, Mal-
functions system appears in the instrument cluster display.WARNING■
If you suspect that the sensor is damaged, deactivate the ACC system and
Front Assist system » page 245, » page 250 . Have the sensor checked by a
specialist garage.■
A collision or damage in the front or lower area of the vehicle could affect
the sensor function - there is risk of accident! Have the sensor checked by
a specialist garage.
■
Do not cover the area in front of and around the sensor cover. This can
lead to impaired function of the sensor - risk of accident!
CAUTION
Remove snow with a brush and ice with a solvent-free de-icer from the sensor
cover.
Braking and stabilisation systems
 Introduction
This chapter contains information on the following subjects:
Stability Control (ESC)
216
ESC Sport
216
Anti-blocking system (ABS)
216
Engine drag torque control (MSR)
216
Traction control (ASR)
217
Electronic Differential Lock (EDL and XDS)
217
Active steering assist (DSR)
217

215Assist systems

Page 218 of 344

SKODA KODIAQ 2016 1.G Owners Manual Brake Assist (HBA)217Hill Start Assist (HHC)217
Multicollision brake (MCB)
218
Trailer stabilisation system (TSA)
218
The brake and stabilization systems are automatically activated each time the
igni

Brake Assist (HBA)217Hill Start Assist (HHC)217
Multicollision brake (MCB)
218
Trailer stabilisation system (TSA)
218
The brake and stabilization systems are automatically activated each time the
ignition is switched on, unless otherwise indicated.
The error display is in Chapter » page 33, Warning lights .
WARNINGThe general information relating to the use of assistance systems must be
observed » page 215, in section Introduction .
Stability Control (ESC)
Read and observe
on page 216 first.
ESC improves vehicle stability in critical driving situations (e.g. if the vehicle
starts to skid) by the braking the individual wheels to maintain the direction.
During an ECS intervention, the warning light  flashes in the instrument clus-
ter.
ESC Sport
Fig. 265
ESC Sport / ASR system button
Read and observe on page 216 first.
ESC Sport allows for a sportier driving style. With ESC Sport activated, no ESC
intervention takes place when the vehicle slightly oversteers and understeers,
and ASR is so limited that the drive wheels can be spun.
Activation›Press and hold down the  » Fig. 265 button.›
or: On Infotainment, press the button 
→ the function surface 
→
ESCsystem:
→
ESC Sport
Tap.
With activation the warning light 
lights up in the instrument cluster and an
appropriate message is displayed in the instrument cluster.
Deactivation
›
Press the 
» Fig. 265 button.
›
or: On Infotainment, press the button 
→ the function surface 
→
ESCsystem:
→
Activated
Tap.
With deactivation the warning light
extinguishes
in the instrument cluster
and an appropriate message is displayed in the instrument cluster.
Anti-blocking system (ABS)
Read and observe
on page 216 first.
ABS prevents the wheels locking when braking. Thus helping the driver to
maintain control of the vehicle.
The intervention of the ABS is noticeable from the pulsating movements of
the brake pedal which is accompanied by noises.
When the ABS system is active, do not brake periodically or reduce the pres-
sure on the brake pedal.
Engine drag torque control (MSR)
Read and observe
on page 216 first.
The MSR prevents the blocking tendency of the drive wheels when shiftingdown or with an abrupt deceleration (e.g. on icy or otherwise slippery road sur-
faces).
If the drive wheels lock, the engine speed is automatically increased. This re-
duces the braking effect of the engine, and the wheels can rotate freely again.
216Driving

Page 294 of 344

SKODA KODIAQ 2016 1.G Owners Manual Changing a wheel›
Take out the emergency or spare wheel » page 292.
›
Remove the full wheel trim » page 293 or caps » page 294 .
›
Loosen the wheel bolts » page 294 » .
›
Jack up the ve

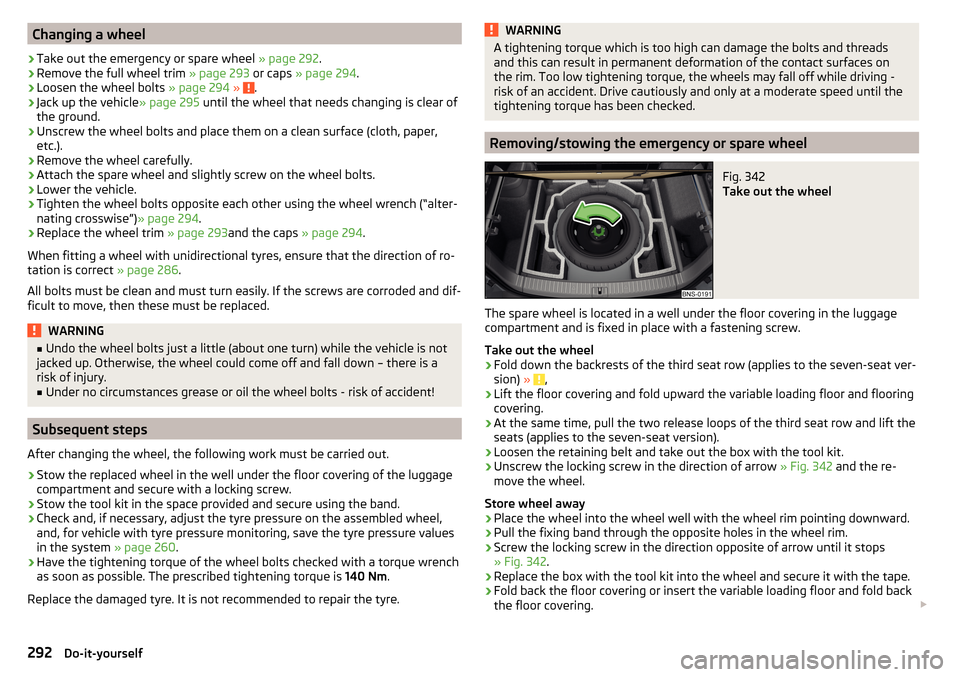

Changing a wheel›
Take out the emergency or spare wheel » page 292.
›
Remove the full wheel trim » page 293 or caps » page 294 .
›
Loosen the wheel bolts » page 294 » .
›
Jack up the vehicle » page 295 until the wheel that needs changing is clear of
the ground.
›
Unscrew the wheel bolts and place them on a clean surface (cloth, paper,
etc.).
›
Remove the wheel carefully.
›
Attach the spare wheel and slightly screw on the wheel bolts.
›
Lower the vehicle.
›
Tighten the wheel bolts opposite each other using the wheel wrench (“alter- nating crosswise”) » page 294.
›
Replace the wheel trim » page 293and the caps » page 294.
When fitting a wheel with unidirectional tyres, ensure that the direction of ro-
tation is correct » page 286.
All bolts must be clean and must turn easily. If the screws are corroded and dif-
ficult to move, then these must be replaced.
WARNING■ Undo the wheel bolts just a little (about one turn) while the vehicle is not
jacked up. Otherwise, the wheel could come off and fall down – there is a
risk of injury.■
Under no circumstances grease or oil the wheel bolts - risk of accident!
Subsequent steps
After changing the wheel, the following work must be carried out.
›
Stow the replaced wheel in the well under the floor covering of the luggage
compartment and secure with a locking screw.
›
Stow the tool kit in the space provided and secure using the band.
›
Check and, if necessary, adjust the tyre pressure on the assembled wheel,
and, for vehicle with tyre pressure monitoring, save the tyre pressure values
in the system » page 260.
›
Have the tightening torque of the wheel bolts checked with a torque wrench
as soon as possible. The prescribed tightening torque is 140 Nm.
Replace the damaged tyre. It is not recommended to repair the tyre.
WARNINGA tightening torque which is too high can damage the bolts and threads
and this can result in permanent deformation of the contact surfaces on
the rim. Too low tightening torque, the wheels may fall off while driving -
risk of an accident. Drive cautiously and only at a moderate speed until the
tightening torque has been checked.
Removing/stowing the emergency or spare wheel
Fig. 342
Take out the wheel
The spare wheel is located in a well under the floor covering in the luggage
compartment and is fixed in place with a fastening screw.
Take out the wheel
›
Fold down the backrests of the third seat row (applies to the seven-seat ver-
sion) » ,
›
Lift the floor covering and fold upward the variable loading floor and flooring
covering.
›
At the same time, pull the two release loops of the third seat row and lift the
seats (applies to the seven-seat version).
›
Loosen the retaining belt and take out the box with the tool kit.
›
Unscrew the locking screw in the direction of arrow » Fig. 342 and the re-
move the wheel.
Store wheel away
›
Place the wheel into the wheel well with the wheel rim pointing downward.
›
Pull the fixing band through the opposite holes in the wheel rim.
›
Screw the locking screw in the direction opposite of arrow until it stops
» Fig. 342 .
›
Replace the box with the tool kit into the wheel and secure it with the tape.
›
Fold back the floor covering or insert the variable loading floor and fold back
the floor covering. 
292Do-it-yourself

Page 320 of 344

SKODA KODIAQ 2016 1.G Owners Manual Vehicle-specific details per engine type
Introduction
This chapter contains information on the following subjects:
1.4 l/92 kW TSI engine318
1.4 l/110 kW TSI ACT engine
318
1.4 l/110 kW TSI engine

Page 321 of 344

SKODA KODIAQ 2016 1.G Owners Manual 1.4 l/110 kW TSI engineOutput (kW at 1/min)110/5000-6000Maximum torque (Nm at 1/min)250/1500-3500Number of cylinders/displacement (cm3
)4/1395Vehicle versionFive-seat versionSeven-seat versionTransmis

Page 322 of 344

SKODA KODIAQ 2016 1.G Owners Manual 2.0 l/140 kW TDI CR engineOutput (kW at 1/min)140/3500-4000Maximum torque (Nm at 1/min)400/1750-3250Number of cylinders/displacement (cm3
)4/1968Vehicle versionFive-seat versionSeven-seat versionTrans

Page 327 of 344

SKODA KODIAQ 2016 1.G Owners Manual Jack291
Reflective vest290
Vehicle tool kit291
Warning triangle290
Emergency spare Removing / stowing
292
Emission control system36
Emissions315
Engine Information messages
39
Run in212
Engine compart
