Fuses in the engine compartment
Fig. 371
Fuse box cover: Removing cover / plastic clips for fuses
Read and observe
and on page 305 first.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Press together the lock buttons of the cover simultaneously in the direction
of arrow
1
and remove the cover in the direction of arrow
2
» Fig. 371 .
›
Remove the cover in the direction of the arrow
3
.
›
Remove the plastic clip under the cover of the fuse box » Fig. 371.
›
Use the clip to pull the fuse out, then insert a new fuse.
›
Replace the clamp in the original position.
›
Replace the cover, push the lock buttons of the cover together and lock.
CAUTION
The cover of the fuse box in the engine compartment must always be used
correctly, otherwise water may penetrate into the fuse box – there is a danger
of damage to the vehicle!307Fuses and light bulbs

Fuse assignment in engine compartmentFig. 372
Fuses
Read and observe and on page 305 first.
No.Consumer1ESC, parking brake2ESC3Engine control system4Radiator fan, control valve for fuel pressure, electric auxiliary heat-
ing, engine components5Ignition, fuel pump, oil level and oil temperature sensor, engine
components6Brake sensor7Coolant pump, exhaust flap, engine components8Lambda probe9Coolant pump, ignition, preheating unit, air flow meter, engine com-
ponents10Fuel pump11Additional electrical heating, heated windscreen12Electrical auxiliary heating system13Automatic gearbox14Not assigned15Horn16Ignition17ESC, engine control unit, main relay coil18Databus, battery data moduleNo.Consumer19Windscreen wipers20Anti-theft alarm21Not assigned22Engine control system23Starter24Electrical auxiliary heating system31Not assigned32Not assigned33SCR34Not assigned35Not assigned36Not assigned37Aux. heating38Not assigned
Bulbs
 Introduction
This chapter contains information on the following subjects:
Bulb arrangement in the headlights
309
Change bulb for low beam (halogen headlight)
309
Bulb for turn signal switch (halogen headlight)
310
Replace bulb for main beam and side light switch (halogen headlight)
310
Replace bulb for fog lights (halogen headlight)
311
Removing/installing tail light
311
Replace bulb for indicator light in the rear light
312
For this reason, we recommend having bulbs replaced by a specialist garage or
seeking other expert help in the event of any uncertainties.
▶ Switch off the ignition and all of the lights before replacing a bulb.
▶ Faulty bulbs must only be replaced with the same type of bulbs. The designa-
tion is located on the light socket or the glass bulb.
We recommend having the headlight settings checked by a specialist garage
after replacing a bulb in the low, high or fog beam. 
308Do-it-yourself

In the case of failure of an LED lamp or an LED, visit a specialist garage.WARNING■Always read and observe the warnings before completing any work in the
engine compartment » page 278.■
Accidents can be caused if the road in front of the vehicle is not suffi-
ciently illuminated and the vehicle cannot or can only be seen with difficul-
ty by other road users.
■
H7 and H8 bulbs are pressurised and may burst when changing the bulb -
risk of injury! We therefore recommended wearing gloves and safety
glasses when changing a bulb.
CAUTION
■ Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
napkin, or similar.■
The cap of the filament bulb must always be seated correctly in the head-
light, otherwise this may allow water and debris to enter the headlight - risk of
damage to the headlights.
Note
■ This Owner's Manual only describes the replacement of bulbs where it is pos-
sible to replace the bulbs on your own without any complications arising. Other
bulbs must be replaced by a specialist garage.■
We recommend that a box of replacement bulbs always be carried in the ve-
hicle.
Bulb arrangement in the headlights
Fig. 373
Left headlight
Read and observe and on page 309 first.
The vehicle is equipped with headlights with halogen bulbs or LED light sour-
ces.
Bulb arrangement » Fig. 373
Low beams with halogen bulb / LED light sources
Flashing
Main beam and side lights
Fog lights
Change bulb for low beam (halogen headlight)
Fig. 374
Changing the bulb for the low beam
Read and observe
and on page 309 first.
›
Remove the protective cap
A
» Fig. 373 on page 309 .
›
Turn the holder with the bulb in the direction of arrow
1
» Fig. 374 .
›
Remove the holder with the bulb in the direction of arrow
2
.
›
Remove the bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the connector so that the lug
A
on the connector
snaps into the groove on the bulb.
›
Insert the connector with the new bulb into the headlight in the opposite di-
rection to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit the protective cap
A
» Fig. 373 on page 309 .
ABCD309Fuses and light bulbs

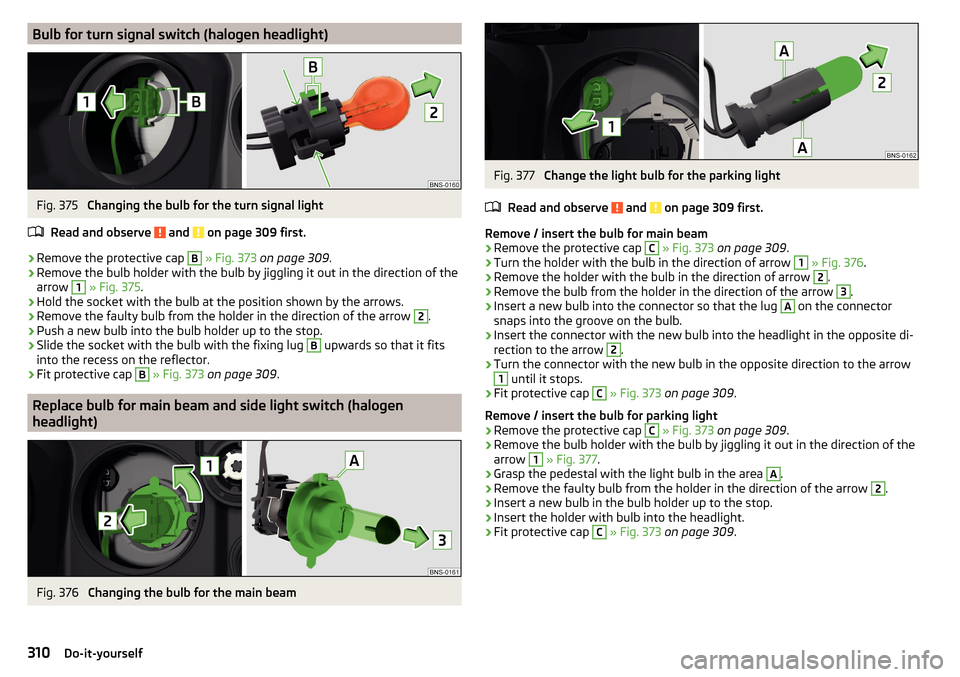

Bulb for turn signal switch (halogen headlight)Fig. 375
Changing the bulb for the turn signal light
Read and observe
and on page 309 first.
›
Remove the protective cap
B
» Fig. 373 on page 309 .
›
Remove the bulb holder with the bulb by jiggling it out in the direction of the
arrow
1
» Fig. 375 .
›
Hold the socket with the bulb at the position shown by the arrows.
›
Remove the faulty bulb from the holder in the direction of the arrow
2
.
›
Push a new bulb into the bulb holder up to the stop.
›
Slide the socket with the bulb with the fixing lug
B
upwards so that it fits
into the recess on the reflector.
›
Fit protective cap
B
» Fig. 373 on page 309 .
Replace bulb for main beam and side light switch (halogen
headlight)
Fig. 376
Changing the bulb for the main beam
Fig. 377
Change the light bulb for the parking light
Read and observe
and on page 309 first.
Remove / insert the bulb for main beam
›
Remove the protective cap
C
» Fig. 373 on page 309 .
›
Turn the holder with the bulb in the direction of arrow
1
» Fig. 376 .
›
Remove the holder with the bulb in the direction of arrow
2
.
›
Remove the bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the connector so that the lug
A
on the connector
snaps into the groove on the bulb.
›
Insert the connector with the new bulb into the headlight in the opposite di-
rection to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit protective cap
C
» Fig. 373 on page 309 .
Remove / insert the bulb for parking light
›
Remove the protective cap
C
» Fig. 373 on page 309 .
›
Remove the bulb holder with the bulb by jiggling it out in the direction of the
arrow
1
» Fig. 377 .
›
Grasp the pedestal with the light bulb in the area
A
.
›
Remove the faulty bulb from the holder in the direction of the arrow
2
.
›
Insert a new bulb in the bulb holder up to the stop.
›
Insert the holder with bulb into the headlight.
›
Fit protective cap
C
» Fig. 373 on page 309 .
310Do-it-yourself

Replace bulb for fog lights (halogen headlight)Fig. 378
Remove plastic cover
Fig. 379
Changing light bulbs for fog lights
Read and observe
and on page 309 first.
To replace the bulb for the fog lists, remove the cover of the front wheel arch.
Remove the cover
›
Set the front wheels so that the respective cover in the front wheel arch is
accessible » Fig. 378.
›
Insert the clamp for removing the full wheel covers into the recess in the
cover.
›
Remove the cover by pulling the hook in the direction of arrow
1
.
Replacing the light bulb
›
Remove the protective cap
D
» Fig. 373 on page 309 .
›
Turn the socket with the bulb to the stop in the direction of the arrow
2
» Fig. 379.
›
Remove the socket with the bulb in the direction of arrow
3
.
›
Press the latches on the connector in the direction of arrow
4
.
›
Remove the key in the direction of the arrow
5
.
›Insert the connector on the new base with the bulb.›Insert the new bulb into the headlight and turn counter to the direction of
arrow 2
as far as the stop.
Fit protective cap
D
» Fig. 373 on page 309 .
Insert cover
›
Insert and push the cover into the corresponding opening » Fig. 378.
The cover must engage securely.
Removing/installing tail light
Fig. 380
Remove light / pull out connector
Read and observe
and on page 309 first.
Removing
›
Open the boot lid.
›
Remove the respective grille
A
in direction of arrow
1
» Fig. 380 .
›
Unscrew bolt
B
in the direction of arrow
2
.
›
Hold the light and carefully remove in the direction of arrow
3
.
›
Press the latch
C
on the holder in the direction of the arrow
4
. 
311Fuses and light bulbs
