The essentials
● Ret
urn al
l tools to their proper storing loca-
tion.
● If the replaced wheel does not fit in the
spar
e wheel housing, store it safely in the
luggage compartment ›››
 page 151.
● Check the tyre pressure of the newly moun-
ted tyr
e as soon as possible.
● In vehicles fitted with a tyre pressure indi-
cator
, adjust the pressure and store the read-
ing in the radio/Easy Connect system*
›››  page 275.
● Have the tightening torque of the wheel
bolts c
hecked as soon as possible with a tor-
que wrench (it should be 120 Nm). Mean-
while, drive carefully.
● Have the flat tyre replaced as quickly as
poss
ible.
Snow chains Use Snow chains should only be used on the
fr
on
t

wheels.
Check that they are correctly seated after
driving for a few yards; correct the position if
necessary, in accordance with the manufac-
turer's fitting instructions. Keep your speed
below 50 km/h (30 mph). If there is a danger of being trapped despite
havin

g mounted the chains, it is best to disa-
ble the driving wheels (ASR) in the ESC
›››  page 178, Switching on/off the ESC
and ASR.
Snow chains will improve braking ability as
well as traction in winter conditions.
For technical reasons snow chains may only
be used with the following wheel rim/tyre
combination.
195/65 R15Chains with links of maximum 15 mm
205/55 R16Chains with links of maximum 15 mm
225/45 R17Chains with links of maximum 9 mm
225/40 R18Chains with links of maximum 9 mm Remove wheel covers and any integral trim
rin
g bef
or

e fitting snow chains.
Remove the chains when roads are free of
snow. Driving characteristics worsen, and the
wheels become damaged quickly and may
even be rendered unusable. Emergency towing of the vehi-
cle
T

owing Fig. 75
Right side of the front bumper: tow-
line anc hor
ag

e screwed in. Fig. 76
Right side of the rear bumper: towline
anc hor
ag

e screwed in. 60

Operation
WARNING
● Alw a
ys pay attention, also when looking
straight ahead, to traffic and the vehicle
surroundings. The assistance systems are not
a replacement for driver awareness. When in-
serting or removing the vehicle from a park-
ing space, or when performing similar ma-
noeuvres the driver always assumes the re-
sponsibility.
● Adapt your speed and driving style at all
times t
o suit visibility, weather, road and traf-
fic conditions.
● The ultrasound sensors have blind spots in
which ob
stacles and people are not regis-
tered. Pay special attention to children and
animals.
● Always keep visual control of the vehicle
surrou
ndings: use the mirrors for additional
help. CAUTION
Parking Aid functions may be negatively af-
fect ed b

y different factors that may lead to
damage to the vehicle or its immediate sur-
rounds:
● Under certain circumstances, the system
does not
detect or display certain objects:
– Objects such as chains, trailer draw bars,
fences, posts and thin trees.
– Objects that are located above the sen-
sors, such as protrusions in a wall. –
Ob j

ects with certain surfaces or struc-
tures, such as wire mesh fences or pow-
der snow.
● Certain surfaces of objects and garments
do not refl
ect the ultrasound sensors' sig-
nals. The system cannot detect, at least cor-
rectly, these objects or people wearing such
clothes.
● Ultrasound sensor signals may be affected
by e
xternal sound sources. In certain circum-
stances this may prevent them from detect-
ing people or objects.
● Please note that low obstacles detected by
the syst
em may no longer be registered by
the sensors as the car moves closer, so the
system will not give any further warning. In
certain circumstances, objects such as high
kerbs that could damage the bottom of the
vehicle are not detected either.
● If the first warning from the ParkPilot is ig-
nored, the v
ehicle could suffer considerable
damage.
● The knocks or damage on the radiator
grill
e, bumper, wheel arch and vehicle under-
body can adjust the orientation of the sen-
sors. This can affect the parking aid function.
Have the function checked by a specialised
workshop. Note
● In cer t

ain situations, the system can give a
warning even though there is no obstacle in
the detected area, e.g: –
with r ough or c

obbled floors or ground
with long grass;
– with external ultrasound sources, such as
cleaning vehicles or other vehicles;
– In downpours, intense snow or dense ex-
haust gases;
– if the registration plate (front or rear) is
not properly affixed to the bumper sur-
face;
– or in locations such as the brow of a hill.
● In order to guarantee good system opera-
tion, keep the ultr
asound sensors clean, free
of snow or ice, and do not cover them with
adhesives or other objects.
● If you use high-pressure or vapour equip-
ment to c
lean the ultrasound sensors, apply
it directly only very briefly and always from a
distance of more than 10 cm.
● Retrofitting of accessories to the vehicle,
such a
s a bicycle rack, may interfere with the
operation of the Parking Aid.
● In order to familiarise yourself with the sys-
tem, it i
s advised that you practice parking in
an area or car park that is free from traffic.
There must be good weather and light condi-
tions.
● The volume and tone of the warnings can
be modified, in addition t
o the indications
››› page 230.
● In vehicles without a driv
er information
system, these parameters can be modified in
a SEAT Official Service or in a specialised
workshop. 226

Advice
Drive slowly to a specialised workshop and
h av
e the f
ault repaired.
 (in yellow) Steering lock:
fault! Go to an Official Service
The electronic steering lock is malfunction-
ing.
Go to a specialised workshop as soon as
possible and have the fault repaired. WARNING
Take it immediately to a specialised work-
shop and hav e the f

ault repaired: risk of acci-
dent! Note
If the lamp  (in red) or el se
 (in yellow)
lights up briefly, you may continue driving. Progressive steering
Depending on the vehicle equipment, the
pr
ogr
e

ssive steering can adapt steering hard-
ness to the current driving situation. The
power steering only works when the engine
is running.
In city traffic you do not need to turn so much
on parking, manoeuvring or in very tight
turns.
On the road or on the motorway, progressive
steering transmits, for example, in bends, a sportier, more direct and noticeably more dy-
namic driv

ing sensation.
Four-wheel drive 3 Valid for vehicles: with four-wheel drive


› ›

› table on page 2
On four-wheel drive models, the engine pow-
er is distributed to all four wheels
General notes
On four-wheel drive vehicles, the engine
power is distributed to all four wheels. The
distribution of power is controlled automati-
cally according to your driving style and the
road conditions. Also see ›››
page 176, Brak-
ing and stability systems .
The four-wheel drive is specially designed to
complement the superior engine power. This
combination gives the vehicle exceptional
handling and performance capabilities, both
on normal roads and in more difficult condi-
tions, such as snow and ice. Even so (or per-
haps especially for this reason), it is impor-
tant to observe certain safety points ››› .
W int
er ty

res
Thanks to four-wheel drive, your vehicle will
have plenty of traction in winter conditions,
even with the standard tyres. Nevertheless,
we still recommend that winter tyres or all- season tyres be fitted on all
four wheels t
o
give even better braking response.
Snow chains
On roads where snow chains are mandatory,
this also applies to cars with four-wheel drive
›››  page 60.
Changing tyres
On vehicles with four-wheel drive, all four
tyres must have the same rolling circumfer-
ence. Also avoid using tyres with varying
tread depths ››› page 273.
Off-roader?
Your SEAT is not an off-road vehicle: it does
not have enough ground clearance to be
used as such. It is therefore best to avoid
rough tracks and uneven terrain as much as
possible. WARNING
● Ev en w

ith four-wheel drive, you should al-
ways adjust your speed to suit the condi-
tions. Do not let the extra safety features
tempt you into taking any risks when driving.
Risk of accident!
● The braking capability of your vehicle is
limited by
the tyres' grip. It is therefore no
different from a car without four-wheel drive.
So do not be tempted to drive too fast on firm
or slippery roads just because the vehicle 254

Wheels
Tyre monitoring indicator Fig. 246
Instrument panel: warning of loss of
ty r
e pr
essure. The tyre monitor indicator compares wheel
r
ev
o

lutions and, with this information, the
tread of each wheel using the ABS sensors. If
the rolling circumference of one or more
wheels has changed, the tyre monitoring in-
dicator will indicate this on the instrument
panel through a warning lamp and a warning
to the driver ››› Fig. 246. When only one spe-
cific tyre is affected, its position within the
vehicle will be indicated.
 Loss of pressure: Check left
tyre pressure!
Wheel tread change
The wheel tread changes when: ●
Tyr
e pressure is manually changed
● Tyre pressure is insufficient
● Tyre structure is damaged
● The vehicle is unbalanced because of a
load
● The wheel

s on an axle are subject to a
heavier lo
ad (e.g. with a heavy load).
● The vehicle is fitted with snow chains
● The temporary spare wheel is fitted
● The wheel on one axle is changed
There ma
y be a delay in the reaction of the
tyre  monitoring indicator or it may not in-
dicate anything under certain circumstances
(e.g. sporty driving, snow-covered or un-
paved roads, or when driving with snow
chains). Calibrating the tyre monitoring indica-
tor Fig. 247
Glove compartment: tyre control
sw it
c

h. After changing the tyre pressure or replacing
one or mor
e wheel
s, the ty

re monitoring indi-
cator must be recalibrated. Do the same, for
example, when the front and rear wheels are
swapped.
● Switch the ignition on.
● Store the new tyre pressure in the Easy
Connect sy
stem with the  button and the
f u
nction b
utton Setup
› ›
›
 page 27 or us-
ing the switch located in the glove compart-
ment 1)
››› Fig. 247.
When driving, the system self-calibrates the
tyre pressure provided by the driver and the
wheels fitted. After a long journey with varied »1)
In vehicles without the Infotainment system:
277
Technical data
Advice
Operation
Emergencies
Safety

Advice
speeds the programmed values are collected
and monit or
ed.
W
ith the wheels under very heavy loads, the
tyre pressure must be increased to the total
recommended tyre pressure before the cali-
bration ››› page 283. Note
● The tyr e monit

oring indicator does not
function when there is a fault in the ESC or
ABS ››› page 176.
● An erroneous indication may be given when
snow c
hains are in use because they increase
the tread of the wheel. Temporary spare wheel
Gener a
l

information Fig. 248
Compact temporary spare wheel:
r ai
sed floor p

anel. The temporary spare wheel has been de-
s
igned t
o be u

sed for short periods of time.
Have the tyres checked, and if necessary, re-
placed as soon as possible at a SEAT Official
Service or at a specialised workshop.
Please note the following restrictions when
using the compact temporary spare wheel.
The compact temporary spare wheel is de-
signed specifically for this model. For this
reason, do not use a temporary spare wheel
from a different type of vehicle.
Removing the temporary spare wheel
– Lift and hold up the floor panel to remove
the temporar

y spare wheel ››› Fig. 248.
– Turn the thumb wheel anti-clockwise.
– Take out the temporary spare wheel.
Chains
F

or technical reasons, snow chains must not
be used on the temporary spare wheel.
If you have a puncture on one of the front
wheels when using snow chains, fit the tem-
porary spare wheel in place of one of the rear
wheels. Fit the snow chains on the rear wheel
that you have removed and replace the punc-
tured front wheel with this wheel. WARNING
● Aft er fittin

g the temporary spare wheel,
check the tyre pressures as soon as possible. Failure to do so may cause an accident. The
tyr
e pr

essures are listed on the inside of the
fuel tank flap.
● Do not drive at over 80 km/h (50 mph)
when the temporar
y spare wheel is fitted on
the vehicle: risk of accident!
● Avoid heavy acceleration, hard braking and
fas
t cornering: risk of accident!
● Never use more than one temporary spare
wheel at the s
ame time, risk of accident.
● No other type of tyre (normal summer or
winter ty
re) may be fitted on the compact
temporary spare wheel rim.
● If you are driving using the spare wheel,
the ACC
system could automatically switch
off during the journey. Switch off the system
when starting off. 278

Technical specifications
Drawbar loads
The maximum permitt ed dr
a
wbar load on the
ball joint of the towing bracket must not ex-
ceed 80 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For s af

ety reasons, you should not drive at
speeds above 80 km/h (50 mph) when towing
a trailer. This also applies in countries where
higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawb
ar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Ty
r

e pressure, snow chains, wheel
bolts Tyre pressures
The stic
k

er with the tyre pressure values can
be found on the rear of the front left door
frame. The tyre pressure values given there
are for cold tyres. The slightly raised pres-
sures of warm tyres must not be reduced.
››› The pressure for win
t
er
tyres is 0.2 bar
(2.9 psi / 20 kPa) higher than that of summer
tyres.
Snow chains
Snow chains may be fitted only to the front
wheels, and only for the following tyres:
195/65 R15Chains with links of maximum 15 mm
205/55 R16Chains with links of maximum 15 mm
205/50 R17Chains with links of maximum 15 mm
225/45 R17Chains with links of maximum 9 mm
225/40 R18Chains with links of maximum 9 mm
225/35 R19Chains with links of maximum 7 mm
205/55 R17Snow chains are not permitted
225/45 R18Snow chains are not permitted Wheel bolts
Af
t
er the wheel

s have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and al lo
y

wheels is 120 Nm. WARNING
● Check the ty

re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 283
Technical data
Advice
Operation
Emergencies
Safety

Index

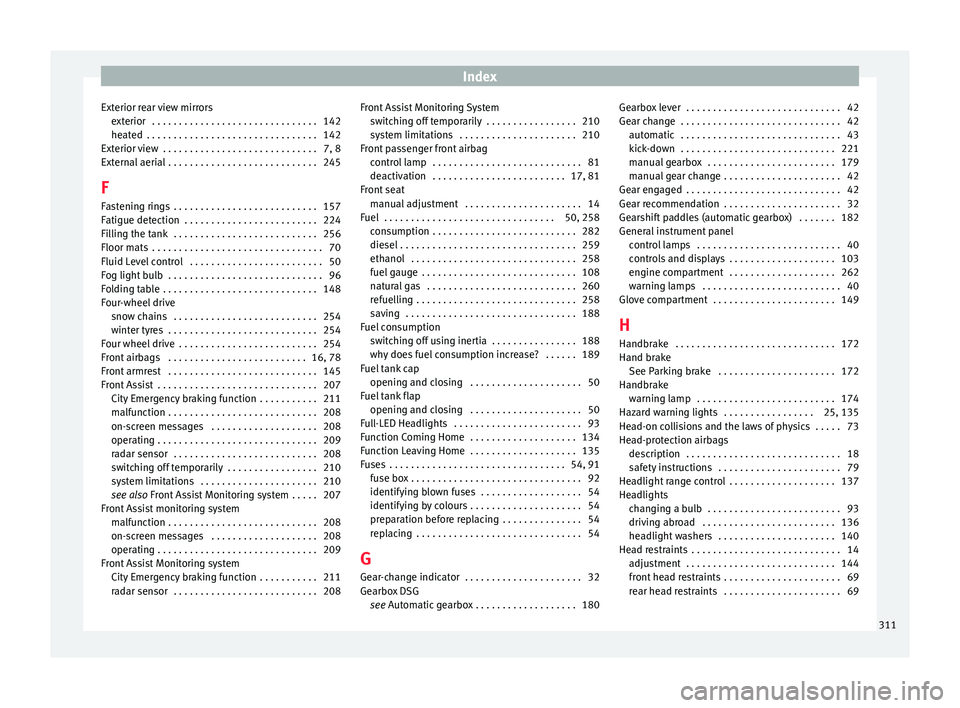

Exterior rear view mirrors ext
erior
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 224
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Four-wheel drive snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Four wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 78
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Front Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 City Emergency braking function . . . . . . . . . . . 211
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
on-screen messages . . . . . . . . . . . . . . . . . . . . 208
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
switching off temporarily . . . . . . . . . . . . . . . . . 210
system limitations . . . . . . . . . . . . . . . . . . . . . . 210
see also Front Assist Monitoring system . . . . . 207
Front Assist monitoring system malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
on-screen messages . . . . . . . . . . . . . . . . . . . . 208
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Front Assist Monitoring system City Emergency braking function . . . . . . . . . . . 211
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Front Assist Monitoring System
switc hing off temporarily . . . . . . . . . . . . . . . . . 210
system limitations . . . . . . . . . . . . . . . . . . . . . . 210
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . 17, 81
Front seat manual adjustment . . . . . . . . . . . . . . . . . . . . . . 14
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 258 consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Fuel consumption switching off using inertia . . . . . . . . . . . . . . . . 188
why does fuel consumption increase? . . . . . . 189
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 50
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . 50
Full-LED Headlights . . . . . . . . . . . . . . . . . . . . . . . . 93
Function Coming Home . . . . . . . . . . . . . . . . . . . . 134
Function Leaving Home . . . . . . . . . . . . . . . . . . . . 135
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 91 fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
identifying blown fuses . . . . . . . . . . . . . . . . . . . 54
identifying by colours . . . . . . . . . . . . . . . . . . . . . 54
preparation before replacing . . . . . . . . . . . . . . . 54
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
G
Gear-change indicator . . . . . . . . . . . . . . . . . . . . . . 32
Gearbox DSG see Automatic gearbox . . . . . . . . . . . . . . . . . . . 180 Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Gear ch
ange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 179
manual gear change . . . . . . . . . . . . . . . . . . . . . . 42
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 32
Gearshift paddles (automatic gearbox) . . . . . . . 182
General instrument panel control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
controls and displays . . . . . . . . . . . . . . . . . . . . 103
engine compartment . . . . . . . . . . . . . . . . . . . . 262
warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . 149
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Hand brake See Parking brake . . . . . . . . . . . . . . . . . . . . . . 172
Handbrake warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Hazard warning lights . . . . . . . . . . . . . . . . . 25, 135
Head-on collisions and the laws of physics . . . . . 73
Head-protection airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 79
Headlight range control . . . . . . . . . . . . . . . . . . . . 137
Headlights changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 136
headlight washers . . . . . . . . . . . . . . . . . . . . . . 140
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
front head restraints . . . . . . . . . . . . . . . . . . . . . . 69
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 69
311
