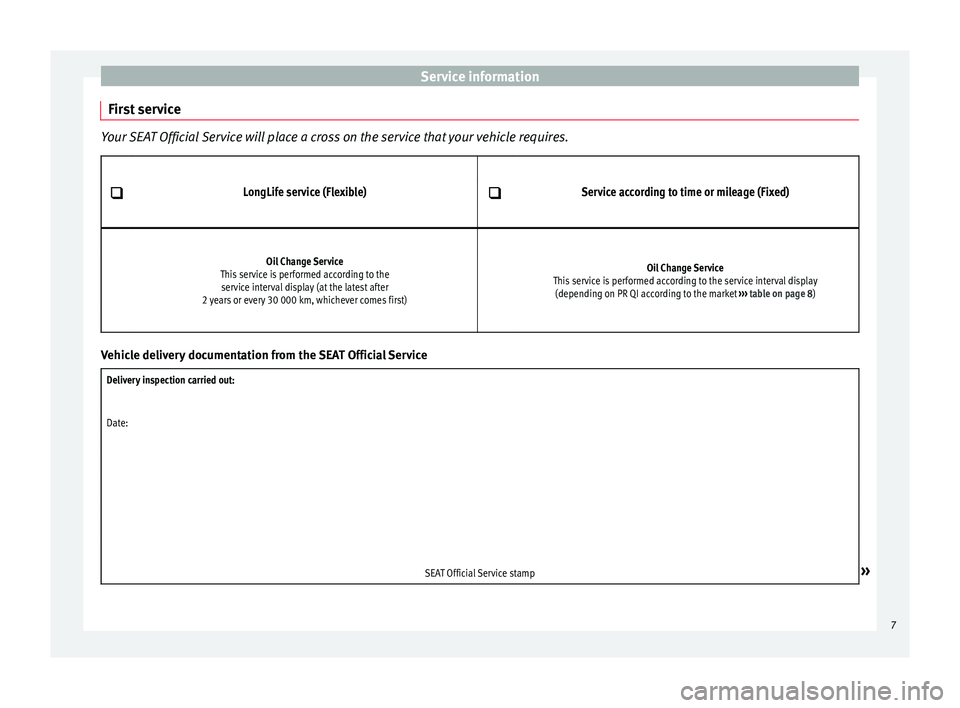

2016 Seat Leon 5D Maintenance programme

Service information
First service Your SEAT Official Service will place a cross on the service that your vehicle requires.



LongLife service (Flexible) Service according to time or mileage (Fixed)


Oil Change Service
This service is performed according to the service interval display (at the latest after
2 years or every 30 000 km, whichever comes first)
Oil Change Service
This service is performed according to the service interval display (depending on PR QI according to the market ››› table on page 8)
Vehicle delivery documentation from the SEAT Official Service
Delivery inspection carried out:

Date:





SEAT Official Service stamp
» 7

Service information
Before delivery, your vehicle was inspected
ac cording to factory guidelines. This ensures
that driving will be a pleasure from the very
beginning.
The agent will provide you with the following
information when the vehicle is delivered:
● Running-in
● Changing the brake fluid
● Service intervals, in particular information
on wh
at constitutes severe operating condi-
tions ››› page 10
PR according to markets:
QI1Service interval display every 5,000 kilometres or
every year (fixed)
QI2Service interval display every 7,500 kilometres or
every year (fixed)
QI3Service interval display every 10,000 kilometres
or every year (fixed)
QI4Service interval display every 15,000 kilometres
or every year (fixed)
QI6Service interval display every 30,000 km or every
2 years (flexible)
QI7Service interval display every 10 000 miles or ev-
ery year (fixed) Note
● U
sing diesel fuel with a high sulphur con-
tent may significantly reduce the useful life of
the diesel particulate filter.
● If LongLife engine oil is not used, the serv-
ic

e dependent on time/distance travelled
then applies. In this case, an oil change serv-
ice will have to be carried out every 15 000
km or every year. 8

Service information
Importance of the Maintenance Pro-
gr amme The Maintenance Programme confirms the
dat

e of delivery of your vehicle and thus
the beginning of its warranty cover.
The vehicle data that appears in the Mainte-
nance Programme guarantees that the appro-
priate Genuine SEAT ®
Parts are installed. This
data helps ensure that your car can be re-
paired without difficulty even after many
years of use.
Your specialised workshop will write the de-
tails of services that have been carried out in
this notebook.
Your Maintenance Programme should be kept
in the vehicle with the on-board documenta-
tion so that it is at hand whenever you need
it.
Please remember to give the Maintenance
Programme to the new owner if you sell your
car.
The SEAT Service Centre network is equipped
with modern workshop technology and well-
trained specialists. Many SEAT Service Cen-
tres offer different service packages at spe-
cial prices Safety notes All fluids and consumables
, s uch as timing
belts, tyres, coolant liquid, engine oil, spark
plugs and vehicle batteries are continuously
being developed. Therefore, we recommend
you take the vehicle to a specialised work-
shop to have fluids or consumables changed.
The SEAT Official Services receive regular up-
to-date information about modifications. This
is why SEAT recommends you have fluids and
other consumables replaced by a SEAT Offi-
cial Service.
If the vehicle is not serviced or incorrectly/ir-
regularly serviced, the vehicle may break
down while driving, leading to serious acci-
dent and injury.
● Service work is carried out according to the
M

aintenance Programme at a specialised
workshop.
● Please observe the instructions for use. Note
● On
ly use suitable fluids. Fluids should nev-
er be mixed up. This could result in serious
faults and engine damage.
● SEAT is not responsible for damage to the
v

ehicle as a result of the use of poor quality
fuel, inadequate servicing or non-availability
of original spare parts. ●
S
pilt brake fluid may pollute the environ-
ment. If fluids leak or are spilt, they should
be collected and disposed of accordingly.
● Regular servicing of your vehicle not only
help
s to ensure it remains in good working
order but also contributes to road safety.
Therefore, we recommend carrying out work
according to specifications in the Mainte-
nance tables. Your specialised workshop will
be delighted to assist you. 9

SEAT maintenance programme
SEAT maintenance pro-
gr amme
Service intervals General information To ensure that you have each service carried
out

on time and that none are forgotten,
there is a reminder sticker on the driver side
door pillar and a reminder will also be shown
via the service interval display on the instru-
ment panel.
The service intervals quoted are for vehicles
used under normal operating conditions .
However, if the vehicle is used in adverse
conditions, it may require work before the
next established service interval or even be-
tween service intervals.
Adverse conditions include:
● the use of fuel with a high sulphur content
● frequent short journeys
● leaving the engine idling for long periods
of
time (as occurs with taxis)
● driving on dusty roads or in dusty areas
● frequently using the vehicle for towing
● mainly driving in the city, in heavy traffic
wher
e it is necessary to continuously brake
and start, and ●
u
sing the vehicle mainly in the winter
This particularly affects: ● the air filter
● the timing belt
● the engine oil and
● the diesel particulate filter
The ser
vice advisor at your specialised work-
shop will tell you if, due to prevailing condi-
tions, your vehicle will require more frequent
work.
Your SEAT Official Service always has the lat-
est available information and will be able to
tell you if your vehicle requires any other ad-
ditional inspections established by law.
The cost of the SEAT service may vary, de-
pending on the vehicle type, equipment fit-
ted, additional work and statutory inspec-
tions. Your SEAT Official Service will tell you
how much the SEAT service will cost (labour
and parts). 10

SEAT maintenance programme
IntervalsService Service type
LongLife service (Flexible) Service according to time or mileage (Fixed)

Oil change service a)
According to the flexible service interval display
(PR QI6, maximum after 2 years or 30 000 km (20 000 miles)b) According to the service interval display
(PR QI1, QI2, QI3, QI4 and QI7) ››› table on page 8

Inspection service a)
The first service after two years or 30,000 km b)
,
then every year or 30,000 kmb)
The first after two years or 30,000 km b)
,
and then every year or 30,000 km b)

a) Under certain circumstances different services can be carried out at the same time (Oil Change and Interval Services in combination with the Inspection Service).
b) Whichever comes first.
Please see the oil specifications given in the
Instruction Manual.
LongLife Service
Thanks to the technology used at SEAT, with
the LongLife Service , an Interval Service only
has to be carried out when it is necessary.
The length of the service intervals is also de-
termined by factors such as conditions under
which the vehicle is used and personal driv-
ing style.
If LongLife engine oil is not used, the service
dependent on time/distance travelled then
applies. In this case, an oil change service will have to be carried out every 15 000 km
or ev
ery year. This also applies if you repro-
gram the vehicle to the service dependent on
time/distance travelled Note
● In a
ddition to the Inspection Service and
Oil Change, additional work must be carried
out which is dependent on the time/mileage.
● Your specialised workshop is informed of
the w
ork to be completed during each inspec-
tion.
● We recommend that you visit a SEAT Au-
thori
sed Service whenever you require any
work done on your vehicle. ●
S
EAT keeps its Authorised Services up-to-
date on new product developments. They
have tools and highly specialised personnel
who can guarantee the safety and perform-
ance of your vehicle.
● Scrupulously following the General Pro-
gr
amme for Inspection Services at the SEAT
Authorised Services can help you maintain
greater value for your vehicle. 11

Other services available
Other services available L egal Inspection Service The legal inspections must be carried out
at
the intervals prescribed.
Many countries have legal requirements ob-
liging owners to have their vehicle tested at
specified intervals for safety for the user and
for other traffic, as well as ensuring that vehi-
cle exhaust emissions meet the countries'
regulations. These revisions must be over-
seen by officially certified centres.
Your SEAT Official Service can advise of the
inspections required by law, and can check
your vehicle in the course of an Inspection
Service. This will save you both time and
money.
The SEAT Official Service can also carry out
the inspections required by law at the client's
request.
Even if you do not wish to take advantage of
this service and decide to take your vehicle
to an officially certified centre for this check,
we recommend that you speak to the manag-
er of your SEAT Official Service first.
This person will be able to inform you of any
points that require attention so that your car
does not fail the test and have to be re-tes-
ted. Approved spare parts Genuine SEAT spare parts are designed for
y

our vehicle and approved by SEAT, particu-
larly as regards safety. The workmanship,
precision of dimensions and materials of
these parts comply exactly with factory speci-
fications. Genuine SEAT spare parts have
been designed especially for your vehicle.
We therefore recommend that you always use
genuine SEAT spare parts. SEAT will not be
held responsible for the safety and reliability
of parts from other manufacturers.
At SEAT Authorised Service Partners you will
generally find the most important genuine
SEAT parts. If a part is not in stock, it can usu-
ally be obtained quickly.
SEAT Authorised Service Partners provide a
warranty for genuine SEAT parts, valid from
the date of purchase or fitting. It is therefore
advisable to retain the original receipt from
the SEAT Authorised Service Partner as proof
of the contractual warranty.
Please ask your SEAT Official Service for fur-
ther information.
The genuine SEAT spare parts warranty can
be submitted to any SEAT Official Service .Approved SEAT exchange parts The approved SEAT exchange parts, conform-
in
g to the manufacturer's requirements, con-
stitute an additional service at your disposal,
offering you the possibility to replace entire
assemblies, the most common being: the
lightened engine, gearboxes, cylinder heads,
control units, electrical elements, etc.
These are Approved parts and as such, share
the same approved spare parts warranty as
the manufacturer parts.
However, these parts are considerably cheap-
er as they are factory-reconditioned used
parts. Keep the invoice for the approved SEAT
exchange parts as proof of the start of the ex-
isting warranty.
More information about this may be obtained
at the SEAT Official Service.
Genuine accessories We recommend that you use only Genuine
S

EAT Accessories and accessories ap-
proved by SEAT.
If you wish to equip your car with accesso-
ries, you should remember the following
points:
12

Other services available
We recommend that you use only Genuine
S EAT Accessories and approved SEAT Acces-
sories. These accessories are checked for re-
liability, safety and suitability for your vehicle
type. SEAT will not be held responsible for
the safety and reliability of parts from other
manufacturers.
The SEAT Official Services provides a warran-
ty for Genuine Accessories valid from the
date of purchase or fitting. It is therefore ad-
visable to retain the original invoice from the
SEAT Official Service as proof of the existing
warranty.
More information about this may be obtained
at the SEAT Official Service.
The accessories service also offers you expert
advice and, if required, fitting by a specialist.
In addition, SEAT Official Services are able to
supply car care products and parts subject to
natural wear, such as tyres, a battery and
light bulbs.
Paintwork and body service SEAT vehicles are designed in such a way
th

at, in case of bodywork damage, there is
only need to replace and paint the parts that
have been really affected.
Both operations must be carried out accord-
ing to the requirements of the manufacturer; this is an essential condition for conservation
of
the bodywork and paintwork warranties.
SEAT Service Mobility You benefit from SEAT Service Mobility ad-
v

antages and coverage from the time you
purchase your new SEAT.
Your new SEAT is automatically covered by
SEAT Service Mobility at no extra cost for the
first two years after purchase.
If you would like to continue benefiting from
the service, you may extend the SEAT Service
Mobility as long as you have your Inspection
or Maintenance Services done at an Author-
ised SEAT Dealer.
Your right to the service will be documented
in the Inspection and Maintenance Plan
when you extend the Mobility Service.
If your SEAT breaks down due to a malfunc-
tion or accident, our customer care services
will keep you on the road.
Note that the SEAT Mobility Service differs in
each country. For further information, check
with your SEAT dealer or your SEAT country
website. 13

Warranty
Warranty F ault-free operation warranty SEAT Official Services provide a warranty for
the f

ault-free operation of SEAT vehicles new
from the factory. Consult your sales contract,
or complimentary or additional documenta-
tion provided by your Technical Service where
the details of the warranty conditions and the
warranty period are accredited. Please ask
your SEAT Official Service for further informa-
tion.
We hope that it is understood that natural
wear as well as damage caused by the abuse
of vehicle performance through inappropriate
use or by unacceptable modifications are ex-
cluded from the warranty. The warranty is al-
so invalid when the vehicle is damaged by
the use of parts and accessories that are not
SEAT approved or damage due to ignoring
the maintenance and repair requirements.
Paintwork and body warranty SEAT Official Services provide a warranty
that

covers the paintwork and bodies of all
vehicles purchased from them.
In addition to the warranty conditions for
brand new SEAT vehicles (as detailed in the
purchase contract, or complimentary or addi- tional documentation), a defined period war-
r

anty is also provided covering paintwork and
body rusting:
● The additional warranty on paint faults cov-
er
s the first 3 years following delivery
● Covered against perforation rusting on the
body
during the first 12 years following deliv-
ery.
However, should this type of damage occur,
it will be repaired free of charge for parts and
labour by any SEAT Official Service.
Warranty claims will not be accepted in the
following circumstances:
● if damage is caused by external influence
or c
arelessness, or
● if the damage to the body or the paint has
not
been repaired in accordance with the
manufacturer-defined requirements, or
● if perforation rusting was caused by the
f

ailure to carry out repairs in accordance with
the manufacturer's instructions.
If the body is repaired or painted, your Tech-
nical Service will certify your warranty against
perforation rusting for the repaired sections. 14
