2016 RENAULT MEGANE HATCHBACK check engine

5.4
ENG_UD21559_4
Kit de gonflage (X95 - B95 - D95 - L38 - X38 - X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte
Depending on the vehicle, remove the
central partition in the storage compart-
ment to access the inflation kit.
Open the kit, remove caps
1 and 3 (the
cap must not be removed from the
bottle) then screw bottle
2 to its base 3.
wi

th the engine running and the
parking brake applied,
–

unscrew
the valve cap on the wheel
concerned and screw inflation
adapter
6 onto the valve;
–

connect
adapter
8
to the accessories
socket on the dashboard of the vehi-
cle;
–

p
ress switch
5

to inflate the tyre to
the recommended pressure (check
the label affixed to the edge of the
driver’s door);
–

after
a maximum of 5 minutes, stop
inflating and read the pressure (on
pressure gauge

4
);
no

te: while the bottle is emptying
(approximately 30 seconds), pres-
sure gauge
4

will briefly indicate a
pressure of 6 bar, then the pressure
will drop.
tyre Pressure KIt (2/3)
143
5
6
78
2– adjust the pressure: to increase it, continue inflating with the kit, to
reduce it, turn button
7

located on
the inflation adapter.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the ve-
hicle but contact an approved dealer.
Depending on the vehicle, in the event
of a puncture, use the kit located under-
neath the luggage compartment carpet.
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.

5.26
ENG_UD9611_2
Batterie : dépannage (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Attach positive lead A to mounting 1
attached to (+) terminal 2
then to
(+)
t

erminal
3

of the battery supplying
the current.
Attach the negative lead
B

to the
(–
) t

erminal
4

of the battery supplying
the current, then to the (–) terminal
5


of the discharged battery.
Start the engine. As soon as it is run-
ning, disconnect leads
A

and
B

in the
reverse order (
5 - 4 - 3 - 2 ).
starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al-
ready have jump leads, ensure that
they are in perfect condition.
t

he two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply-
ing the current and run it at an interme-
diate engine speed.
Battery: troubleshooting (2/2)
2
3
4
5
a
B
1
Check that there is no con-
tact between leads A and B
and that the positive lead
A
is not touching any metal
parts on the vehicle supplying the
current.
Risk of injury and/or damage to the
vehicle.
2
5

wiper blades ......................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.30
ENG_UD21380_4
Balais d’essuie-vitres (X95 - B95 - D95 - L38 - X38 - X32 - B32 - Re\
nault)
ENG_NU_837-8_BDK95_Renault_5
Wipers (replacing blades)
wInDscreen wIPer BlaDes
replacing windscreen wiper
blades 1
with the ignition on and engine
switched off, lower the windscreen
wiper stalk completely: they stop
slightly away from the bonnet.
Lift wiper arm
3 ,

pull tab
2

(move-
ment
A) and push the blade upwards.
to refit
S

lide the blade along the arm until it
clips on. Make sure that the blade is
correctly locked in position. Return the
windscreen wiper stalk to the park po-
sition.
1
2
3
Check the condition of the wiper
blades. You are responsible for their
service life:
–

clean
the blades, windscreen and
rear screen regularly with soapy
water;
–

do
not use them when the wind-
screen or rear screen are dry;
–

free
them from the windscreen or
rear screen when they have not
been used for a long time.
rear screen wiper blade 4
– Lift wiper arm 6;
–
pivot
blade
4
until some resistance is
met (movement
C);
–

d
epending on the vehicle, press
tab
5, then remove the blade by pull-
ing it (movement
B).
to refit
T

o refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
4
5
B
c
a
6
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
–

Check
the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.

5.36
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte
OPeratIng Faul ts (4/5)
On the road PO ss IB le causeswhat tO DO
Steering becomes heavy .Assistance overheating. Consult an approved dealer.
The engine overheats. The coolant
temperature indicator is in the warn-
ing zone and warning light
®
comes on. Engine cooling fan not working.
Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged.Check the tyre pressures: if this is not the
problem, have them checked by an ap-
proved dealer.
radiator:
If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.

6.1
ENG_UD24010_9
Sommaire 6 (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_6

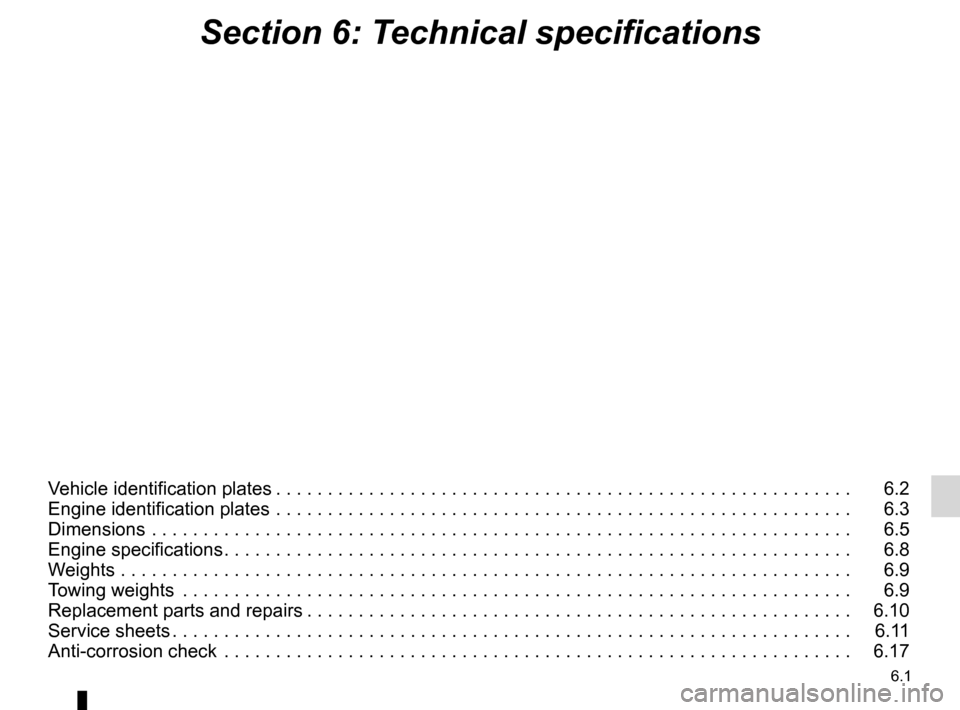

Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3
Dimensions
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5
Engine specifications


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.8
W

eights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9
T

owing weights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9
Replacement parts and repairs


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.10
Service sheets


. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1

1
Anti-corrosion check
.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.17
