FRONT HEADLIGHTS: changing bulbs (2/4)
Discharge bulb main beam
headlights/dipped beam
headlights
Never open the cover D.
Bulb type: D5S.
D
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
A special mounting is re-
quired to fit this type of
headlight, it is forbidden to
fit a headlight with xenon
bulbs to a vehicle which was not
designed for it.
Before performing any
action in the engine com-
partment, the ignition must
be switched off by pressing
the engine stop button (please see
the information on “Starting, stop-
ping the engine” in Section 2).
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.

5.18

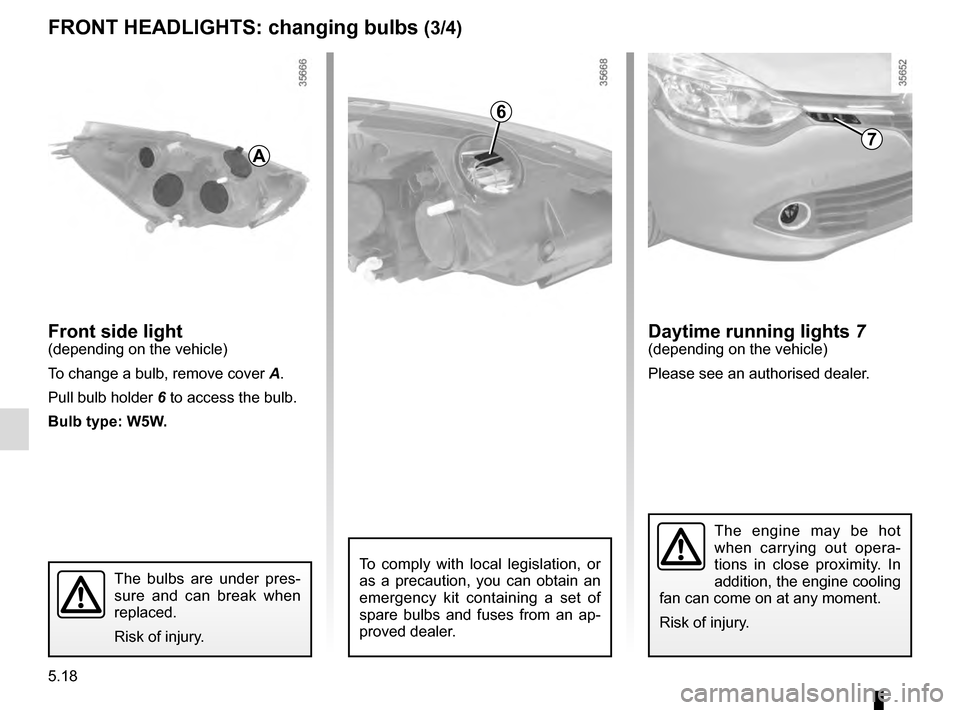

Front side light(depending on the vehicle)
To change a bulb, remove cover A.
Pull bulb holder 6 to access the bulb.
Bulb type: W5W.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved dealer.
A
6
FRONT HEADLIGHTS: changing bulbs (3/4)
7
Daytime running lights 7(depending on the vehicle)
Please see an authorised dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

5.19
Daytime running lights and
side lights 8
(depending on the vehicle)
Please see an authorised dealer.

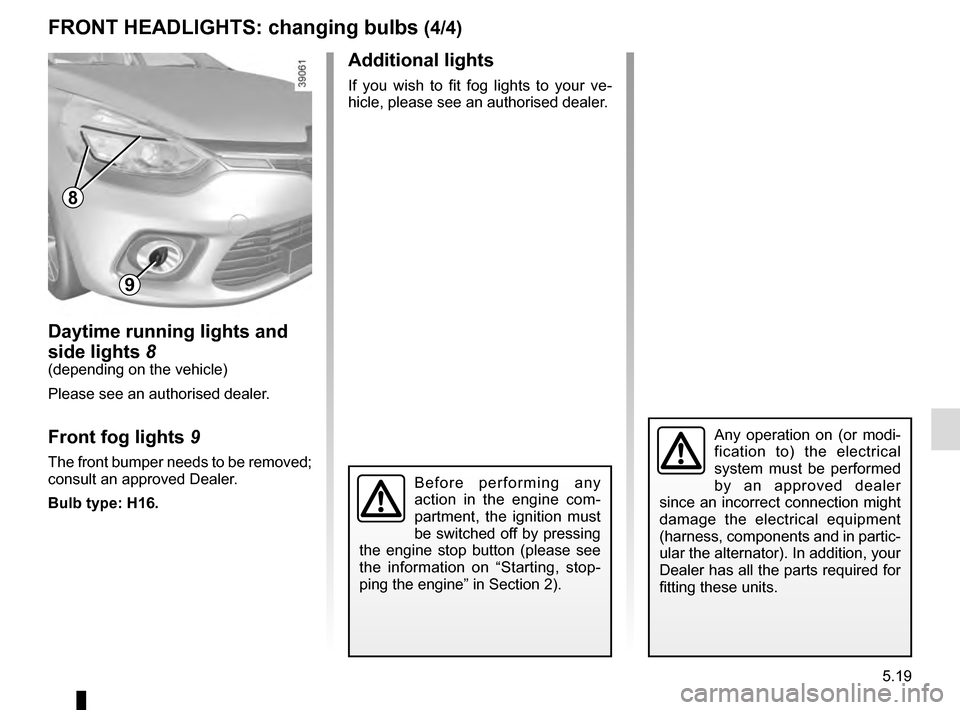

Front fog lights 9
The front bumper needs to be removed;
consult an approved Dealer.
Bulb type: H16.
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
9
FRONT HEADLIGHTS: changing bulbs (4/4)
Before performing any
action in the engine com-
partment, the ignition must
be switched off by pressing
the engine stop button (please see
the information on “Starting, stop-
ping the engine” in Section 2).
8

5.20
To release the light unit, start by moving
the exterior edge away to a suffi-
cient extent (movement A) to release
clip 3, then pull the light unit backwards
(movement B).
Remove the bulb holder by carefully
releasing clips 4, lightly raise the bulb
holder and then release clip 2.
Change the bulb.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Refit the bulb holder and push the unit
in fully until it locks in place.
Check that the light is properly locked
in position.
Tighten screws 1.

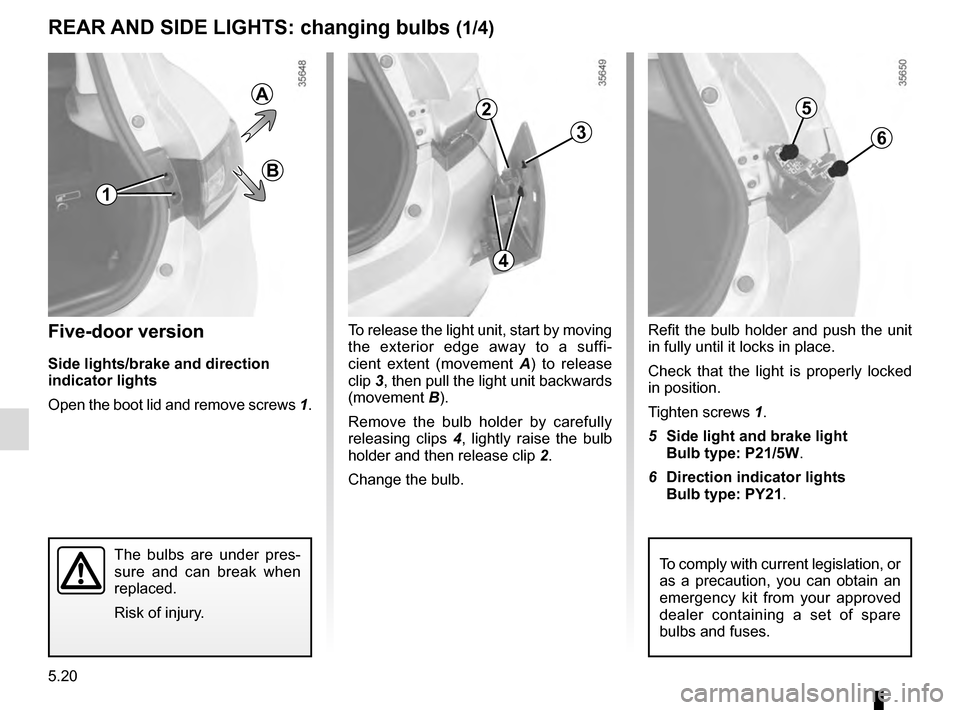

5 Side light and brake light
Bulb type: P21/5W.
6 Direction indicator lights
Bulb type: PY21.Five-door version
Side lights/brake and direction
indicator lights
Open the boot lid and remove screws 1.
REAR AND SIDE LIGHTS: changing bulbs (1/4)
5
6
1
4
2
3
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
B
A

5.21
REAR AND SIDE LIGHTS: changing bulbs (2/4)

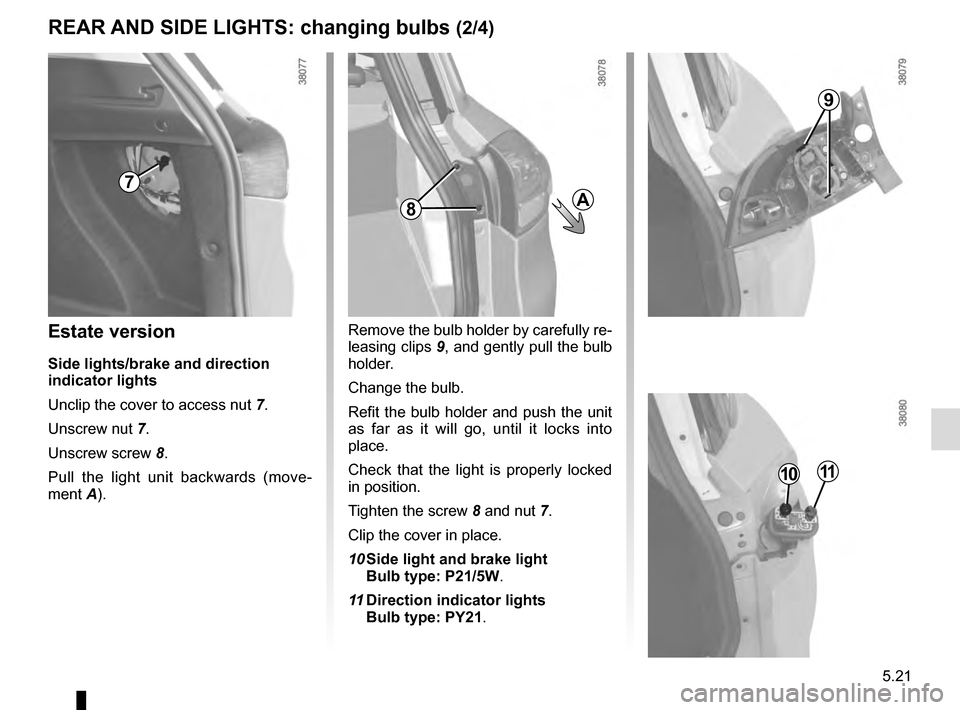

Estate version
Side lights/brake and direction
indicator lights
Unclip the cover to access nut 7.
Unscrew nut 7.
Unscrew screw 8.
Pull the light unit backwards (move-
ment A). Remove the bulb holder by carefully re-
leasing clips
9, and gently pull the bulb
holder.
Change the bulb.
Refit the bulb holder and push the unit
as far as it will go, until it locks into
place.
Check that the light is properly locked
in position.
Tighten the screw 8 and nut 7.
Clip the cover in place.
10 Side light and brake light
Bulb type: P21/5W.
11 Direction indicator lights
Bulb type: PY21.
7
8
9
1011
A

5.22
REAR AND SIDE LIGHTS: changing bulbs (3/4)
Five door and estate versions

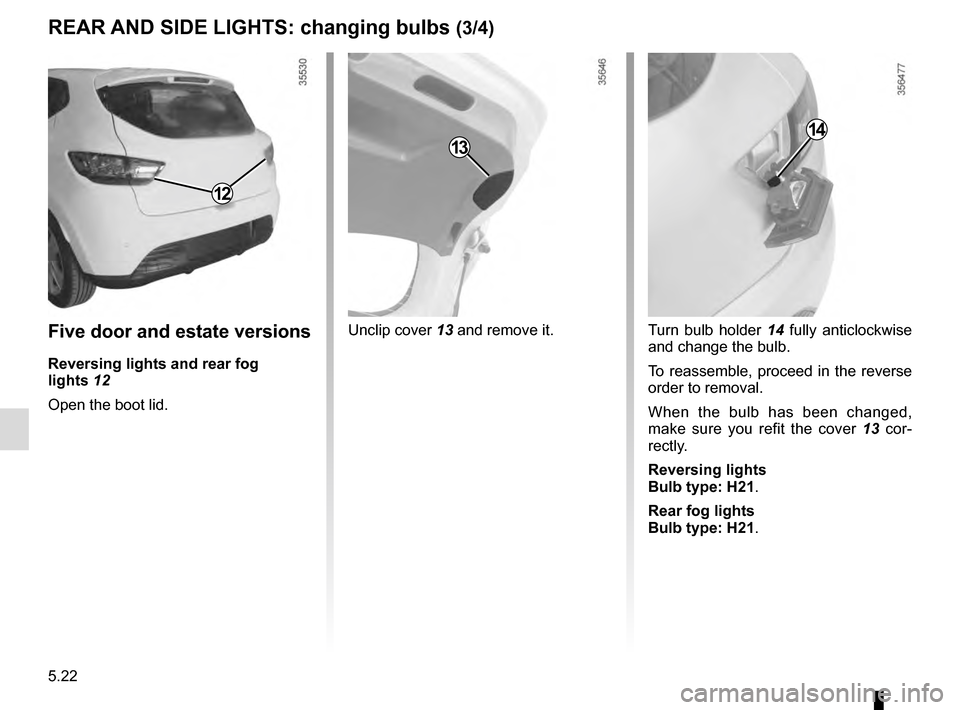

Reversing lights and rear fog
lights 12
Open the boot lid. Unclip cover
13 and remove it. Turn bulb holder 14 fully anticlockwise
and change the bulb.
To reassemble, proceed in the reverse
order to removal.
When the bulb has been changed,
make sure you refit the cover 13 cor-
rectly.
Reversing lights
Bulb type: H21.
Rear fog lights
Bulb type: H21.
14
13
12

5.23
15

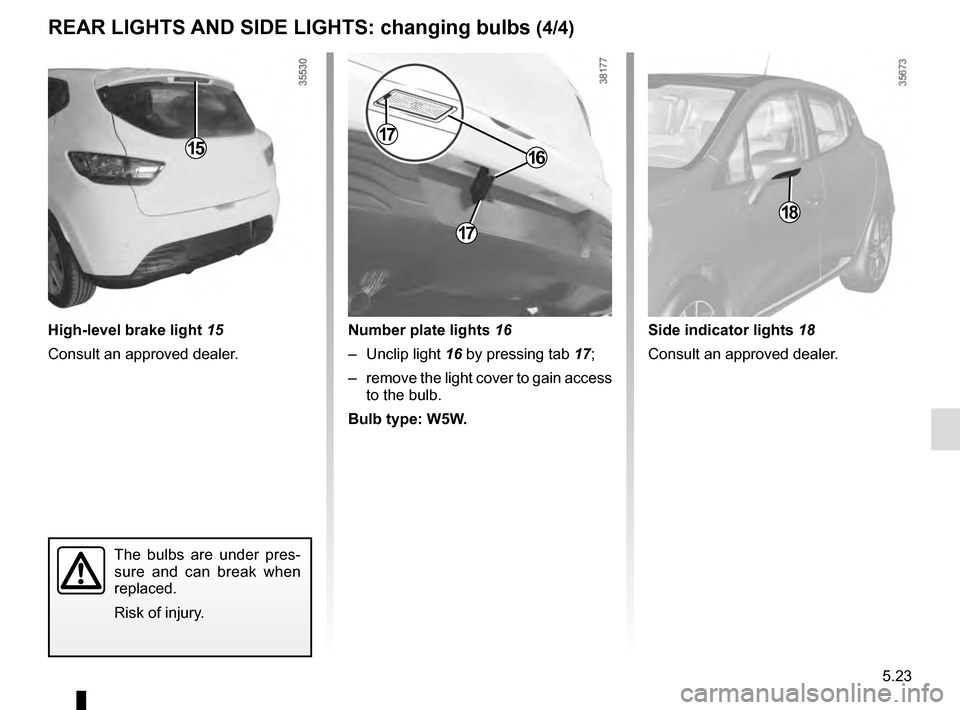

High-level brake light 15
Consult an approved dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (4/4)
18
Number plate lights 16
– Unclip light 16 by pressing tab 17;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.Side indicator lights 18
Consult an approved dealer.
17
16
17

5.24

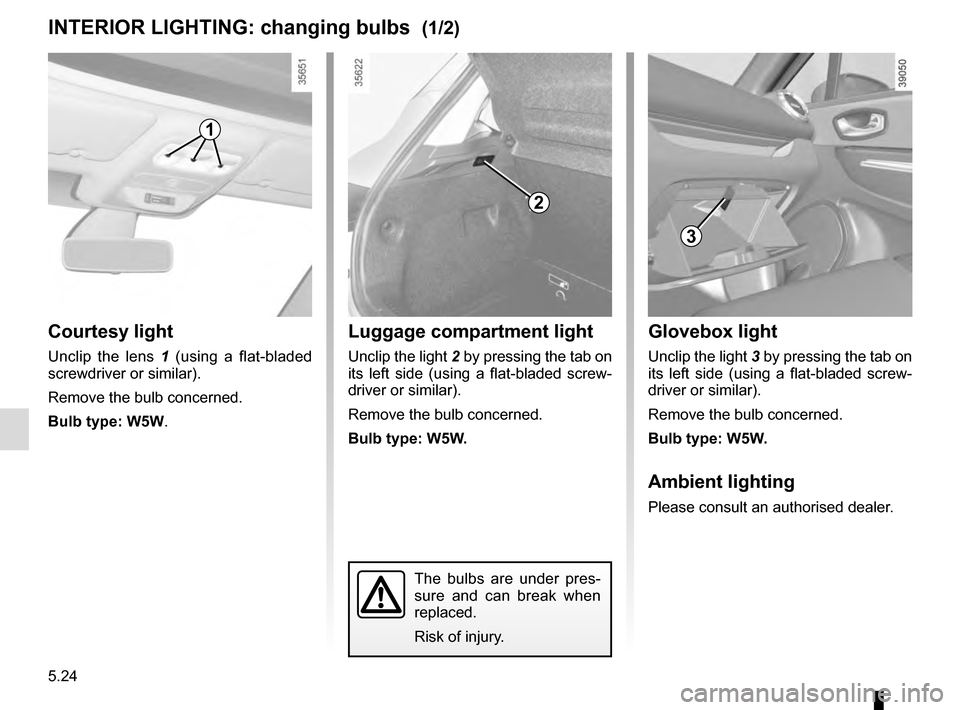

Courtesy light
Unclip the lens 1 (using a flat-bladed
screwdriver or similar).
Remove the bulb concerned.
Bulb type: W5W.
INTERIOR LIGHTING: changing bulbs (1/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
2
Luggage compartment light
Unclip the light 2 by pressing the tab on
its left side (using a flat-bladed screw-
driver or similar).
Remove the bulb concerned.
Bulb type: W5W.
Glovebox light
Unclip the light 3 by pressing the tab on
its left side (using a flat-bladed screw-
driver or similar).
Remove the bulb concerned.
Bulb type: W5W.
Ambient lighting
Please consult an authorised dealer.
3
