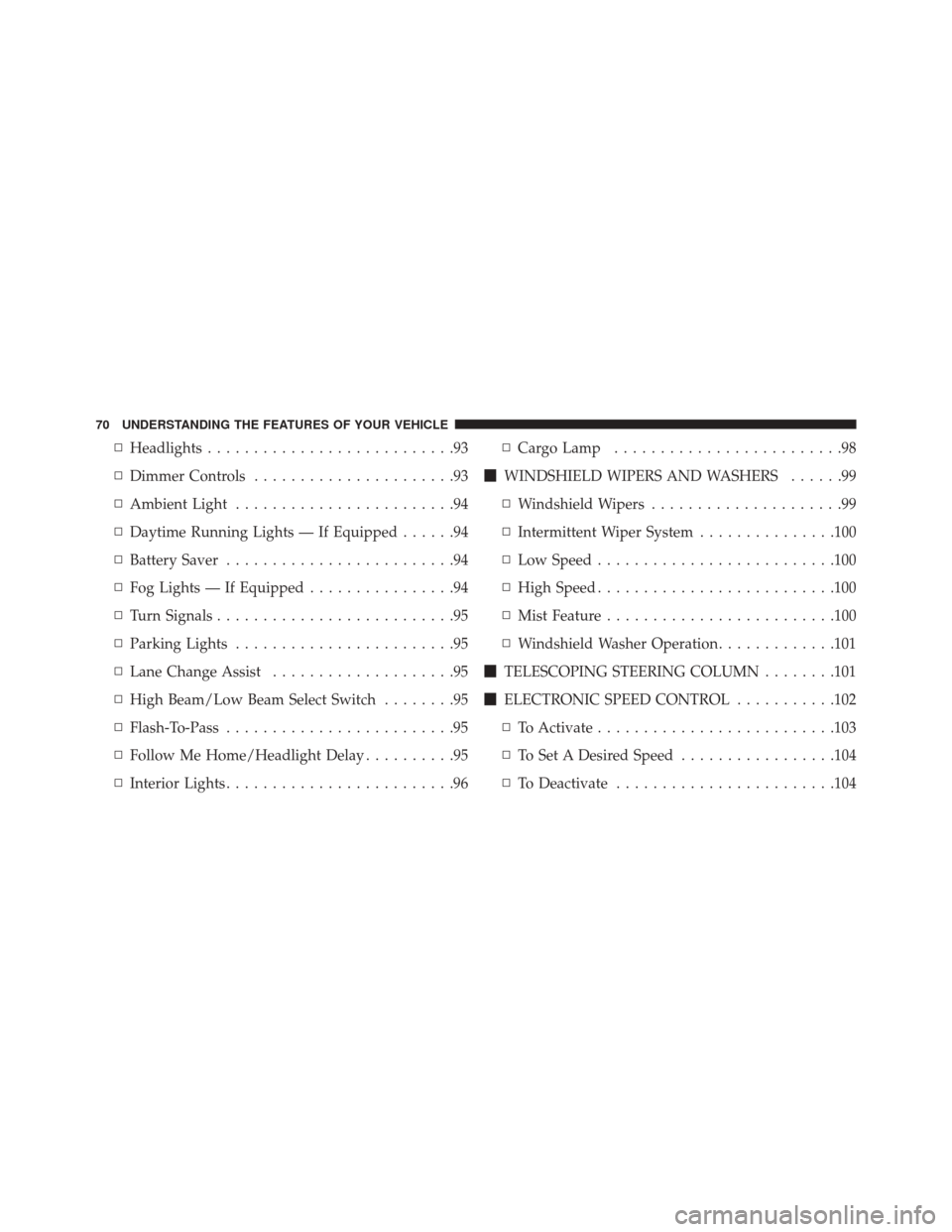

▫Headlights ...........................93
▫ Dimmer Controls ......................93
▫ Ambient Light ........................94
▫ Daytime Running Lights — If Equipped ......94
▫ Battery Saver .........................94
▫ Fog Lights — If Equipped ................94
▫ Turn Signals ..........................95
▫ Parking Lights ........................95
▫ Lane Change Assist ....................95
▫ High Beam/Low Beam Select Switch ........95
▫ Flash-To-Pass .........................95
▫ Follow Me Home/Headlight Delay ..........95
▫ Interior Lights .........................96 ▫
Cargo Lamp .........................98
 WINDSHIELD WIPERS AND WASHERS ......99
▫ Windshield Wipers .....................99
▫ Intermittent Wiper System ...............100
▫ Low Speed ......................... .100
▫ High Speed ......................... .100
▫ Mist Feature ........................ .100
▫ Windshield Washer Operation .............101
 TELESCOPING STEERING COLUMN ........101
 ELECTRONIC SPEED CONTROL ...........102
▫ To Activate ......................... .103
▫ To Set A Desired Speed .................104
▫ To Deactivate ....................... .104
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To prevent possible damage:
•Before closing hood, make sure the hood prop rod
is fully seated into its storage retaining clips.
• Do not slam the hood to close it. Use a firm
downward push at the center front edge of the
hood to ensure that both latches engage. Never
drive your vehicle unless the hood is fully closed,
with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signals, headlight beam
selection and the passing lights. The multifunction lever
is located on the left side of the steering column.
Multifunction Lever
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Ambient Light
The vehicle is equipped with ambient light on the dome
lamp, the ambient light will be on all the time with the
option of dimming it with the dimmer controls.
Daytime Running Lights — If Equipped
NOTE:When the headlights are turned on, the Daytime
Running Lights will be deactivated.
To activate the Daytime Running Lights (DRL), rotate the
end of the multifunction lever to the O (Off) position.
NOTE: The low beams and side/taillights will not be on
with DRL. The DRL function may be programmed to be
ON or OFF through the Uconnect system screen if
equipped, or through the instrument clusters menu.
Refer to “Uconnect Settings” or “EVIC” in “Understand-
ing Your Instrument Panel” for further information. The Daytime Running Lights will come on whenever the
ignition is ON, the headlight switch is off, the parking
brake is off, and the turn signal is off.
Battery Saver
To protect the life of your vehicle’s battery when the
ignition is OFF and any door is left ajar for 15 minutes the
interior lights will automatically turn off.
NOTE:
Battery saver mode is cancelled if the ignition is
ON.
Fog Lights — If Equipped
The fog light switch is located on the center
stack of the instrument panel, just below the
climate controls. Push the switch once to turn
the fog lights on. Push the switch a second time to turn
the fog lights off.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Parking Lights
These lights can only be turned on with ignition key in
the STOP position or removed, by moving the end of the
multifunction lever to O (off) position and then to the
headlight position.
The warning light telltale in the instrument panel comes
on. The lights stay on until the next ignition cycle is
performed.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash five
times then automatically turn off.
High Beam/Low Beam Select Switch
Pull the multifunction lever toward you to switch the
headlights to high beam. Pull the lever a second time to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will cause the high beam headlights to
turn on until the lever is released.
Follow Me Home/Headlight Delay
When this feature is selected the driver can choose to
have the headlights remain on for a preset period of time.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Cruise Control Engaged Indicator Light
Green TelltaleLight What It Means
Cruise Control Engaged Indicator Light
This light will turn on when the cruise control has been engaged.
Blue Telltale Indicator Light
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam. Pull the lever toward you for a temporary high
beam on,
flash to pass scenario.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 159

▫Appearance Care And Protection From
Corrosion .......................... .380
▫ Cleaning The Instrument Panel Cupholders . .386
 FUSES ............................. .387
▫ Underhood Fuses ..................... .387
▫ Interior Fuses ....................... .393
▫ Right Central Pillar Fuses ................397
 VEHICLE STORAGE ....................398
 REPLACEMENT BULBS .................399
 BULB REPLACEMENT ..................401
▫ Headlamps Low Beam And High beam .....401
▫ Front Turn Signal/Parking Lamps .........402▫
Daytime Running Lamp (DRL)/Front Side Marker
Lamp ............................. .402
▫ Front Fog Lamps ..................... .403
▫ Front, Rear Roof Lamps .................404
▫ Rear Tail, Stop, Backup, Turn Signal And Rear
Side Marker Lamps ....................404
 FLUID CAPACITIES ....................405
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .406
▫ Engine ............................ .406
▫ Chassis ........................... .408
352 MAINTAINING YOUR VEHICLE

CavityMini Fuse Description
F12 10 Amp Red Right Low Beam
F13 10 Amp Red Left Low Beam
F31 5 Amp Beige INT/A
F32 10 Amp Red SBMT
F34 7.5 Amp Brown Clearance Lights
F36 15 Amp Blue +30 (ACM – TPCU – RRM – DLC)
F37 5 Amp Beige INT (BRAKE NO – IPC)
F38 15 Amp Blue Central Locking
F42 5 Amp Beige INT (BSM – SAS – BRAKE NC)
F43 20 Amp Yellow Bi-Directional Washer Pump
F47 20 Amp Yellow Driver Power Window
F48 20 Amp Yellow Passenger Power Window
7
MAINTAINING YOUR VEHICLE 395

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead Lamp C5W
Sun Visors C5W
Courtesy Lamp FF500
Glove Compartment C5W
Rear Courtesy Lamp C5W
Exterior Bulbs
Bulb Number
Front Low and High Beam Headlamp H7LL
Front Park/Turn Signal Lamps 7444NA
7
