2016 Ram 3500 Owner's Manual

SLIDE-IN CAMPERS
Camper Applications
Certain truck models are not recommended for slide-in
campers. To determine if your vehicle is excluded, please
refer to the “Consumer Information Truck-Camper Load-
ing” document available from your authorized dealer.
For safety reasons, follow all instructions in this impor-
tant document.
NOTE:When a cap or pickup camper is installed on a
vehicle, an alternate Center High-Mounted Stop Light
(CHMSL) must be provided.
EASY-OFF TAILGATE
To simplify mounting of a camper unit with an overhang,
the tailgate can be removed.
NOTE: If your vehicle is equipped with a rear camera or
RKE (Remote Keyless Entry) the electrical connector
must be disconnected prior to removing the tailgate.
Disconnecting The Rear Camera Or Remote
Keyless Entry — If Equipped
1. Open the tailgate to access the rear camera or RKE (Remote Keyless Entry) connector bracket located on
the rear sill.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271

2. Remove the connector bracket from the sill by pushinginward in the locking tab. 3. Disconnect the chassis wiring harness, ensuring the
connector bracket does not fall into the sill.
4. Connect the chassis plug and bracket (provided in the glove box) to the chassis wiring harness and insert the
bracket back into the sill.
Connector BracketLocking Tab
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Connect the tailgate plug (provided in the glove box)to the tailgate wiring harness to ensure that the
terminals do not corrode.
6. Tape the tailgate harness and bracket against the forward-facing surface of the tailgate. This will pre-
vent damaging the connector and bracket when stor-
ing or reinstalling the tailgate.
Removing The Tailgate
1. Disconnect the wiring harness for the rear camera andor power locks (if equipped), refer to “Disconnecting
the Rear Camera — If Equipped” in this section.
2. Unlatch the tailgate and remove the support cables by releasing the lock tang from the pivot.
NOTE: Make sure tailgate is supported when removing
support cables. 3. Position the tailgate on a 45 degree angle.
4. Raise the right side of the tailgate until the right side
pivot clears the hanger bracket.
5. Slide the entire tailgate to the right to free the left side pivot.
Locking Tang
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273

6. Remove the tailgate from the vehicle.
NOTE:Do not carry the tailgate loose in the truck
pickup box.
WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with “Cap
or Slide-In Campers” should extend beyond the
overhanging camper compartment and be free of
leaks.
Locking Tailgate
The lock is located next to the tailgate handle. The
tailgate can be locked using the vehicle key or by locking
the truck with the key-fob if equipped with remote
keyless entry.
TRI-FOLD TONNEAU COVER — IF EQUIPPED
Your vehicle may be equipped with a Tri-Fold Tonneau
Cover which consists of different features:
• Easy Tri-Fold cover
• Tonneau fore aft locator
• Crosscar inside bed locator
• Front and rear clamps
• Stowage strap
• Locking Capability
NOTE: The Tonneau Cover can be folded up and secured
at the front of the box without removing completely.
Tri-Fold Tonneau Cover Removal
To remove the Tonneau Cover follow the following steps:
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

1. Lower the tailgate to gain access to the first set of twotonneau cover clamps located on the driver and pas-
sengers under side of the tonneau cover. 2. Pull down on the first set of clamps on both driver and
passenger sides to the semi clamped position.
Clamped Position
NOTE: If clamp wire is damaged replace immediately.
Semi Clamped Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275

3. Pull down on the clamp wire and push the clamp upinto the proper released position.
NOTE: Be sure the clamp and clamp wire is in the
proper released position.
Proper Released Position
Improper Clamp Wire Released Position
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

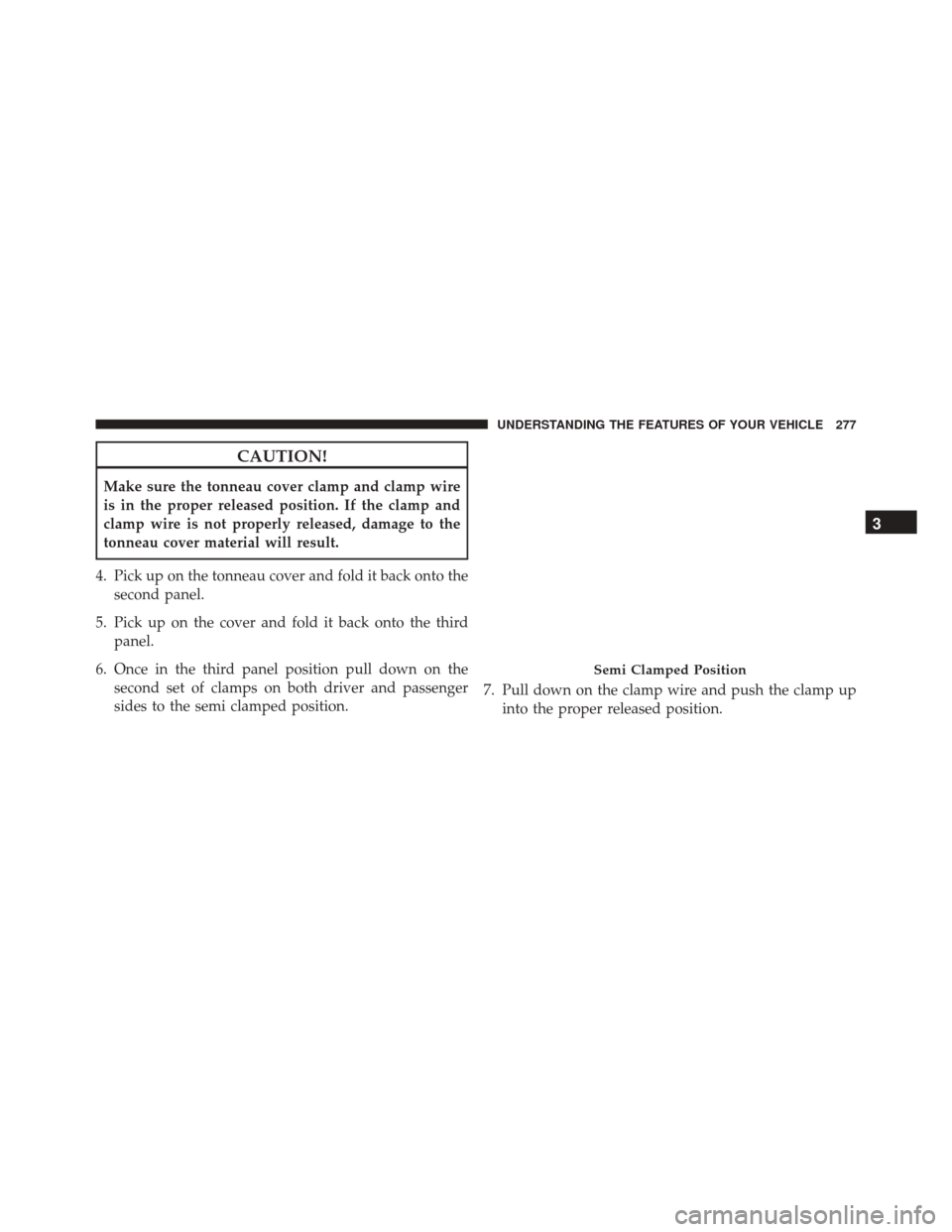

CAUTION!
Make sure the tonneau cover clamp and clamp wire
is in the proper released position. If the clamp and
clamp wire is not properly released, damage to the
tonneau cover material will result.
4. Pick up on the tonneau cover and fold it back onto the second panel.
5. Pick up on the cover and fold it back onto the third panel.
6. Once in the third panel position pull down on the second set of clamps on both driver and passenger
sides to the semi clamped position. 7. Pull down on the clamp wire and push the clamp up
into the proper released position.
Semi Clamped Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277

8. Be sure to clip both stowage straps together to insurethe cover stays together. 9. With two people remove the cover.
NOTE:
Be sure the Tonneau Cover has been folded
completely before removing.
Tri-Fold Tonneau Cover Installation
To install the Tonneau Cover follow the following steps:
Proper Released PositionStowage Strap
278 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
