4. Air intake / Air recirculation
F Press this button to recirculate the interior air. th e indicator
lamp comes on to confirm this.
F

P
ress the button again to
permit the intake of exterior air.
th

e indicator lamp goes off to
confirm this.
th

e intake of exterior air prevents the formation
of mist on the windscreen and side windows.
th

e recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air quality
and the formation of mist.
5. Air conditioning On / Off
the air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables you to:
-

l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press the "A /C " button, its indicator lamp
comes on.
th

e air conditioning does not operate when the
air flow adjustment is set to off.
6. Automatic visibility programme
See "Front demisting - Defrosting".
Switching off
F Press the "A /C " button again, its indicator
lamp goes off.
Switching off may result in some discomfort
(humidity, misting).
to o
btain cool air sooner, you can use
recirculation of the interior air for a few
moments. t
h
en return to the intake of
exterior air.
3
ease of use and comfort

88
508_en_Chap03_ergonomie-et-confort_ed01-2016
Dual-zone digital air conditioning
the air conditioning can only operate with the engine running.
Automatic operation
When the engine is cold, to prevent
too great a distribution of cold air, the
air flow will reach its optimum level
gradually.
In cold weather, it favours the
distribution of warm air to the
windscreen, side windows and footwells
o n l y.
F
P
ress this "AUTO"
button. th
e

indicator lamp comes on.
1. Automatic comfort programme
We recommend that you use this mode. It
automatically adjusts all settings to provide
optimum operation for the comfort level
chosen: passenger compartment temperature,
air flow, air distribution and air recirculation.
th

is system is designed to operate effectively
in all seasons, with the windows closed.
2 - 3. Driver-passenger side adjustment
the driver and front passenger can each adjust
the temperature to their requirements.
th

e value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
F
t
u
rn control 2 or 3 to the left
(blue) or to the right (red)
respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.
ease of use and comfort

90
508_en_Chap03_ergonomie-et-confort_ed01-2016
8. Air distribution adjustment
F Press the corresponding button for:Windscreen and side windows.
Centre and side vents.
Footwells.
to s

uit your requirements, you can
combine two distribution buttons or
select the three distribution modes
simultaneously.
9. Air flow adjustment
F Press this "full fan" button to
increase the air flow.
F
Press "empty fan" button to
reduce the air flow.
10. Air intake / Air recirculation
F Press this "empty fan" air
flow button until the fan symbol
disappears and "--" appears.
Switching the system off
F Press this button for recirculation
of the interior air. th e indicator
lamp on the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exterior
odours and smoke. It is activated automatically
when operating the screenwash.
Avoid driving for long periods with the
system off (risk of condensation and
deterioration of the air quality).
Pressing the "full fan" button
reactivates the system with the values
in use at the time it was switched off.
th

e air flow symbol, the fan, fills progressively
according to the value requested.
th

is action switches off all of the functions of
the air conditioning system.
te

mperature related comfort is no longer
guaranteed but a slight flow of air, due to the
for ward movement of the vehicle, can still be felt. F

A

s soon as possible, press this button
again to permit the intake of outside air and
prevent the formation of condensation.
t
h
e
indicator lamp in the button goes off.
ease of use and comfort

91
508_en_Chap03_ergonomie-et-confort_ed01-2016
Quad-zone digital air conditioning
Automatic operation
1. Automatic comfort programme
the Soft /Auto/Fast modes allow the driver
and front seat passenger to select their
desired comfort settings for the passenger
compartment:
2. Activating/deactivating the rear air conditioning 3 - 4.

D
river-passenger side
adjustment
the driver and front passenger can each adjust
the temperature to their requirements.
th

e value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Favours optimum gentle and silent
operation by limiting the air flow.
Offers the best compromise between
thermal comfort and silence of
operation.
Favours dynamic and effective air
f low. Press this button to deactivate the
rear air conditioning and lock the
system. A padlock appears in the
LCD screen. When the rear system
is reactivated, automatic mode is
selected with the last temperature
settings used. F
t
u
rn control 3 or 4 to the left
(blue) or to the right (red)
respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.
th

e air conditioning can only operate with the engine running.
3
ease of use and comfort

93
508_en_Chap03_ergonomie-et-confort_ed01-2016

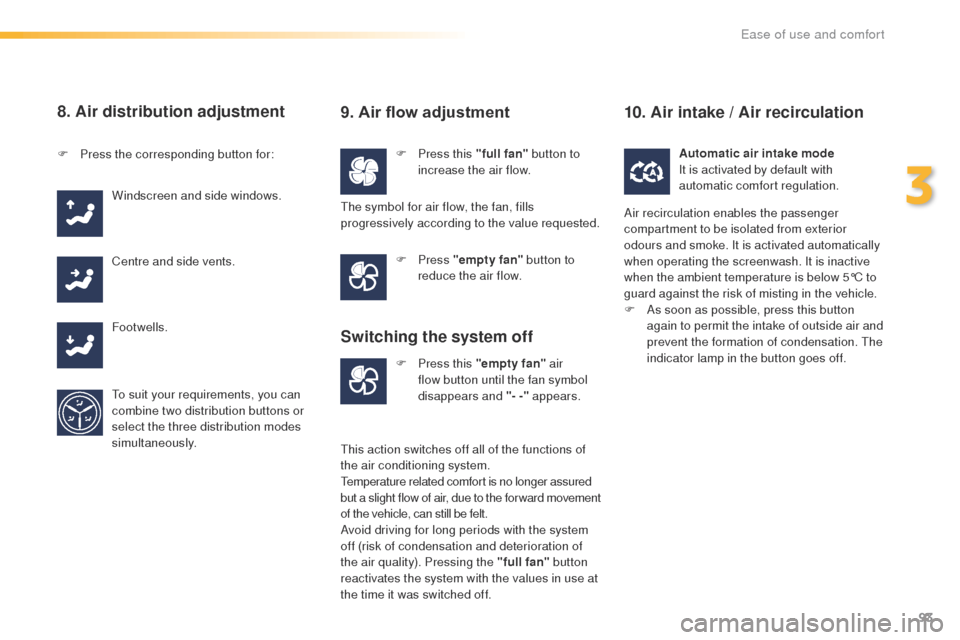

8. Air distribution adjustment
F Press this "full fan" button to
increase the air flow.
F
P
ress the corresponding button for:
Windscreen and side windows.
Centre and side vents.
Footwells.
to s

uit your requirements, you can
combine two distribution buttons or
select the three distribution modes
simultaneously. F
Press "empty fan" button to
reduce the air flow.
F

P
ress this "empty fan" air
flow button until the fan symbol
disappears and "- -" appears. Automatic air intake mode

It is activated by default with
automatic comfort regulation.
9. Air flow adjustment
the symbol for air flow, the fan, fills
progressively according to the value requested.
Switching the system off
this action switches off all of the functions of
the air conditioning system.
te

mperature related comfort is no longer assured
but a slight flow of air, due to the for ward movement
of the vehicle, can still be felt.
Avoid driving for long periods with the system
off (risk of condensation and deterioration of
the air quality). Pressing the "full fan" button
reactivates the system with the values in use at
the time it was switched off.
10. Air intake / Air recirculation
Air recirculation enables the passenger
compartment to be isolated from exterior
odours and smoke. It is activated automatically
when operating the screenwash. It is inactive
when the ambient temperature is below 5°C to
guard against the risk of misting in the vehicle.
F

A
s soon as possible, press this button
again to permit the intake of outside air and
prevent the formation of condensation.
t
h
e
indicator lamp in the button goes off.
3
ease of use and comfort

94
508_en_Chap03_ergonomie-et-confort_ed01-2016
Adjusting the rear passenger comfort level
1. Automatic comfort programme
F Press the "AUTO" button. th e
lamp in the button comes on.
We recommend that you use this mode. It
automatically adjusts all settings to provide
optimum operation for the comfort level
chosen: passenger compartment temperature,
air flow and air distribution.
th

is system is designed to operate effectively
in all seasons, with the windows closed.
2. Air distribution adjustment 3. T emperature adjustment, left
and right
Press the corresponding button successively for:th e left and rear passengers can each adjust
their temperature setting independently.
th

e value indicated in the screen is a level
of comfort and not a temperature in degrees
Celsius or Fahrenheit.
F
t
u
rn the dial to the left to lower the
value and to the right to raise it.
-

F
ootwell and centre vent.
-

C
entre vent.
-

A
utomatic control of air
distribution.
th

e rear air conditioning controls only operate
if, from the front:
-

the
REAR button is activated,
-
t
he automatic visibility programme is not
activated.
A setting around 21 provides an optimum
level of comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.
en

sure that the air grilles and vents on the floor
are not obstructed.
ease of use and comfort

96
508_en_Chap03_ergonomie-et-confort_ed01-2016

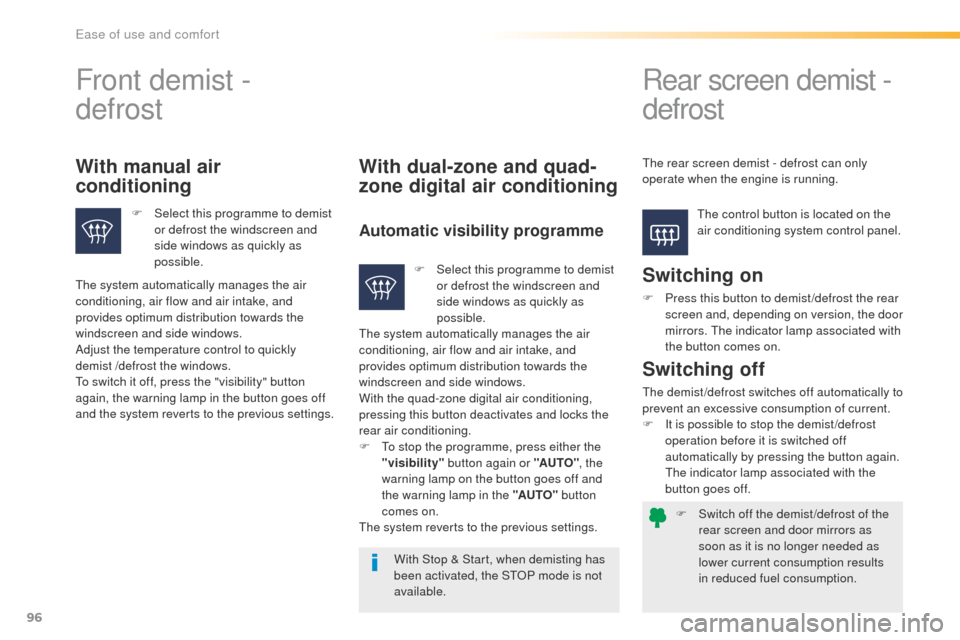

F Switch off the demist /defrost of the rear screen and door mirrors as
soon as it is no longer needed as
lower current consumption results
in reduced fuel consumption.
Front demist -
defrost Rear screen demist
-
defrost
the control button is located on the
air conditioning system control panel.
With manual air
conditioning
F Select this programme to demist
or defrost the windscreen and
side windows as quickly as
possible.
With dual-zone and quad-
zone digital air conditioning
Automatic visibility programme
Switching on
F Press this button to demist /defrost the rear screen and, depending on version, the door
mirrors.
t
h
e indicator lamp associated with
the button comes on.
With Stop & Start, when demisting has
been activated, the S
tO

P mode is not
available.
Switching off
the demist /defrost switches off automatically to
prevent an excessive consumption of current.
F

I
t is possible to stop the demist /defrost
operation before it is switched off
automatically by pressing the button again.
th

e indicator lamp associated with the
button goes off.
th

e system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
Adjust the temperature control to quickly
demist


/defrost the windows.to s
witch it off, press the "visibility" button
again, the warning lamp in the button goes off
and the system reverts to the previous settings. F

S

elect this programme to demist
or defrost the windscreen and
side windows as quickly as
possible.
th

e system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
With the quad-zone digital air conditioning,
pressing this button deactivates and locks the
rear air conditioning.
F
t
o s

top the programme, press either the
"visibility" button again or "AUTO" , the
warning lamp on the button goes off and
the warning lamp in the "AUTO" button
comes on.
the

system reverts to the previous settings.
th
e rear screen demist - defrost can only
operate when the engine is running.
ease of use and comfort

97
508_en_Chap03_ergonomie-et-confort_ed01-2016
Programmable heating
mode
this is an additional and separate system
which heats the engine hot water circuit
to improve defrosting and to preheat the
passenger compartment.
th
is indicator lamp comes on only
when if the system is programmed in
programmable heating mode.With the ignition on, press the left hand steering
mounted thumb wheel for access to the main menu.
Programming
F In the "Main menu", select "Pre-heating /
Pre-ventilation".
F

S
elect "Activation" and if necessary for
programming, "Parameters".
F

S
elect "Heating" to preheat the engine or
passenger compartment or "Ventilation" to
ventilate the passenger compartment.
Programmable Heating / Ventilation
Programmable ventilation
mode
this mode allows ventilation of the passenger
compartment with exterior air to improve the
temperature experienced on entering the
vehicle in summer. F
Select:
-
i
mmediate to start the heating or
ventilation (once confirmed "OK"),
-
t
he first clock to programme/store your
departure time,
-
t
he second clock to programme/store a
second departure time.
Depending on the departure time chosen, the
system calculates automatically the optimum
time to start operating.
th
e immediate or programmed
activation of ventilation mode depends
on the temperatures inside and outside
the vehicle.
us
ing these two clocks and according
to season you can, for example, select
one or the other departure time.
A message in the instrument panel
screen confirms your choice.
3
ease of use and comfort
