2016 Peugeot 508 RXH gearbox

238
508_en_Chap08_en-cas-de-pannes_ed01-2016
F Place the foot of the jack 2 on the ground and ensure that it is directly below the
front
A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake unless it has
been programmed to automatic mode.
Switch off the ignition.
With a manual gearbox, engage first
gear to block the wheels.
With an automatic gearbox, place the
lever in position P to block the wheels.
Check that the braking warning lamp
and the P warning lamp in the parking
brake control lever come on. F

R
emove the wheel bolt cover from each
of the bolts using the tool 3 (according to
equipment).
F

F
it the security socket 4 on the
wheelbrace


1 to slacken the security bolt
(if


fitted).
F

S
lacken the other bolts using the
wheelbrace 1 o n l y.
th

e occupants must get out of the vehicle and wait where they are safe.
Never go underneath a vehicle raised using a jack; use an axle stand.
If your vehicle does not have a jack, contact a P
e

uge
Ot
dealer or a qualified workshop for
the part numbers of the tools needed to change a wheel: jack and wheelbrace.
Do not use:
-

t
he jack for any other purpose than
lifting the vehicle,
-

a j
ack other than the one supplied
by the manufacturer.
In the event of a breakdown

253
508_en_Chap08_en-cas-de-pannes_ed01-2016
12 V battery
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a P
e
uge
Ot
dealer or a
qualified workshop.
th
e battery is located under the bonnet.
to g

ain access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior safety catch,
F r emove the plastic cover on the (+)
terminal,
F

i
f necessary, unclip the fusebox to remove
the battery.
Access to the battery
Procedure for starting the engine using another battery or charging a discharged battery.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.
Batteries contain harmful substances
such as sulphuric acid and lead.
th

ey must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
ta

ke used remote control batteries and
vehicle batteries to a special collection
point.
General points
Lead-acid starter batteries
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
8
In the event of a breakdown

257
508_en_Chap08_en-cas-de-pannes_ed01-2016
Removing - refitting the battery*
* Valid only for Saloon, SW and non-hybrid
RHX.
th

is procedure allows you to safely remove the
battery when needed to change a failed bulb.
You can also call on a P
e

uge
Ot


dealer or a qualified workshop to carry
out this procedure.
Before removal
- Place the vehicle in a ventilated location, with free access and preferably on a level
sur face.
-

A
pply the parking brake.
-

P
ut the gear lever into neutral (position N
for an automatic gearbox).
-

I
f the vehicle has an alarm, leave the
bonnet open to avoid triggering the alarm.
-

L
eave at least one window open if in a
secure location, other wise lock all the
doors and the boot. -
I f the vehicle has a motorised tailgate,
it will not be possible to open it after
disconnecting the battery.
-

S
witch off the ignition and remove the key.
-

I
f the vehicle has Keyless e
n
try and
Starting, take the remote control at least
3
metres away from the vehicle.
-

W
ait about 4 minutes (or 12 minutes
with an automatic gearbox) before
disconnecting the battery.
8
In the event of a breakdown

260
508_en_Chap08_en-cas-de-pannes_ed01-2016
Refitting
to reassemble, carry out the removal
operations in reverse order, connecting the
positive (+) terminal last.
After refitting
- Check that the battery terminals are secure.
-

S
witch on the ignition, without starting the
engine.
-

C
heck that there are no error messages or
warning lamps on. If necessary contact a
P
e

uge
Ot
dealer or a qualified workshop
to have the system reset.
-

C
heck the correct operation of all doors
and windows.
-

A
fter refitting, wait around 1 minute (or
2
minutes for an automatic gearbox).
-

S
tart the engine.
-

C
heck the correct operation of anti-pinch
systems: electric windows, opening roof,
panoramic sunroof. -

I
f the vehicle has an electric parking
brake, check that it is working correctly by
releasing and applying it.
-
S
witch the ignition off.
- g
e
t out of the vehicle then check that the
remote control works correctly.
-
S
et: the time, the preset radio stations and
the audio settings.
After refitting the battery, some systems
may be temporarily unavailable:
Stop (Stop & Start), Air conditioning,
Navigation.
In all cases, contact a P
e

uge
Ot
dealer
or a qualified workshop if there are any
faults after refitting the battery.
In the event of a breakdown

262
508_en_Chap08_en-cas-de-pannes_ed01-2016
towing the vehicleProcedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
Towing your vehicle
Access to the tools
the towing eye is installed in the boot under
t h e f l o o r.
to g

ain access to it:
F

o
pen the boot,
F

p
osition the floor vertically,
F

r
emove the towing eye. F
O n the front bumper, unclip the cover by
pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on the
towed vehicle. Put the gear lever into neutral
(position


N for an automatic gearbox).
Failure to follow this instruction could
lead to damage to certain components
(brakes, transmission, ...) and the
absence of braking assistance on
restarting the engine.
In the event of a breakdown

263
508_en_Chap08_en-cas-de-pannes_ed01-2016
General recommendations
Observe the legislation in force in your country.ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
th

e driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
th

e towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

v
ehicle broken down on a motor way or fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
-

t
owing with only two wheels on the ground,
-

w
here there is no approved towing arm available...

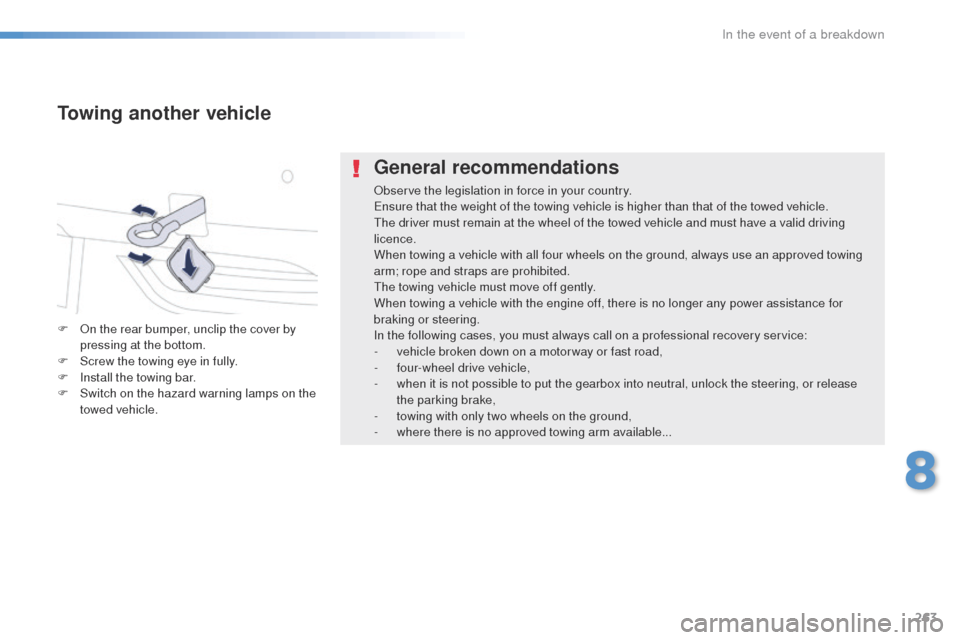

Towing another vehicle
F On the rear bumper, unclip the cover by pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on the
towed vehicle.
8
In the event of a breakdown

264
508_en_Chap09_caracteristiques-techniques_ed01-2016
Petrol engine1.6 litre THP 15 0 / 15 61.6 litre THP 165 S&S
Gearbox Automatic
(6-speed) Manual
(6-speed)
eAt6

automatic
(6-speed)
Model code


8D...: 508 saloon


8E...: 508 SW 8D5FNA - 8
e5

FNA
8 D5 F VA - 8
e5

F VA8 D 5 F Z A* * 8D5GZM/S
8E5GZM/S 8 D5G Z T/S
8E5GZT/S
Cubic capacity (cc) 1 5981 6 01* * 1 598
Bore x stroke (mm) 77 x 85.877 x 85.8
Max power:
eu standard (kW)* 11 0
115 115 * *
121
Max power engine speed (rpm) 6 0006 000
Max torque:
eu standard (Nm) 240240
Max torque engine speed (rpm) 1 4003 000** 1 400
Fuel
u

nleaded
u
nleaded
Catalytic converter yesyes
Oil capacities (in litres)
eng

ine (with filter replacement) 4.254.25
Petrol engines and gearboxes
* the maximum power corresponds to the value type approved on a test bed, under conditions defined by eu ropean legislation
(Directive 1999/99/eC ).
** For Iran only.
technical data

265
508_en_Chap09_caracteristiques-techniques_ed01-2016
* the kerb weight is equal to the unladen weight + driver (75 kg).
** th e weight of the braked trailer can be increased, within the gtW l imit, if the gV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Petrol weights and towed loads (in kg)
Petrol engine 1.6 litre THP 150 / 1561.6 litre THP 165 S&S
Gearbox Automatic
(6-speed) Manual
(6-speed)
eAt6

automatic
(6-speed)
Model code 8D5FNA
8 D5 F VA 8D5FZA*** 8
e5

FNA
8
e5

F VA8D5GZM/S 8E5GZM/S
8 D5G Z T/S8E5GZT/S
Body SaloonSWSaloon SWSaloon SW
-
u
n
laden weight 1 4101 430 1 400 1 4201 4101 430
-

K
erb weight* 1 4851 5051 4751 495 1 485 1 505
-
g
r
oss vehicle weight
(
g
V
W) 2 015
2 10 01 995 2 080 2 0152 10 0
-
g
r
oss train weight (
g
t
W
)
o

n a 12 % gradient 3 615
2 515*** 3 600 3 595 3 580 3 6153 600
-

B
raked trailer (within gt
W l
imit)
o

n a 10 % or 12 % gradient 1 600
500*** 1 500 1 600 1 500 1 600 1 500
-

B
raked trailer** (with load transfer within
the
gt
W l
imit) 1 875
775*** 1 7751 8751 775 1 8751 775
-


u
nb
raked trailer 74 0500*** 750735 74 5 74 0 750
-
R

ecommended nose weight 7575
*** For Iran only.
th

e gt
W a
nd towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
th

e speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
9
technical data
