2016 Peugeot 508 service reset

33
508 _en_Chap01_instrument-bord_ed01-2016
Service indicator
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System informing the driver when the next
service is due, in line with the manufacturer's
service schedule.
It is calculated from the last service indicator
reset according to the distance travelled and
the time elapsed since the last service.
For BlueHDi Diesel versions only (depending
on country of sale), the level of deterioration of
the engine oil is also taken into account.
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
the spanner symbolising the service
operations comes on tor a few seconds after
the ignition is switched on.
t
h
e distance
recorder display line indicates the distance
remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
A few seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation.
t
h
e screen then
indicates the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
Illumination of the spanner is
accompanied by a message in the
instrument panel screen.
With BlueHDi Diesel versions the
Service
warning lamp may come on as
soon as the ignition is switched on.
1
Instruments

34
508 _en_Chap01_instrument-bord_ed01-2016
Service overdue
the spanner flashes for a few seconds after
the ignition is switched on, to indicate that the
service must be carried out as soon as possible.
Example: the service is overdue by 180 miles
(3 0 0 k m).
For a few seconds after the ignition is switched
on, the screen indicates:
the
mileage remaining may be
weighted by the time factor, depending
on the driving conditions in which the
vehicle is used.
th

e spanner may also come on if
you have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
With BlueHDi Diesel versions, the
spanner can also come on in advance
of the service interval, according to the
level of deterioration of the engine oil,
which depends on the driving conditions
in which the vehicle is used. If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on
.
Resetting the service indicator
After each service, the service indicator must
be reset to zero.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.


t
h
e service information is displayed for a
few seconds, then disappears.
If you have carried out the service on your
vehicle yourself:
F

s
witch off the ignition,
F
p
ress and hold the trip distance recorder
zero reset button,
F
s
witch on the ignition; the distance recorder
display begins a countdown,
F
w
hen the display indicates "=0"
, release
the button; the spanner disappears.
Instruments

256
508_en_Chap08_en-cas-de-pannes_ed01-2016
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
Disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
F
c
lose the windows and the doors before
disconnecting the battery,
F

s
witch off all electrical consumers (audio
system, wipers, lighting, ...),
F

s
witch off the ignition and wait for
four


minutes.
Having exposed the battery, it is only
necessary to disconnect the (+) terminal.Following reconnection of
the battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a P
e

uge
Ot
dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-

t
he remote control or electronic key
(depending on version),
-

t
he electric blind(s),
-

t
he electric windows
-

t
he date and time,
-

t
he radio preset stations.
Quick release terminal
Disconnecting the (+) terminal
F Ra ise the lever A fully to release the
clamp


B.
Reconnecting the (+) terminal
F

P
osition the open clamp B of the cable on
the positive post (+) of the battery.
F

P
ress down on the clamp to position it
correctly on the battery post.
F

L
ock the clamp by lowering the lever A .
th

e Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).
In the event of a breakdown

290
508_en_Chap10c_SMegplus_ed01-2016
Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.Display of "Radiotext" for
the current station. Select the audio source.
Display the "DAB" band.
Display of the name of the
current station.
Short-cut: access to the choice of audio source
and the list of stations (or titles, depending on the
s o u r c e).
Select the radio station.
Any thumbnail broadcast by
the station.
Preset stations, buttons 1
to 15
Short press: select the
preset radio station.
Long press: preset a radio
station. Next "Multiplex".
Next radio station.
Secondary page.
Display the name and
number of the multiplex
service being used. Previous "Multiplex".
Previous radio station.

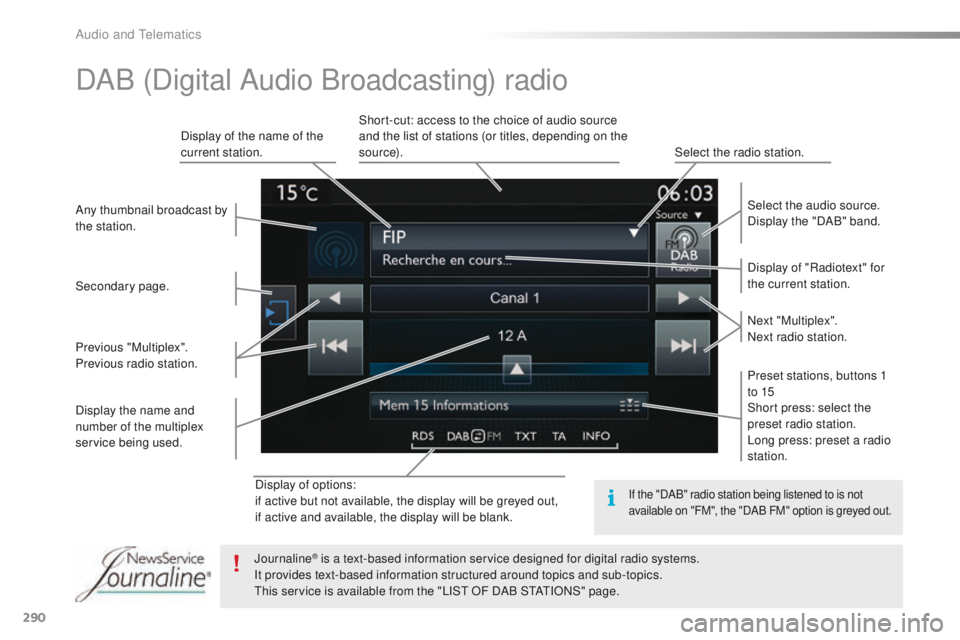

DAB (Digital Audio Broadcasting) radio
If the "DAB" radio station being listened to is not
available on "FM", the "DAB FM" option is greyed out.
Journaline® is a text-based information service designed for digital radio systems.
I
t provides text-based information structured around topics and sub-topics.
th

is service is available from the "LIS
t
OF DAB S
tAtI
ONS" page.
Audio and telematics

356
508_en_Chap11_index-alpha_ed01-2016
Player, Apple® ......................................294, 345
Player, MP3 CD ............................ 292, 343, 344
Port,
u
S

B

..................................... 1

08, 292, 345
Pressures, tyres


............................................ 273
Pre-tensioning seat belts


.............................. 13 8
Priming the fuel system
................................ 228
Protecting children


................................ 13 8, 140, 143 -15 8
Puncture


........................................................ 229Reservoir, headlamp wash /
screenwash ................................................. 220
Resetting the service indicator


.......................34
Reversing camera


.........................................19 9
Reversing lamp
..................................... 24

5, 246
Risk areas (update)
.......................................307
Roof bars
....................................................... 2

12
Roof, opening


........................................104, 10 6
Running out of fuel (Diesel)

..........................2

28
Safety, children


................................13 8, 140, 143 -15 8
Saturation of the particle filter (Diesel)

.........2

21
Screen, cold climate
.....................................204
Screen, touch
...............................

.................271
Screen, instrument panel


..........................28, 39
Screen menu map


...............282, 284, 286, 296,
298, 302, 310, 320, 322
Screen, multifunction (with audio system)
............................340, 348
Screenwash, front/rear


.................................128
SCR (Selective Catalytic Reduction)


............223
Seat belts
............................................... 13

6 -13 8
Seats, front
...............................

.................75 -77
Seats, heated


..................................................78
Seats, rear


.....................................................109
Serial number, vehicle
.................................. 2

73
Service indicator


.............................................33
Service warning lamp


.....................................20
Servicing
...............................

..........................11
Settings, system


......................................28, 310
Sidelamps


.....................117, 125, 242, 245, 246
ta

ble of weights
...................................26

5, 268
tab

les of engines

..................................264, 267
ta

bles of fuses ..............................................249
ta

nk, AdBlue
® additive .................................2 23t
a n k , f u e l
....................................................... 200
te

chnical data

............................................... 264
te

lephone


..................................................... 320
te

mperature, coolant

...................................... 30
th

ird brake lamp

........................................... 248
S
T
Side repeater .............................. ..................244
Ski flap .............................. ............................111
Snow chains
.................................................. 20

3
Socket, 12 V accessory

................1

0 1, 1 0 8 , 111
Sockets, audio


.....................108, 292, 345, 346
Speed limiter


......................................... 188, 192
Spotlamps, side


.................................... 125, 24 4
Stability control (DSC)


............................18, 13 3
Starting the engine


...............................161, 165
Starting using another battery
...................... 25

4
Station, radio
........................................ 2

88, 340
Steering mounted controls, audio


.......280, 339
Steering wheel, adjustment


............................79
Stop & Start


.................... 17, 42, 89, 92, 96, 180,
200, 214, 221, 253, 256
Storage


.............................. 9 9 , 1 0 1, 1 0 7, 111 -113
Storage wells


................................................ 113
Storing driving positions


.................................77
Stowing rings


........................................ 112 , 113
Sun visor


....................................................... 101
Switching off the engine
....................... 16

1, 165
Synchronising the remote control


.............54, 63
Radio


.................................................... 288, 340
Radio, digital (Digital Audio Broadcasting - DAB)


................................... 290
Range, AdBlue


.......................................... 35, 36
RDS


....................................................... 2 8 9 , 3 41
Rear screen, demisting


................................... 96
Recharging the battery
................................. 25

5
Reduction of electrical load


.......................... 261
Regeneration of the particle filter

.......................................... 221
Reinitialising the remote control
............... 5

4, 63
Reminder, lighting on


.................................... 11 9
Remote control
.................................... 4

9, 55, 69
Removing a wheel

........................................ 238
Removing the battery .................................... 257
Removing the mat


......................................... 10 0
Replacing bulbs


............................................ 242
Replacing fuses
..............................

.............. 249
Replacing the air filter


................................... 221
Replacing the oil filter
................................... 2

21
Replacing the passenger compartment filter


...................................... 221
R
Alphabetical index
