2016 Peugeot 508 reset

288
508_en_Chap10c_SMegplus_ed01-2016
Press on Media to display the
primary page. Press on Media to display the
primary page then select " Save".
If necessary, select change of
source. Press on Media
to display the
primary page.
By automatic frequency search
Select " Radio list " in the secondary
page. Select a preset radio station
in the list.
Select " FM Radio " or "AM Radio ".
Select a radio station from
the list offered.
Select " Update list " to refresh the
list. Press on Media to display the
primary page then go to the
secondary page.
Select " List" in the primary page.
Radio
Changing a radio frequency
Selecting a station
OR
orOR
the exterior environment (hills, buildings,
tunnel, car park, below ground...) may
prevent reception, even in RDS station
tracking mode.
t
h
is phenomenon is
normal in the propagation of radio waves
and is in no way indicative of a fault with
the audio system.
or
Press 3 or 4 to move the cursor for an
automatic search down or up for a radio
frequency.Press on Media to display the
primary page then press on the
secondary page.
Press on " Enter frequency " to
display the primary page then press
on the secondary page.
Audio and telematics

289
508_en_Chap10c_SMegplus_ed01-2016

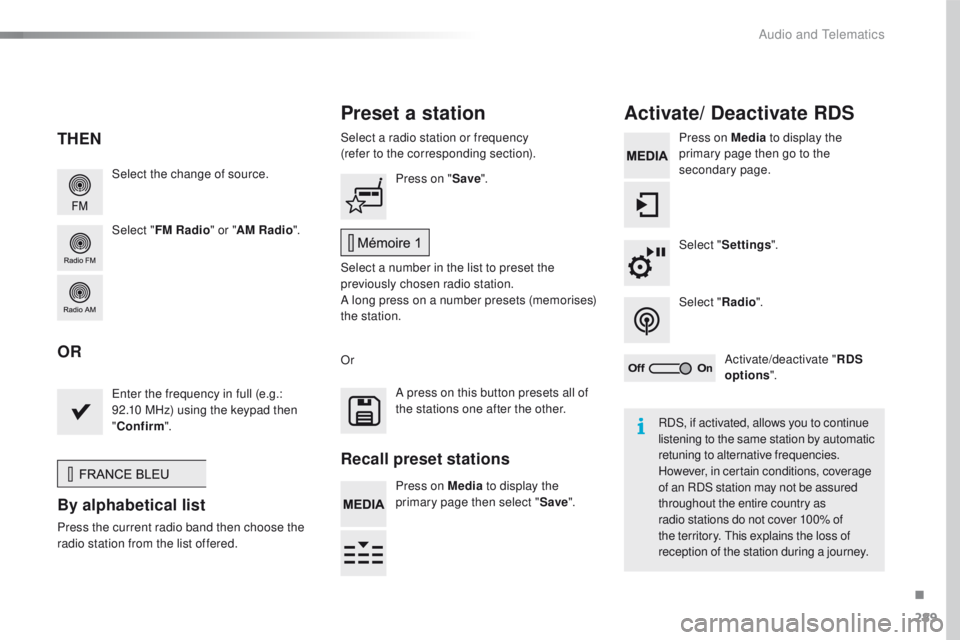

Select the change of source.
Select "FM Radio " or "AM Radio ".Select a radio station or frequency
(refer to the corresponding section).
Press on Media
to display the
primary page then go to the
secondary page.
Select " Settings ".
Select " Radio".
Activate/deactivate " RDS
options ".
Press on "
Save".
Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.
en

ter the frequency in full (e.g.:
92.10 MHz) using the keypad then
" Confirm ".
By alphabetical list
Press the current radio band then choose the
radio station from the list offered. Or
Press on Media to display the
primary page then select " Save".
Preset a station Activate/ Deactivate RDS
THEN
OR
A press on this button presets all of
the stations one after the other.
Recall preset stations
RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as
radio stations do not cover 100% of
the territory.
t
h
is explains the loss of
reception of the station during a journey.
.
Audio and telematics

290
508_en_Chap10c_SMegplus_ed01-2016
Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.Display of "Radiotext" for
the current station. Select the audio source.
Display the "DAB" band.
Display of the name of the
current station.
Short-cut: access to the choice of audio source
and the list of stations (or titles, depending on the
s o u r c e).
Select the radio station.
Any thumbnail broadcast by
the station.
Preset stations, buttons 1
to 15
Short press: select the
preset radio station.
Long press: preset a radio
station. Next "Multiplex".
Next radio station.
Secondary page.
Display the name and
number of the multiplex
service being used. Previous "Multiplex".
Previous radio station.
DAB (Digital Audio Broadcasting) radio
If the "DAB" radio station being listened to is not
available on "FM", the "DAB FM" option is greyed out.
Journaline® is a text-based information service designed for digital radio systems.
I
t provides text-based information structured around topics and sub-topics.
th

is service is available from the "LIS
t
OF DAB S
tAtI
ONS" page.
Audio and telematics

338
508_en_Chap10d_RD5_ed01-2016
First steps
On / Off.
Volume.
Select screen display between
modes:
Full screen: Audio
In a window: Audio - t
i
me or t
r
ip
computer.
Long press: black screen (DARK). Select source:
Radio, CD, AuX
, uS B.
Confirmation or display of contextual
menu. Display the list of stations received,
CD/MP3 tracks or folders.
Long press: manage the
classification of MP3/ WMA files /
update the list of stations received.Audio settings:
audio ambiences, treble, bass,
loudness, distribution, left/right
balance, front/rear fader, automatic
volume.
Access to main menu. Select AM / FM wavebands. Manual step by step search up /
down for radio frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre /
artist / playlist in the u
S
B device.
Navigation in a list.
Automatic search up / down for radio
frequencies.
Select previous / next CD, u
S
B track.
Navigation in a list.
tA (traffic Announcement) function On /
Of f.
Long press: access to type of information.
Abandon the current operation.up o ne level.
Select preset radio station.
Long press: preset (store) a station.
Audio and telematics

349
508_en_Chap10d_RD5_ed01-2016

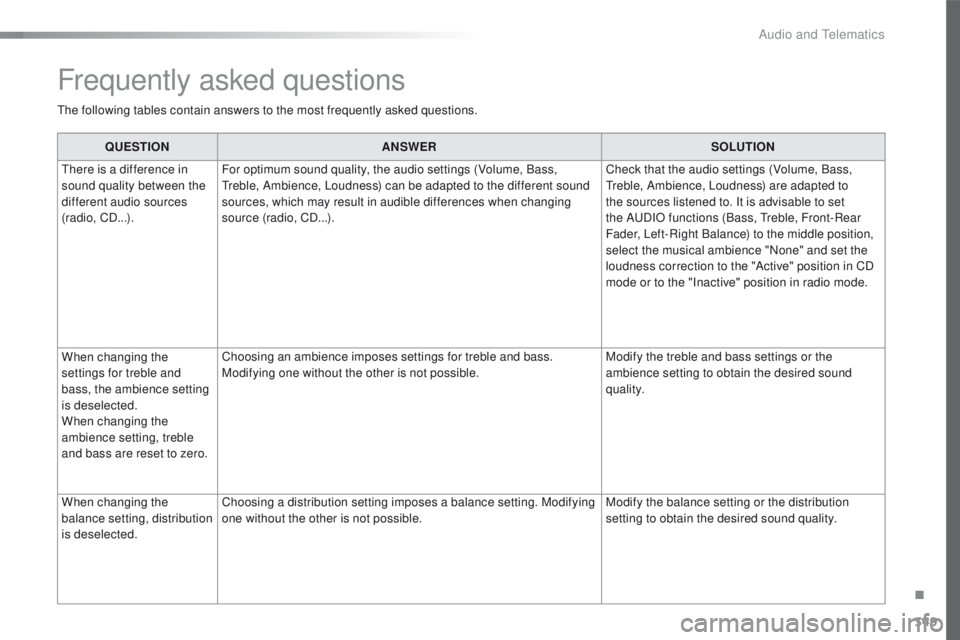

QUESTIONANSWER SOLUTION
th

ere is a difference in
sound quality between the
different audio sources
(radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
tr

eble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing
source (radio, CD...). Check that the audio settings (Volume, Bass,
tr

eble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the A
uD

IO functions (Bass, t
r
eble, Front-Rear
Fader, Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
When changing the
settings for treble and
bass, the ambience setting
is deselected.
When changing the
ambience setting, treble
and bass are reset to zero. Choosing an ambience imposes settings for treble and bass.
Modifying one without the other is not possible.
Modify the treble and bass settings or the
ambience setting to obtain the desired sound
quality.
When changing the
balance setting, distribution
is deselected. Choosing a distribution setting imposes a balance setting. Modifying
one without the other is not possible.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
Frequently asked questions
the following tables contain answers to the most frequently asked questions.
.
Audio and telematics

356
508_en_Chap11_index-alpha_ed01-2016
Player, Apple® ......................................294, 345
Player, MP3 CD ............................ 292, 343, 344
Port,
u
S

B

..................................... 1

08, 292, 345
Pressures, tyres


............................................ 273
Pre-tensioning seat belts


.............................. 13 8
Priming the fuel system
................................ 228
Protecting children


................................ 13 8, 140, 143 -15 8
Puncture


........................................................ 229Reservoir, headlamp wash /
screenwash ................................................. 220
Resetting the service indicator


.......................34
Reversing camera


.........................................19 9
Reversing lamp
..................................... 24

5, 246
Risk areas (update)
.......................................307
Roof bars
....................................................... 2

12
Roof, opening


........................................104, 10 6
Running out of fuel (Diesel)

..........................2

28
Safety, children


................................13 8, 140, 143 -15 8
Saturation of the particle filter (Diesel)

.........2

21
Screen, cold climate
.....................................204
Screen, touch
...............................

.................271
Screen, instrument panel


..........................28, 39
Screen menu map


...............282, 284, 286, 296,
298, 302, 310, 320, 322
Screen, multifunction (with audio system)
............................340, 348
Screenwash, front/rear


.................................128
SCR (Selective Catalytic Reduction)


............223
Seat belts
............................................... 13

6 -13 8
Seats, front
...............................

.................75 -77
Seats, heated


..................................................78
Seats, rear


.....................................................109
Serial number, vehicle
.................................. 2

73
Service indicator


.............................................33
Service warning lamp


.....................................20
Servicing
...............................

..........................11
Settings, system


......................................28, 310
Sidelamps


.....................117, 125, 242, 245, 246
ta

ble of weights
...................................26

5, 268
tab

les of engines

..................................264, 267
ta

bles of fuses ..............................................249
ta

nk, AdBlue
® additive .................................2 23t
a n k , f u e l
....................................................... 200
te

chnical data

............................................... 264
te

lephone


..................................................... 320
te

mperature, coolant

...................................... 30
th

ird brake lamp

........................................... 248
S
T
Side repeater .............................. ..................244
Ski flap .............................. ............................111
Snow chains
.................................................. 20

3
Socket, 12 V accessory

................1

0 1, 1 0 8 , 111
Sockets, audio


.....................108, 292, 345, 346
Speed limiter


......................................... 188, 192
Spotlamps, side


.................................... 125, 24 4
Stability control (DSC)


............................18, 13 3
Starting the engine


...............................161, 165
Starting using another battery
...................... 25

4
Station, radio
........................................ 2

88, 340
Steering mounted controls, audio


.......280, 339
Steering wheel, adjustment


............................79
Stop & Start


.................... 17, 42, 89, 92, 96, 180,
200, 214, 221, 253, 256
Storage


.............................. 9 9 , 1 0 1, 1 0 7, 111 -113
Storage wells


................................................ 113
Storing driving positions


.................................77
Stowing rings


........................................ 112 , 113
Sun visor


....................................................... 101
Switching off the engine
....................... 16

1, 165
Synchronising the remote control


.............54, 63
Radio


.................................................... 288, 340
Radio, digital (Digital Audio Broadcasting - DAB)


................................... 290
Range, AdBlue


.......................................... 35, 36
RDS


....................................................... 2 8 9 , 3 41
Rear screen, demisting


................................... 96
Recharging the battery
................................. 25

5
Reduction of electrical load


.......................... 261
Regeneration of the particle filter

.......................................... 221
Reinitialising the remote control
............... 5

4, 63
Reminder, lighting on


.................................... 11 9
Remote control
.................................... 4

9, 55, 69
Removing a wheel

........................................ 238
Removing the battery .................................... 257
Removing the mat


......................................... 10 0
Replacing bulbs


............................................ 242
Replacing fuses
..............................

.............. 249
Replacing the air filter


................................... 221
Replacing the oil filter
................................... 2

21
Replacing the passenger compartment filter


...................................... 221
R
Alphabetical index
