2016 PEUGEOT 5008 oil pressure

13
5008_en_Chap00c_eco-conduite_ed01-2015
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting ; go to a PEUGEOT dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
Eco-driving

25
5008_en_Chap01_controle-marche_ed01-2015
Engine oil
pressurefixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.
Battery charge *fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Warning lamp
is onCause Action / Observations
Front seat belt
not fastened /
unfastened fixed then flashing
accompanied by an
increasing audible
signal. The driver and/or the front passenger
has not fastened or has unfastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
Rear seat belt
not fastened /
unfastened fixed then flashing
accompanied by an
audible signal. One or more rear passengers have
unfastened their seat belt.
Door(s) open
fixed if the speed is
below 6 mph (10 km/h). A door, the boot, the lower tailgate
or the bonnet (with alarm only) is still
open. Close the door or boot.
fixed and accompanied
by an audible signal if
the speed is above
6 mph (10 km/h).
* Depending on the country of sale.
1
Monitoring

201
5008_en_Chap09_verifications_ed01-2015
Diesel additive level (Diesel
engine with particle filter)
Used products
To p p i n g u p
This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.A low additive level is indicated by
illumination of this warning lamp,
accompanied by an audible warning
and a message in the instrument panel screen.Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water. In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the instrument panel
screen.
Top up the reservoir when you next stop the
vehicle.
Screenwash and headlamp
wash fluid
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
The cooling fan may star t after switching
off the engine: take care with ar ticles and
clothing that might become caught by the
fan blades.
Fluid specification
The coolant must conform to the
manufacturer's recommendations.
Coolant level
The coolant level should be close
to the "MA X" mark but should never
exceed it.
When the engine is warm, the
temperature of the coolant is regulated by
the fan.
In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop. When
the pressure has dropped, remove the cap and
top up the level. In wintry conditions, the use of an
ethyl alcohol or methanol base fluid is
recommended.
9
Checks

218
5008_en_Chap10_infos-pratiques_ed01-2015

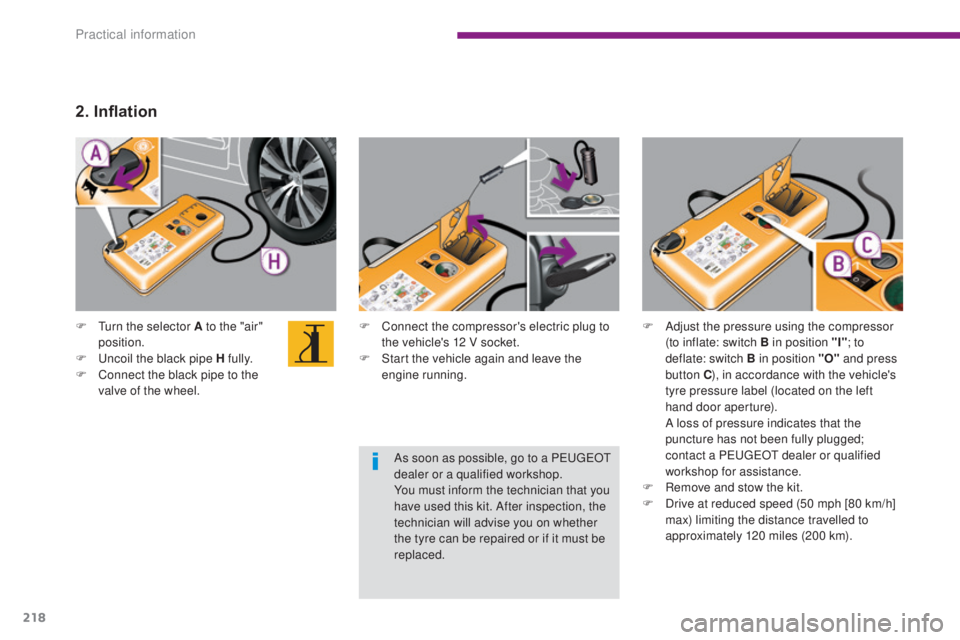

F Connect the compressor's electric plug to the vehicle's 12 V socket.
F

S
tart the vehicle again and leave the
engine running.
F
T
urn the selector A to the "air"
position.
F

U

ncoil the black pipe H fully.
F

C

onnect the black pipe to the
valve of the wheel.
2. Inflation
F Adjust the pressure using the compressor (to inflate: switch B in position "I" ; to
deflate: switch B
in position "O" and press
button C ), in accordance with the vehicle's
tyre pressure label (located on the left
hand door aperture).
A l

oss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or qualified
workshop for assistance.
F

R
emove and stow the kit.
F

D
rive at reduced speed (50 mph [80 km/h]
max) limiting the distance travelled to
approximately 120 miles (200 km).
As soon as possible, go to a PEUGEOT
dealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.
Practical information

219
5008_en_Chap10_infos-pratiques_ed01-2015

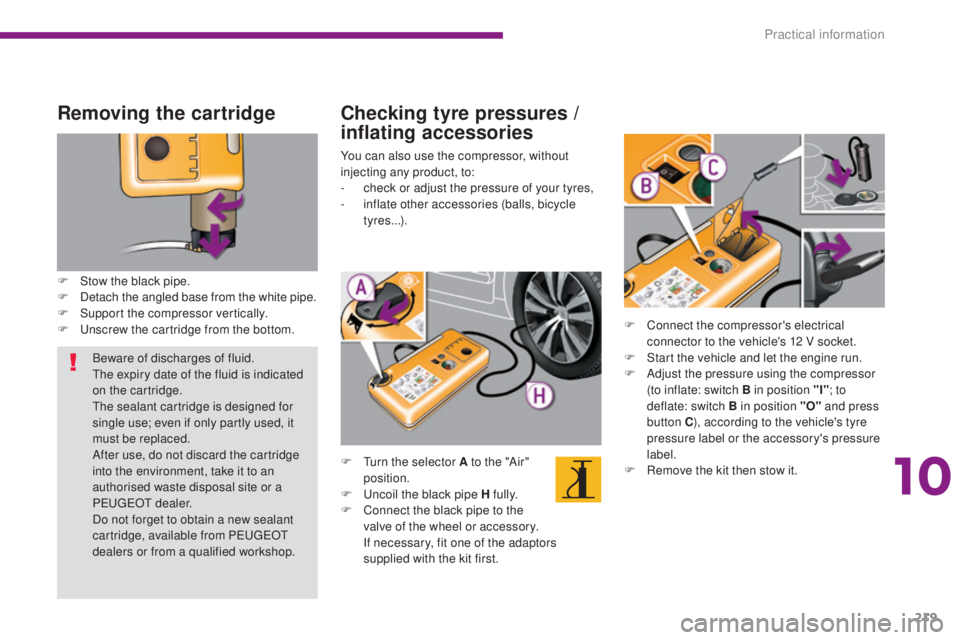

Removing the cartridge
F Stow the black pipe.
F D etach the angled base from the white pipe.
F

S
upport the compressor vertically.
F

U
nscrew the cartridge from the bottom.
Checking tyre pressures /
inflating accessories
You can also use the compressor, without
injecting any product, to:
-
c
heck or adjust the pressure of your tyres,
-

i
nflate other accessories (balls, bicycle
tyres...).
F

T
urn the selector A to the "Air"
position.
F

U
ncoil the black pipe H fully.
F

C
onnect the black pipe to the
valve of the wheel or accessory.
I

f necessary, fit one of the adaptors
supplied with the kit first. F

C
onnect the compressor's electrical
connector to the vehicle's 12 V socket.
F

S
tart the vehicle and let the engine run.
F

A
djust the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B in position "O" and press
button C ), according to the vehicle's tyre
pressure label or the accessory's pressure
label.
F

R
emove the kit then stow it.
Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers or from a qualified workshop.
10
Practical information

241
5008_en_Chap10_infos-pratiques_ed01-2015
Engine compartment
fuses
The fusebox is placed in the engine
compartment near the battery.Fuse
N° Rating
(A) Functions
F2 15Horn.
F3 10Front / rear wash-wipe.
F4 10Daytime running lamps.
F5 15Purge canister, turbine discharge and Turbo pressure
regulation electrovalves (1.6 litre THP), oil vapour heater
(1.6 litre THP), diesel heater (1.6 litre HDi).
F6 10Diagnostic socket, directional headlamps, particle
emission filter pump (Diesel), Distance alert, mirror
adjustment control.
F7 10Power steering control unit, automatic gearbox, directional
headlamps height adjustment motor.
F8 20Starter motor control.
F9 10Clutch and brake pedal switches.
F11 40Air conditioning fan.
Access to the fuses
F Unclip the cover.
F
C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse table
10
Practical information

350
5008_en_Chap13_index-alpha_ed01-2015
Accessories .................................................. 256
Accessory socket, 12V ....99, 102 , 108, 109, 113
Access to the 3rd row
..................................... 75
Additive, AdBlue


.............................. 23, 2 0 4 - 2 11
Additive, Diesel


..................................... 201, 202
Adjusting headlamps


...................................... 89
Adjusting head restraints


..........................70, 77
Adjusting seat belt height
............................. 13

9
Adjusting the date


........................33, 35, 38, 40
Adjusting the steering wheel


..........................81
Adjusting the time


........................33, 35, 38, 40
Advice on driving


.......................................... 147
Airbags


.................................................... 26, 143
Airbags, curtain
..................................... 14

5, 146
Airbags, front ......................................... 143, 146
Airbags, lateral


...................................... 145, 146
Air conditioning


............................................... 12
Air conditioning, digital


.............................61, 65
Air conditioning, manual


...........................61, 62
Air vents


.......................................................... 60
Alarm


............................................................... 51
Anti-pinch


................................................ 53, 10 6
Anti-theft


................................................. 5 0, 148
Armrest, rear
................................................. 10

9
Assistance call


.............................................. 270
Audible warning


............................................ 13 5
Audio streaming (Bluetooth)
..............................

............314, 3 41
Audio systems
....................................... 273, 329
Automatic illumination of headlamps


................................................ 83
Automatic operation of hazard warning lamps
..............................

............................13 5
Automatic rain sensitive windscreen wipers


........................................ 94
Auxiliary socket


............................. 101, 315, 338Battery
...........................................
202, 244-246
Battery, charging ...........................................246
Battery, remote control
............................. 49,

50
Blind for panoramic sunroof


........................................................10 6
Blinds ............................................................. 114
BlueHDi


.........................................179, 195, 204
Bluetooth (hands-free)
......................... 29

6, 339
Bluetooth (telephone)


...........................296, 339
Bonnet


...........................................................19 6
Bonnet stay


...................................................19 6
Boot


.................................................................58
Boot lamp


........................................................98
Brake discs
.................................................... 20

3
Brake lamps
...............................

...................234
Brake pads


....................................................203
Braking, dynamic emergency


..................................................15 4
AB
D
DAB (Digital Audio Broadcasting) .......308, 309
Date (setting) ............................... .33, 35, 38, 40
Daytime running lamps


...................................86
Deactivating ESP


.......................................... 13 8
Capacity, fuel tank
..............................

..........
191
CD


.........................................................
311, 3 3 4
CD, MP3
........................................ 3

11, 3 3 4
, 335
Central locking


..........................................
47, 56
Centre console


..............................................
101
Changing a bulb


....................................
231-236
Changing a fuse


.....................................
2 37-24 3
Changing a wheel
.................................
212, 223
Changing a wiper blade
..........................
95, 248
Changing the remote control battery
.............. 49
Checking levels
..................................... 19

9 -201
Checking the engine oil level


.................. 30, 199
C
Checking tyre pressures (using the kit) ........2 19
Checks ............... .................................... 197-2 0 3
Checks, routine


..................................... 202, 203
Child lock
...............................

..................54, 13 4
Children
...............................

...115 -13 4, 142, 14 4
Child seats

................... 11

5, 11 6 , 120 , 12 2 , 128
Child seats, conventional


......................12 2, 123
Child seats, ISOFIX

...................................... 12

8
Closing the boot
.............................................. 58
Closing the doors


............................................ 55
Cold climate screen
...................................... 255
Colour screen, retractable


..............................41
Concertina boards


.......................................... 76
Configuration, vehicle


....32, 34 , 36, 39, 40, 344
Connectors, audio
......................... 1

01, 315, 338
Control, electric windows


................................53
Control for panoramic sunroof blind


.............10 6
Control stalk, lighting
................................ 8

2- 84
Control stalk, wipers
.................................91-93
Coolant level


........................................... 27, 201
Coolant temperature indicator


........................................................ 27
Courtesy lamps
............................................... 96
Cover, load space

................................. 10

8, 109
Cruise control
................................................ 16

6
Cup holder

...............................
........99, 108 , 109
Alphabetical index
