5008_en_Chap01_controle-marche_ed01-2015
Instrument panels
Panel grouping together the vehicle operation indication dials and warning lamps.
Instruments
1. Rev counter. I
ndicates the engine speed (x 1 000 rpm).
2.
C

oolant temperature gauge.
I

ndicates the temperature of the engine
coolant (° Celsius).
3.
F

uel level.
I

ndicates the quantity of fuel remaining in
the tank.
4.
S

peedometer.
I

ndicates the current speed of the moving
vehicle (mph or km/h).
5.
S

creen.
6.
C

ontrol switch.
T

emporary display of the service indicator
and driving range with the AdBlue
®
additive.
D

isplay and reset the selected function (trip
distance recorder or service indicator).
7.
I

nstrument panel lighting dimmer.
A

djusts the brightness of the lighting of
the instruments and controls, if the vehicle
lighting is on.
For more information, refer to the
section corresponding to the button or
function and its associated display.
Monitoring

20
5008_en_Chap01_controle-marche_ed01-2015
Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the
screen, such as, for example:
-

o
pening of the doors, boot or bonnet,
-

e
ngine oil low level,
-

s
creenwash low level,
-
f

lat remote control battery,
-

s
aturation of the particle filter (Diesel)
A

s soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the service warning
lamp goes off.
-

a f
ault with the tyre under-inflation detection
system,
-


...
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown
on the screen and contact a PEUGEOT dealer or a
qualified workshop.
fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.The servicing interval has been
exceeded.Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Warning lamp
is onCause Action / Observations
Monitoring

28
5008_en_Chap01_controle-marche_ed01-2015
Service indicator
Between 600 miles (1 000 km) and 1 800 miles
(3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on,
the spanner symbolising the service operations
comes on. The distance recorder display line
indicates the distance remaining before the
next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero reset,
according to the mileage covered since the last
service.
For BlueHDi Diesel versions, depending on the
country of sale, the level of deterioration of the
engine oil may also be taken into account.
Monitoring

29
5008_en_Chap01_controle-marche_ed01-2015
Resetting the service indicator
If you have carried out the service on your
vehicle yourself:
F
s
witch off the ignition,
F

p
ress and hold the trip distance recorder
zero reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the display indicates "=0" , release
the button; the spanner disappears.Service overdue
For 5 seconds after the ignition is switched on, the
spanner flashes to indicate that the service must
be carried out as soon as possible.
Example: the service is overdue by 186 miles
(3 0 0 k m).
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.
T

he service information is displayed for a
few seconds, then disappears. If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
After each service, the service indicator must
be reset to zero. For BlueHDi versions, the spanner may
also come on early, according to the
level of deterioration of the engine oil,
which depends on the driving conditions
in which the vehicle is used.
With BlueHDi Diesel versions, the
Service warning lamp also comes on
when the ignition is switched on.
For 5 seconds after the ignition is switched on,
the screen indicates:
1
Monitoring

30
5008_en_Chap01_controle-marche_ed01-2015
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds when the ignition is switched on, after
the service information.Oil level correct
Oil level lowOil level indicator fault
In the event of a fault with the electric indicator,
the engine oil level is no longer monitored.
When the system has a fault, you should check
the engine oil level using the manual dipstick
(located under the bonnet).
This is signalled by the flashing of " O I L"
, or the
display of a message "Oil level incorrect" in the
instrument panel, accompanied by illumination
of the service warning lamp and an audible
signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
prevent damage to the engine.
Refer to the "Checking levels" section. This is signalled by the flashing of "OIL- -"
or the
display of a message "Oil level measurement
invalid" in the instrument panel. Contact a
PEUGEOT dealer or a qualified workshop.
The level shown will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes. * Depending on version.Refer to the "Checking levels" section.
Monitoring

51
5008_en_Chap02_ouvertures_ed01-2015
Alarm
Locking the vehicle with full
alarm
Exterior perimiter protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to enter
the vehicle by forcing a door, the boot or the
bonnet.
Interior volumetric protection
The system detects any variation in the volume
in the passenger compartment.
The alarm is triggered if anyone breaks a
window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a
window partially open, deactivate the interior
volumetric protection.
Anti-tamper function
The system detects the putting out of service of
its components.
The alarm is triggered if anyone tries to put
the wires of the siren, the central control or the
battery out of service.
Activation
F Switch off the ignition and get out of the
vehicle.
F

L
ock or deadlock the vehicle using the
locking button on the remote control.
The alarm is activated; the indicator lamp in
button A flashes once per second.
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as an
anti-tamper function.
Do not make any modifications to
the alarm system, this could cause
malfunctions. If a door, the boot or the bonnet is not
fully closed, the vehicle is then not
locked, but perimeter monitoring will
be active after a period of 45 seconds,
at the same time as the volumetric
monitoring.
In the event of automatic relocking
of the vehicle (occurs after an
unintentional unlocking followed by a
period of 30 seconds without opening a
door or the boot), the monitoring system
is not reactivated automatically. To
reactivate the system, it is necessary to
unlock the vehicle and then lock it again
using the key or the remote control.
Deactivation
F Unlock the vehicle using the unlocking
button on the remote control.
The alarm is deactivated; the indicator lamp in
button A switches off.
2
Access

154
5008_en_Chap08_conduite_ed01-2015

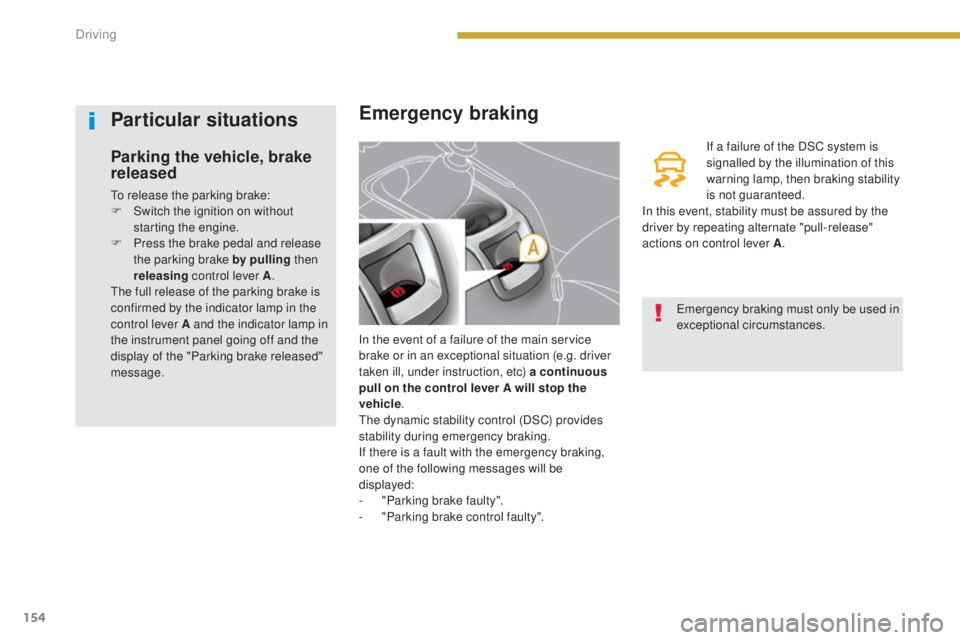

Emergency braking
In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A will stop the
vehicle .
The dynamic stability control (DSC) provides
stability during emergency braking.
If there is a fault with the emergency braking,
one of the following messages will be
displayed:
-

"
Parking brake faulty".
-

"
Parking brake control faulty". If a failure of the DSC system is
signalled by the illumination of this
warning lamp, then braking stability
is not guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on control lever A .
Particular situations
Parking the vehicle, brake
released
To release the parking brake:
F
S witch the ignition on without
starting the engine.
F

P
ress the brake pedal and release
the parking brake by pulling then
releasing control lever A .
The full release of the parking brake is
confirmed by the indicator lamp in the
control lever A and the indicator lamp in
the instrument panel going off and the
display of the "Parking brake released"
message. Emergency braking must only be used in
exceptional circumstances.
Driving
