2016 PEUGEOT 5008 ignition

95
5008_en_Chap04_visibilite_ed01-2015

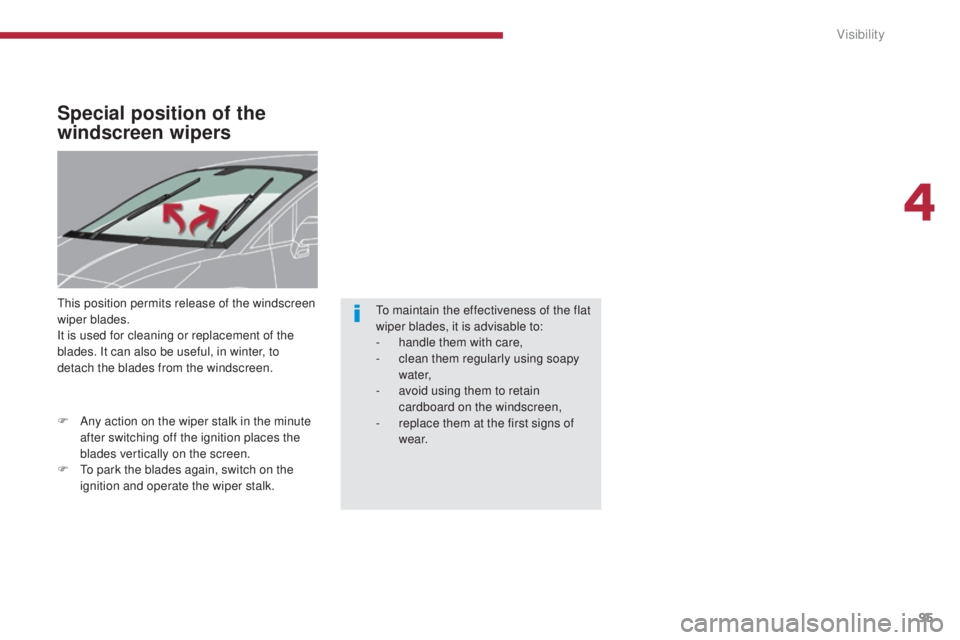

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
F
A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk. To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
4
Visibility

96
5008_en_Chap04_visibilite_ed01-2015
Courtesy lamps
1. Front courtesy lamp
2. Map reading lamps
Map reading lampsFront and rear courtesy lamps
In this position, the courtesy lamp
comes on gradually:
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-

w

hen a door is opened,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
It switches off gradually:
-

w

hen the vehicle is locked,
-

w

hen the ignition is switched on,
-

3

0 seconds after the last door is closed.
3.
R

ear courtesy lamp Take care not to place anything in
contact with the courtesy lamps.
With the "permanent lighting" mode, the lighting
time varies according to the circumstances:
- with the ignition off, approximately

ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
F With the ignition on, press the corresponding switch.
Visibility

97
5008_en_Chap04_visibilite_ed01-2015
Interior mood
lighting
Switching on
At night, the mood lamp in the front courtesy
lamp comes on automatically when the
sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Door mirror
spotlamps
To make your approach to the vehicle easier,
these illuminate:
-
t
he zones facing the driver’s and
passenger’s doors,
-

t
he zones for ward of the door mirrors and
rear ward of the front doors.
Switching on
The spotlamps come on:
- w hen you unlock the vehicle,
-

w
hen you remove the key from the ignition,
-

w
hen you open a door,
-

w
hen you use the remote control.
Switching off
They are timed to go off automatically. The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
i s p o o r.
Footwell lighting
Switching on
The soft lighting provided by the footwell lamps
improves visibility in the vehicle when the light
i s p o o r.
Its operation is identical to that of the courtesy
lamps. The lamps come on when one of the
doors is opened.
4
Visibility

98
5008_en_Chap04_visibilite_ed01-2015
This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.
Boot lamp
Different lighting times are available:
- w hen the ignition is off,
approximately ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-

w
hen the engine is running, no limit.
Visibility

100
5008_en_Chap05_amenagements_ed01-2015
Driver's storage
compartments
Storage box
This has storage areas for the handbook
pack, ...
F

T
o open, pull the handle then tilt the box.
Illuminated glove
box
This has storage areas, audio sockets for a
portable player, ...
F

T
o open the glove box, raise the handle.
The lamp comes on when the lid is opened.
Sun visor
Component which protects against sunlight
from the front or the side, also equipped with an
illuminated courtesy mirror.
F

W
ith the ignition on, raise the concealing
flap; the mirror is illuminated automatically.
This sun visor is also equipped with a ticket
h o l d e r.
Card holder
This can be used for a toll payment ticket or
parking card, for example.
Coin storage
Storage
To connect a portable player refer to
the "Audio equipment and telematics"
section.
Fittings

106
5008_en_Chap05_amenagements_ed01-2015
Panoramic sunroof
Motorised blind
It has a blind that can be used to improve temperature and noise related comfort in the passenger
compartment.With button B:
-

p
ress at the top to open the blind,
-

p
ress at the bottom to close the blind.
With button A
:
-

p
ull the control to open the blind,
-

p
ush the control to close the blind.
Depending on version, the blind is opened and closed using:
-
button A on the centre console,
-

o
r button B on the dashboard.
Manual mode
Maintaining pressure on the control opens or
closes the blind: movement stops if you release
the control. Pressure on the control in the
opposite direction reverses the movement.
The control is operational with the
ignition on and for 45 seconds after
switching off the ignition.
Fittings

113
5008_en_Chap05_amenagements_ed01-2015
Hooks
F To connect a 12 V accessory (max power: 120 W), remove the cap and
connect an appropriate adaptor.
F

T
urn the key to the ignition on position.
12 V accessory socket
F Raise the concertina board to gain access to the storage box.
Depending on the configuration, this has areas
for storing:
-

a b
ox of spare bulbs,
-

a f
irst aid kit,
-

a p
uncture repair kit,
-

t
wo warning triangles,
-


...
Storage box
(5 seat version)
The hooks can be used to secure shopping
bags.
5
Fittings

134
5008_en_Chap06_securite-enfants_ed01-2015
Manual child lock
F Turn the red control one eighth of a turn using the ignition key as shown in the label
on the door. Check that the lock is on.
Electric child lock
F With the ignition on, press this button.
The indicator lamp in the button comes on,
accompanied by a message to confirm that the
child lock is on.
This indicator lamp remains on until the child
lock is switched off.
It is still possible to open the doors from the
outside and operate the rear electric windows
from the driver's control panel.
Locking
Unlocking
F Turn the red control one eighth of a turn using the ignition key.
Switching on Switching off
F With the ignition on, press this button again.
The indicator lamp in the button goes off,
accompanied by a message to confirm that the
child lock is off.
This indicator lamp remains off while the child
lock is switched off.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the state of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of a serious impact, the
electric child lock is switched off
automatically to permit the exit of the
rear passengers.
Remote control system to prevent opening of
the rear doors using their interior controls and
use of the rear electric windows.
Mechanical system to prevent opening of the
rear door using its interior control.
The control is located on the edge of each rear
d o o r.
To know whether your vehicle has
an electric child lock, check for the
absence of a label indicating the
presence of the manual child lock
control (see the corresponding section).
Child safety
