2016 PEUGEOT 5008 technical data

262
5008_en_Chap11_caracteristiques_ed01-2015
Engine2.0 litre BlueHDi 136 S&S2.0 litre BlueHDi 150 S&S
Gearbox Manual

(6-speed) Manual

(6-speed)
Model code AHSM/S
AHSM/1S AHRM/S
AHRM/1S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
Max power: EU standard (kW)* 10 011 0
Max power engine speed (rpm) 4 0004 000
Max torque: EU standard (Nm) 370370
Max torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter yesyes
Particle filter yesyes
Engine oil capacity (in litres)
(with filter replacement) -
-
Diesel engines and gearboxes (continued)
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation
(directive 1999/99/CE).
Technical data

263
5008_en_Chap11_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

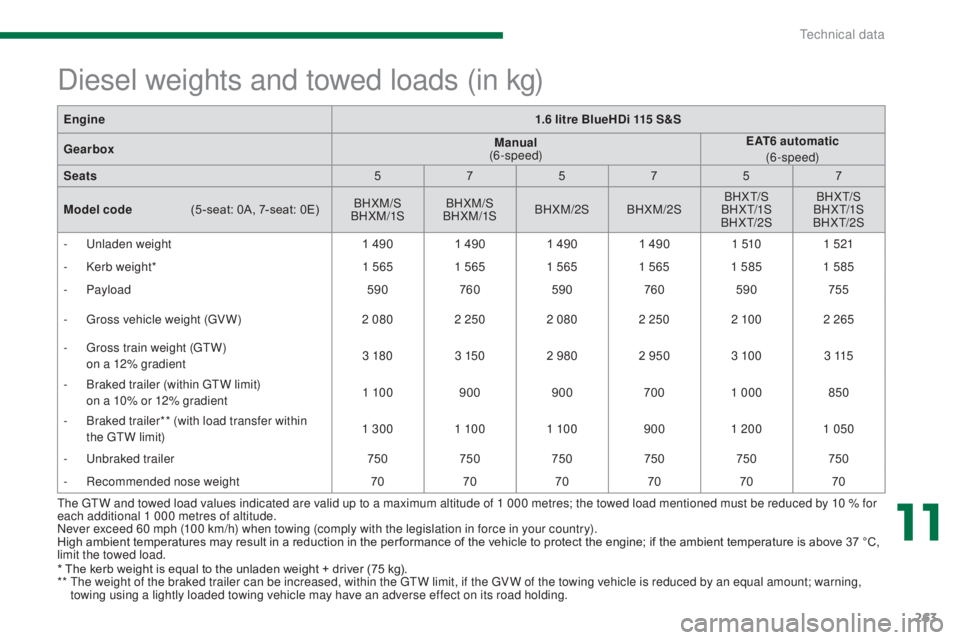

Diesel weights and towed loads (in kg)
Engine
1.6 litre BlueHDi 115 S&S
Gearbox Manual

(6-speed) E AT 6
automatic
(6-speed)
Seats 575757
Model code
(

5 -seat: 0A, 7-seat: 0E) BHXM/S
BHXM/1S BHXM/S
BHXM/1S BHXM/2S BHXM/2S BH X T/S
BH X T/1S
BH X T/2S BH X T/S
BH X T/1S
BH X T/2S
-

U
nladen weight 1 4901 4901 4901 490 1 5101 521
-

K
erb weight* 1 5651 5651 5651 5651 5851 585
-


Payload 590760590 760590 755
-

G
ross vehicle weight (GV W) 2 0802 2502 080 2 2502 10 02 265
-

G
ross train weight (GTW)


o
n a 12% gradient 3 180
3 1502 980 2 950 3 10 0 3 115
-

B
raked trailer (within GTW limit)


o
n a 10% or 12% gradient 1 10 0
900900 7001 000 850
-

B
raked trailer** (with load transfer within
the GTW limit) 1 300
1 10 01 10 0 9001 200 1 050
-
U

nbraked trailer 750750750750750750
-
R

ecommended nose weight 707070707070
11
Technical data

264
5008_en_Chap11_caracteristiques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

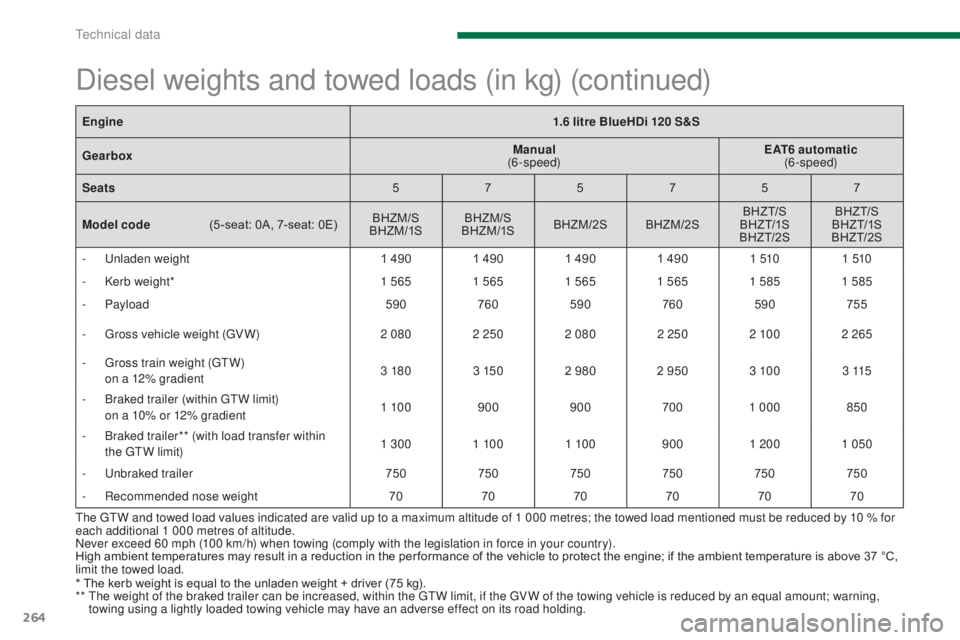

Diesel weights and towed loads (in kg) (continued)
Engine1.6 litre BlueHDi 120 S&S
Gearbox Manual

(6-speed) EAT6 automatic

(6-speed)
Seats 575757
Model code
(

5 -seat: 0A, 7-seat: 0E) BHZM/S
BHZM /1S BHZM/S
BHZM /1S BHZM/2S BHZM/2S BHZ T/S
BHZ T/1S
BHZ T/2S BHZ T/S
BHZ T/1S
BHZ T/2S
-

U
nladen weight 1 4901 4901 4901 490 1 5101 510
-

K
erb weight* 1 5651 5651 5651 5651 5851 585
-


Payload 590760590 760590 755
-

G
ross vehicle weight (GV W) 2 0802 2502 080 2 2502 10 02 265
-

G
ross train weight (GTW)
o

n a 12% gradient 3 180
3 1502 980 2 950 3 10 0 3 115
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 10 0
900900 7001 000 850
-

B
raked trailer** (with load transfer within
the GTW limit) 1 300
1 10 01 10 0 9001 200 1 050
-
U

nbraked trailer 750750750750750750
-
R

ecommended nose weight 707070707070
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data

265
5008_en_Chap11_caracteristiques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Never exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

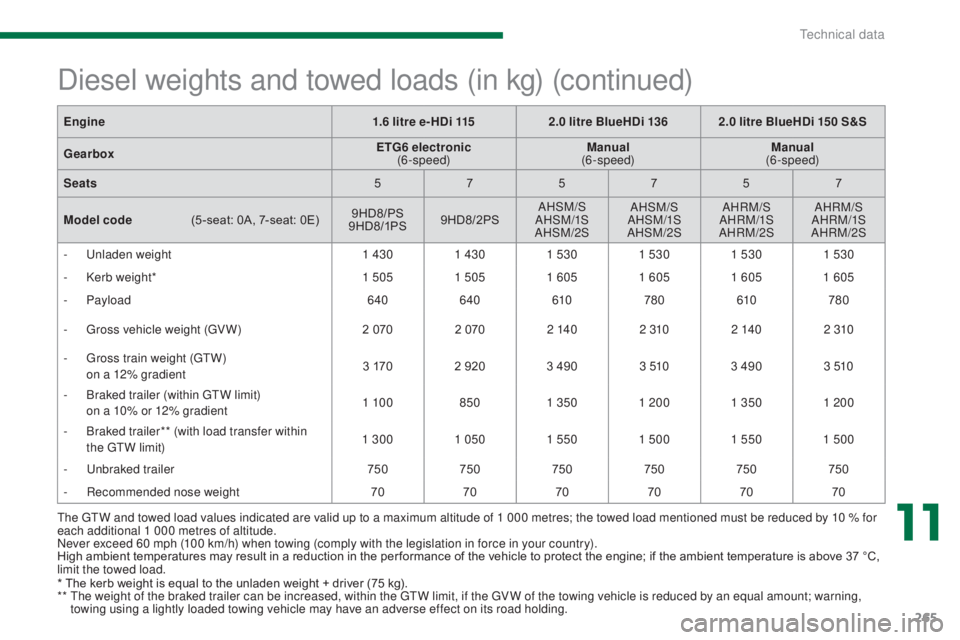

Diesel weights and towed loads (in kg) (continued)
Engine1.6 litre e- HDi 1152.0 litre BlueHDi 136 2.0 litre BlueHDi 150 S&S
Gearbox ETG6 electronic

(6-speed) Manual

(6-speed) Manual

(6-speed)
Seats 575757
Model code
(

5 -seat: 0A, 7-seat: 0E) 9HD8/PS
9 HD8/1PS 9HD8/2PS AHSM/S
AHSM/1S
AHSM/2S AHSM/S
AHSM/1S
AHSM/2S AHRM/S
AHRM/1S
AHRM/2S AHRM/S
AHRM/1S
AHRM/2S
-

U
nladen weight 1 4301 4301 530 1 5301 5301 530
-

K
erb weight* 1 5051 5051 605 1 6051 6051 605
-


Payload 640640 610780 610780
-

G
ross vehicle weight (GV W) 2 0702 070 2 140 2 3102 140 2 310
-

G
ross train weight (GTW)
o

n a 12% gradient 3 170
2 920 3 490 3 5103 490 3 510
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 1 10 0
8501 350 1 200 1 3501 200
-

B
raked trailer** (with load transfer within
the GTW limit) 1 300
1 0501 5501 500 1 5501 500
-
U

nbraked trailer 750750750750750750
-
R

ecommended nose weight 707070707070
*

T
he kerb weight is equal to the unladen weight + driver (75 kg).
**

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
11
Technical data

266
5008_en_Chap11_caracteristiques_ed01-2015
Engine1.6 litre BlueHDi 120 S&S2.0 litre BlueHDi 150 S&S
GearboxManual

(6-speed) EAT6 automatic

(6-speed) Manual

(6-speed)
Seats 5555
Model code
(

5 -set: 0A)BHZM/SCU
BHZM/1SCU BHZM/2SCU BHZT/SCU
BHZ T/1SCU
BHZT/2SCU AHRM/SCU
AHRM/1SCU
AHRM/2SCU
-

U
nladen weight 1 5901 5901 605 1 649
-

K
erb weight* 1 6651 6651 680 1 724
-

G
ross vehicle weight (GV W)** 2 2102 2102 230 2 300
-

G
ross train weight (GTW)


o
n a 12% gradient*** 3 11 0
2 910 3 13 03 450
-

B
raked trailer (within GTW limit)


o
n a 10% or 12% gradient**** 900
7009001 150
-

B
raked trailer (with load transfer within the
GTW limit) -
---
-
U

nbraked trailer 750700 750750
-
R

ecommended nose weight 70707070
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1000 metres of altitude.
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

E
xceeding the maximum rear axle weight involves limiting the speed to 50 mph (80 km/h) as defined in point 2.7 of the Directive.
***

E
xceeding the gross vehicle weight when the vehicle is towing involves limiting the speed to 50 mph (80 km/h) as defined in point 2.7 of the
Directive.
****

M
aximum braked trailer weight within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road
holding.

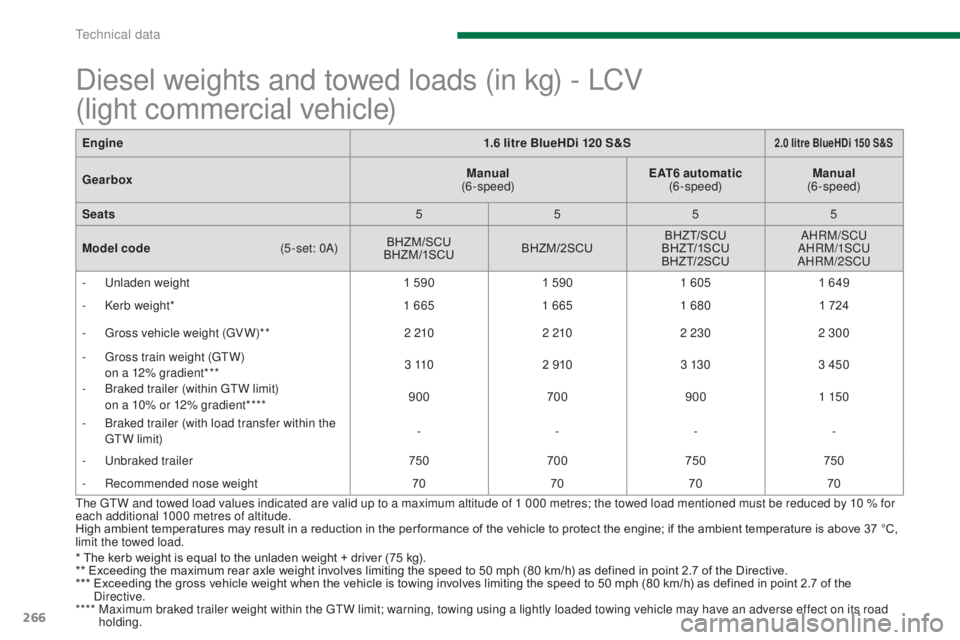

Diesel weights and towed loads (in kg) - LCV
(light commercial vehicle)
Technical data

267
5008_en_Chap11_caracteristiques_ed01-2015
Dimensions (in mm)
11
Technical data

268
5008_en_Chap11_caracteristiques_ed01-2015
Identification markings
A. Vehicle Identification Number (VIN) under the bonnet.
T

his number is engraved on the bodywork
near the damper mounting.
B.
V

ehicle identification Number (VIN) on
the windscreen lower crossmember.
T

his number is given on a self-adhesive label
which is visible through the windscreen. C. M
anufacturer's label.
T
he VIN is marked on a self-destroying
label affixed to the door aperture, on the
driver's side. D. T
yre/paint label.
T
his label is fitted to the middle pillar, on
the driver's side.
It bears the following information:
-

t
he tyre inflation pressures with and without
load,
-

t
he tyre sizes,
-

t
he inflation pressure of the spare wheel,
-

t
he paint colour code.
Various visible markings for the identification of your vehicle.
Low tyre pressures increase fuel
consumption.The tyre pressures must be checked
when the tyres are cold, at least once
a month.
