Flat floor
Each seat can be folded onto the floor to
enable you to modify your vehicle’s interior
space.
Folding the seat from the 2nd row
F Place the seats as far towards the rear as possible.
F

P
ull firmly upwards on strap C , to unlock
the seat; keep pulling until the seat is fully
folded.
F

P
ush the backrest slightly for wards so
that the backrest pivots, folding onto the
seat base. The assembly then lowers onto
t h e


f l o o r.
Folding the seat from the boot
When loading, for example, you can fold the
seat or seats directly from the boot, once you
have folded the 3
rd row seats (7 seat version).
F
P
lace the seats as far towards the rear as
possible.
F

P

ull on the strap D to release the chosen
seat and push the backrest gently
forwards.
Repositioning seat
F If necessary, return the 2nd row seat rigid
panels to their initial position and lock
them.
F

R

aise the backrest and push it rear wards
until it locks.
Supervise any movement of seats by
children. Before moving the 3
rd row seats (7 seat
version), return the 2nd row seat rigid
panels to their initial position and lock
them.
Emergency exit: if the first system
(strap C ) fails, strap D enables the
3
rd row passengers to exit quickly.
T
o avoid damaging the mechanism, the
strap D unclips under excessive force.
Simply reclip it to restore the system to
working order.
Comfort

75
5008_en_Chap03_confort_ed01-2015
Rigid panel
Each 2nd row seat backrest has a rigid panel
attached.
This panel enables you to:
-

h

ave a continuous load sur face in the boot,
whatever the positions of the seats,
-

a

void having objects sliding under the
2
nd row seats. 30 kg maximum on each
pan el.
Releasing / Securing the rigid
panel
F Before deploying the rigid panels, check that the 2nd row seats are positioned as far
towards the rear as possible.
F

S

lide the latch E on the panel upwards, to
release it.
F

R

eturn the panel to its initial position, then
slide the latch E downwards, to secure it.
Entering / Exiting the 3rd row
(7 seat version) Repositioning the seat,
from the outside, with the
door open
If there are passengers seated in the 3rd row
(7 seat version):
F

M

anually return the assembly as far as
possible rear wards; the seat does not
return as far as the maximum rear wards
position so as to retain leg space for the
3
rd row passengers.
F
F
old the seat base.
F

R

aise the aircraft style table on the 2
nd row
seat if it is down.
F

H

old the control F in the raised position,
the seat unlocks and the seat base comes
up against the backrest.
F

P

ush the seat backrest for wards, holding
the control F forwards.
3
Comfort

76
5008_en_Chap03_confort_ed01-2015
3rd row seats (7 seat version)
Concertina boards
Two rigid concertina boards, which cannot be
separated from the vehicle, cover the
two 3
rd row seats, when these are in the folded
position.
Folding the concertina boards
F Pull on the control, the 3 sections of the board will fold like a concertina.
When the 3
rd row seats are upright, these
concertina boards can be left either:
-
f

lat behind the seats,
-

i

n the vertical position,
thereby leaving a storage area available.
The two rigid boards can each support a
maximum of 100 kg.
Installing a seat
F Remove the load space screen.
F I f necessary, return the 2nd row rigid panels
to their initial position and lock them.
F

C

orrectly position the concertina board
vertically behind the seat.
F

P

ull on the control G , located behind the
seat backrest. The backrest tilts rear wards
pulling the seat base with it. The seat locks
in the open position.
Comfort

77
5008_en_Chap03_confort_ed01-2015
Storing a seat
F Lower the head restraints.
F C orrectly position the concertina board
vertically behind the seat.
F

P
ull on the control H , located at the bottom
of the seat backrest. The seat is released.
F

N
ext push the backrest gently for wards.
The backrest pivots folding onto the seat
base. The seat base then folds into the
stowage area provided for that purpose.
F

R
eposition the concertina boards over the
folded seats. Before moving the 3
rd row seats, return
the rigid panels of the 2nd row seats to
the upright position and lock them in
place.
Do not try to fold a 3
rd row seat that has
not first had the backrest fully locked in
place.
Do not leave objects either on or
underneath the seat bases of the
3
rd row seats when you are folding them.
Do not leave your hand on the control H
as you fold the seats, as you risk
trapping your fingers.
Rear head restraints
The rear head restraints can be removed and
have two positions:
-

h
igh, position for use,
-
lo

w, storage position.
To raise a head restraint, pull it upwards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high position, push
the lug and pull it upwards.
To refit it, engage the head restraint rods in the
holes taking care to remain in line with the seat
back.
Never drive with the head restraints
removed, they must be in place and
correctly adjusted.
3
Comfort

78
5008_en_Chap03_confort_ed01-2015

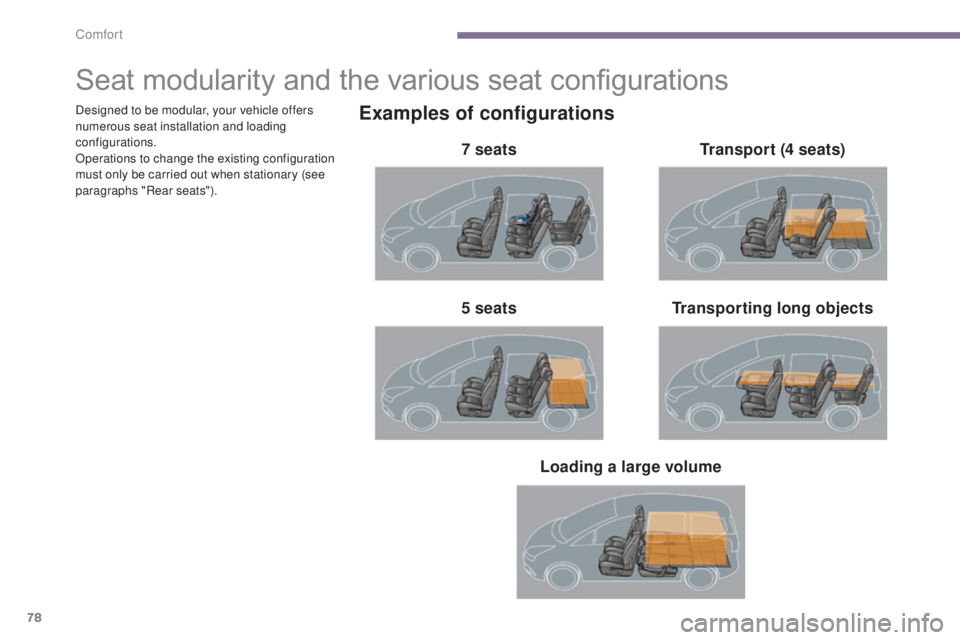

Seat modularity and the various seat configurations
Examples of configurations
7 seatsTransporting long objects
5 seats Transport (4 seats)
Loading a large volume
Designed to be modular, your vehicle offers
numerous seat installation and loading
configurations.
Operations to change the existing configuration
must only be carried out when stationary (see
paragraphs "Rear seats").
Comfort

89
5008_en_Chap04_visibilite_ed01-2015
Manual beam
adjustment of
halogen headlamps
To avoid causing a nuisance to other road
users, the beam height of the halogen
headlamps should be adjusted according to the
load in the vehicle.
0.
1 o
r 2 people in the front seats.
-.
3

people.
1.
5

people.
-.
I

ntermediate setting.
2.
5 p

eople + maximum authorised load.
-.
I

ntermediate setting.
3.
D

river + maximum authorised load.
Automatic beam
adjustment with
xenon headlamps
In order to avoid causing a nuisance to other
road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, according to the load in the vehicle. If a fault occurs, this warning lamp is
displayed on the instrument panel,
accompanied by an audible signal
and a message in the multifunction screen.
The system then places your headlamps in the
lowest position.
If a fault occurs, do not touch the xenon
bulbs. Contact a PEUGEOT dealer or a
qualified workshop.
The initial setting is position "0"
.
4
Visibility

103
5008_en_Chap05_amenagements_ed01-2015

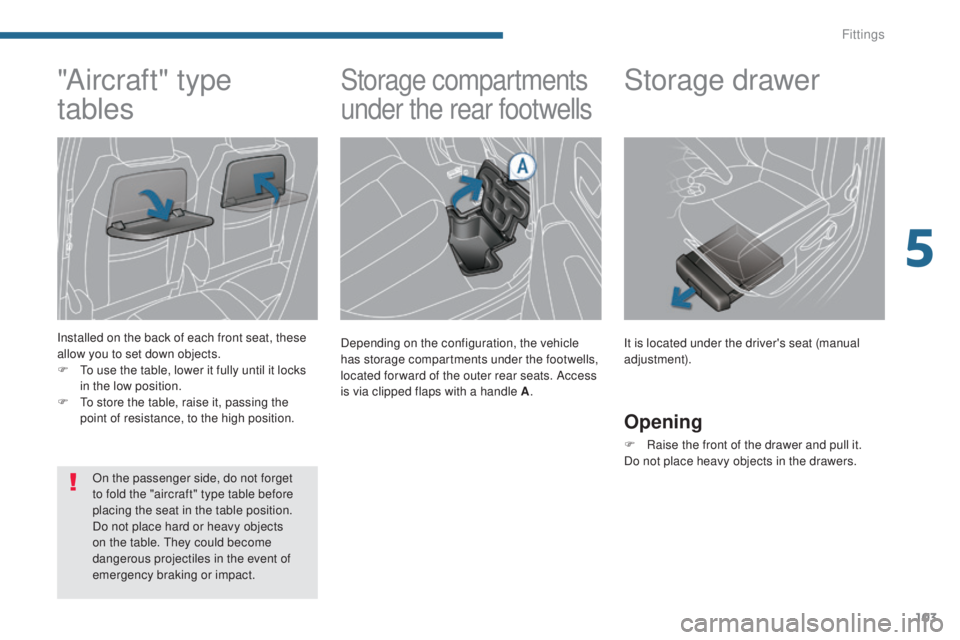

Storage compartments
under the rear footwells
Depending on the configuration, the vehicle
has storage compartments under the footwells,
located for ward of the outer rear seats. Access
is via clipped flaps with a handle A.
"Aircraft" type
tables
Installed on the back of each front seat, these
allow you to set down objects.
F

T
o use the table, lower it fully until it locks
in the low position.
F

T
o store the table, raise it, passing the
point of resistance, to the high position.
On the passenger side, do not forget
to fold the "aircraft" type table before
placing the seat in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact.
Storage drawer
Opening
F Raise the front of the drawer and pull it.
Do not place heavy objects in the drawers. It is located under the driver's seat (manual
adjustment).
5
Fittings

110
5008_en_Chap05_amenagements_ed01-2015

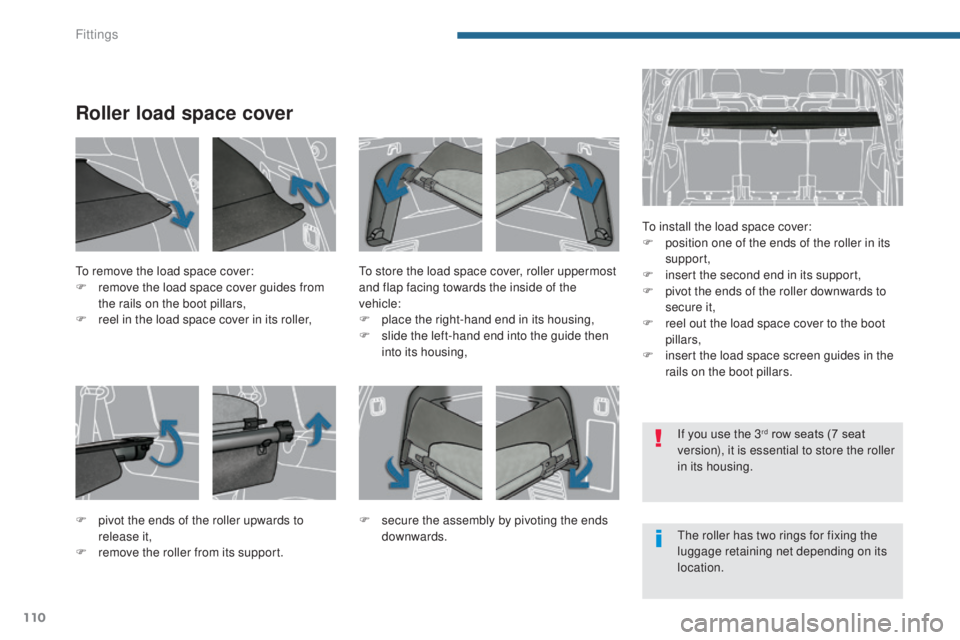

Roller load space cover
To install the load space cover:
F p osition one of the ends of the roller in its
support,
F

i
nsert the second end in its support,
F

p
ivot the ends of the roller downwards to
secure it,
F

r
eel out the load space cover to the boot
pillars,
F

i
nsert the load space screen guides in the
rails on the boot pillars.
To remove the load space cover:
F

r

emove the load space cover guides from
the rails on the boot pillars,
F

r

eel in the load space cover in its roller, To store the load space cover, roller uppermost
and flap facing towards the inside of the
vehicle:
F

p

lace the right-hand end in its housing,
F

s

lide the left-hand end into the guide then
into its housing,
F

p

ivot the ends of the roller upwards to
release it,
F

r

emove the roller from its support. F

se

cure the assembly by pivoting the ends
downwards. The roller has two rings for fixing the
luggage retaining net depending on its
location. If you use the 3
rd row seats (7 seat
version), it is essential to store the roller
in its housing.
Fittings
