Service indicator
Between 600 miles (1 000 km) and 1 800 miles
(3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on,
the spanner symbolising the service operations
comes on. The distance recorder display line
indicates the distance remaining before the
next service is due.
Example: 1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero reset,
according to the mileage covered since the last
service.
For BlueHDi Diesel versions, depending on the
country of sale, the level of deterioration of the
engine oil may also be taken into account.
Monitoring

29
5008_en_Chap01_controle-marche_ed01-2015
Resetting the service indicator
If you have carried out the service on your
vehicle yourself:
F
s
witch off the ignition,
F

p
ress and hold the trip distance recorder
zero reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the display indicates "=0" , release
the button; the spanner disappears.Service overdue
For 5 seconds after the ignition is switched on, the
spanner flashes to indicate that the service must
be carried out as soon as possible.
Example: the service is overdue by 186 miles
(3 0 0 k m).
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder zero reset
button.
T

he service information is displayed for a
few seconds, then disappears. If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
After each service, the service indicator must
be reset to zero. For BlueHDi versions, the spanner may
also come on early, according to the
level of deterioration of the engine oil,
which depends on the driving conditions
in which the vehicle is used.
With BlueHDi Diesel versions, the
Service warning lamp also comes on
when the ignition is switched on.
For 5 seconds after the ignition is switched on,
the screen indicates:
1
Monitoring

30
5008_en_Chap01_controle-marche_ed01-2015
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds when the ignition is switched on, after
the service information.Oil level correct
Oil level lowOil level indicator fault
In the event of a fault with the electric indicator,
the engine oil level is no longer monitored.
When the system has a fault, you should check
the engine oil level using the manual dipstick
(located under the bonnet).
This is signalled by the flashing of " O I L"
, or the
display of a message "Oil level incorrect" in the
instrument panel, accompanied by illumination
of the service warning lamp and an audible
signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
prevent damage to the engine.
Refer to the "Checking levels" section. This is signalled by the flashing of "OIL- -"
or the
display of a message "Oil level measurement
invalid" in the instrument panel. Contact a
PEUGEOT dealer or a qualified workshop.
The level shown will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes. * Depending on version.Refer to the "Checking levels" section.
Monitoring

31
5008_en_Chap01_controle-marche_ed01-2015

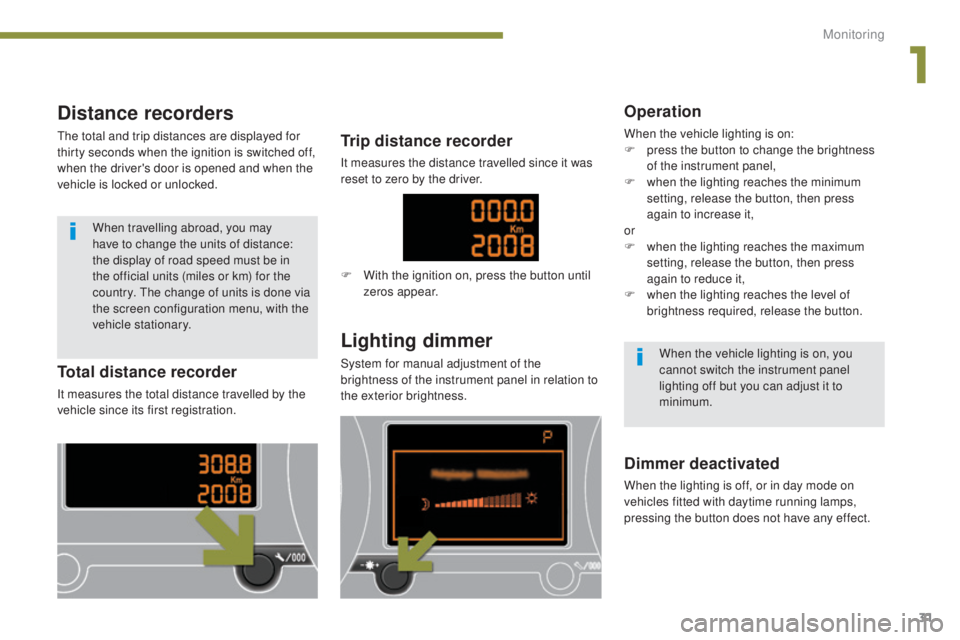

Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Lighting dimmer
System for manual adjustment of the
brightness of the instrument panel in relation to
the exterior brightness.Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset to zero by the driver.
Dimmer deactivated
When the lighting is off, or in day mode on
vehicles fitted with daytime running lamps,
pressing the button does not have any effect.
Operation
When the vehicle lighting is on:
F p ress the button to change the brightness
of the instrument panel,
F

w
hen the lighting reaches the minimum
setting, release the button, then press
again to increase it,
or
F

w
hen the lighting reaches the maximum
setting, release the button, then press
again to reduce it,
F

w
hen the lighting reaches the level of
brightness required, release the button.
When the vehicle lighting is on, you
cannot switch the instrument panel
lighting off but you can adjust it to
minimum.
When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country. The change of units is done via
the screen configuration menu, with the
vehicle stationary.
F

W

ith the ignition on, press the button until
zeros appear.
1
Monitoring

32
5008_en_Chap01_controle-marche_ed01-2015
This displays the following information:
- time,
-


date,
-

a
mbient temperature* (this flashes if there
is a risk of ice),
-
a

lert messages,
-

t
rip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission control
system faulty") or information messages
(e.g.: "Boot open") may appear temporarily.
Some can be cleared by pressing
the
"ESC"

button.
Monochrome screen A (without audio equipment)
Controls Main menu
There are three display control buttons:
-
" ESC" to abandon the operation in
progress,
-

"
MENU" to scroll through the menus or
sub-menus,
-

"O
K" to select the menu or sub-menu
required. F

P
ress the "MENU"
button to scroll through
the various menus of the main menu :
-
v
ehicle configuration,
-

options,
-
d
isplay settings,
-

languages,
- units.
F P ress the "OK" button to select the menu
required.
* With air conditioning only.
Displays in the screen
Monitoring

33
5008_en_Chap01_controle-marche_ed01-2015
Vehicle configuration
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language used
by the display (Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe, Deutsch,
English, Espanol).
Date and time
Once the "Display settings" menu has been
selected, you have access to the following
settings:
- year,
-
month,
-


d ay,
-


h o u r,
-


minutes,
-

1
2 or 24 hour mode.
Units
Once the "Units" menu has been selected, you
can change the units for:
-
t
emperature (°C or °F),
-

f
uel consumption (l/100 km, mpg or km/l).
F Once you have selected a setting, press the "OK" button to change its value.
F

W
ait for approximately ten seconds without
any action to allow the changed data to
be recorded or press the "ESC" button to
cancel.
The screen then returns to the normal display.
Once the " Vehicle configuration" menu has
been selected, you can activate or deactivate
the following equipment:
-

w
iper linked with reverse gear (refer to the
"Visibility" section),
-

s
elective unlocking (refer to the "Access"
section),
-

"
guide-me-home" lighting (refer to the
"Visibility" section),
-

d
irectional headlamps (refer to the
"Visibility" section),
-

a
utomatic parking brake** (refer to the
"Driving" section),
-

p
arking space sensors (refer to the
"Driving" section),
-


... As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.
** Depending on the country of sale.
1
Monitoring

34
5008_en_Chap01_controle-marche_ed01-2015
Monochrome screen A (with audio equipment)
Controls
This displays the following information:
- time,
-


date,
-

a
mbient temperature* (this flashes if there
is a risk of ice),
-
a

lert messages,
-

a
udio sources (radio, CD, ...),
-

t
rip computer (refer to the corresponding
section).
Warning messages (e.g.: "Emission control
system faulty") or information messages (e.g.:
"Boot open") may appear temporarily. Some
can be cleared by pressing the "
<] arrow"
button.
Main menu
F Press the "MENU" button for access to
the main menu , then press the " 5" or
" 6 " buttons to scroll through the various
menus:
-


radio - CD,
-
v

ehicle configuration,
-


options,
-
d

isplay settings,
-


languages,
-


units.
F

P
ress the "OK" button to select the menu
required.
From the audio equipment control panel, you
can:
F

p

ress the "MENU" button to gain access to
the main menu ,
F

p

ress the " 5" or " 6" buttons to scroll
through the items on the screen,
F

p

ress the "MODE" button to change the
permanent application (trip computer,
audio source, ...),
F

p

ress the " 7" or " 8" buttons to change a
setting value,
F

p

ress the "OK" button to confirm,


or
Radio- CD
With the audio equipment switched on, once
the "Radio- CD" menu has been selected you
can activate or deactivate the functions linked
with use of the radio (RDS, REG), the CD or the
CD changer (introscan, shuffle, CD repeat).
F

p

ress this button to abandon the
operation in progress.
* With air conditioning only. For more information on the "Radio-
CD" application, refer to the "Audio
equipment and telematics" section.
Displays in the screen
Monitoring

35
5008_en_Chap01_controle-marche_ed01-2015
Date and time
Once the "DATE AND TIME" menu has been
selected, you have access to the following
settings:
- year,
-
month,
-


d ay,
-


h o u r,
-


minutes,
-

1
2 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language used
by the display.
Units
Once the "Units" menu has been selected,
you can change the units of the following
parameters:
-
t
emperature (°C or °F),
-

f
uel consumption (l/100 km, mpg or km/l).
F

O

nce you have selected a setting, press
the " 7" or " 8" buttons to change its value.
F

P

ress the " 5" or " 6" buttons to switch
respectively to the previous or next setting.
F

P

ress the "OK" button to record the
change and return to the normal display or
press the "
<] arrow" button to cancel.
Vehicle configuration
Once the " Vehicle Configuration" menu has
been selected, you can activate or deactivate
the following equipment:
-

w
iper linked with reverse gear (refer to the
"Visibility" section),
-

s
elective unlocking (refer to the "Access"
section),
-

g
uide-me-home lighting (refer to the
"Visibility" section),
-

d
irectional headlamps (refer to the
"Visibility" section),
-

a
utomatic parking brake** (refer to the
"Driving" section),
-


...
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.
** Depending on the country of sale.
1
Monitoring
