128
3008_en_Chap07_securite_ed01-2015

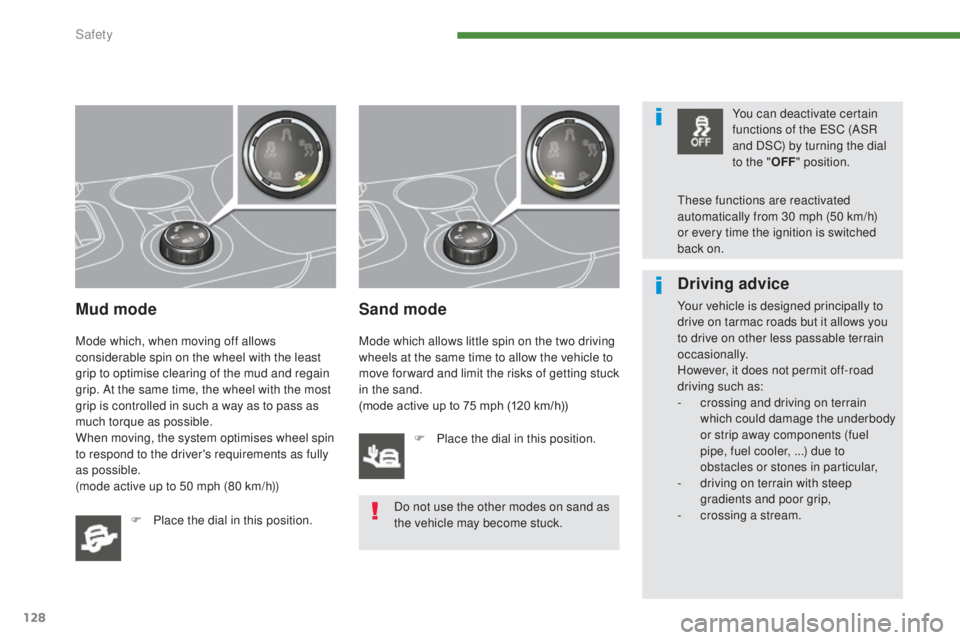

Mud mode
Mode which, when moving off allows
considerable spin on the wheel with the least
grip to optimise clearing of the mud and regain
grip. At the same time, the wheel with the most
grip is controlled in such a way as to pass as
much torque as possible.
When moving, the system optimises wheel spin
to respond to the driver's requirements as fully
as possible.
(mode active up to 50 mph (80 km/h))F

P
lace the dial in this position.
Sand mode
Mode which allows little spin on the two driving
wheels at the same time to allow the vehicle to
move for ward and limit the risks of getting stuck
in the sand.
(mode active up to 75 mph (120 km/h))F

P
lace the dial in this position. You can deactivate certain
functions of the ESC (ASR
and DSC) by turning the dial
to the "
OFF" position.
Driving advice
Your vehicle is designed principally to
drive on tarmac roads but it allows you
to drive on other less passable terrain
occasionally.
However, it does not permit off-road
driving such as:
-

c
rossing and driving on terrain
which could damage the underbody
or strip away components (fuel
pipe, fuel cooler,
...) due to
obstacles or stones in particular,
-

d
riving on terrain with steep
gradients and poor grip,
-

c
rossing a stream.
Do not use the other modes on sand as
the vehicle may become stuck. These functions are reactivated
automatically from 30 mph (50 km/h)
or every time the ignition is switched
back on.
Safety

242
3008_en_Chap11_caracteristiques_ed01-2015
Engine1.2 litre PureTech 130 S&S 1.6 litre THP 163 1.6 litre THP 165 S&S
Gearbox Manual

(6-speed) Automatic

(6-speed) Automatic

(6-speed)
Model code HNYM/S
HNYM/1S 5FMA /1
5FM A /1D 5G Z T/S
5G Z T/1S
Cubic capacity (cc) 1 1991 598 1 598
Bore x stroke (mm) 70 x 90.577 x 85.8 77 x 85.8
Max power: EU standard (kW)* 96120 121
Max power engine speed (rpm) 5 5006 000 6 000
Max torque: EU standard (Nm) 230240240
Max torque engine speed (rpm) 1 7501 400 1 400
Fuel Unleaded petrolUnleaded petrolUnleaded petrol
Catalytic converter yesyesyes
Engine oil capacity (in litres)
(with filter replacement) 3.5
4.25 4.25
Petrol engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation
(directive 1 999/99/CE).
Technical data

245
3008_en_Chap11_caracteristiques_ed01-2015
Engine1.6 litre e- HDi 1151.6 litre BlueHDi 115 S & S 1.6 litre BlueHDi 120 S&S
Gearbox ETG6 electronic

(6-speed) Manual

(6-speed) EAT6 automatic

(6-speed) Manual

(6-speed) EAT6 automatic

(6-speed)
Model code 9HD8/PSBHXM/S
BHXM/1S BH X T/1S
BH X T/2S BHZM/S
BHZM /1S BHZ T/1S
BHZ T/2S
Cubic capacity (cc) 15 6 01 560 1 560
Bore x stroke (mm) 75 x 88.375 x 88.3 75 x 88.3
Max power: EU standard (kW)* 8484 88
Max power engine speed (rpm) 3 6003 500 3 500
Max torque: EU standard (Nm) 270300 300
Max torque engine speed (rpm) 1 7501 750 1 750
Fuel DieselDiesel Diesel
Catalytic converter yesyes yes
Particle filter yesyes yes
Engine oil capacity (in litres)
(with filter replacement) 3.75
- -
Diesel engines and gearboxes
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation
(directive 1 999/99/CE).
11
Technical data

246
3008_en_Chap11_caracteristiques_ed01-2015
Diesel engines and gearboxes (continued)
* The maximum power corresponds to the type approved value on a test bed, under the conditions defined in European legislation (directive 1 999/99/CE).
Engine
2.0 litre BlueHDi 136 S&S2.0 litre BlueHDi 150 S&S
Gearbox Manual

(6-speed) Manual

(6-speed)
Model code AHSM/S
AHSM/1S AHRM/S
AHRM/1S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
Max power: EU standard (kW)* 10 011 0
Max power engine speed (rpm) 4 0004 000
Max torque: EU standard (Nm) 370370
Max torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter yesyes
Particle filter yesyes
Engine oil capacity (in litres)
(with filter replacement) -
-
Technical data
